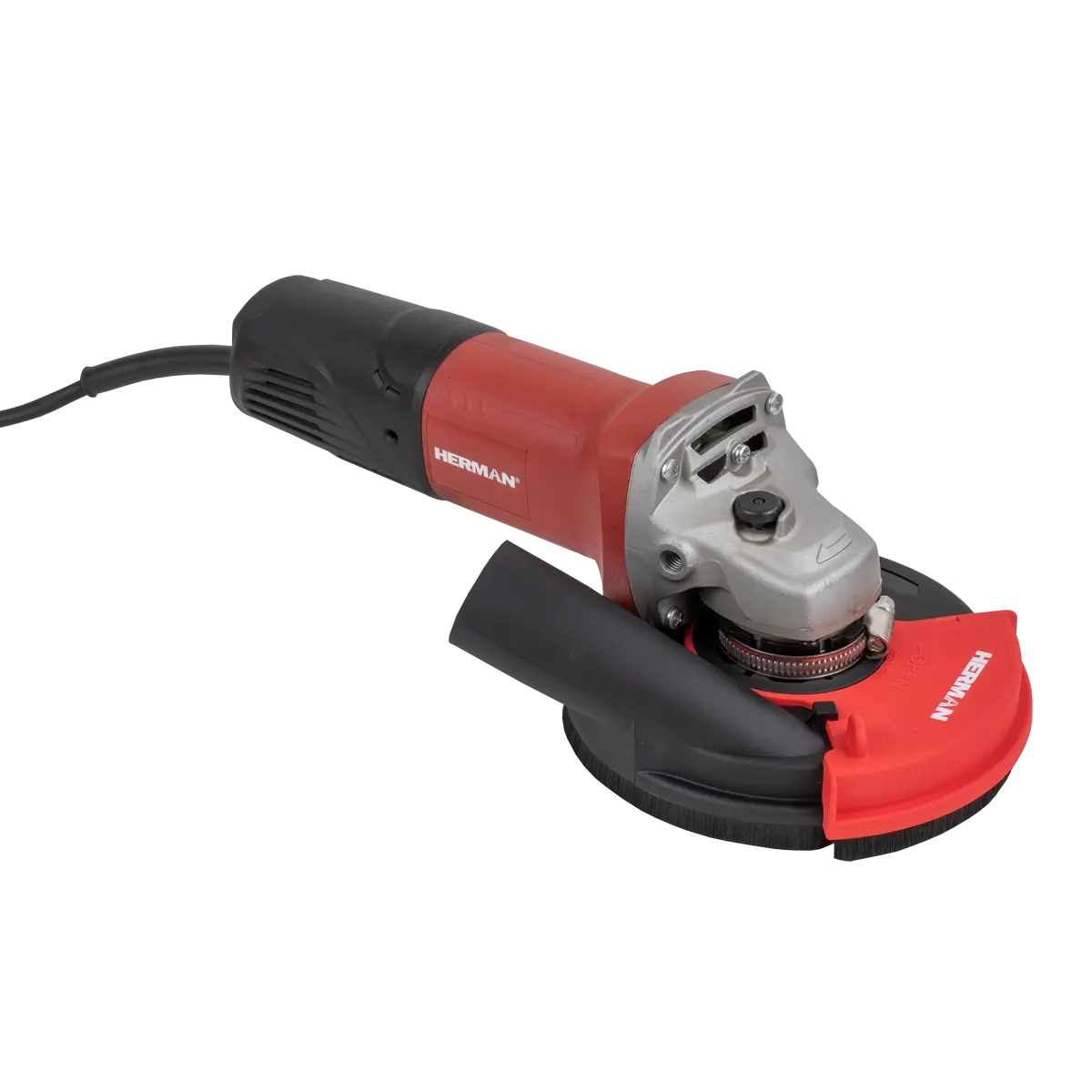

Extraction system complete
HERMAN TQ-10
For 125mm angle grinders
Start over
Choose variant:
Name
Suitable for
Balenie (ks)
Minimizes the penetration of dust into the environment when grinding concrete, stone and other building materials
Suitable tools and accessories
Angle grinders with commutator motor
Angle grinders with commutator motor
| Product | Quantity in package (pcs) | Price | |
|
Angle Grinder HERMAN WX-12503 125 mm | 1500 W | 1 | |
|
Angle Grinder HERMAN WX-12504 125 mm | 1500 W | 1 |
Angle grinders
Angle grinders
Designation
- In conjunction with an industrial vacuum cleaner, especially for extracting dust arising from the grinding of building materials with diamond discs with a diameter of up to 125mm
- Suitable for 125mm angle grinders with a standard 8mm thick flange
- It is not suitable for extraction when grinding ferrous and non-ferrous metals
Description
The diameter of the fixed nozzle of the extraction system is 33/38mm:
the possibility of direct connection to the HERMAN AXDC-1800 battery vacuum cleaner (being prepared in 2023)
Universal plug-in adapter HERMAN UA-38/50A (included in delivery):
compatible with the fixed neck of the extraction system, with output internal threads M38 and M50 to expand the connection options to different types of vacuum cleaners
40/50 reduction:
for connection to the HERMAN SX 1600 vacuum cleaner (discontinued)
Effective dust collection:
the dense bristles of the large and small collection brush minimize the penetration of dust into the environment
Universal system:
easy installation on all common 115mm and 125mm angle grinders
Construction with a sliding part of the extraction system:
allows access to the edges of the surfaces in the corners between the wall and the floor
Simple replacement of worn collection brushes:
without the use of an additional tool
Parameters
| Grinding wheel diameter [mm] | 100 - 125 |
|---|---|
| Weight [g] | 240 |
Contents of the package
- 1x Base 125mm with sliding cover
- 1x Large collection brush
- 1x Small collection brush
- 1x UA-38/50A: Reducing nozzle with threads
- 1x Clamping clip
- 1x Reduction 40/50
| Name | Suitable for | Quantity in package (pcs) | Price | |
ID: 18010003
|
Extraction system complete TQ-10 | For 125mm angle grinders | 1 | |
ID: 18010017
|
Brush | TQ10 | 1 |
