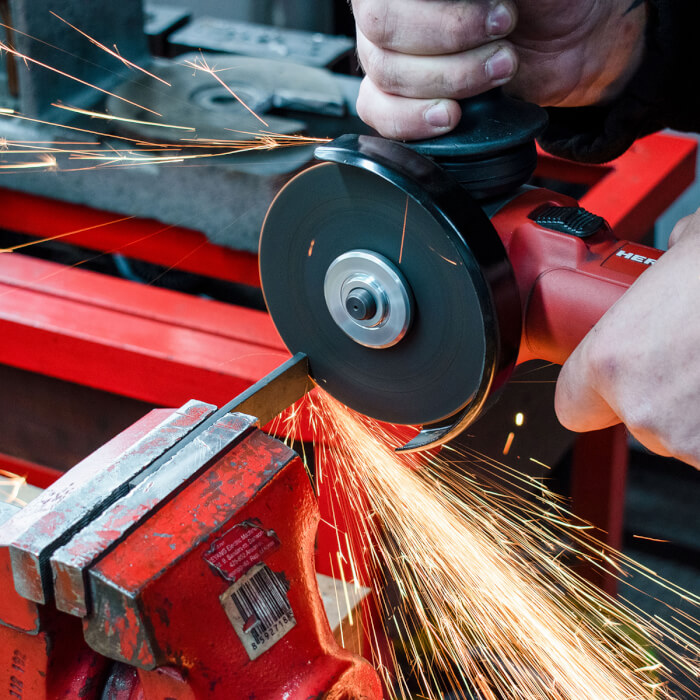

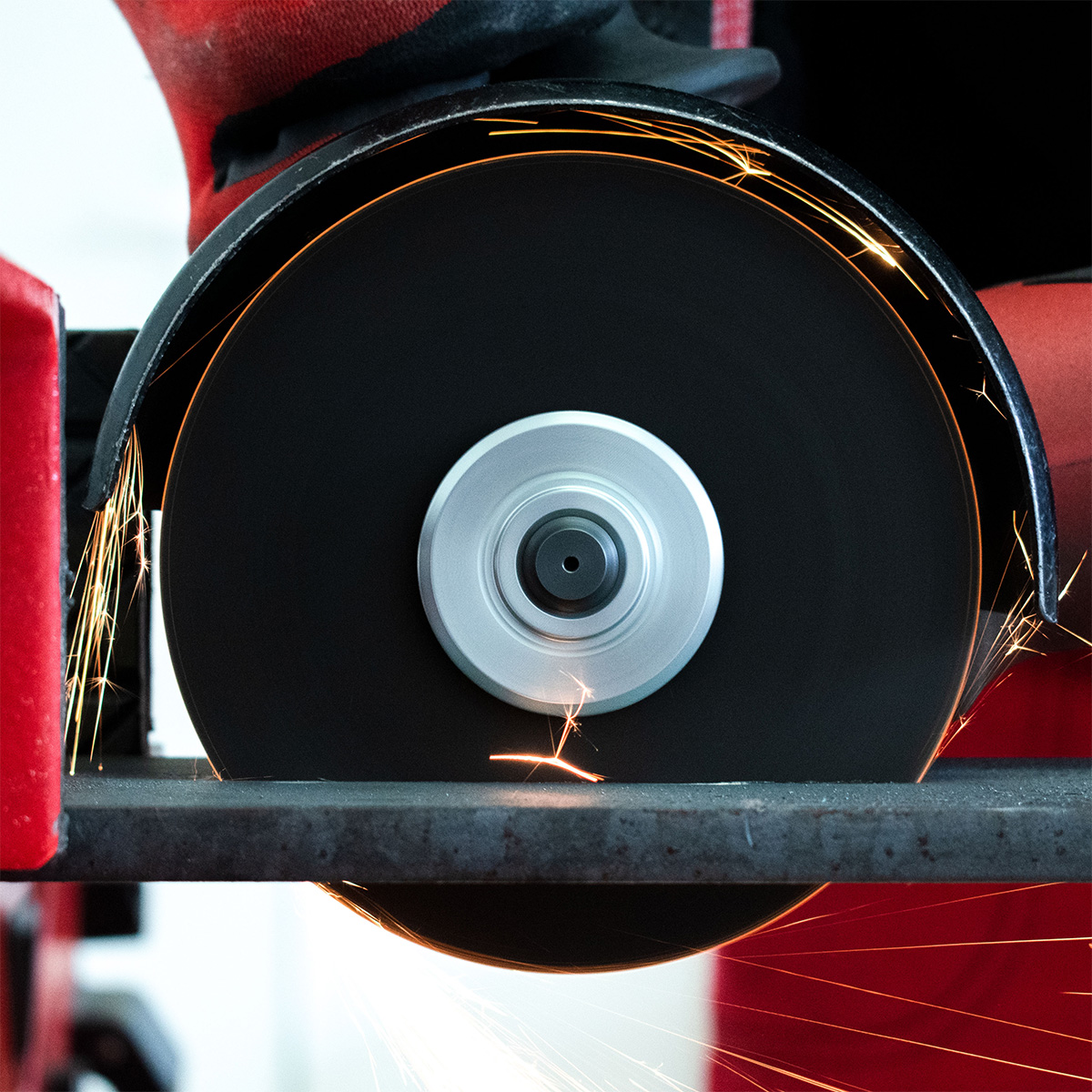

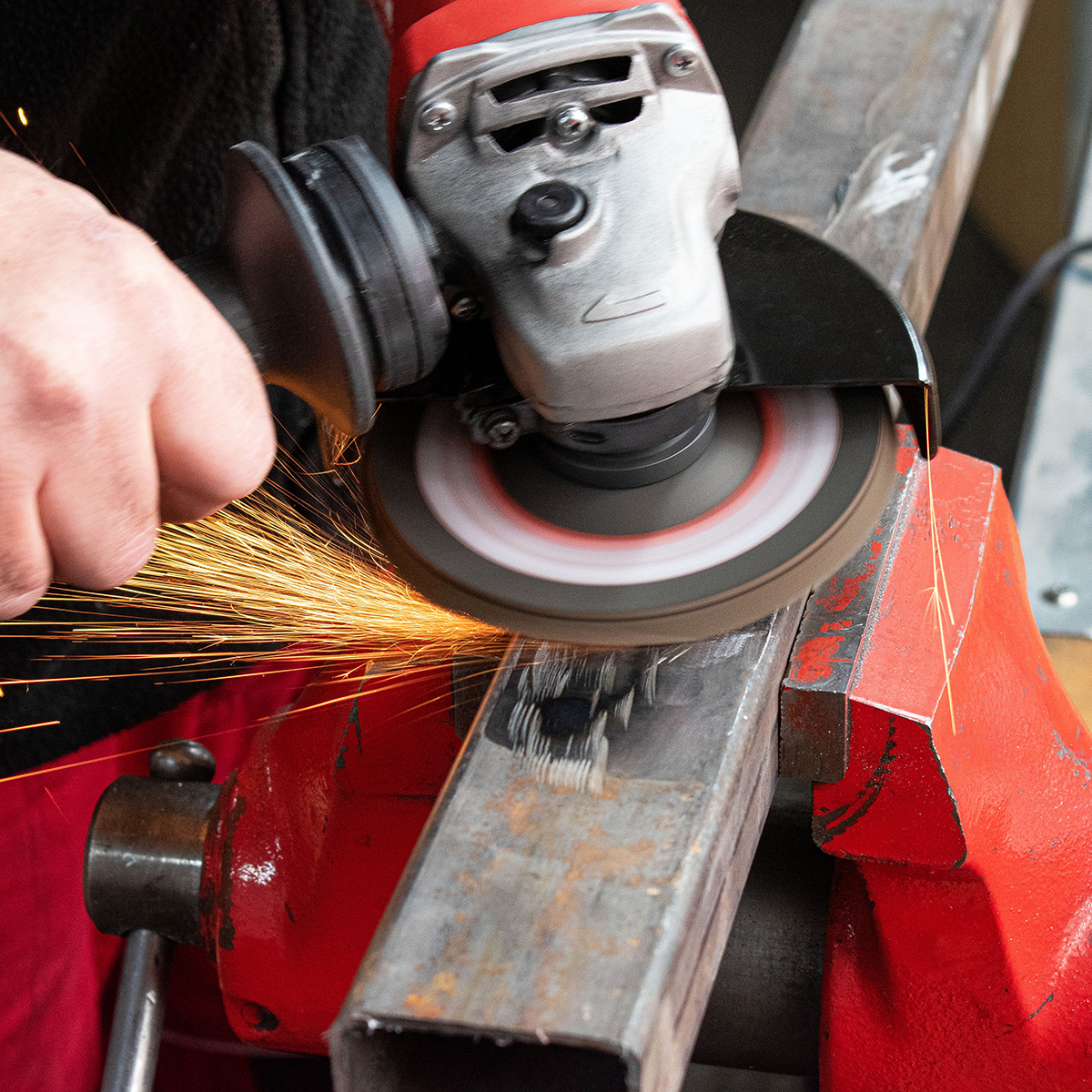

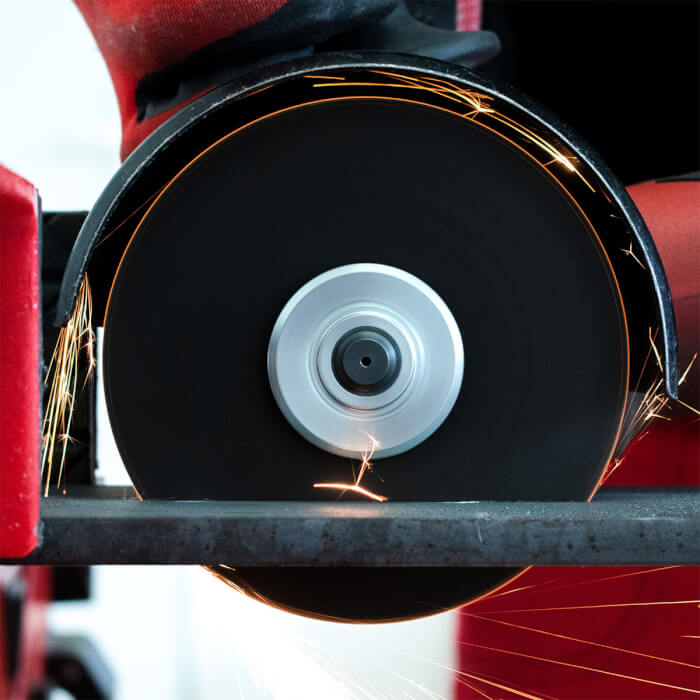

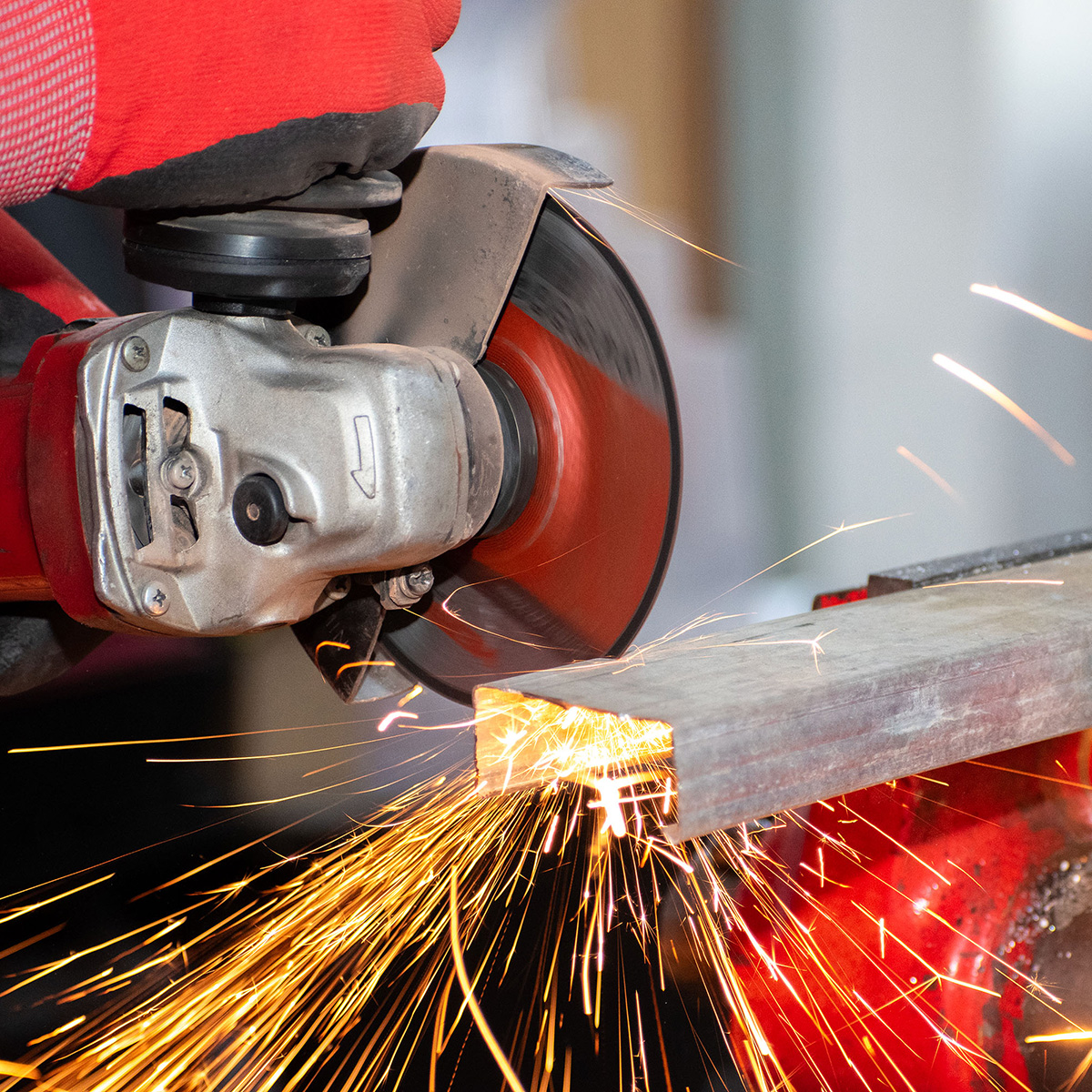

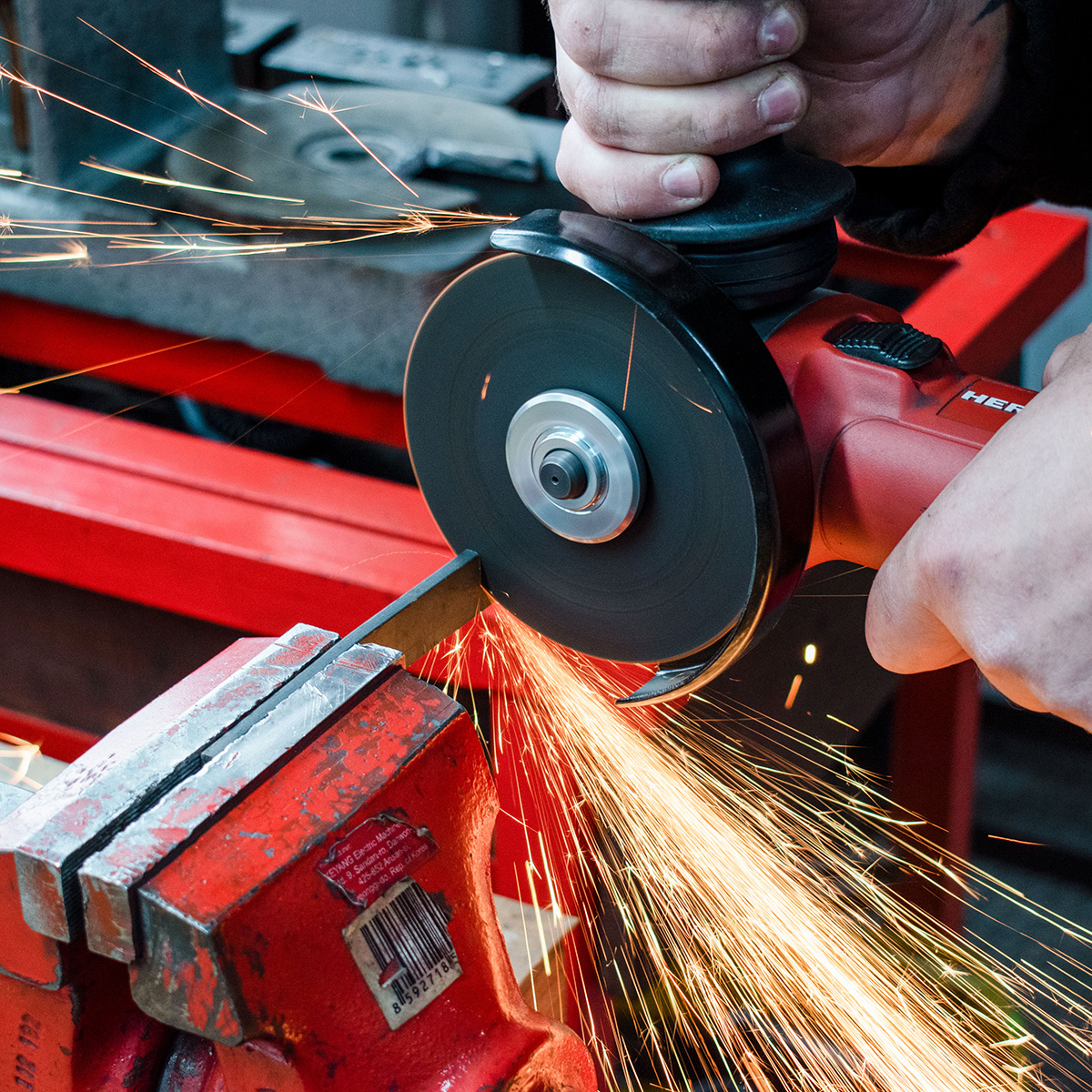

Angle Grinder
HERMAN WX-12506 BL
125 mm | 1300 W
Suitable tools and accessories
| Product | Quantity in package (pcs) | Price | |
|
HERMAN Metal box | 10pcs cutting wheels 125x1,0x22,23mm | Flat | TYP 41 | 1 | |
|
HERMAN Metal box | 10pcs cutting wheels 125x1,0x22,23mm | Flat | TYP 41 | 10 |
| Product | Quantity in package (pcs) | Price | |
|
Extraction system complete HERMAN TQ-10 For 125mm angle grinders | 1 |
| Product | Quantity in package (pcs) | Price | |
|
Power supply cord (flex cord) HERMAN FC-10A | 2,5m WX 10001, WX 12501, WX 12503, WX 12504, WX 15001, BX 800, MBX 650, RX 1700 | 1 |
Designation
- For operations with high demands on performance and reliability

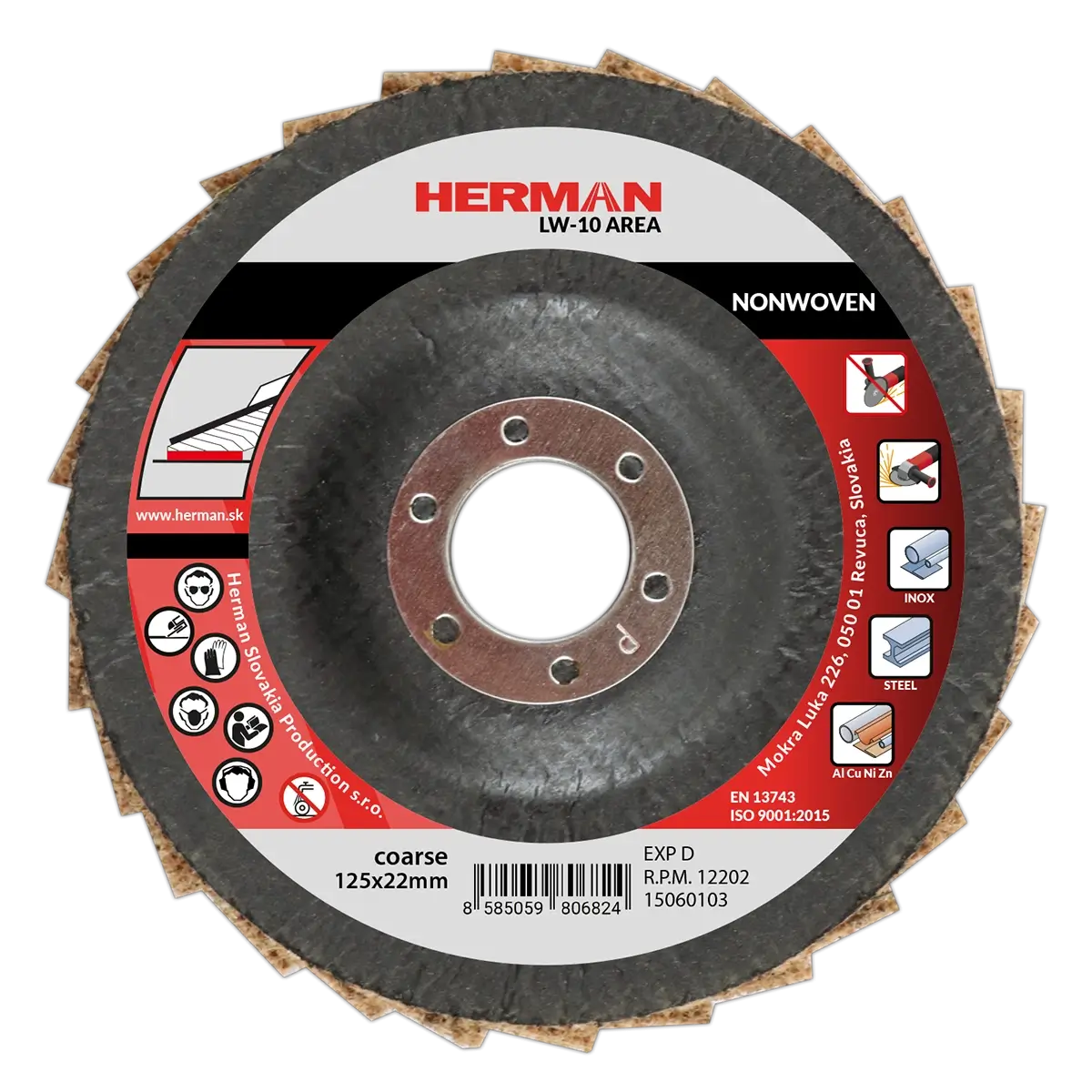

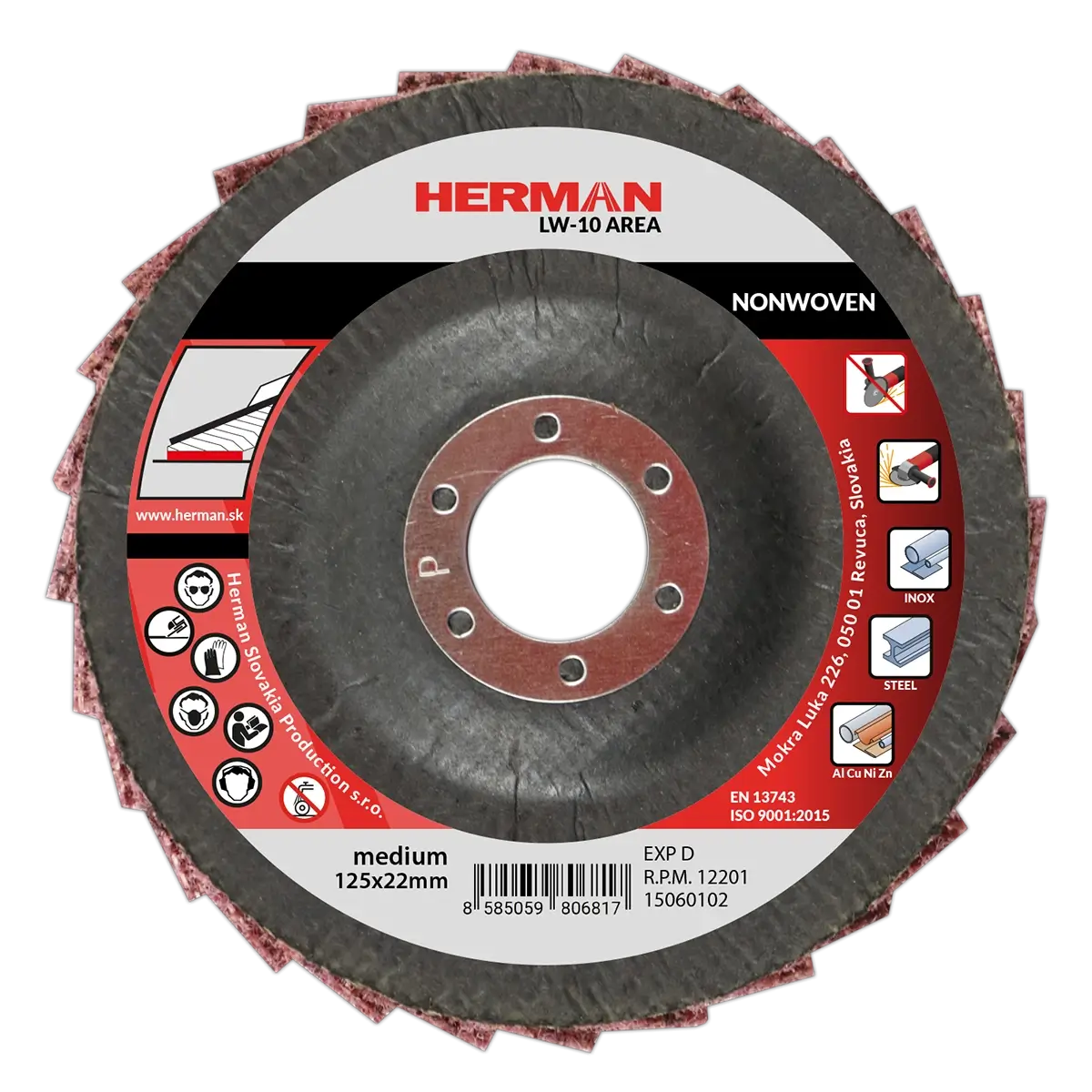

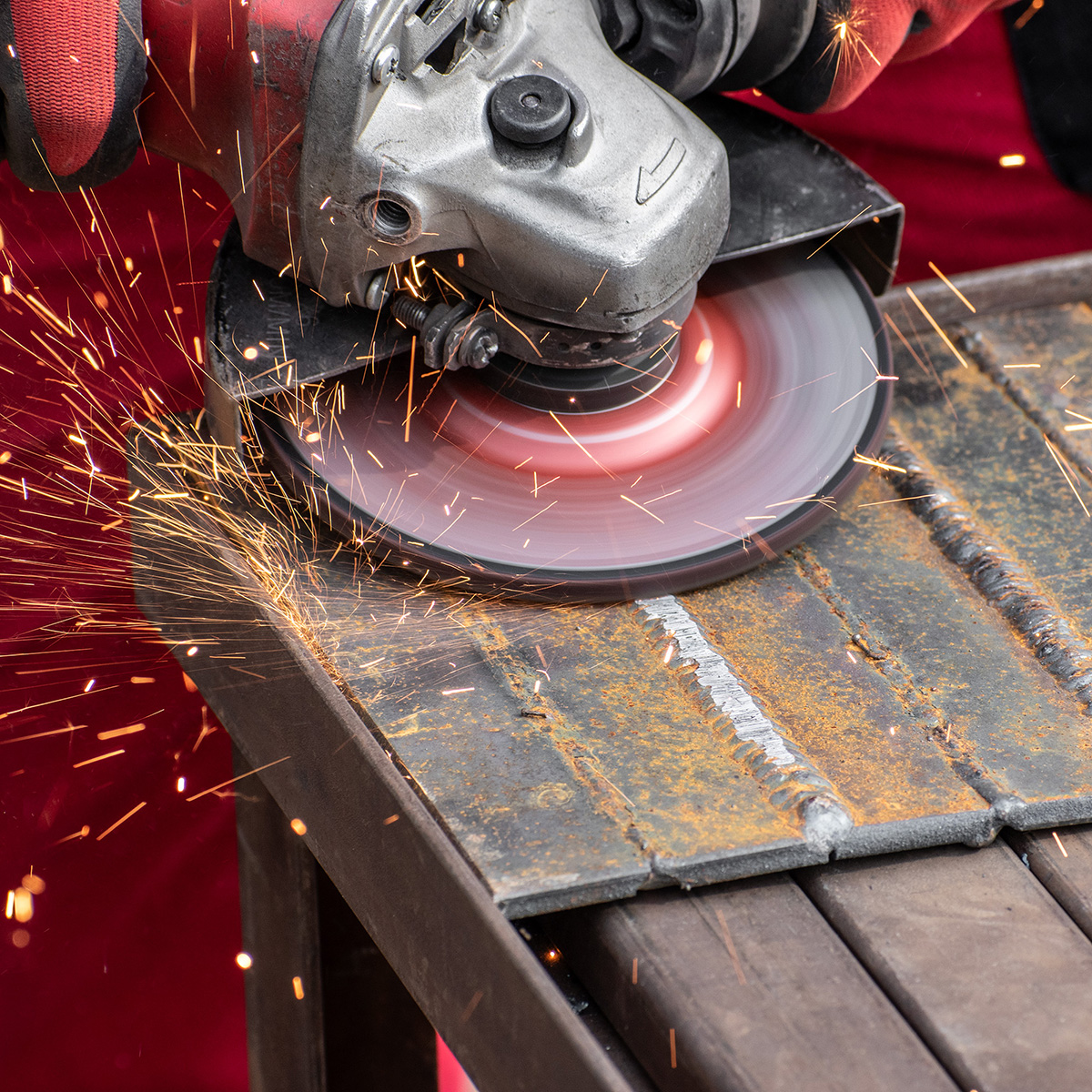

- Particularly for grinding, polishing and cleaning operations where speed control is required, e.g. grinding with fleece wheels (non woven), etc.
Comfort

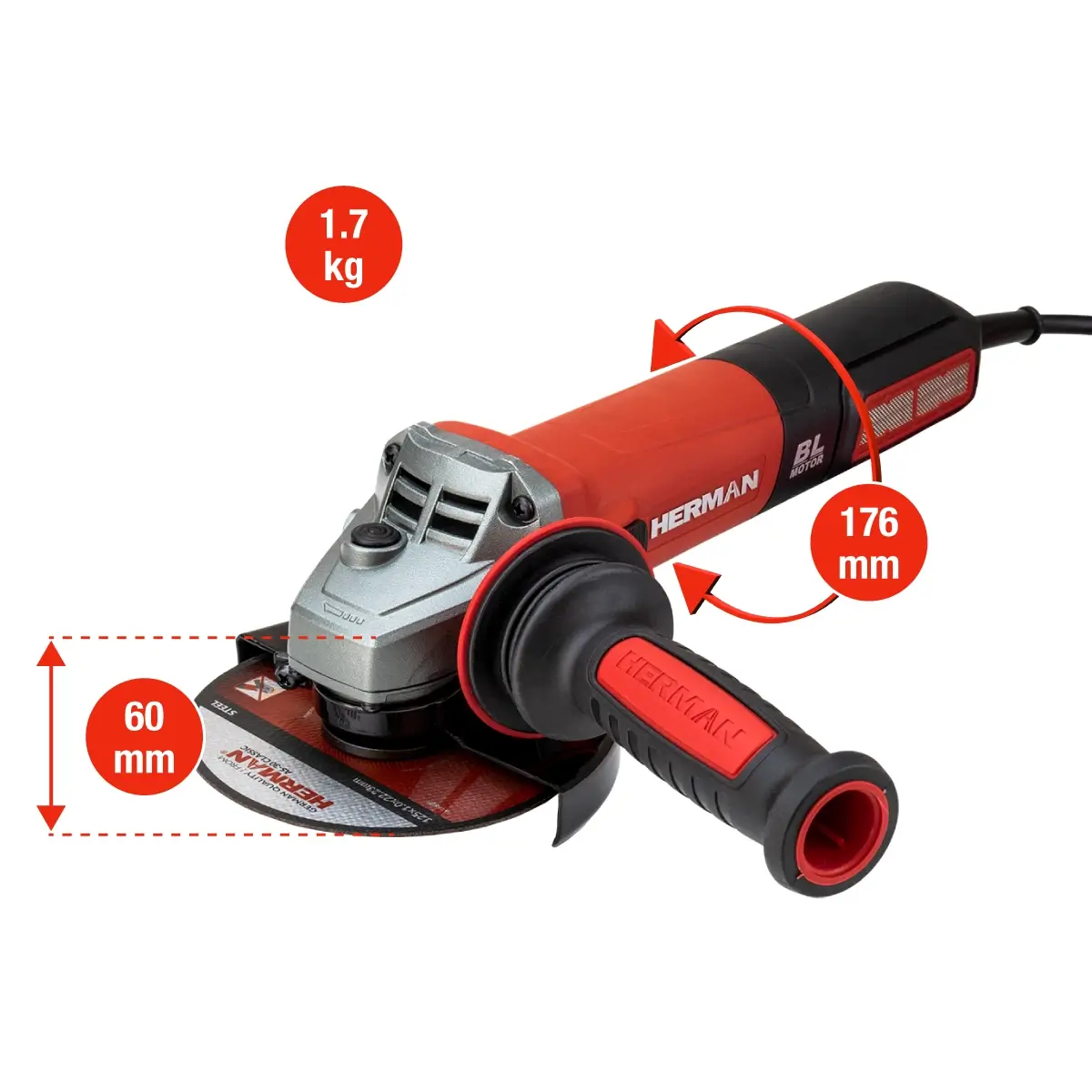

Grinder body diameter at the point of grip only 56 mm:
allows a very comfortable, natural and firm grip even for operators with smaller palms
Low-profile shape of the gearbox housing:
allows more comfortable working in confined spaces
Ear-pleasing soft and smooth motor sound:
a completely different experience from what you have been used to so far
Adjustable speed:
6 speed levels from 2 800 - 10 000 rpm
Ergonomic position and shape of the mains switch:
allows reliable operation of the switch with the thumb even with gloves
Mains switch locking in the on position:
no need to keep your thumb on the switch when working
Anti-vibration front handle with the possibility of attachment in two positions:
significantly reduces the vibrations transmitted from the grinder to the hand, comfortable work even for left-handed users
Angle grinder head can be rotated by 90 - 180 - 270°:
for even greater operating comfort
Spindle lock button:
facilitates disc change by locking the shaft rotation
Light alloy gearbox:
reduces the weight of the grinder
Safety
"SOFT START" function:
ensuring a smooth, soft start of the motor and reducing the starting torque when starting the grinder
"RESTART PROTECTION" function:
protection against restarting the engine after the power supply is restored
"KICK BACK STOP" function:
It shuts off the engine when the disc is blocked and protects the operator from kickback
Double insulation:
increased protection against electric shock
Crack-resistant protective disc cover:
with the option of setting the optimal position for greater safety
Lifetime

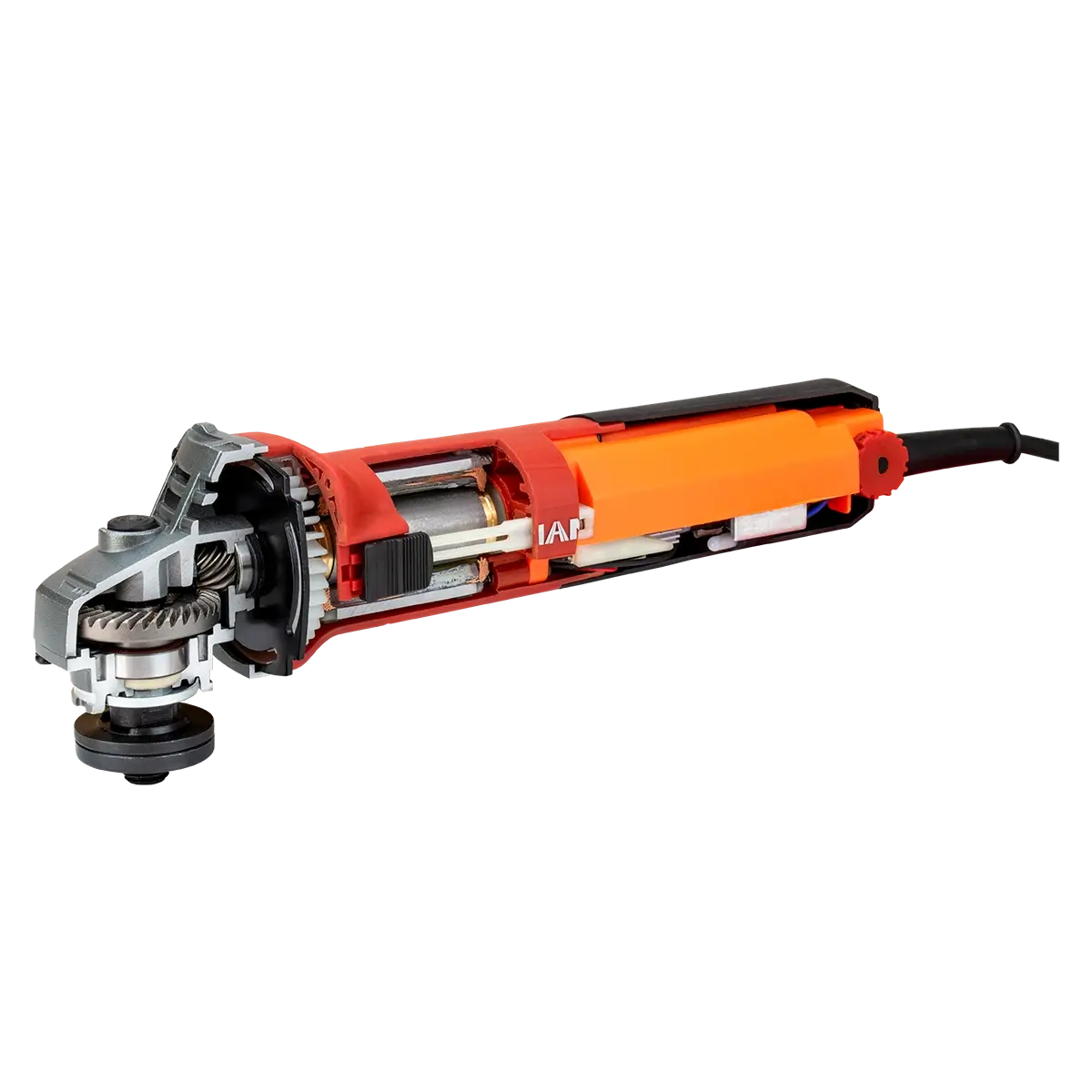

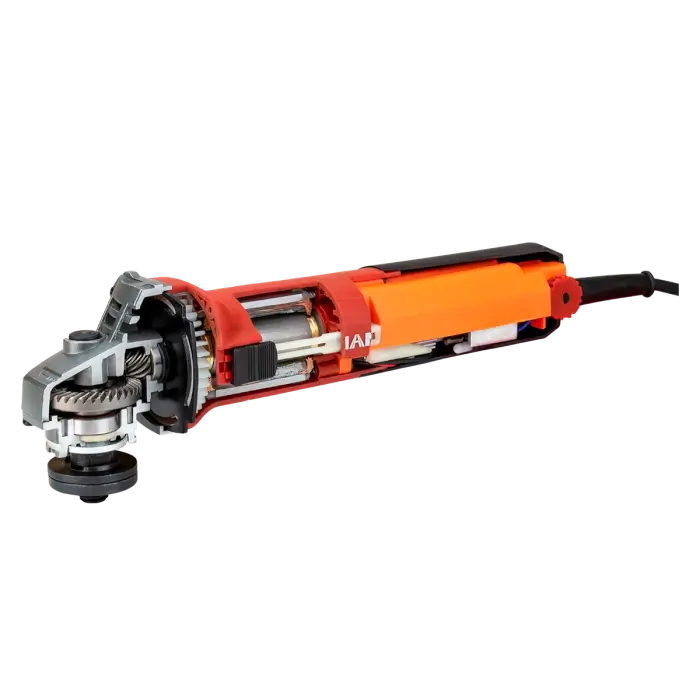

Powerful brushless motor:
less maintenance, more than 72% efficiency, end of carbon brushes
Removable anti-dust grids:
for better and easier maintenance of the machine
Light alloy gearbox:
the material used contains additives to increase wear resistance
Stator winding with epoxy protection:
contributes to longer life of the grinder
Efficient anti-dust system:
two removable grids prevent larger dirt particles from entering the suction system, reduce the penetration of dust during the intake of cooling air and simplify preventive maintenance
Specially shaped air inlets:
increase the efficiency of motor cooling
Parameters
| Voltage [V~] | 220-240 |
|---|---|
| Rated power [W] | 1300 |
| Spindle thread | M14 |
| Max. disc diameter [mm] | 125 |
| Idle speed [U/min] | 2800-10000 |
| A-weighted emission sound power level (LWA) [dB(A)] | 101 |
| A-weighted emission sound pressure level (LpA) [dB(A)] | 90 |
| Uncertainty (K) [dB(A)] | 3 |
| Weight (according to EPTA 01/2003) [kg] | 1,7 |

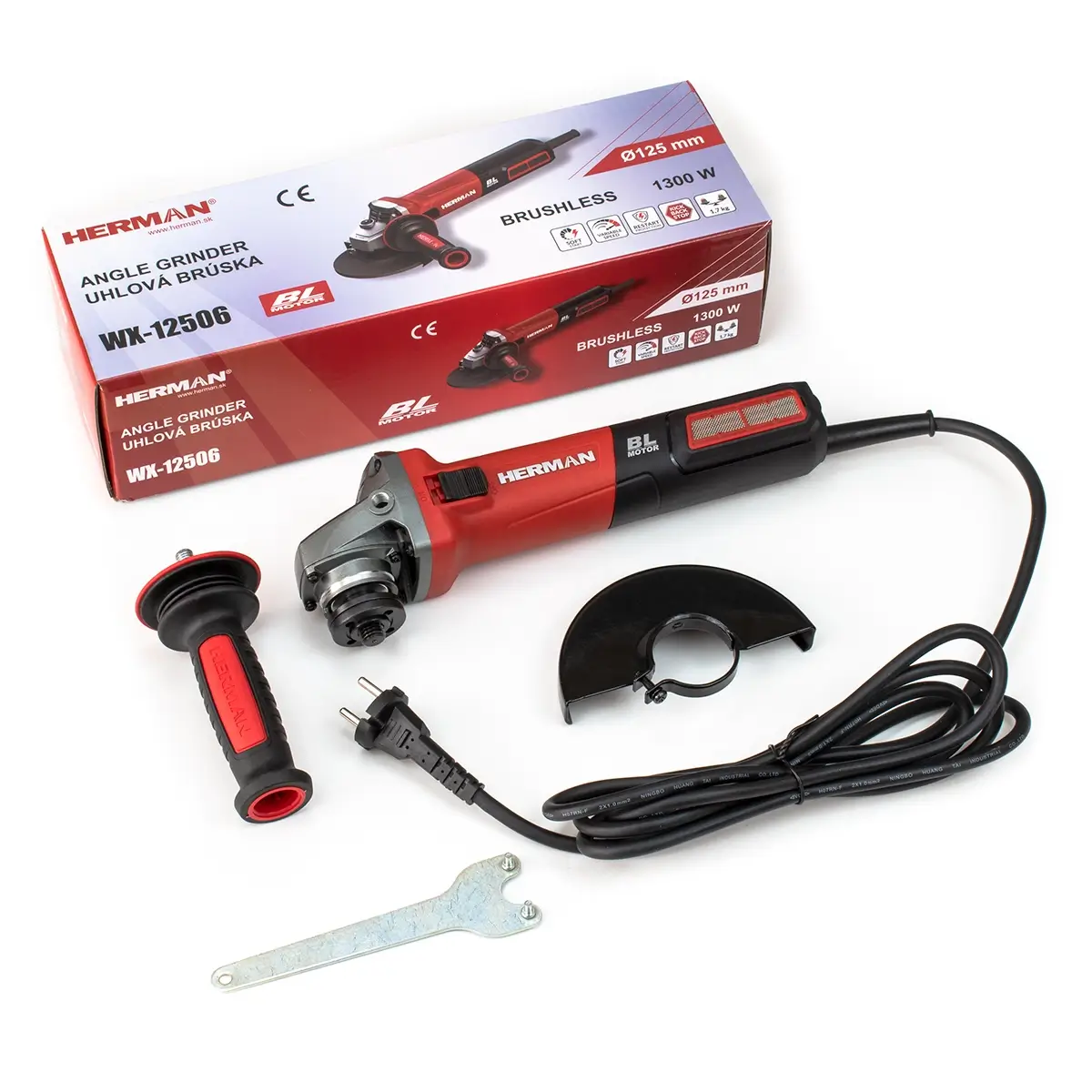

Contents of the package
- 1x Angle grinder
- 1x Additional handle
- 1x Clamping key
- 1x Clamping flange
- 1x Clamping nut
- 1x Disc cover
- 1x Instructions for use
