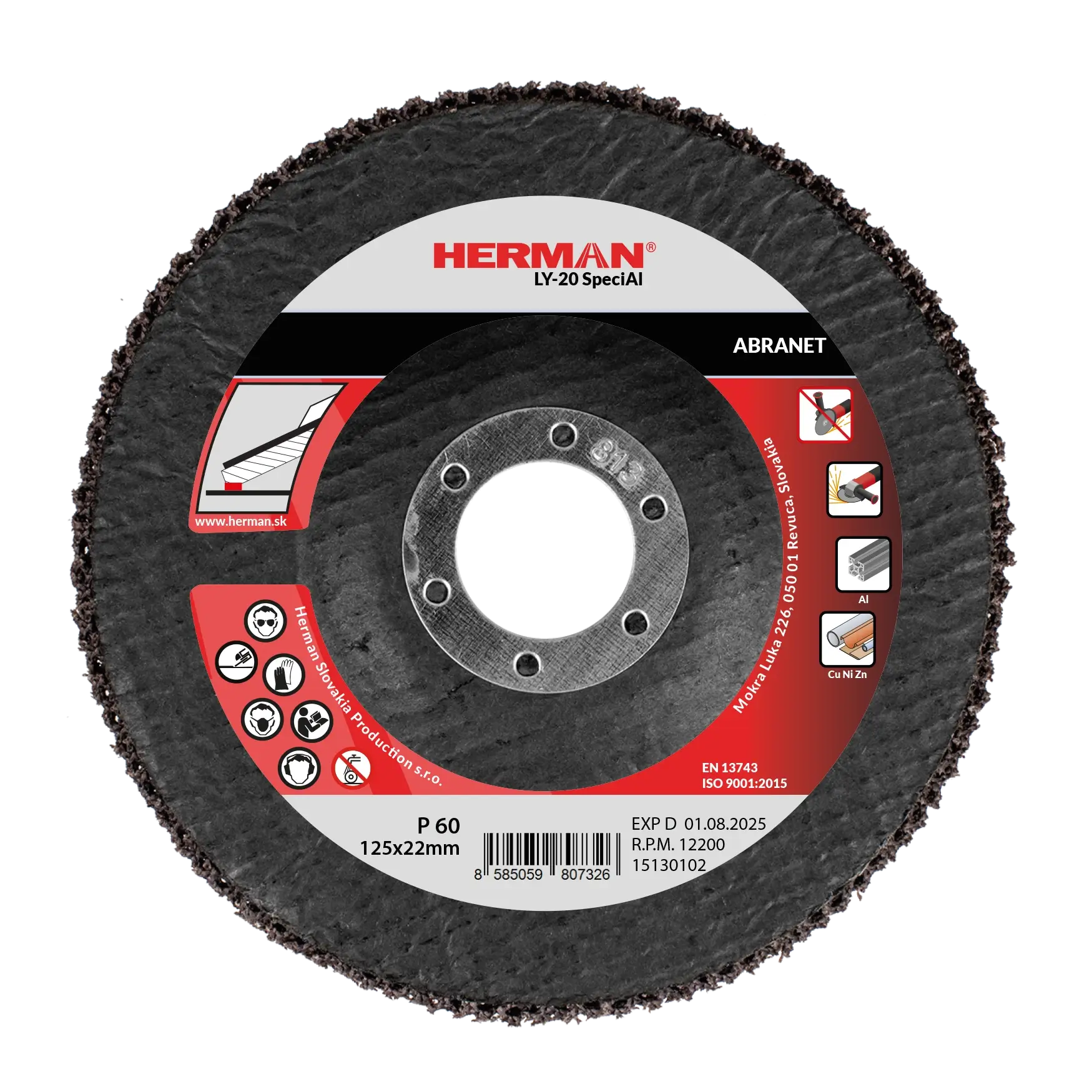

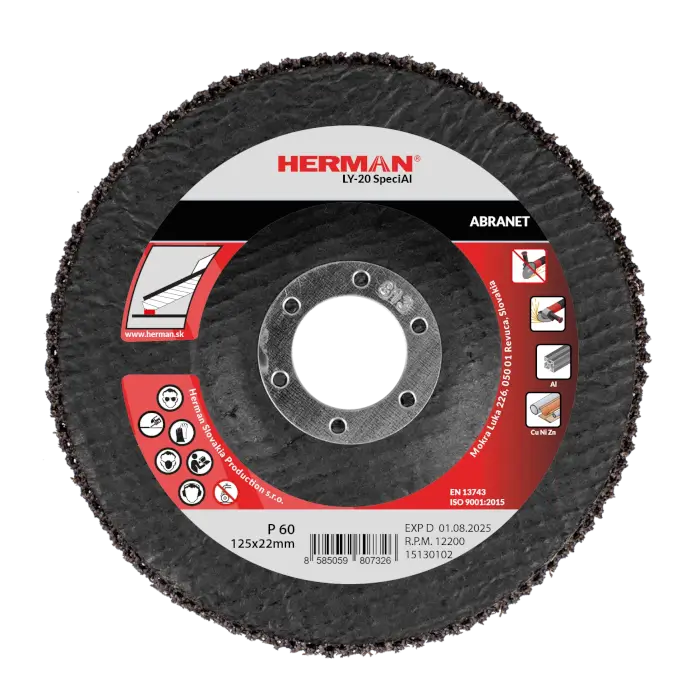

Flap disc
HERMAN LY-20 Special
For processing aluminum

5,0
(7x)
Start over Choose variant:
Diameter (mm)
125
Grain size
Number of flaps (pcs)
80 90
Centre hole (mm)
Balenie (ks)
5 25

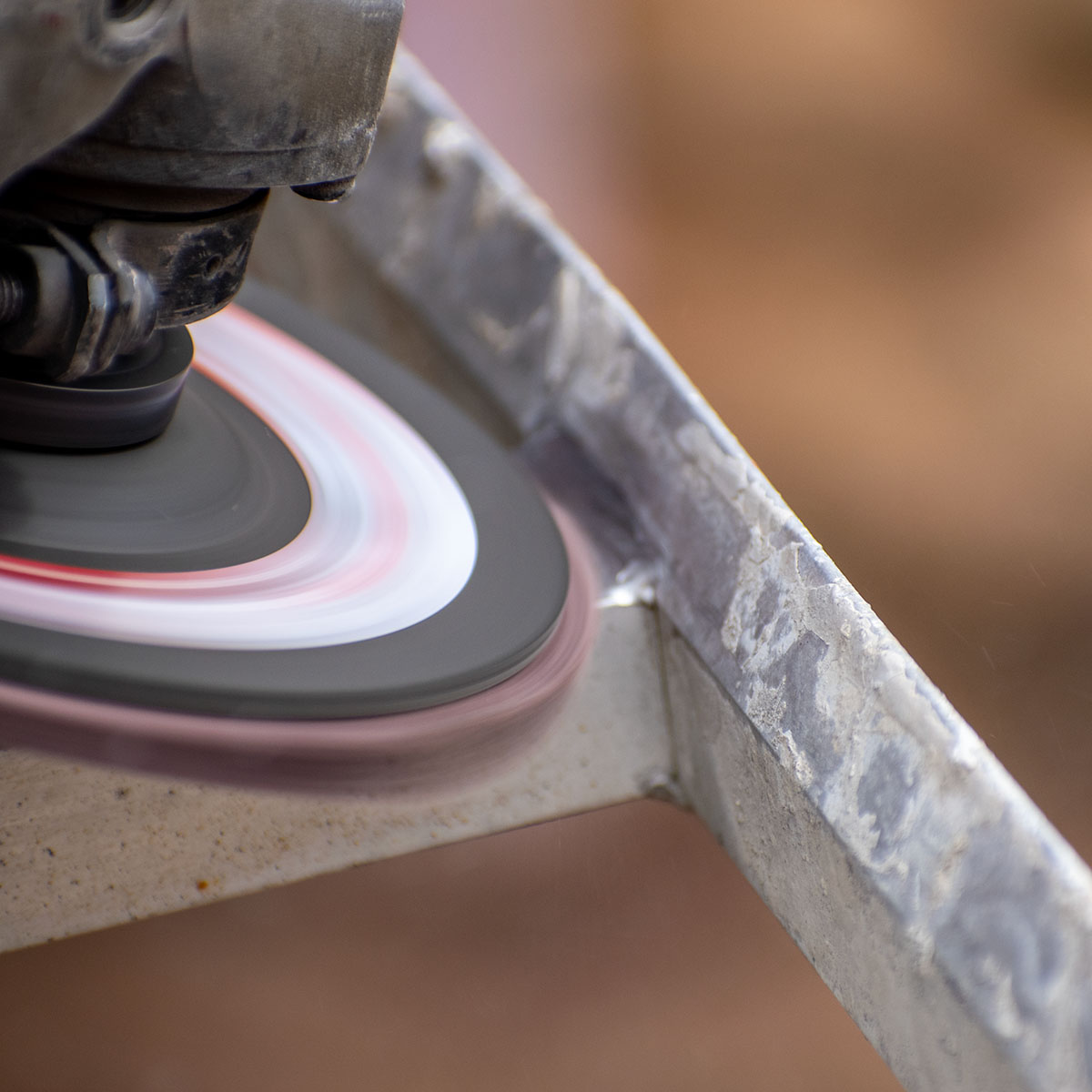

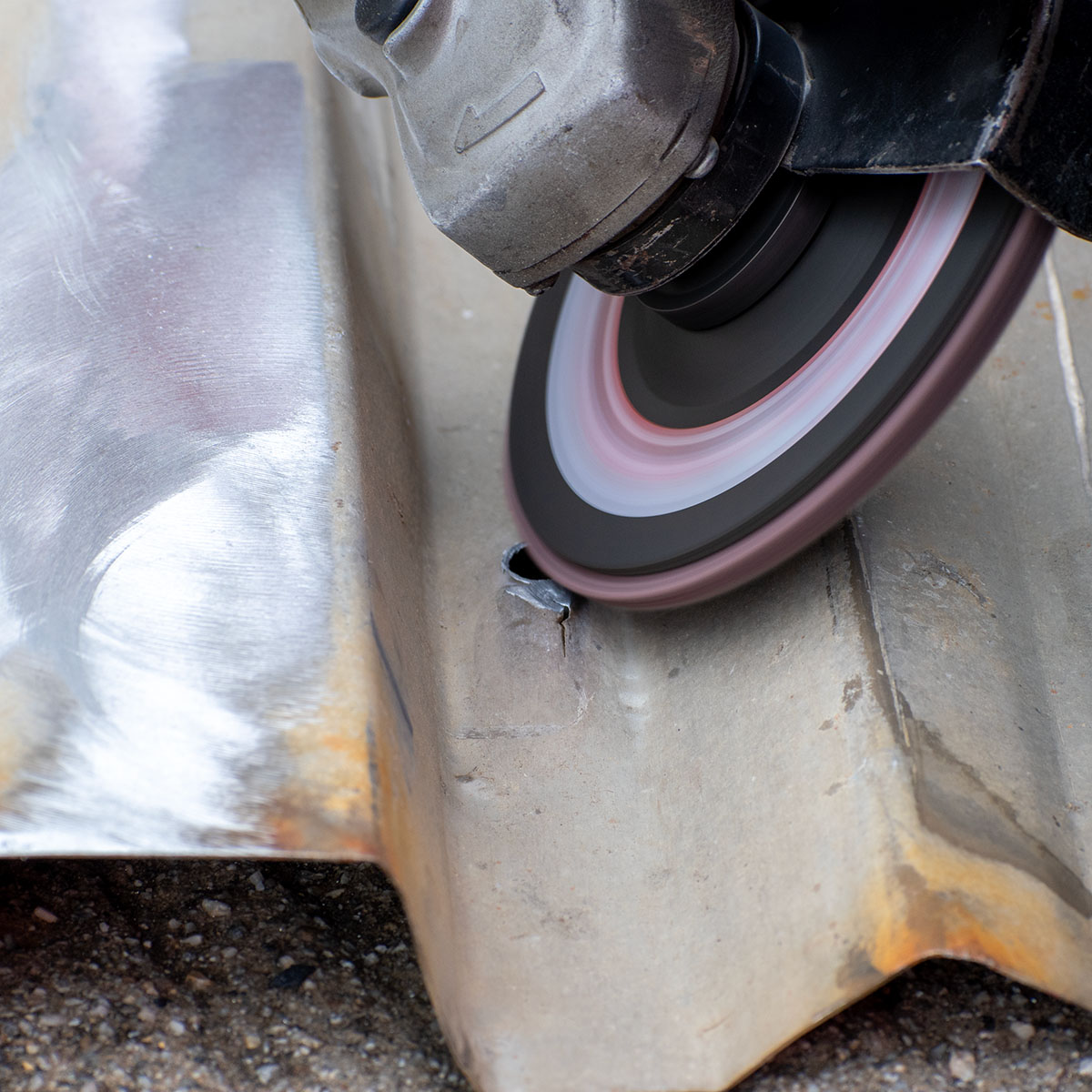

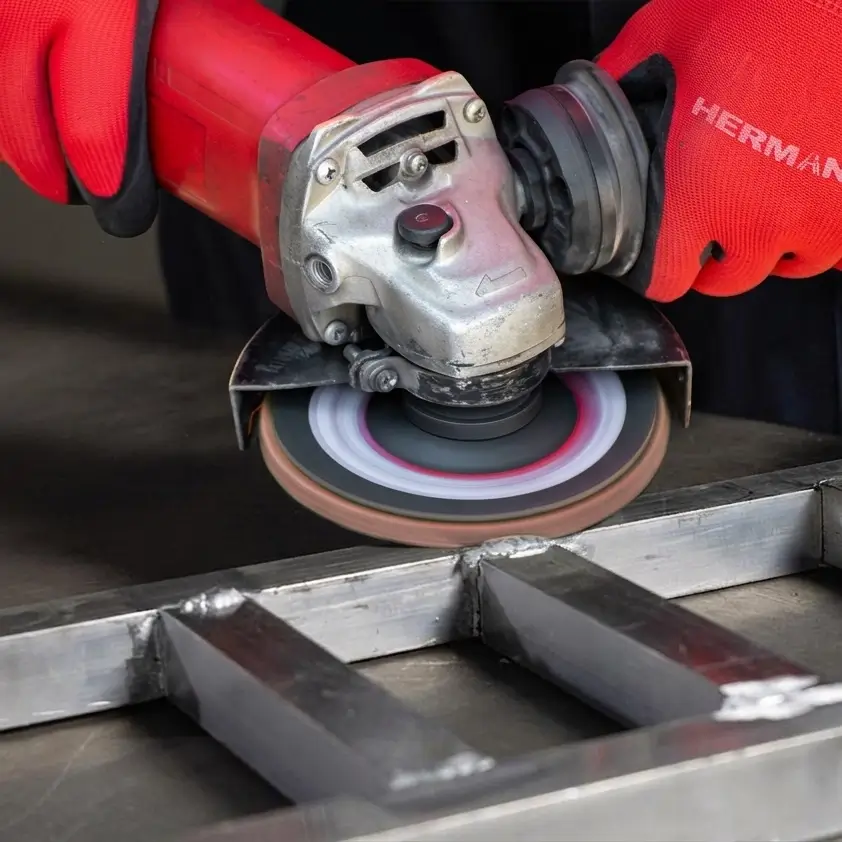

Special lamellar disc developed for grinding aluminum and other non-ferrous metals


SKU: 713 Category of goods:

Suitable equipment

Angle grinders with commutator motor
Angle grinders with commutator motor
Product Quantity in package
(pcs)
Price
Angle Grinder
HERMAN WX-12503
125 mm | 1500 W
1
> 10 pcs
Angle Grinder
HERMAN WX-12504
125 mm | 1500 W
1
> 10 pcs
Angle grinders
Angle grinders
Product Quantity in package
(pcs)
Price
Angle Grinder
HERMAN WX-12505 BL
125 mm | 1300 W
1
> 10 pcs
Angle Grinder
HERMAN WX-12506 BL
125 mm | 1300 W
1
> 3 pcs
Angle Grinder
HERMAN WX-12507
125 mm | 1500 W
1
> 13 pcs
Angle Grinder
HERMAN WX-12508
125 mm | 1500 W
1
> 4 pcs
Angle Grinder
HERMAN WX-12507
125 mm | 1500 W
1
> 3 pcs
Angle Grinder
HERMAN WX-12508
125 mm | 1500 W
1
> 3 pcs
Angle Grinder
HERMAN WX-12501
125 mm | 1000 W
1
> 50 pcs
Angle Grinder
HERMAN WX-12501
125 mm | 1000 W
1
> 21 pcs
Cordless angle grinder
HERMAN AXAG-1800 | 125 mm
18,0 V | 5Ah | Complete
1
> 10 pcs
Cordless angle grinder
HERMAN AXAG-1800 | 125 mm
18,0 V | Baretool
1
> 8 pcs

Designation

  • For highly productive machining of non-ferrous metals
  • Suitable for aluminum, magnesium, copper, zinc and other non-ferrous metals, as well as composite materials, for example, containing carbon fibers, etc.
  • Application mainly in special engineering production, in the automotive and aviation industry, etc.

Description

    Available in a diameter of 125mm in four grits:
    a sufficient range to choose the most suitable grit for the required operation

    Recommended machining angle 5˚ - 15˚:

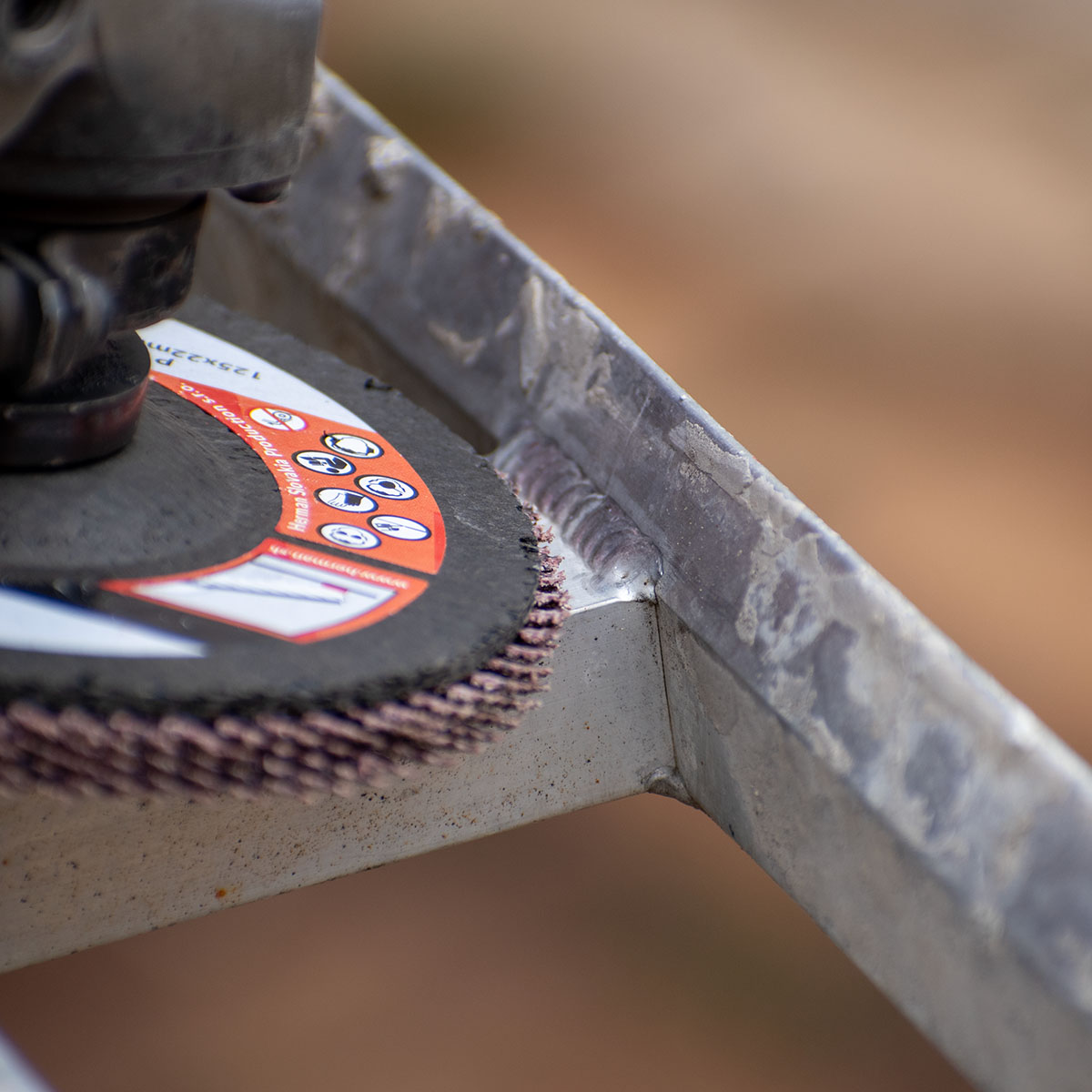

    the flat shape of the T27 disc pad in combination with the radially arranged lamellae enable machining with a contact surface centered in a line

    Primary raw material - sanding belts made of Abranet Max material with corundum grain on a polyamide mesh base:
    minimizes clogging of the contact sanding surface, maintains a lower working temperature during processing and achieves excellent material removal when sanding non-ferrous metals

    Special glue based on epoxy resin:
    for a secure connection of the slats to the base plate

    Plate mat made of 8-layer fiberglass:
    high structural safety and destruction resistance

    Recommendation:
    in order to achieve the best results, in some cases it is advisable to use a 125mm angle grinder with a regulation with an input power of at least 1400W

Diameter (mm) Grain size Number of flaps (pcs) Centre hole (mm) Quantity in package
(pcs)
Availability Price
ID: 15130101 125 P40 80 22,23 5
ID: 15130101 125 P40 80 22,23 25
ID: 15130102 125 P60 90 22,23 5
ID: 15130102 125 P60 90 22,23 25
ID: 15130103 125 P80 90 22,23 5
ID: 15130103 125 P80 90 22,23 25
ID: 15130104 125 P120 90 22,23 5
ID: 15130104 125 P120 90 22,23 25
