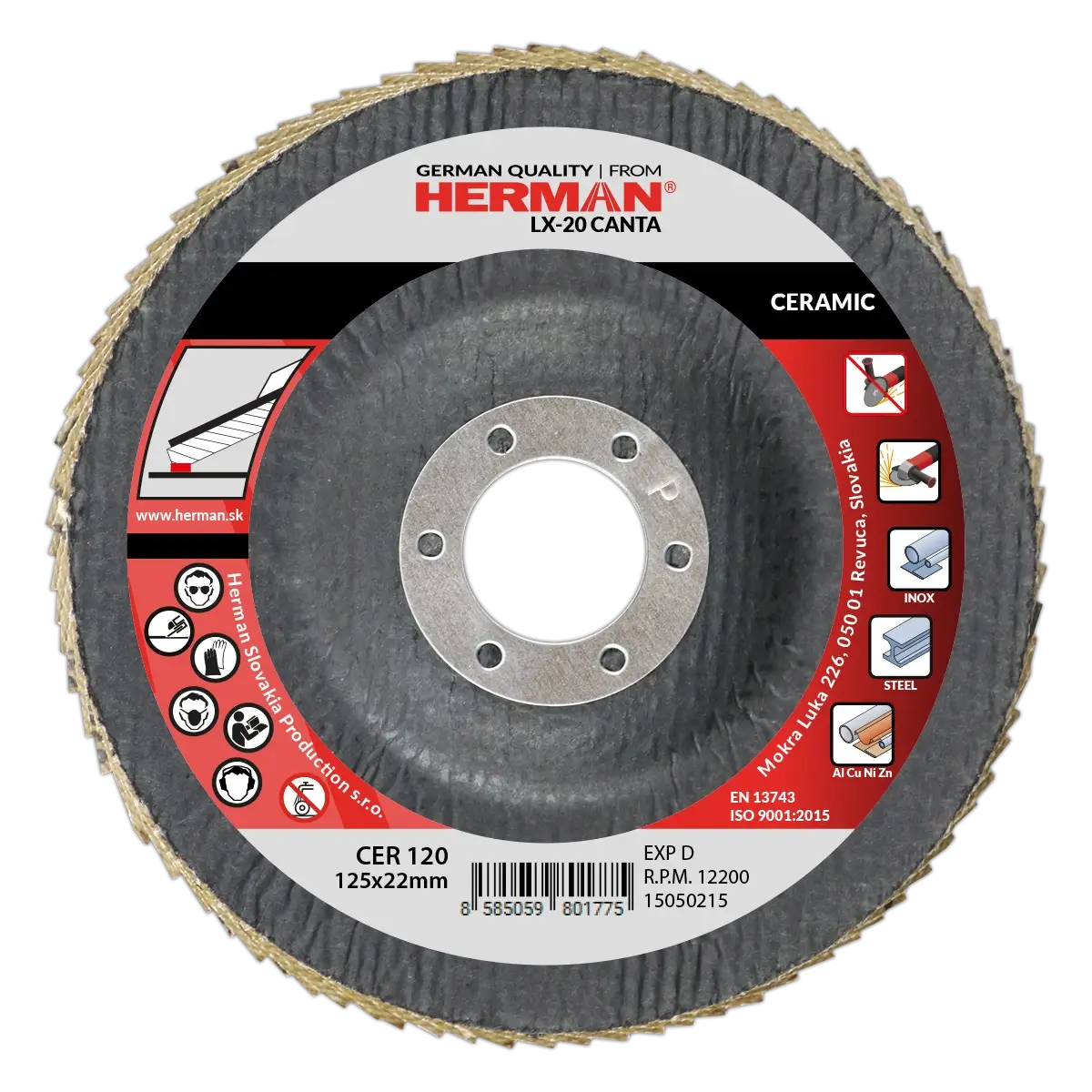

Flap disc
HERMAN LX-20 Canta
For stainless and alloy steels

Recommended angle during machining 5˚ - 15˚:
the flat shape of the T27 disc pad in combination with radially arranged lamellae enable machining with a contact surface centered in a line

Primary raw material - high-quality sanding belts with an applied layer of abrasive ceramic grains (100% Ceramic):
very good material removal and long service life even when machining high hardness steels

Abrasive backing type:
Poly-cotton

Lamellas machine-cut from sanding belts and placed radially around the perimeter of the plate pad with an accuracy of 0.5mm:
a precise final product for efficient work

Plate mat made of 7-layer fiberglass:
high structural safety and destruction resistance

Special glue based on epoxy resin:
for a secure connection of the slats to the base plate

Optimum lamellae density for efficient machining:
the chosen number is the result of long-term testing and mainly depends on the diameter and grit of the tool

The grain size is standard in the range of P40 to 120 according to FEPA (100 to 500 µm):
enables the selection of a suitable tool from rough grinding to fine finishing work
