Flap disc

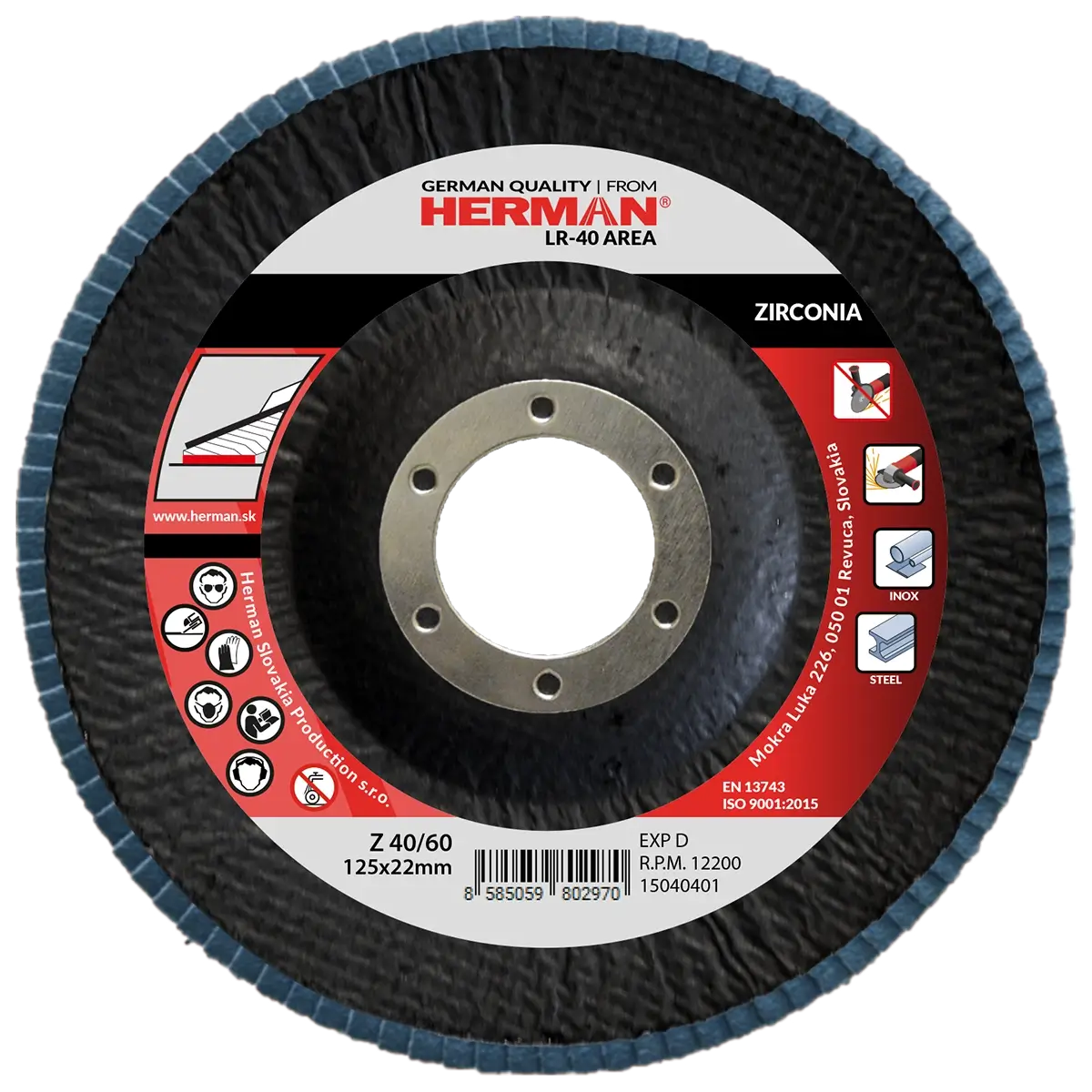

HERMAN LR-40 Area
For stainless steel

Recommended angle during machining 15˚ - 25˚:
the conical shape of the T29 disc pad in combination with radially arranged lamellae of two different grain sizes significantly increases the contact area

Primary raw material - high-quality sanding belts with an applied layer of zirconium corundum abrasive grains (50% zirconium):
long service life and very good material removal when machining stainless steel and higher strength steels

Abrasive backing type:
Poly-cotton

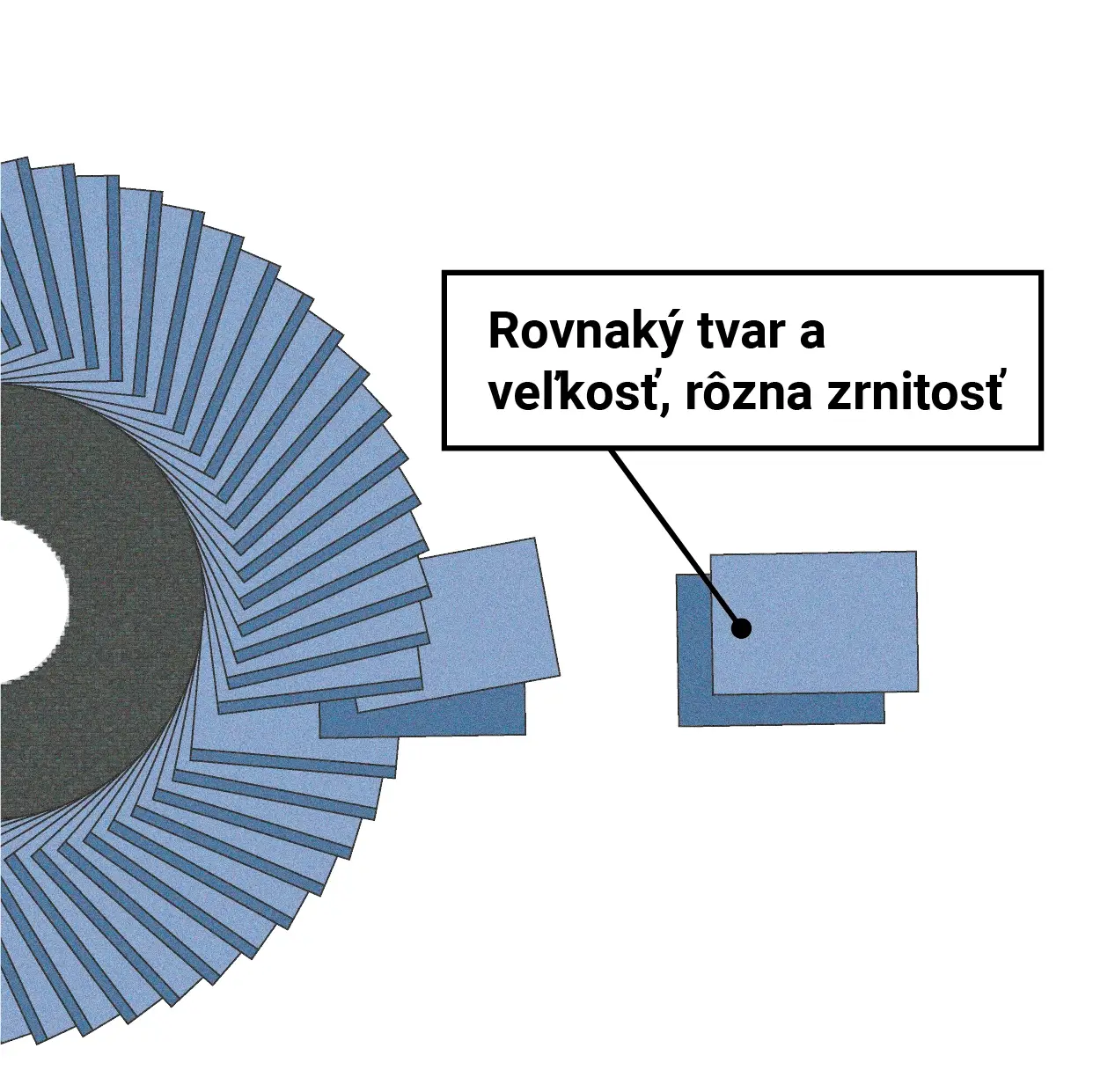

Slats of the same shape and size, but with two different types of grain, arranged so that the upper slat has 80% of the working surface (20% is covered) and the lower slat has 20% of the working surface (80% is covered):
better dissipation of working temperature, possibility higher load and after the wear of the upper layer of lamellas, the lower layer is still available for work

Lamellas machine-cut from sanding belts and laid radially around the perimeter with an accuracy of 0.5mm:
precise final product for efficient work

Plate mat made of 7-layer fiberglass:
high structural safety and destruction resistance

Special glue based on epoxy resin:
for a secure connection of the slats to the base plate

Optimal number of lamellae for efficient machining:
chosen depending on the diameter and grain size of the tool

The grain size is standard in the range of P40 to 120 according to FEPA (100 to 500 µm):
enables the selection of a suitable tool from rough grinding to fine finishing work
