Planning to buy more? Request a quoteStraight grinder
HERMAN GX-10R BL
1380 W
238,00 € excl. VAT
Brushless motor with extreme power of 1.8 horsepower, with working mode signaling and speed control
Suitable tools and accessories
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|
Collets HERMAN CG-GX 3mm | For GX-10R BL grinder | 0,52 € |
|
1,56 € | |
|
Collets HERMAN CG-GX + nut | 8mm | For GX-10R BL grinder | 7,99 € |
|
7,99 € | |
|
Collets HERMAN CG-GX + nut | 6mm | For GX-10R BL grinder | 5,68 € |
|
5,68 € |
Designation

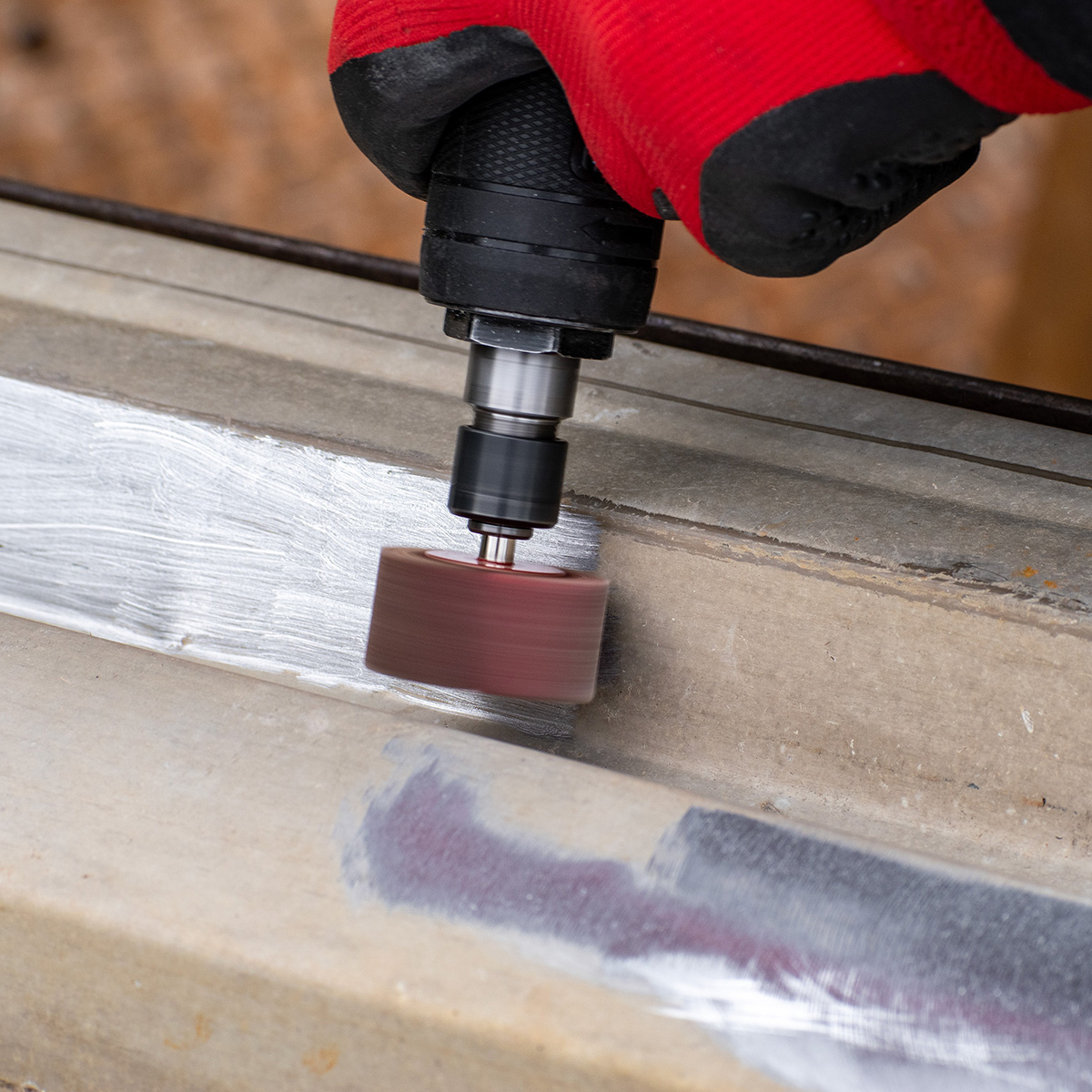

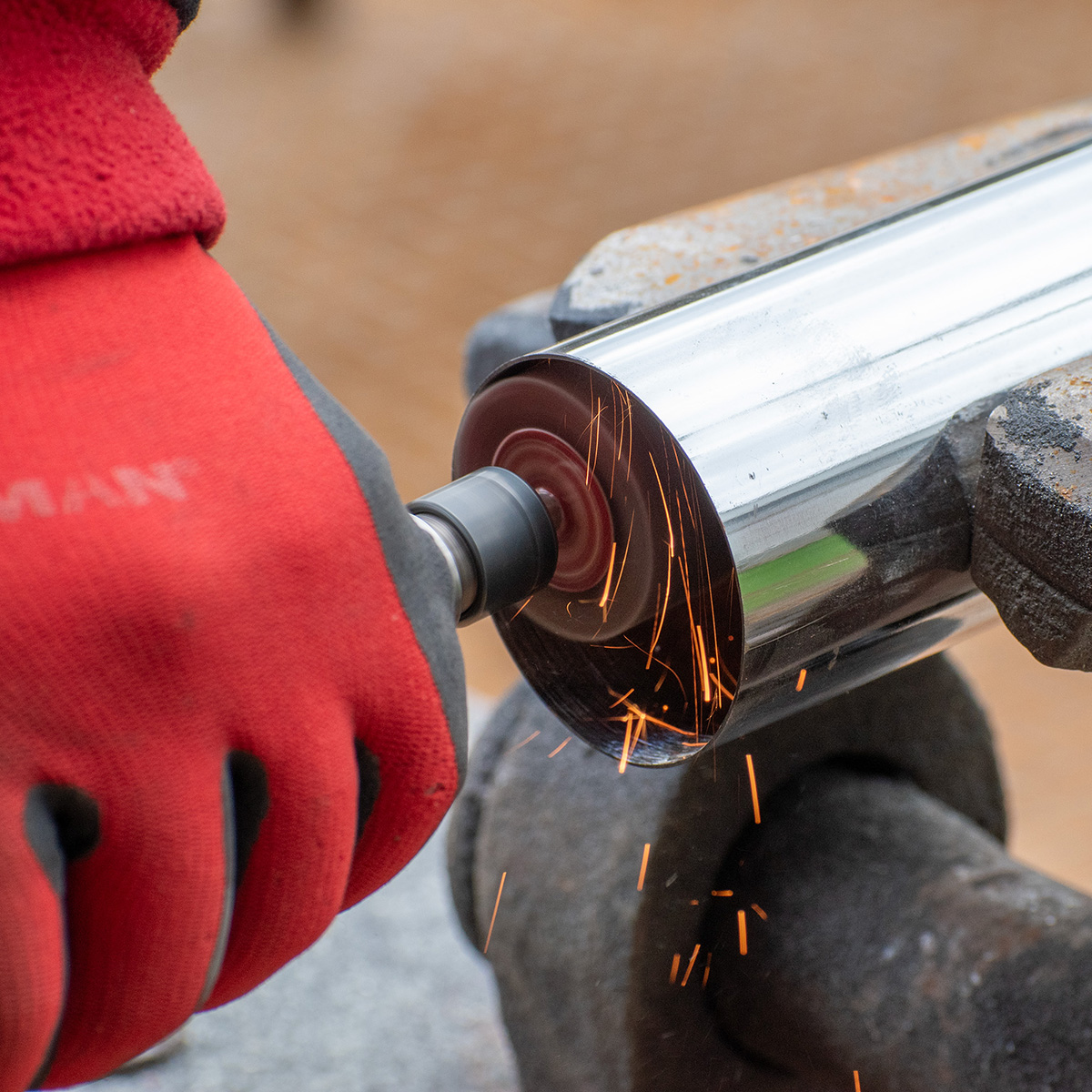

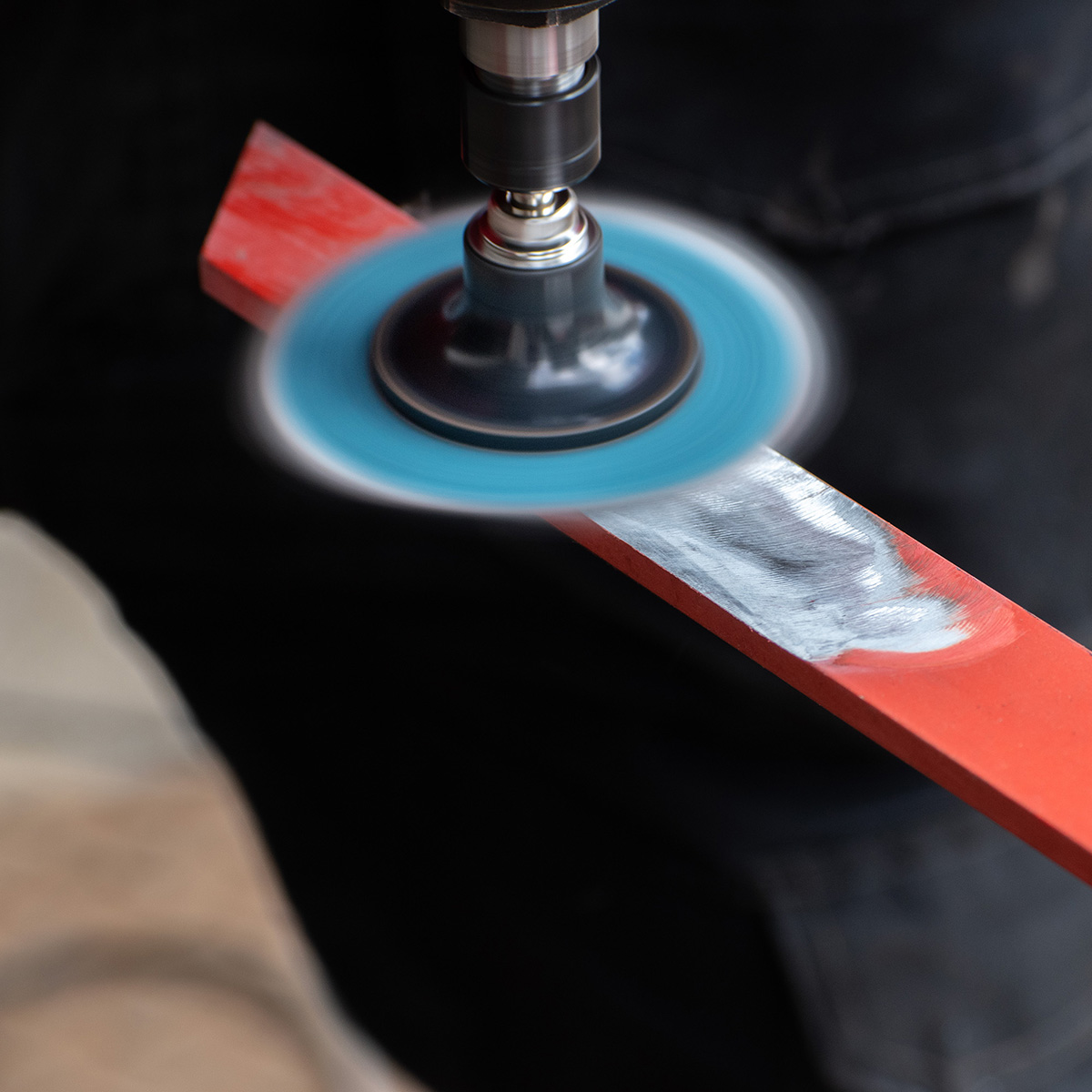

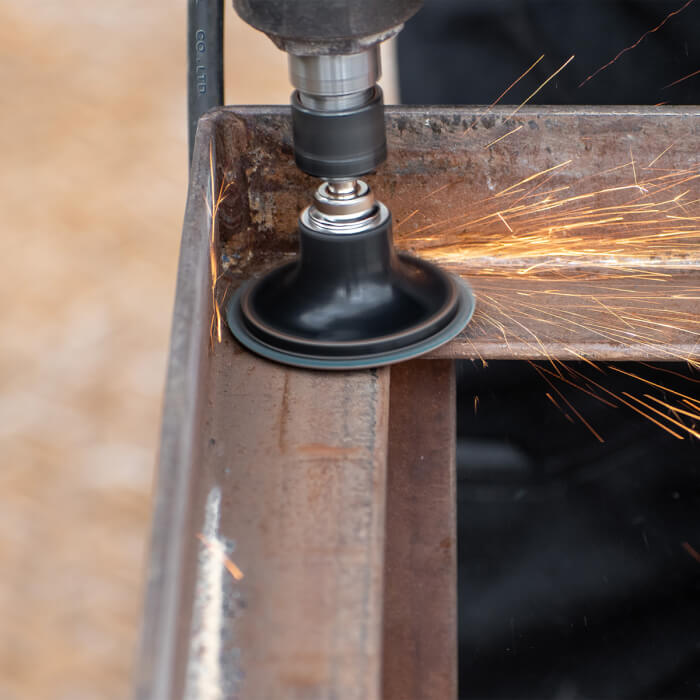

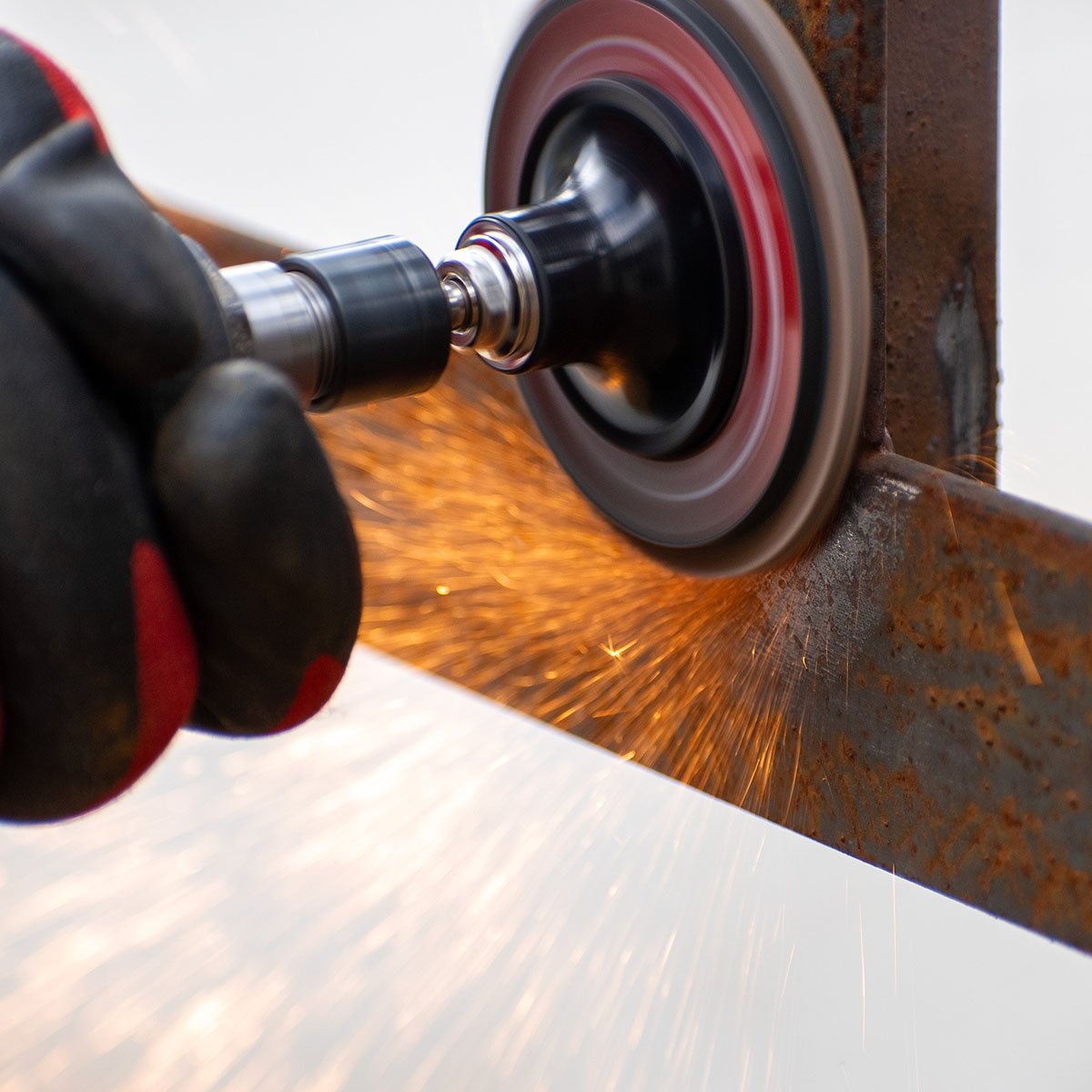

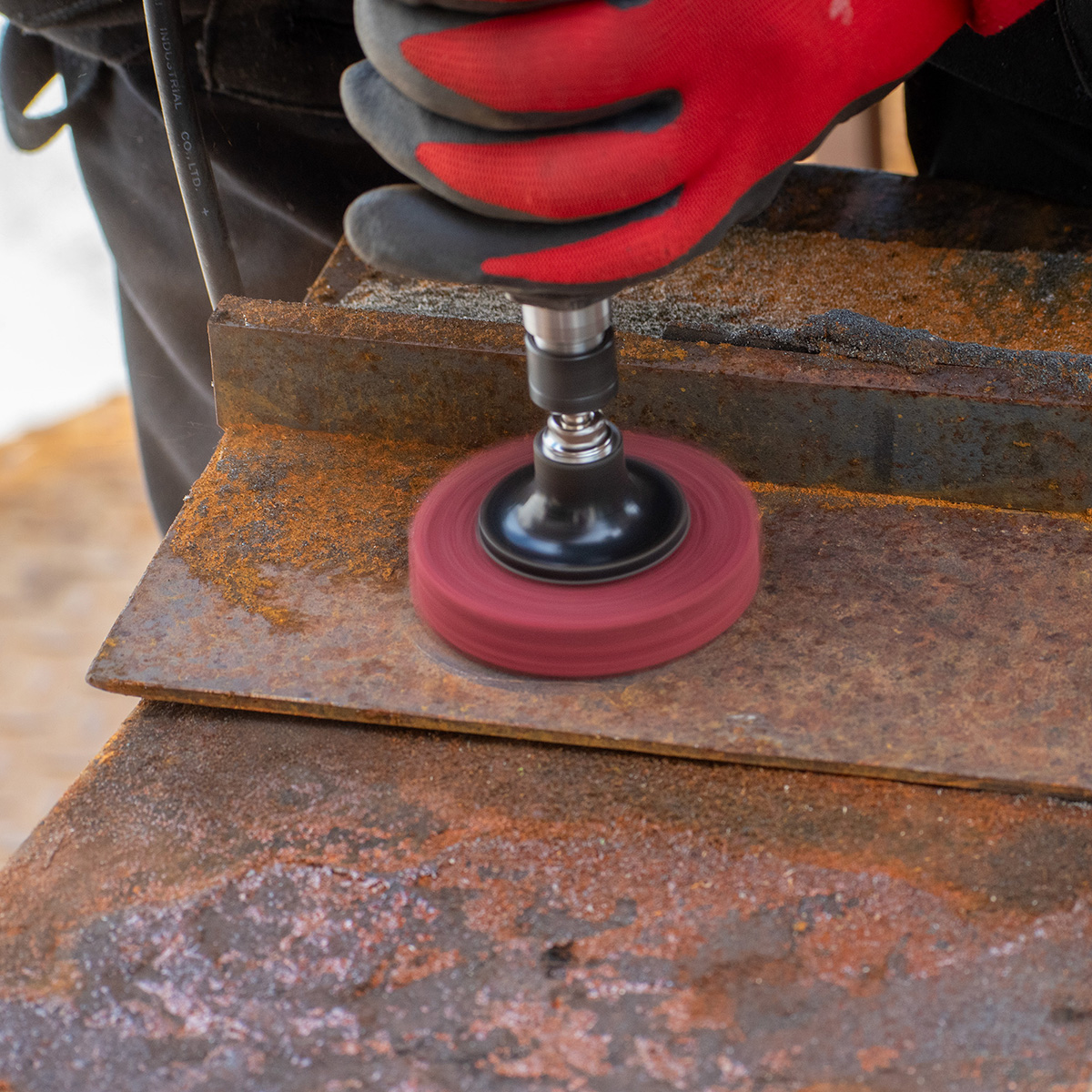

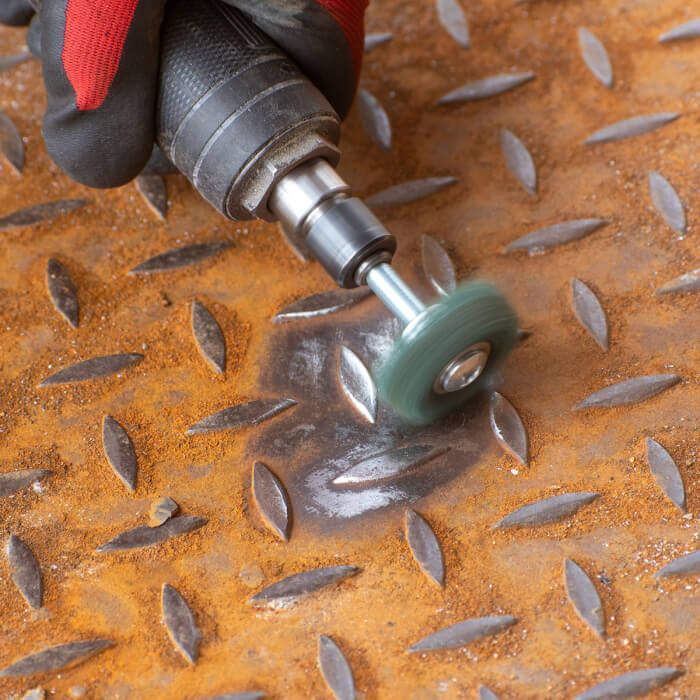

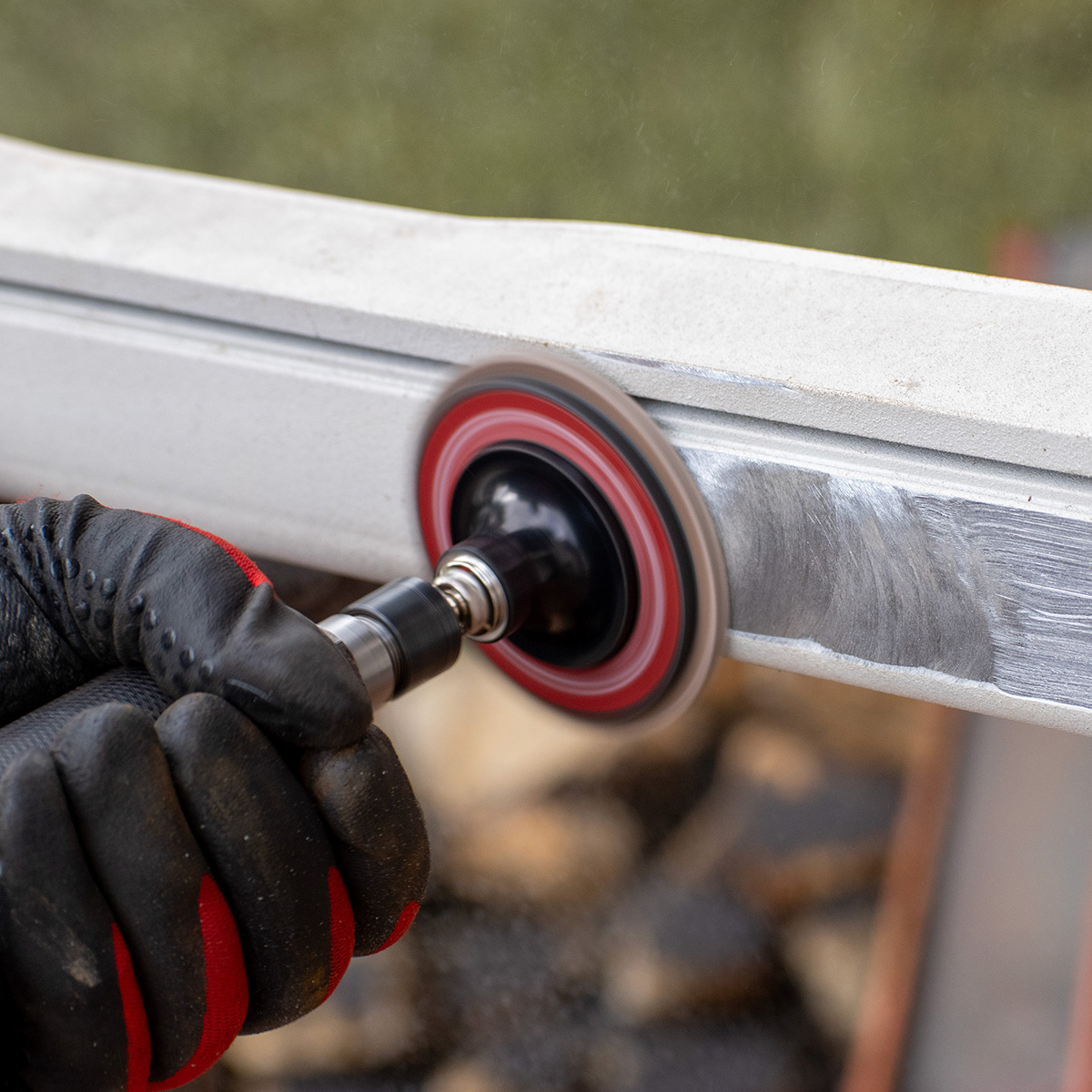

- For a wide range of work, especially when processing metal workpieces in industrial conditions
Comfort
Signaling of operating modes:
normal load (green), overload (red) and indication of activation of the function of protection against restarting the motor after the restoration of the power supply "RESTART PROTECTION" (alternating red and green)
Electronically controlled constant speed:
the "CONSTANT SPEED" function maintains the current speed without any impact on the machine load
The diameter of the grinder body at the grip point is only 56mm:
it allows a very comfortable, natural and firm grip even for operators with smaller hands
Power cable length 4m:
for easy and comfortable handling
A soft and smooth engine sound that is pleasing to the ear:
a completely different experience than what you are used to
Adjustable speed:
6 levels in the range of 7500-28000 rpm
Ergonomic position and shape of the power switch:
allows reliable operation of the switch with the thumb even when wearing gloves
Locking the mains switch in the on position:
if necessary, it is not necessary to hold your thumb on the switch while working
Light alloy gearbox:
reduces the weight of the grinder
Safety
"SOFT START" function:
ensures a smooth, soft start of the motor and reduces the engagement torque when starting the grinder
"RESTART PROTECTION" function:
protection against engine restart after power supply is restored
Double insulation:
increased protection against electric shock
Lifetime
Powerful brushless motor:
less maintenance, more than 72% efficiency, no more brushes
Effective dust protection:
provided by two removable grilles covering the intake slots located at the rear of the machine. They prevent larger debris from entering the intake system, reduce dust ingress when cooling air is drawn in and simplify preventive maintenance
Light alloy gearbox:
the material used contains additives that increase wear resistance
Epoxy-protected stator winding:
contributes to a longer life of the grinder
Specially shaped air intakes:
increase engine cooling efficiency
Parameters
| Voltage [V~] | 220-240 |
|---|---|
| Rated power [W] | 1380 |
| Shank diameter [mm] | 6 |
| Min. shank length [mm] | 10 |
| Max. grinding wheel diameter [mm] | 25 |
| Idle speed 1st gear [U/min] | 7.500 |
| Idle speed 2st gear [U/min] | 12.000 |
| Idle speed 3st gear [U/min] | 16.000 |
| Idle speed 4st gear [U/min] | 21.000 |
| Idle speed 5st gear [U/min] | 24.000 |
| Idle speed 6st gear [U/min] | 28.000 |
| A-weighted emission sound power level (LWA) [dB(A)] | 102,8 |
| A-weighted emission sound pressure level (LpA) [dB(A)] | 91,8 |
| Uncertainty (K) [dB(A)] | 3 |
| Weight (according to EPTA 01/2003) [kg] | 1,7 |
Contents of the package
- 1x Straight grinder
- 1x Collet 3mm
- 1x Collet 8mm + clamping nut
- 2x Clamping key
- 1x Instructions for use
