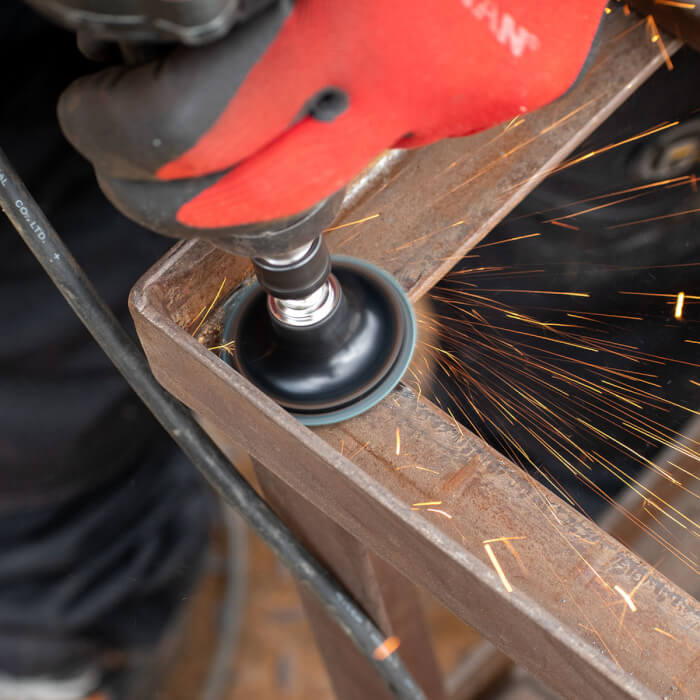

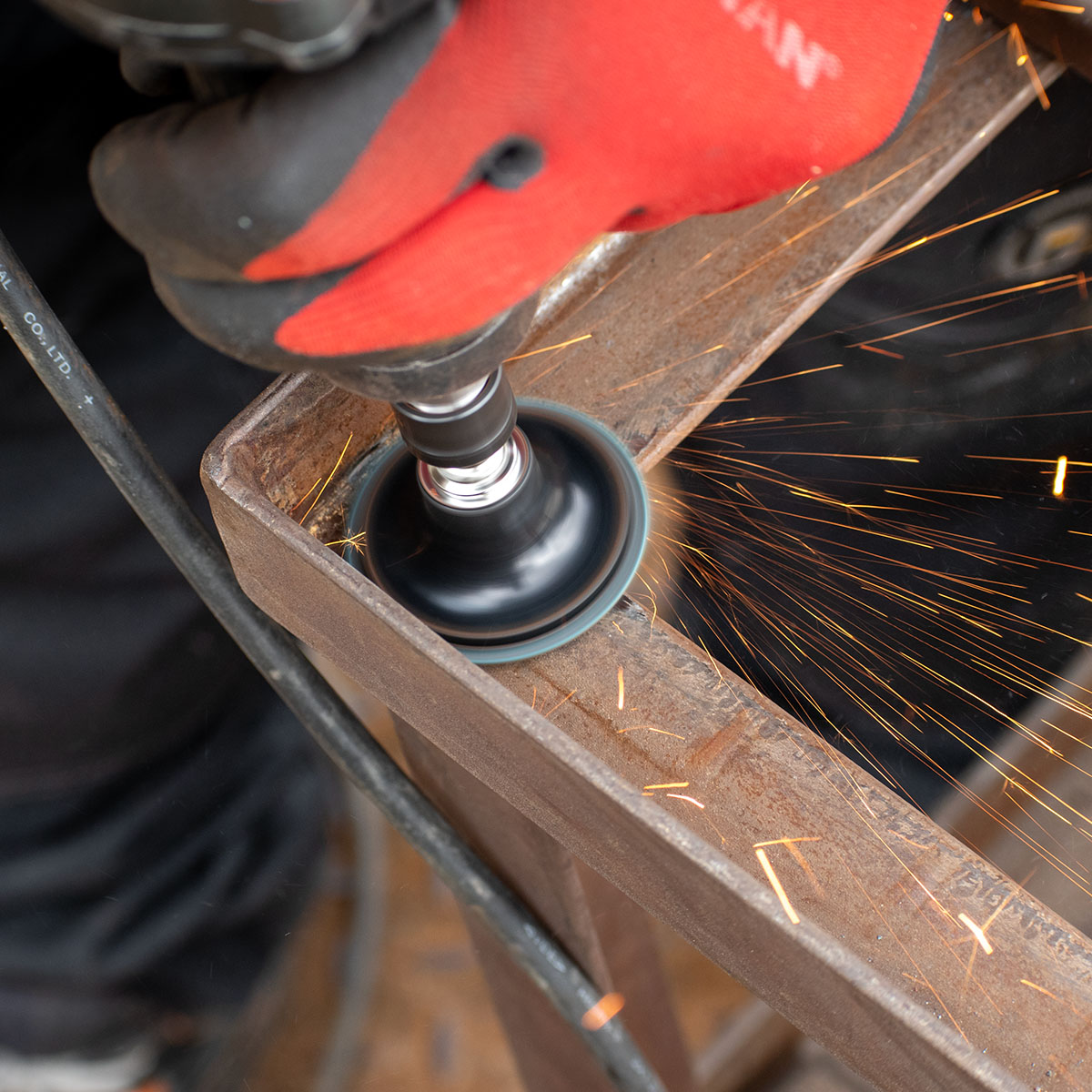

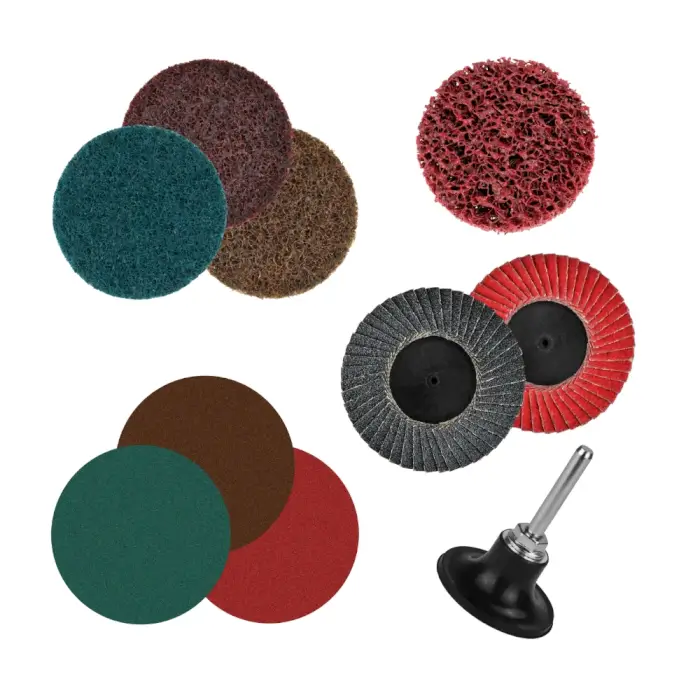

Tool set
HERMAN QGX-11
For straight grinder

Warning:
when working, do not exceed the maximum speed indicated on the product.

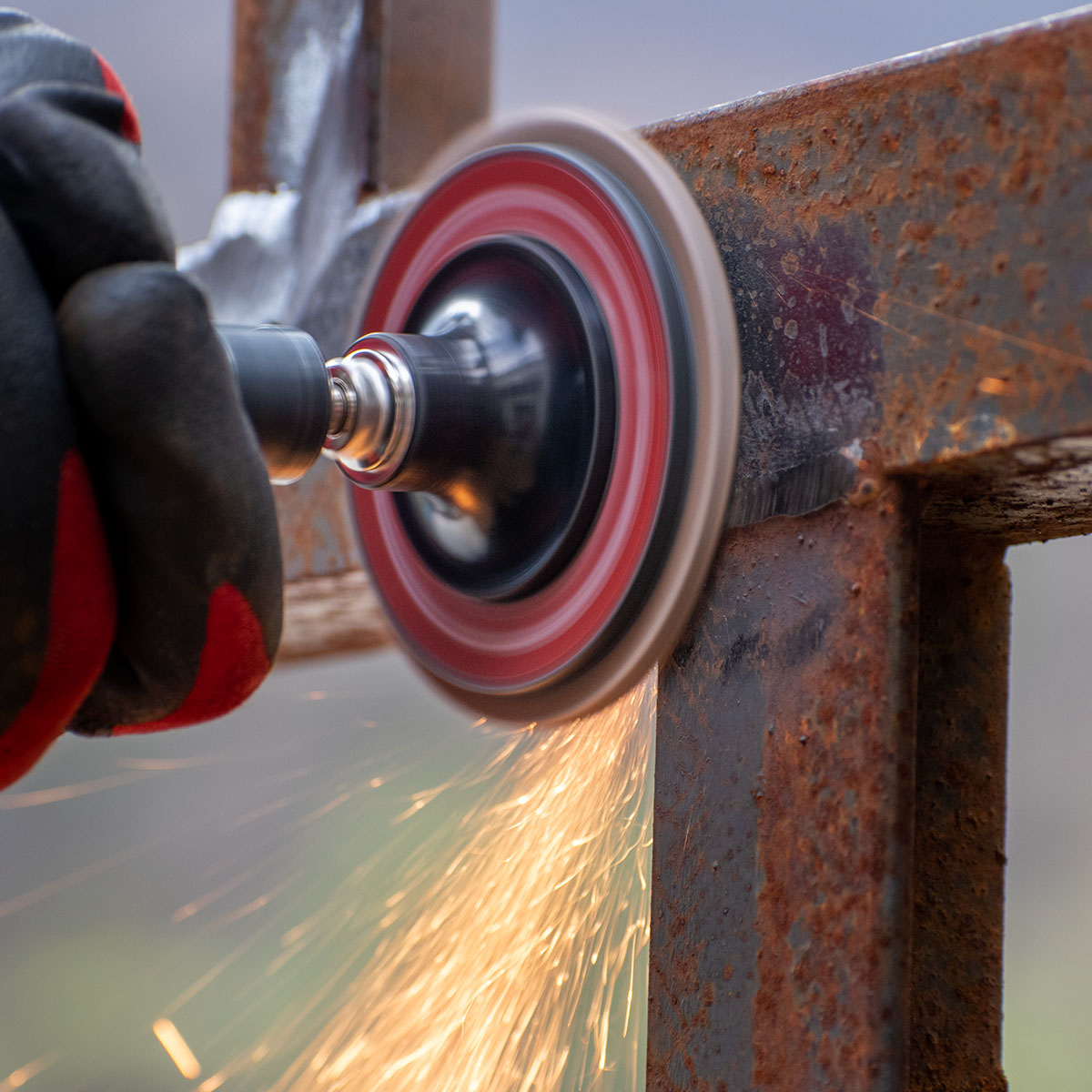

Quick Change Flap disc HERMAN MLR-10/QC-RS:

Primary raw material - high-quality abrasive belts with a layer of zirconium abrasive grains (50% zirconium):
long service life and very good removal rate when proccesing stainless steel and higher-strength steels

Abrasive carrier medium - blended cloth:
ensures high strength and flexibility of the abrasive belt, as well as resistance to mechanical damage. Suitable for demanding applications

The need to use a HERMAN MP-90S backing pad according to the selected diameter:
45mm pad for 50mm flap disc / 70mm pad for 75mm flap disc

Grain size standard in the range P40 to 80 according to FEPA (approx. 450 to 200 µm):
allows selection of the appropriate tool from coarse grinding to finer cleaning

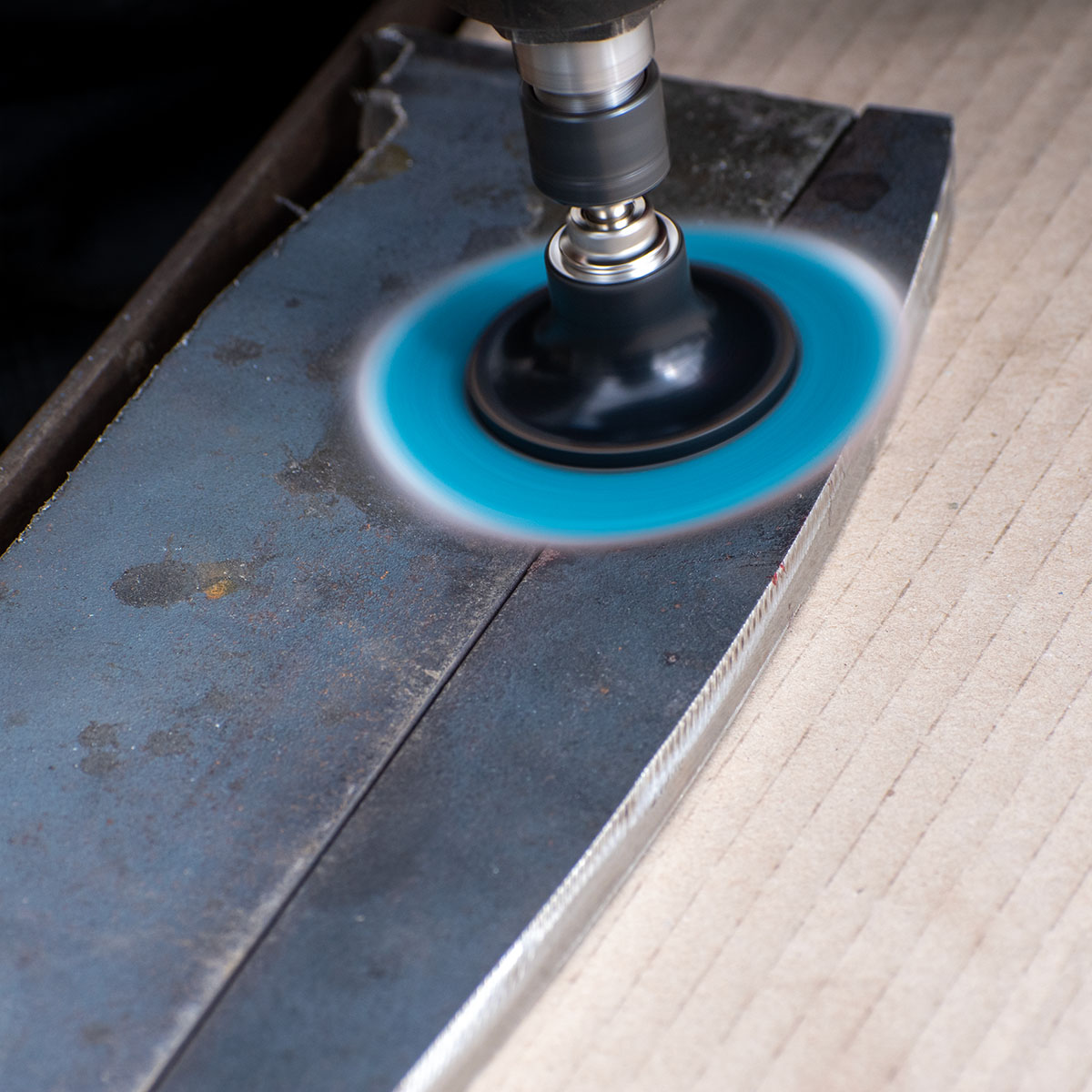

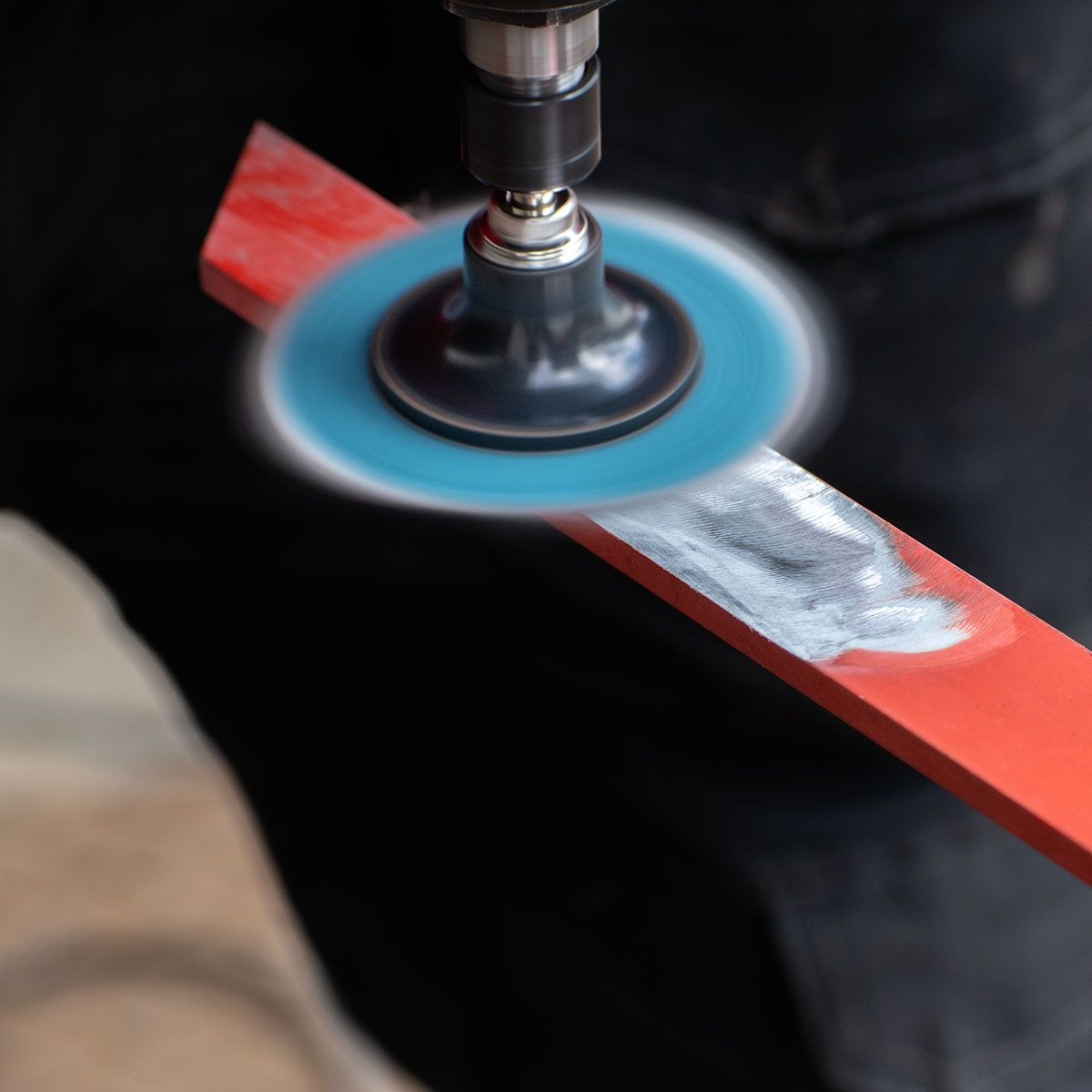

Quick Change Flap disc HERMAN MLX-10/QC-RS:

Primary raw material - high-quality abrasive belts with a layer of abrasive ceramic grains (100% Ceramic):
very good material removal and long service life when processing stainless steel and high-hardness steels

Abrasive carrier medium - synthetic polyester fabric (polyester cloth):
characterized by high tensile strength and excellent resistance to oils and chemicals. Due to its lower flexibility compared to other types of substrates, it is ideal for intensive, high-performance grinding with high pressure. Especially suitable for extremely demanding applications

The need to use a HERMAN MP-90S backing pad according to the selected diameter:
45mm pad for 50mm flap disc / 70mm pad for 75mm flap disc

Grain size standard in the range P40 to 80 according to FEPA (approx. 450 to 200 µm):
allows selection of the appropriate tool from coarse grinding to finer cleaning

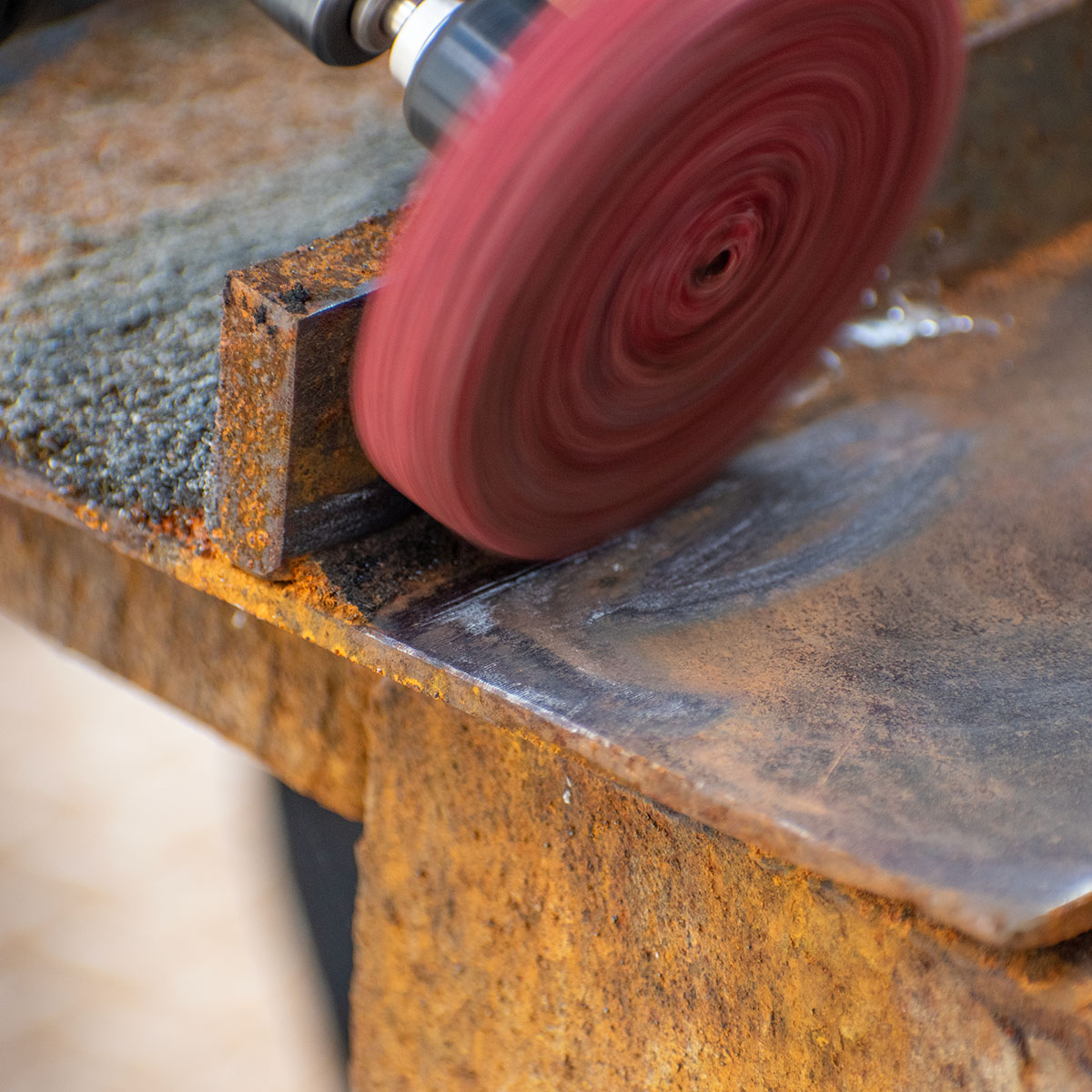

Quick Change abrasive fleece HERMAN MLW-10/QC-RS:

Primary raw material - sanding belts made of resin-impregnated abrasive fleece with abrasive grain (3M material):
a very flexible tool with a long service life, resistance to heat and load

Possibility of use in the range of 2,500-11,500 rpm:
the combination of suitably selected speeds with a coarse, medium or fine version of the tool enables high efficiency of final work with a perfect appearance of the workpiece and increases the range of use of the tool

Warning:
when machining stainless steel, do not use the same tool for other materials

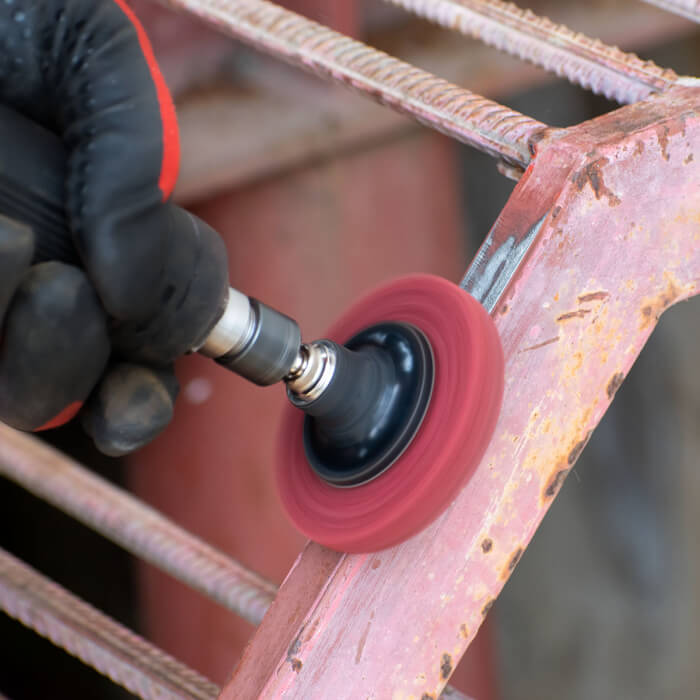

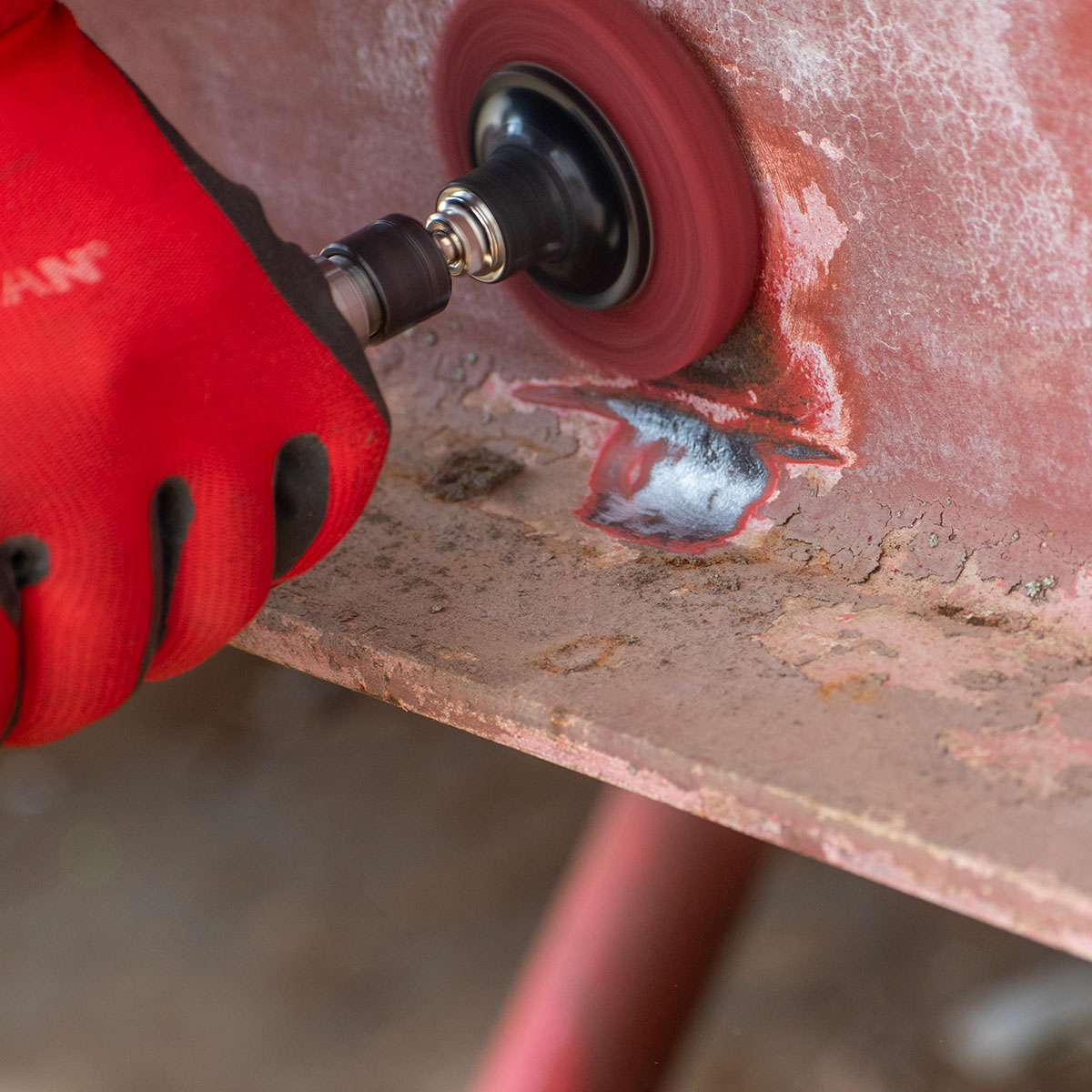

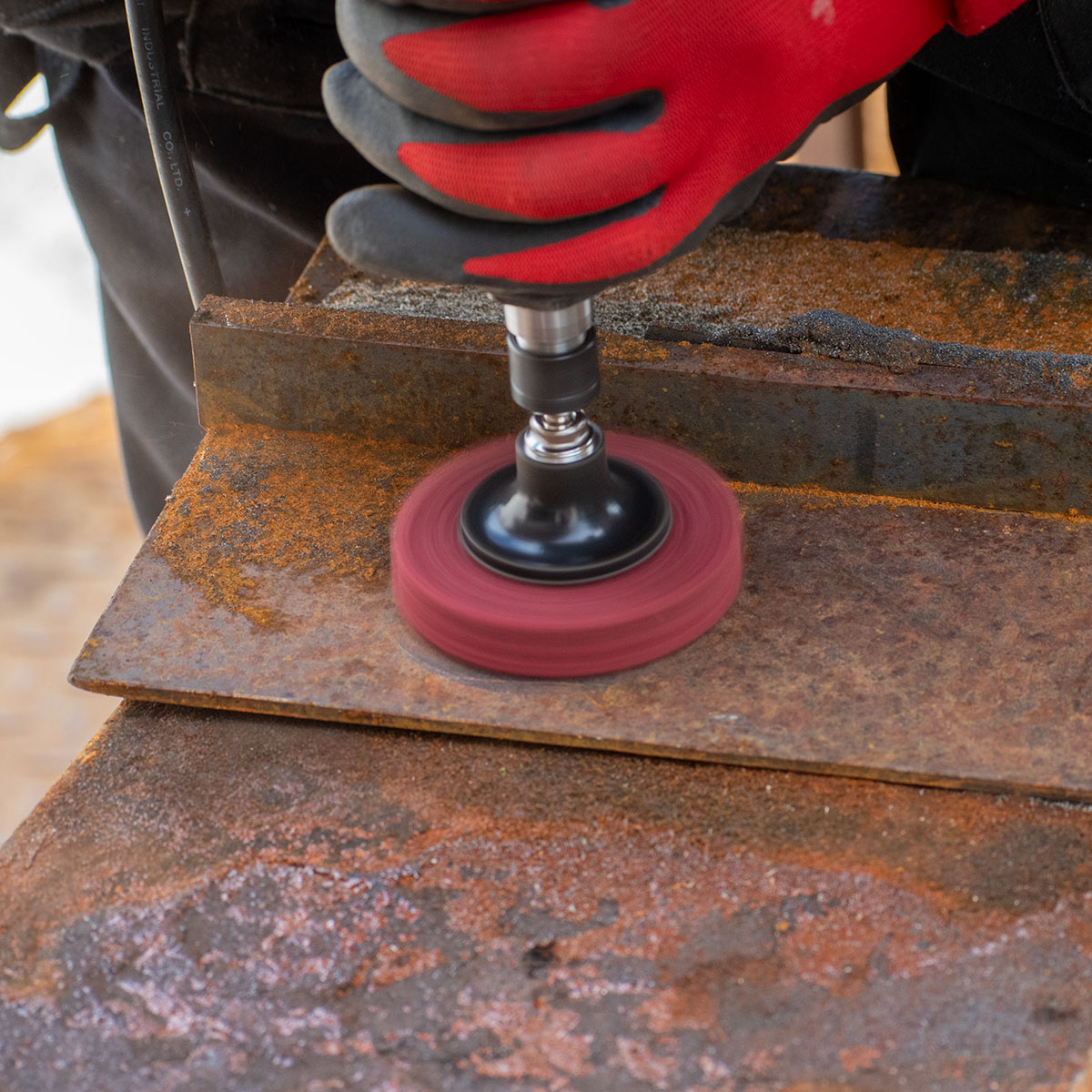

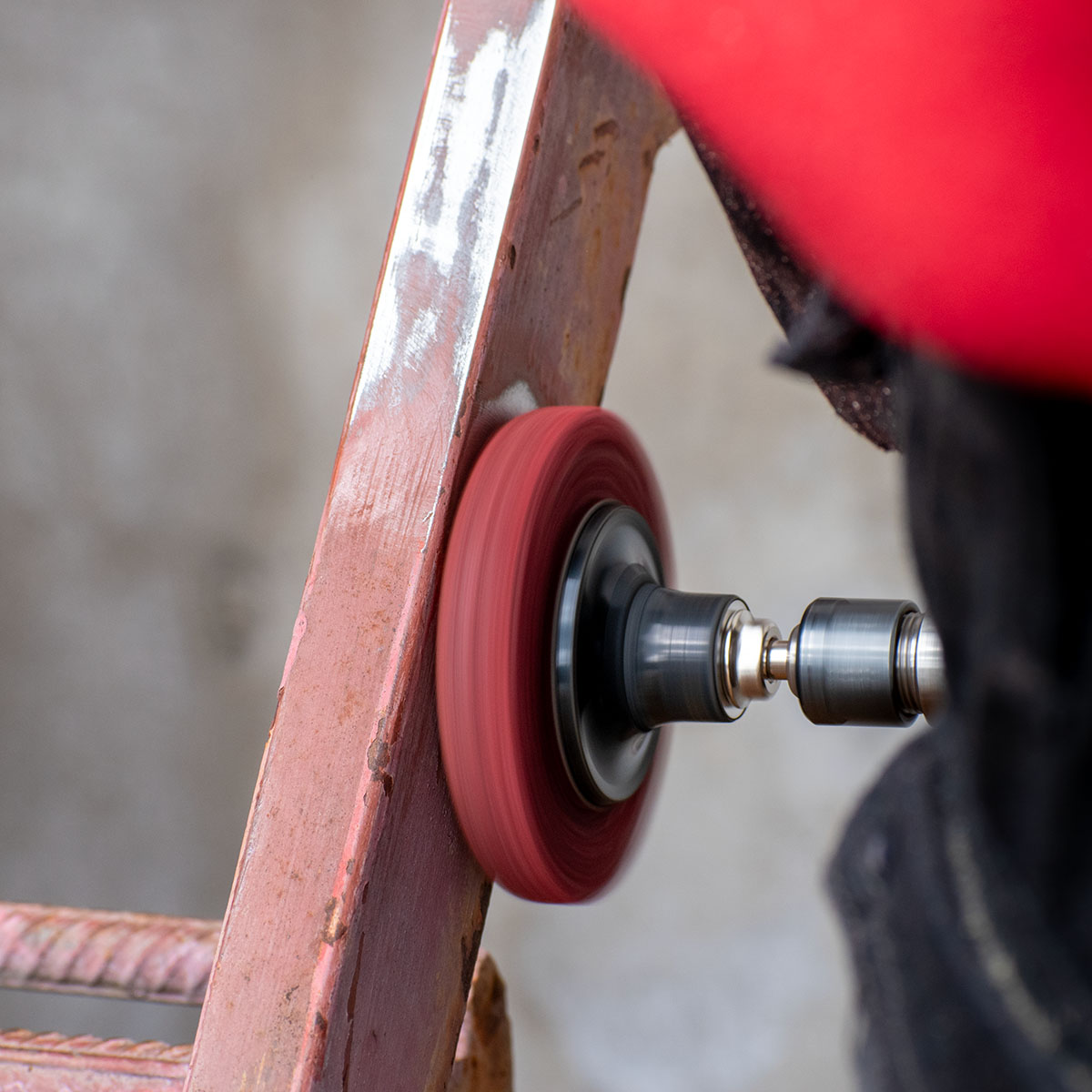

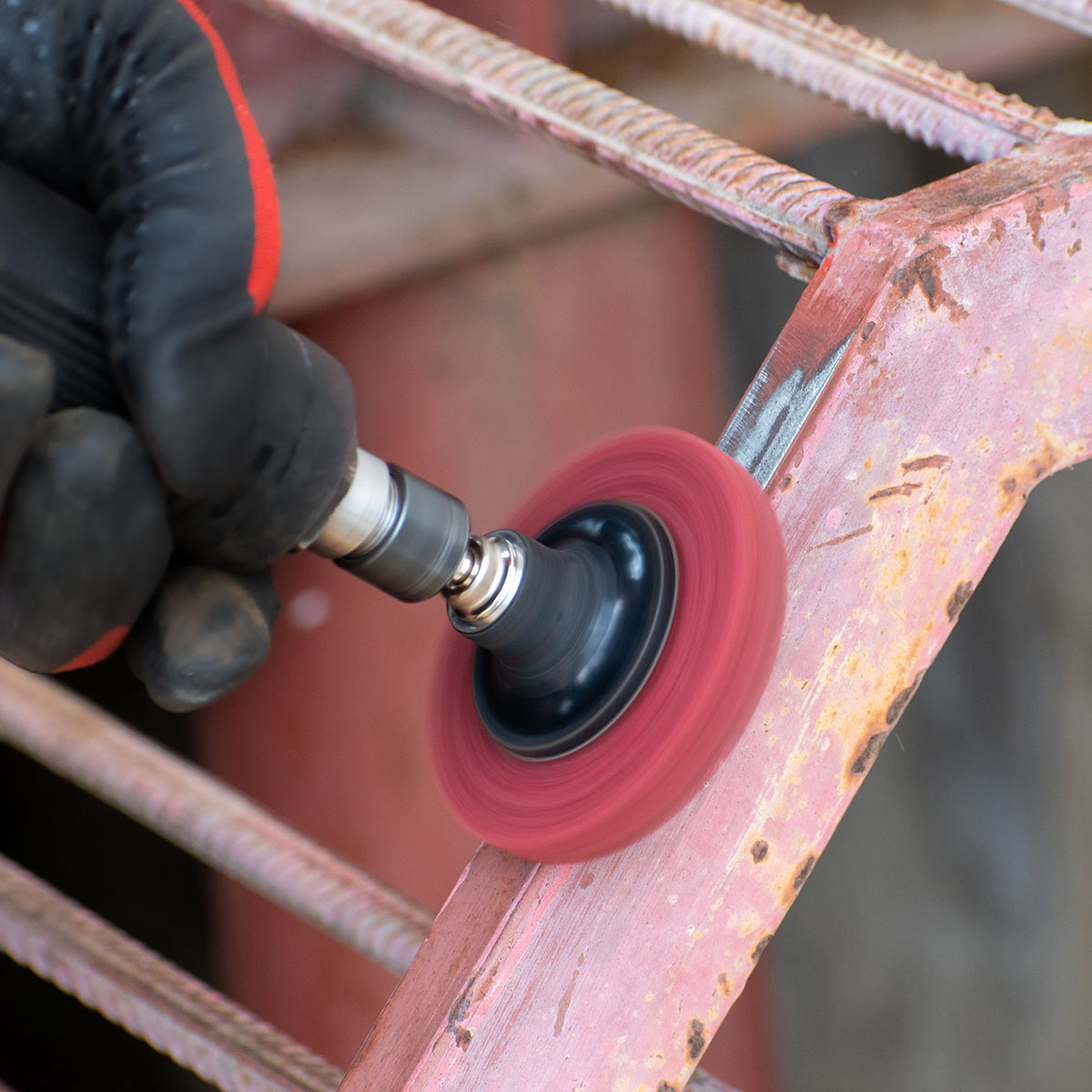

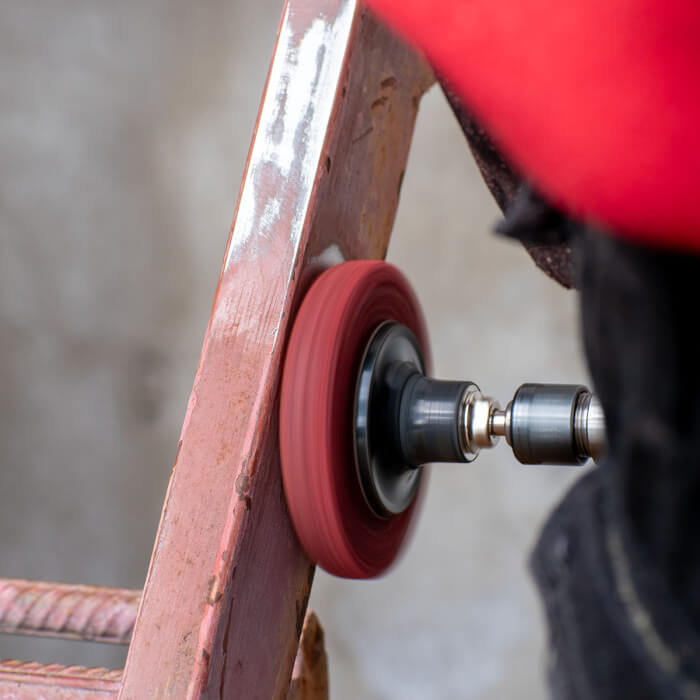

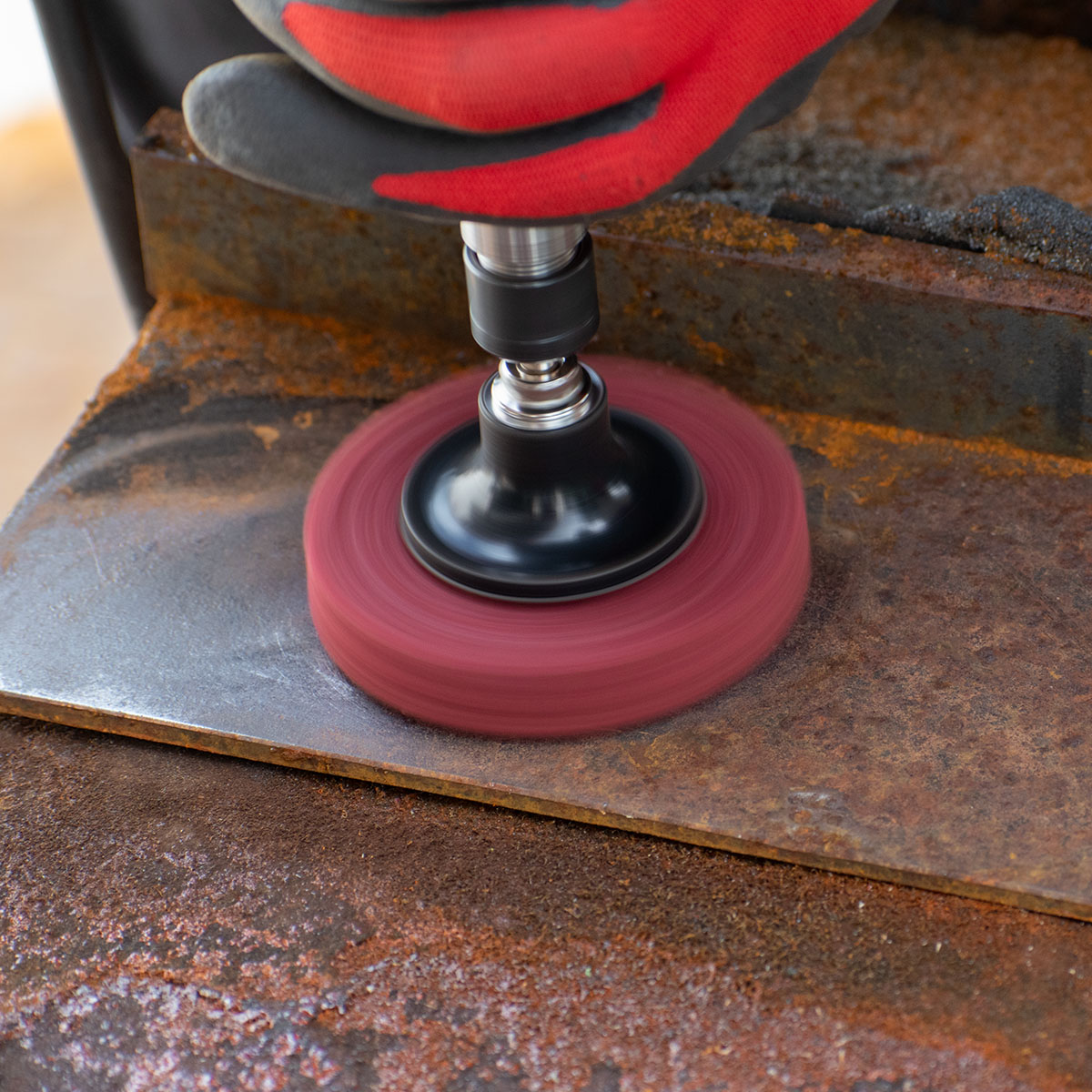

Quick Change Cleaning Disc HERMAN MKY-10/QC-RS Dragon Red:

Primary raw material STRIP-IT Red of high quality (BIBIELLE material):
supporting spatial mesh structure made of durable nylon fibers with a very aggressive effect

Stability of the structure of the primary raw material:
the structure of the tool does not change under the influence of grinding, thus allowing repeated use with undiminished performance

Elasticity as a key feature:
enables cleaning even highly uneven surfaces

The contact surface is only minimally contaminated with dirt:
the grinding dust from the pores is easily released during grinding due to centrifugal force

The porous structure dissipates heat effectively:
ambient swirling air easily penetrates the pores and contributes significantly to cooling the tool

13mm thick, small diameter abrasive body:
combined with the elasticity of the primary raw material, it allows cleaning even in the most inaccessible places

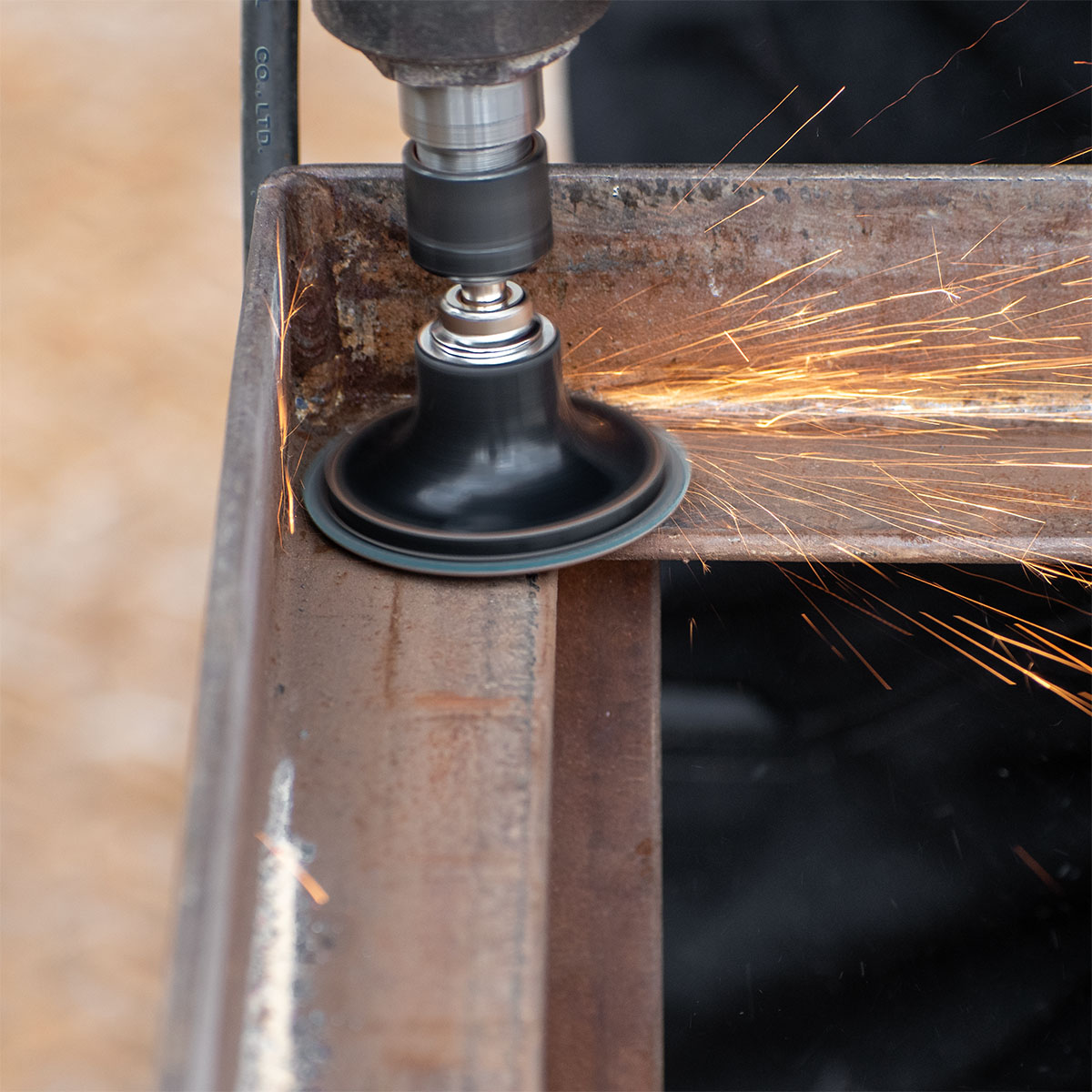

Quick Change Fibre disc HERMAN MFS-10/QC-RS:

Primary raw material - a layer of abrasive grains of industrially produced corundum bonded by synthetic resin to a supporting substrate of vulcanised fibres:
very good removal especially when processing steel of standard strength

The need to use a HERMAN MP-90S backing pad according to the selected diameter:
45mm pad for 50mm fiber disc / 70mm pad for 75mm fiber disc

Grain size standard in the range P36 to 80 according to FEPA (850 to 200 µm):
allows selection of the appropriate tool from coarse grinding to finer cleaning

Quick Change Fibre disc HERMAN MFR-10/QC-RS:

Primary raw material - layer of abrasive zirconium grains (approx. 30%) bonded by synthetic resin to a supporting substrate of vulcanized fibres:
very good removal especially when processing stainless steel, higher strength steels, etc.

The need to use a HERMAN MP-90S backing pad according to the selected diameter:
45mm pad for 50mm fiber disc / 70mm pad for 75mm fiber disc

Grain size standard in the range P36 to 80 according to FEPA (850 to 200 µm):
allows selection of the appropriate tool from coarse grinding to finer cleaning

Quick Change Fibre disc HERMAN MFX-10/QC-RS:

Primary raw material - a layer of abrasive ceramic grains (100%) bonded by synthetic resin to a supporting substrate of vulcanized fibers:
very good removal especially when processing stainless, alloy and fire resistant steels, etc.

The need to use a HERMAN MP-90S backing pad according to the selected diameter:
45mm pad for 50mm fiber disc / 70mm pad for 75mm fiber disc

Grain size standard in the range P36 to 80 according to FEPA (850 to 200 µm):
allows selection of the appropriate tool from coarse grinding to finer cleaning

Backing plate with shank HERMAN MP-90S Soft:

Flexible design:
follows the uneven surface of the workpiece when grinding

Internal metal thread:
reliable and stable attachment of interchangeable tools with compatible external thread

Warning:
do not exceed the maximum speed when working (30,000 rpm for Ø 45mm, 20,000 rpm for Ø 70mm)
