Right-angled bit holder
HERMAN SB-86
Full-metal with magnet

1/4" output with internal hexagon:
compatible with all standard hexagon shank bits and tools with a diameter of 6.3 mm

Strong neodymium permanent magnet:
ensures reliable holding and quick change of bits or tools

Solid full-metal construction:
designed for rotational speed up to 2,500rpm and tightening torque up to 57Nm

Screw head position adjustment in the range of 0°– 360°:
a total of 8 positions of 45°

Auxiliary metal handle:
adjustable in three 45° positions, with a button for quick selection and fixing of the selected position

Unscrewable handle cap:
provides storage space for 2 bits of 25mm length

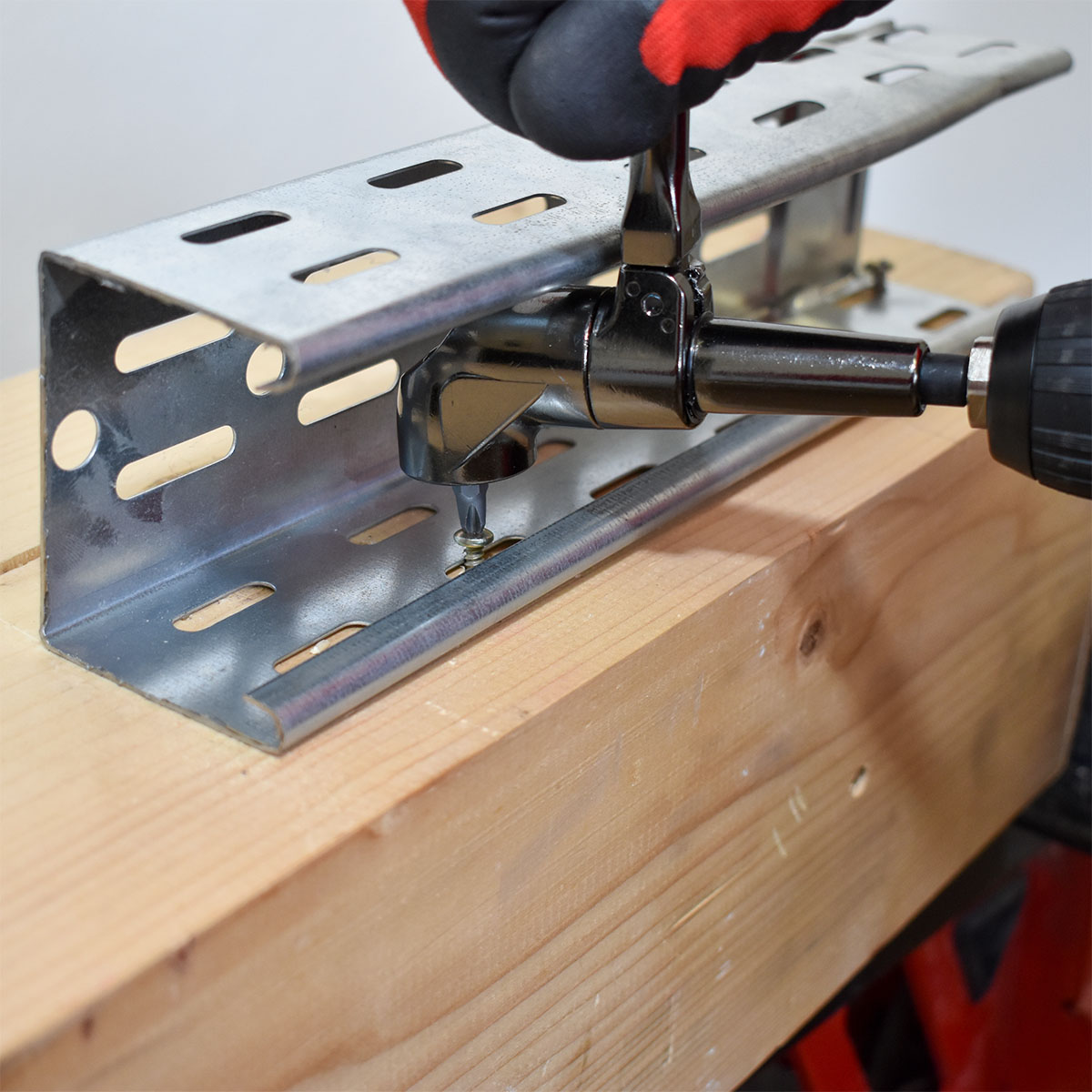

For extremely tight spaces:
only 55mm of space is required to loosen the screw (distance between the tip of the bit and the top edge of the holder head)

Hexagonal 1/4" shank (form E 6.3 according to DIN ISO 1173):
suitable for three-jaw chucks, fully compatible with all standard 1/4" bits (form C 6.3 and E 6.3 according to DIN ISO 1173)

Warning:
The handle must be securely fastened in the adjusted position and held with the free hand during operation. A firm and stable grip is important for higher torques. Increase the speed slowly and gradually to avoid unwanted reactions and loss of control.
