NEW

Set of metal drill bits DIN 338
HERMAN QDM-24 HSS-G
220 drill bits in case

Name: Set of metal drill bits DIN 338 HERMAN QDM-24 HSS-G 220 drill bits in case
Brand: Herman
SKU: 8585059810784
Price: 438.2 EUR
Availability: InStock
Rating: 5 (2 reviews)

438,20 € excl. VAT

In stock > 10 pcs

Set of HERMAN DM-20 HSS-G metal drill bits : 10x Ø1,0 - 8,0mm by 0,5mm; 5x Ø8,5 - 13,0mm by 0,5mm; 10x Ø3,3mm; 10x Ø4,2mm

In Stock

SKU: 97160506 Category of goods: Drill bits for metal

Designation

For drilling into metal from non-alloyed and alloyed steel and steel-alloyed metals up to a strength of 800 N/mm2, grey cast iron, non-ferrous metals, bronze, etc.
Suitable for conventional electric drills, bench drills and cordless screwdrivers with chuck

Description

Right-hand drill bits with cylindrical shank made of HSS M2 high-speed steel, with reinforced core:
high resistance to drill bit breakage during drilling

Point angle 118° with "split point" according to DIN 1412 C (for diameters of 3 mm and more):
only slight resistance to sliding is felt when drilling, ensures very good chip evacuation of the drilled material and prevents slipping when drilling on rounded objects without prior pitting

Sharp drill bit chips:
good for removing long chips, especially when drilling softer materials

Drill bit surface polished, without additional coating:
reduces friction when drilling and allows sharpening of the tip and the whole spiral

Recommendation:
Use cutting oil when drilling for increased durability

Parameters

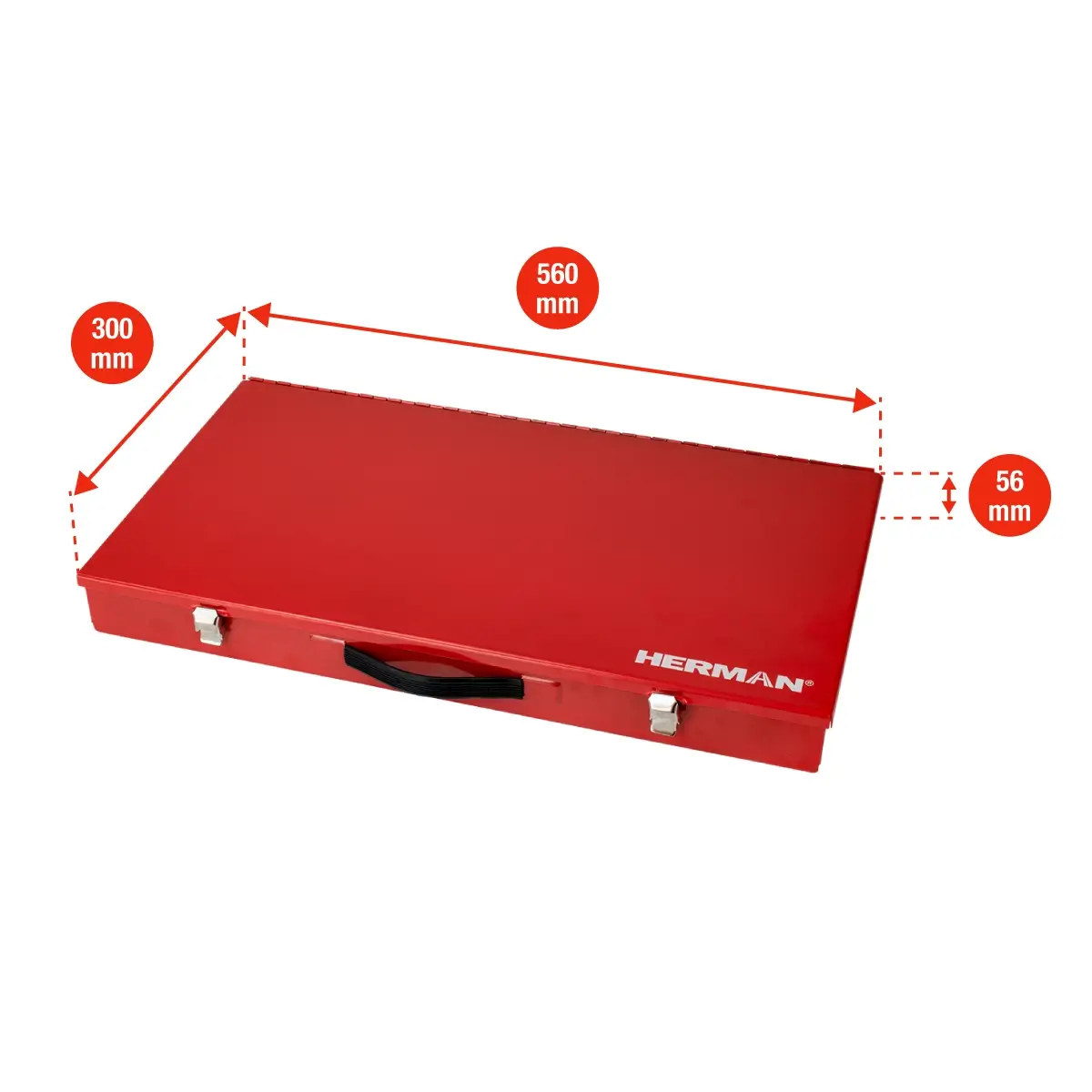

Dimension (open case) (W x D x H) (mm)	560 x 300 x 360
Dimension (closed case) (W x D x H) (mm)	560 x 300 x 60
Weight (kg)	8,55
Material	metal

Contents of the package

10x Metal drill bit DM-10 HSS-G 1,0x12/34mm
10x Metal drill bit DM-10 HSS-G 1,5x18/40mm
10x Metal drill bit DM-10 HSS-G 2,0x24/49mm
10x Metal drill bit DM-10 HSS-G 2,5x30/57mm
10x Metal drill bit DM-10 HSS-G 3,0x33/61mm
10x Metal drill bit DM-10 HSS-G 3,3x36/65mm
10x Metal drill bit DM-10 HSS-G 3,5x39/70mm
10x Metal drill bit DM-10 HSS-G 4,0x43/75mm
10x Metal drill bit DM-10 HSS-G 4,2x43/75mm
10x Metal drill bit DM-10 HSS-G 4,5x47/80mm
10x Metal drill bit DM-10 HSS-G 5,0x52/86mm
10x Metal drill bit DM-10 HSS-G 5,5x57/93mm
10x Metal drill bit DM-10 HSS-G 6,0x57/93mm
10x Metal drill bit DM-10 HSS-G 6,5x63/101mm
10x Metal drill bit DM-10 HSS-G 7,0x69/109mm
10x Metal drill bit DM-10 HSS-G 7,5x69/109mm
10x Metal drill bit DM-10 HSS-G 8,0x75/117mm
5x Metal drill bit DM-10 HSS-G 8,5x75/117mm
5x Metal drill bit DM-10 HSS-G 9,0x81/125mm
5x Metal drill bit DM-10 HSS-G 9,5x81/125mm
5x Metal drill bit DM-10 HSS-G 10,0x87/133mm
5x Metal drill bit DM-10 HSS-G 10,5x87/133mm
5x Metal drill bit DM-10 HSS-G 11,0x94/142mm
5x Metal drill bit DM-10 HSS-G 11,5x94/142mm
5x Metal drill bit DM-10 HSS-G 12,0x101/151mm
5x Metal drill bit DM-10 HSS-G 12,5x101/151mm
5x Metal drill bit DM-10 HSS-G 13,0x101/151mm
1x Metal case

Kalkulačka

Amount	Product	MOC excl. VAT (€)	Vaša VOC po zadanej zľave (€)
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 1,0x12/34mm €	0,53 €	0,424 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 1,5x18/40mm €	0,53 €	0,424 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 2,0x24/49mm €	0,55 €	0,440 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 2,5x30/57mm €	0,55 €	0,440 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 3,0x33/61mm €	0,55 €	0,440 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 3,3x36/65mm €	0,57 €	0,456 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 3,5x39/70mm €	0,57 €	0,456 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 4,0x43/75mm €	0,62 €	0,496 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 4,2x43/75mm €	0,67 €	0,536 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 4,5x47/80mm €	0,78 €	0,624 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 5,0x52/86mm €	0,95 €	0,760 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 5,5x57/93mm €	1,16 €	0,928 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 6,0x57/93mm €	1,33 €	1,064 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 6,5x63/101mm €	1,59 €	1,272 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 7,0x69/109mm €	1,87 €	1,496 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 7,5x69/109mm €	2,12 €	1,696 €
10x	Metal drill DIN 338 HERMAN DM-20 HSS-G 8,0x75/117mm €	2,54 €	2,032 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 8,5x75/117mm €	2,83 €	2,264 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 9,0x81/125mm €	3,24 €	2,592 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 9,5x81/125mm €	3,77 €	3,016 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 10,0x87/133mm €	4,21 €	3,368 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 10,5x87/133mm €	4,73 €	3,784 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 11,0x94/142mm €	5,27 €	4,216 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 11,5x94/142mm €	5,68 €	4,544 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 12,0x101/151mm €	6,47 €	5,176 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 12,5x101/151mm €	6,96 €	5,568 €
5x	Metal drill DIN 338 HERMAN DM-20 HSS-G 13,0x101/151mm €	7,39 €	5,912 €
