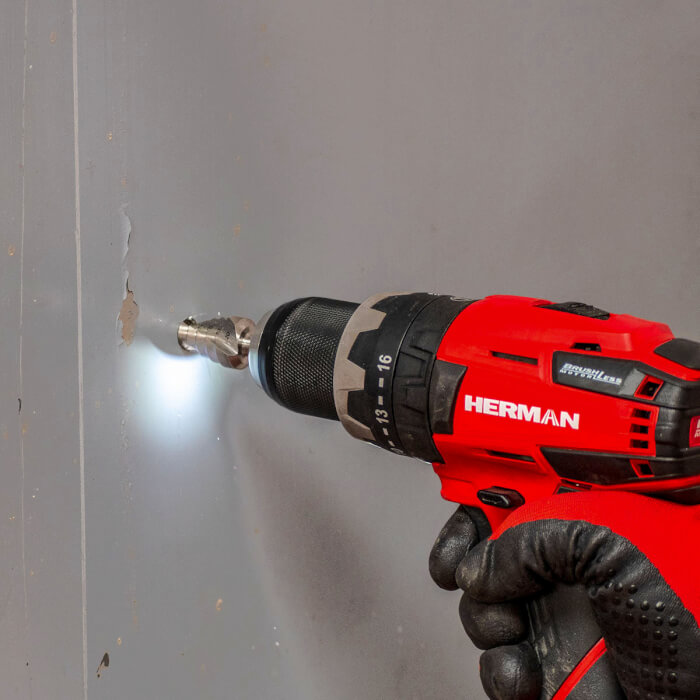

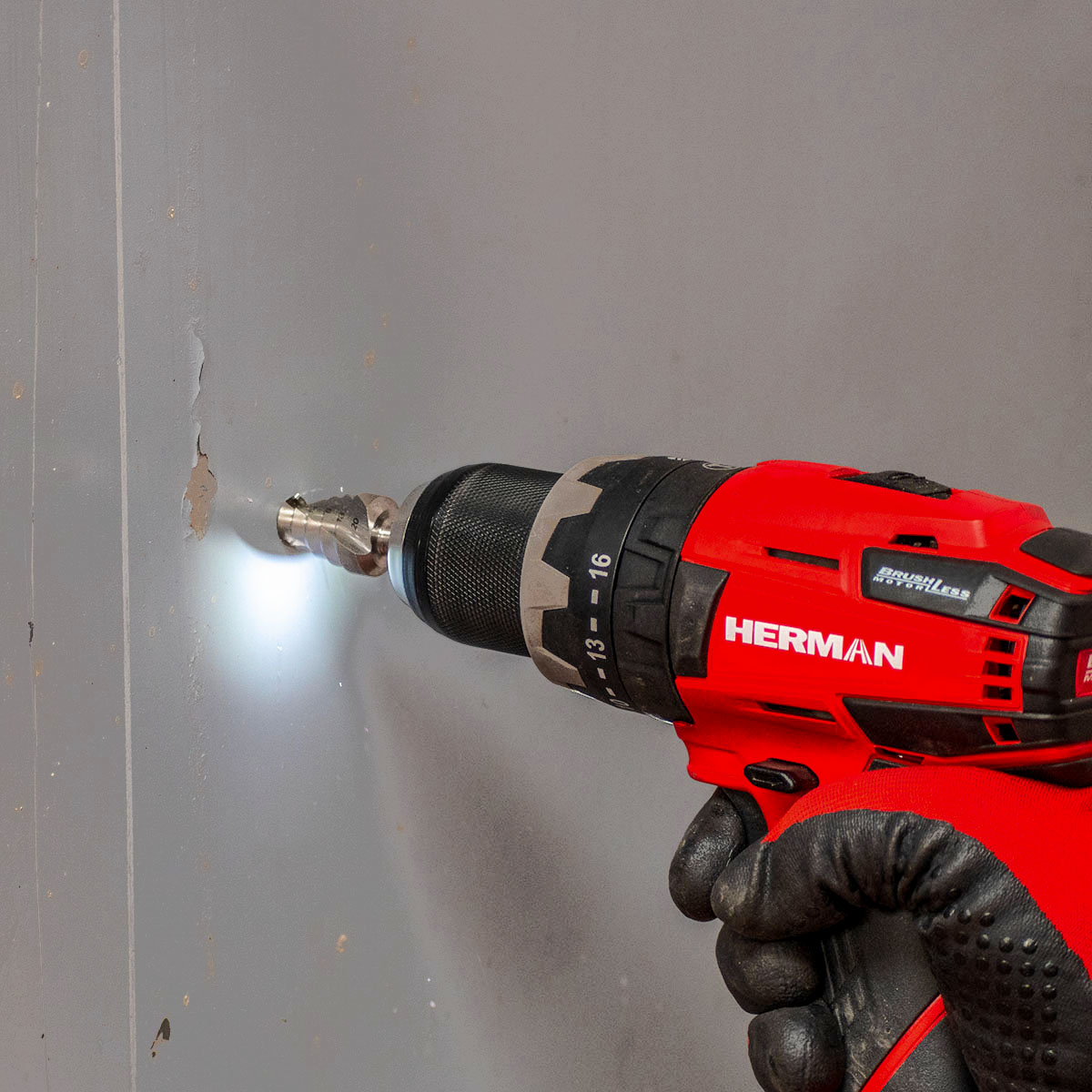

Step drill
HERMAN DM-60 HSS
For thin-walled materials
Start over
Choose variant:
Range (mm)
Ø1 (mm)
Ø2 (mm)
L1 (mm)
Ø3 (mm)
Number of grades
Gradient (mm)
Balenie (ks)

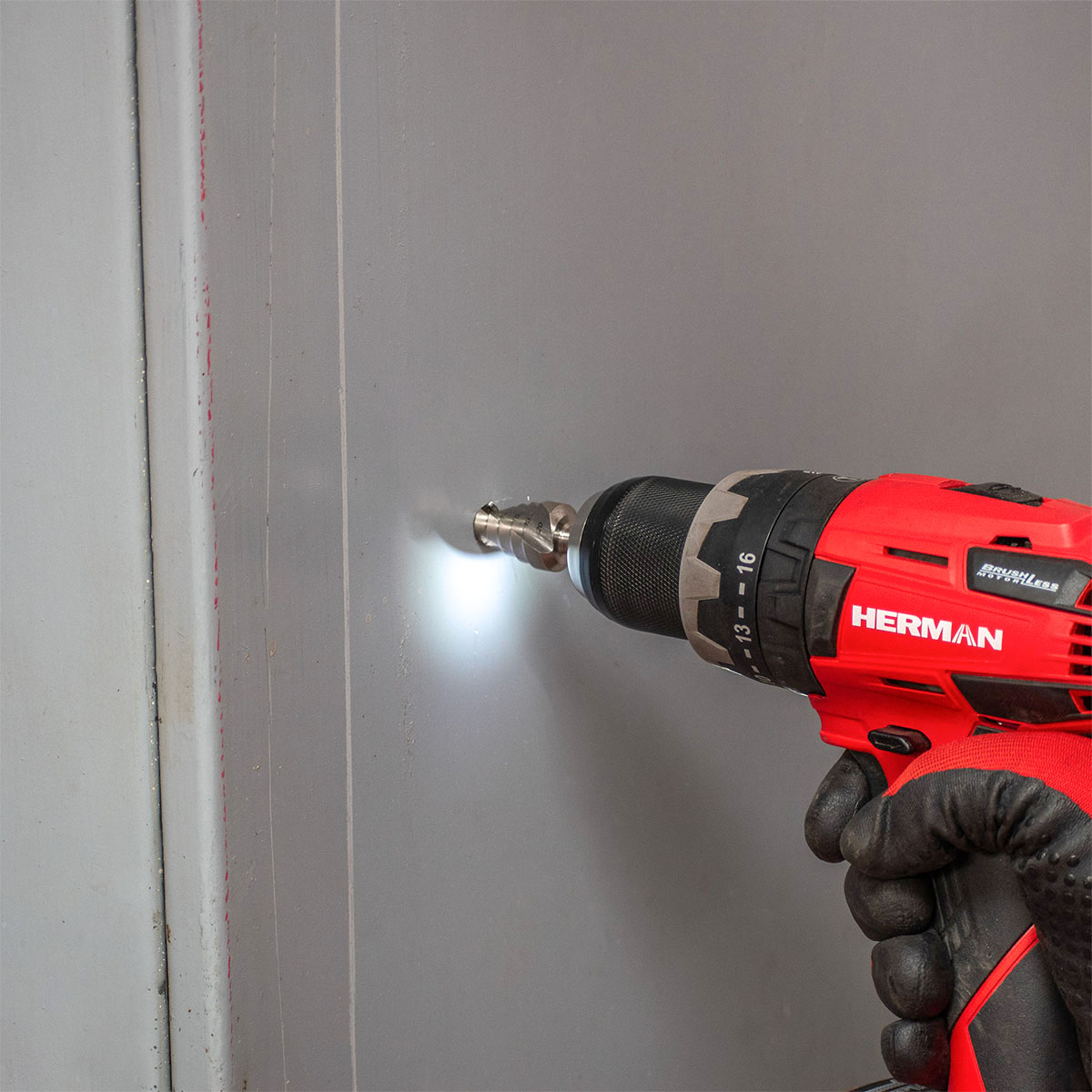

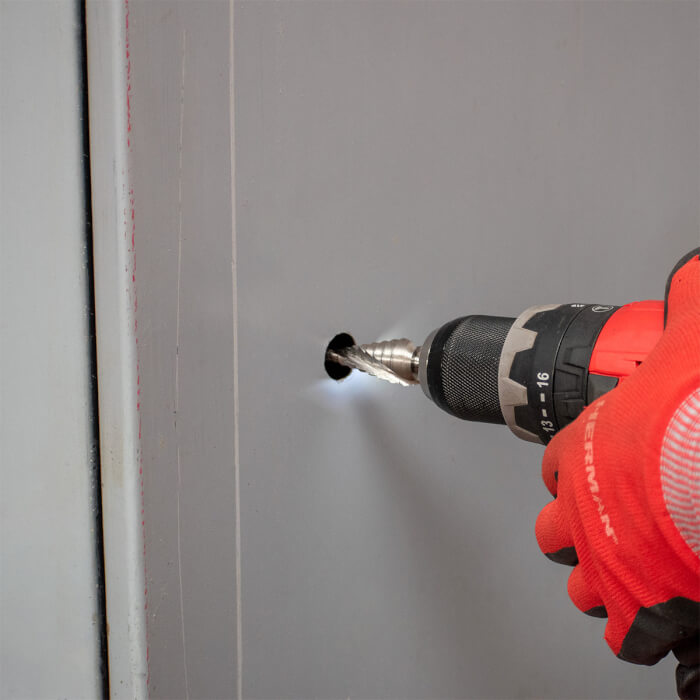

Smooth drilling of holes of several diameters with one drill in thin-walled materials
Suitable equipment
Electropneumatic hammers
Electropneumatic hammers
| Product | Quantity in package (pcs) | Price | |
|
Combi-hammer HERMAN BXH-10 | SDS-plus 850 W | 1 |
Cordless drill/drivers
Cordless drill/drivers
Lubricants and oils
Lubricants and oils
| Product | Quantity in package (pcs) | Price | |
|
Cutting and drilling oilj HERMAN MT-10 50ml | 1 | |
|
Cutting and drilling oilj HERMAN MT-10 200ml | 1 |
Drill drivers and impact wrenches
Drill drivers and impact wrenches
Other tools
Other tools
| Product | Quantity in package (pcs) | Price | |
|
Electric drill HERMAN MBX-650 650 W | with hammer function | 1 |
Designation

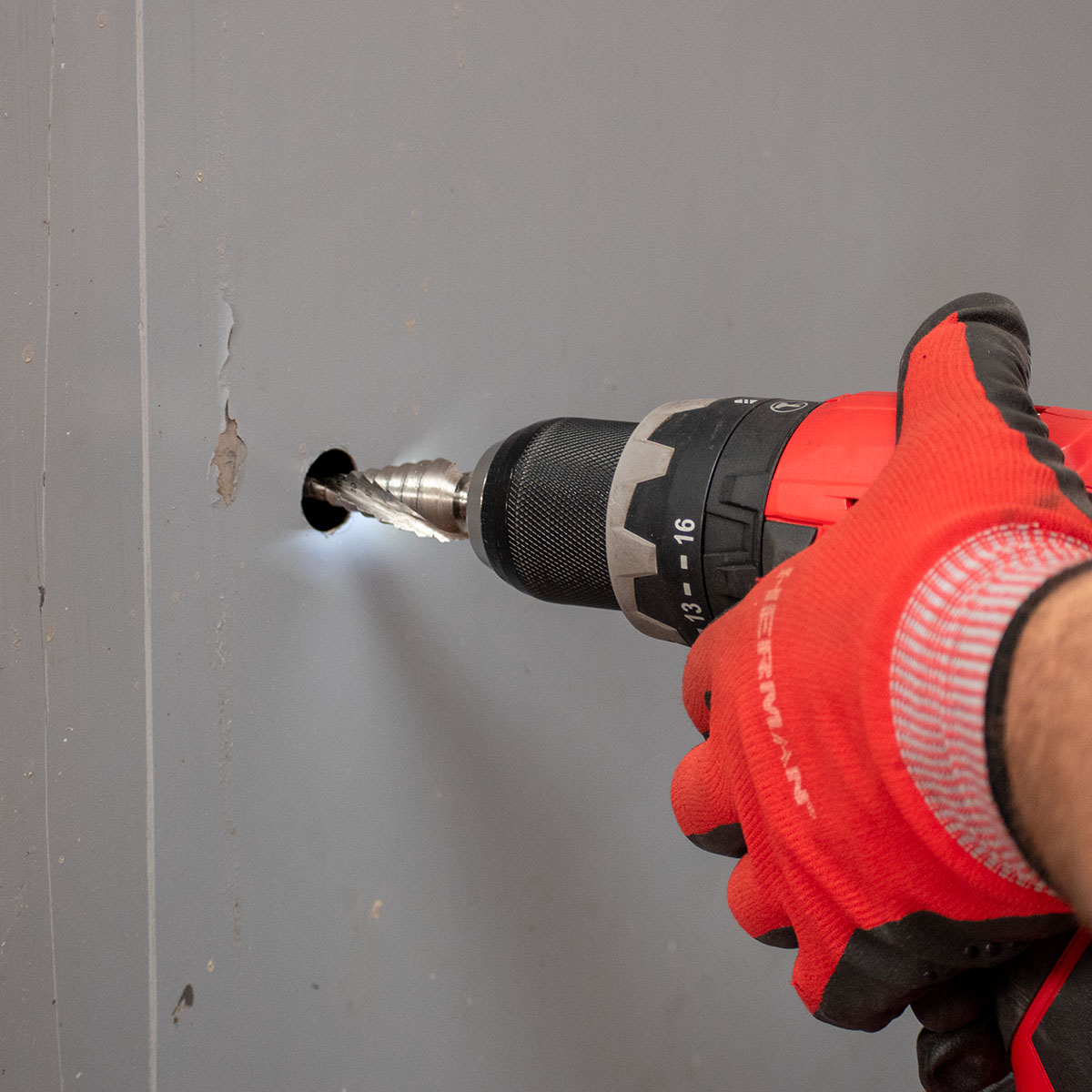

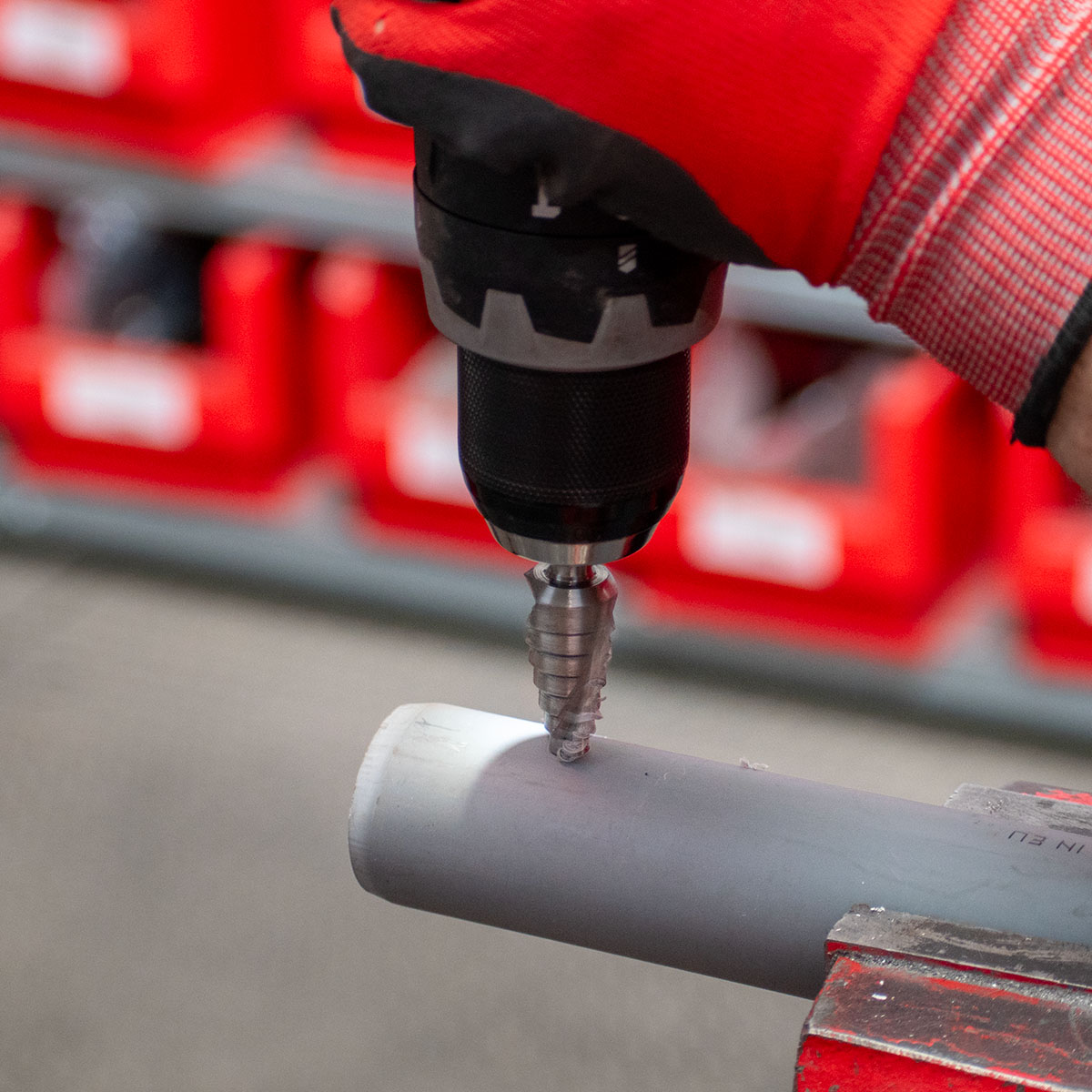

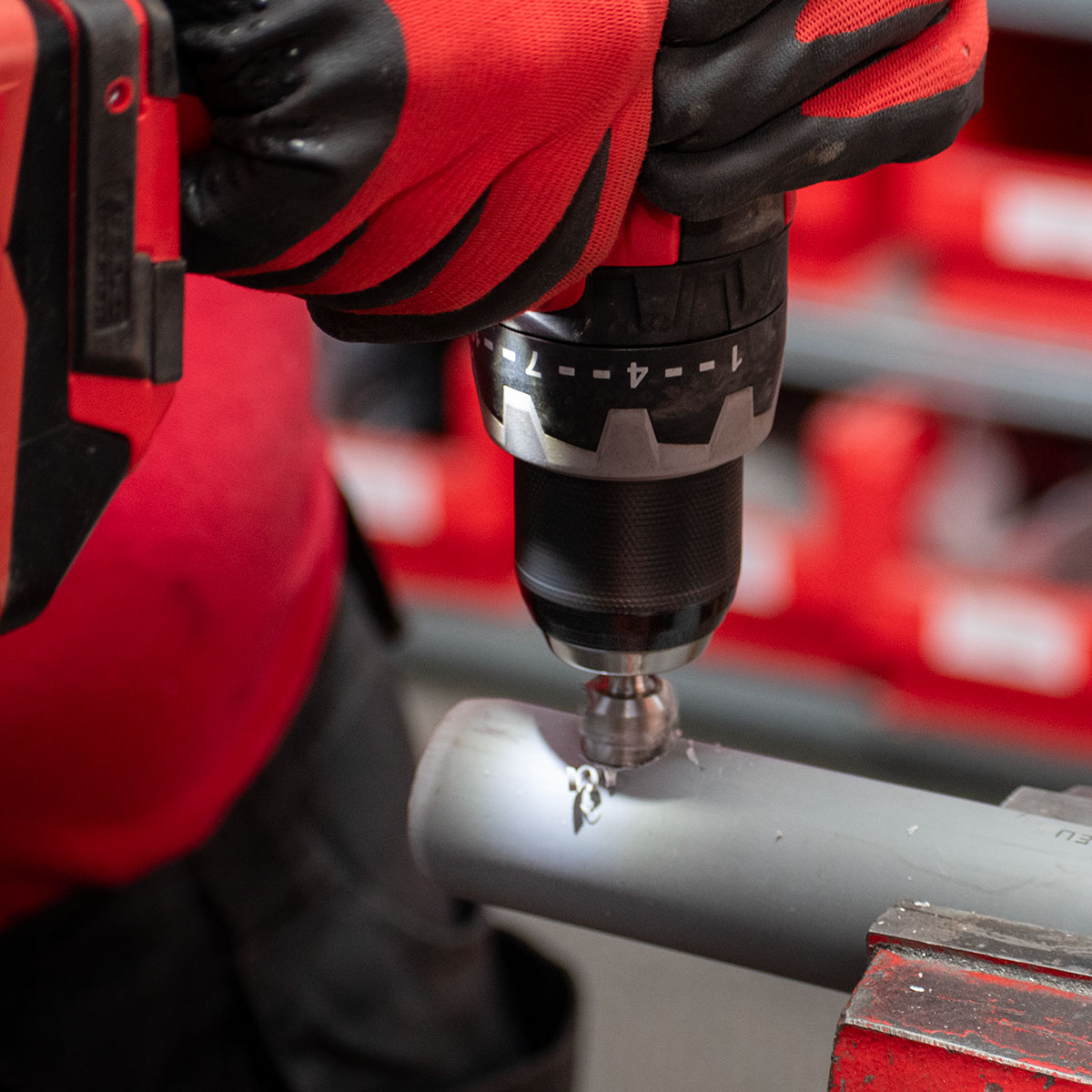

- Ideal for precise enlargement of already drilled holes and for drilling in thin-walled materials, e.g. for the installation of cable glands of switchboards, pipe openings and installation, in the automotive industry, maintenance, repairs, etc.
- For drilling stainless steel sheets with a thickness of 0.1 - 2mm

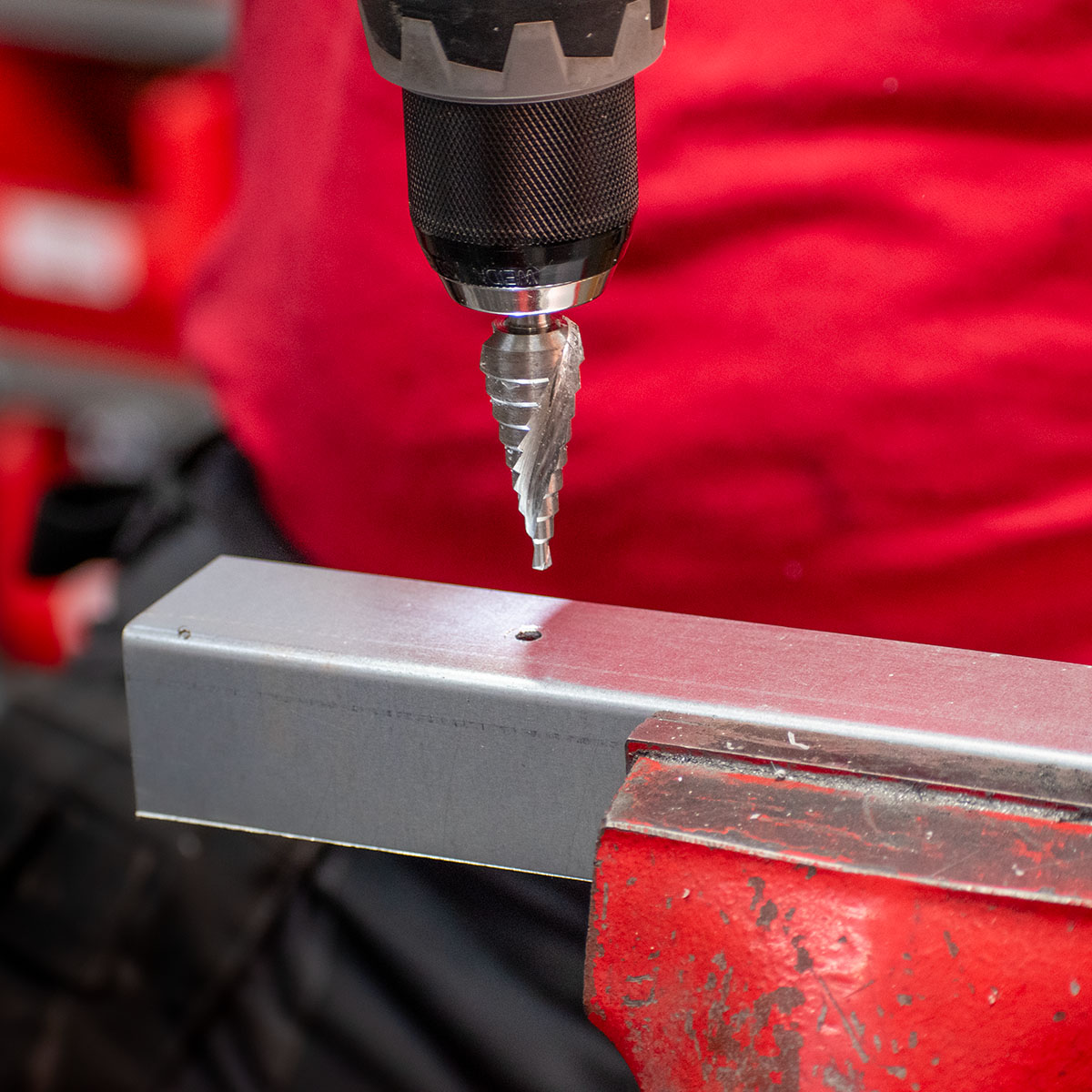

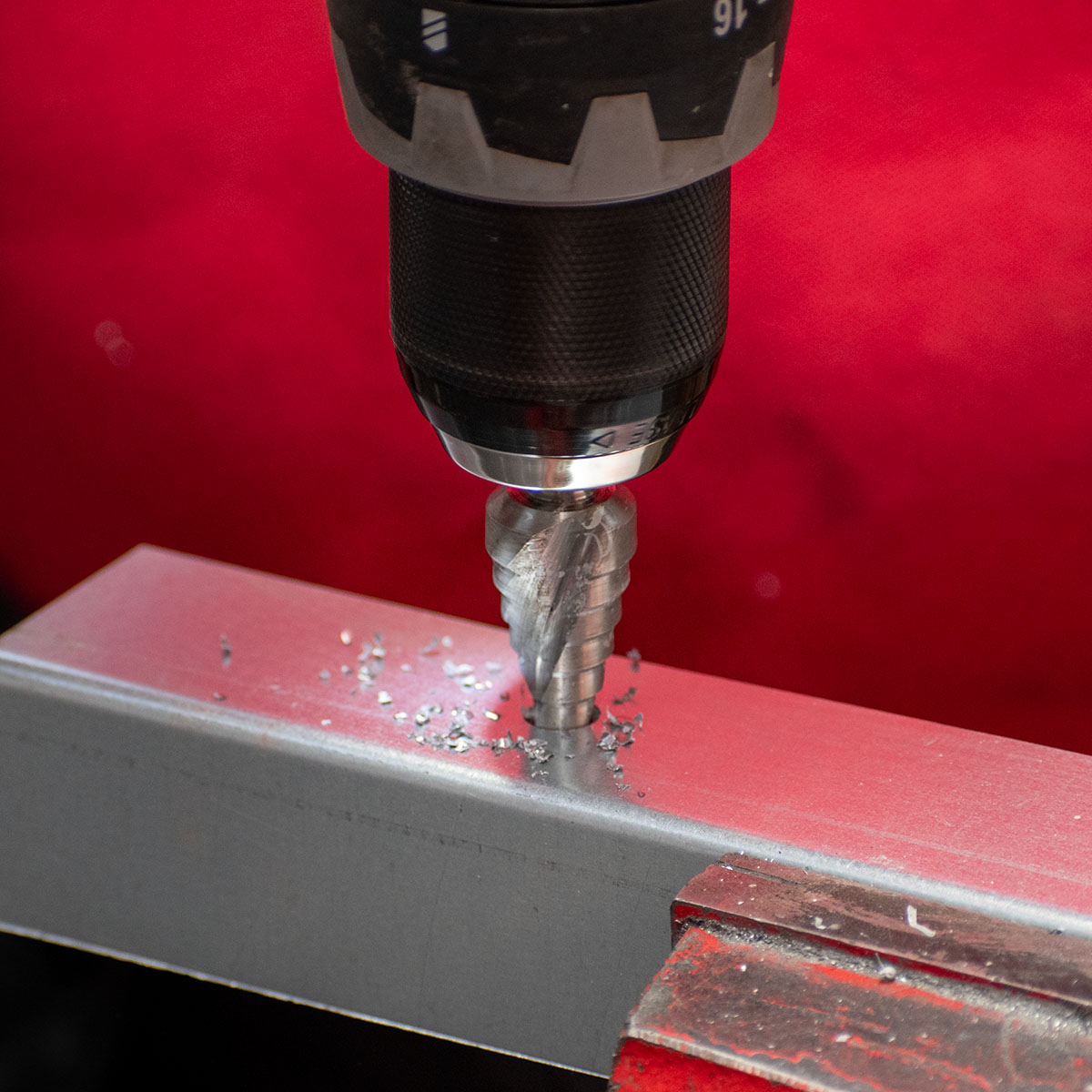

- For drilling steel and non-ferrous metal sheets with a thickness of 0.1 - 4mm
- For drilling hard plastics without cracking or tearing in thicknesses from 1 - 4mm
Description
Peak angle 118° with a split point (split point), ground according to DIN 1412 type C:
prevents drills from sliding on round workpieces and enables drilling without the need for hole punching
A robust, powerful and precise tool with sharp edges, made on CNC machines, ground with CNB discs into the already cloudy HSS M2 material, with a 90° angle of transition to each next step:
easy, even, fast successive drilling
Deeply ground groove:
easily removes even long chips created during drilling
Made of HSS M2 material, with a polished surface:
low friction, long service life, flawless design
One drill for multiple sizes in three variants:
9 degrees 4-12mm by 1mm, 9 degrees 4-20mm by 2mm and 14 degrees 4-30mm by 2mm
Possibility of use in the speed range of electric and battery tools:
wide application with commonly available tools
Laser-marked diameters:
easily visible, permanent, indelible marking
Conical tool:
easy extraction of the drill bit from the drilled hole
Oval shank combined with three clamping surfaces:
enables firm clamping in common 3-jaw chucks
Without additional coating:
the possibility of sharpening a blunt edge
Recommendation:
the use of cutting oil significantly increases the service life of the tool
| Range (mm) | Ø1 (mm) | Ø2 (mm) | L1 (mm) | Ø3 (mm) | Number of grades | Gradient (mm) | Quantity in package (pcs) | Price | |
ID: 16050501
|
4 - 12 | 4 | 12 | 65 | 6 | 9 | 1 | 1 | |
ID: 16050502
|
4 - 20 | 4 | 20 | 75 | 8 | 9 | 2 | 1 | |
ID: 16050503
|
4 - 30 | 4 | 30 | 100 | 10 | 14 | 2 | 1 |
