Planning to buy more? Request a quoteAngle Grinder
HERMAN WX-23002
230 mm | 2400 W
A perfect match of more than three horsepower, with high comfort and safety features
The sale of this product is discontinued
Suitable tools and accessories
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|

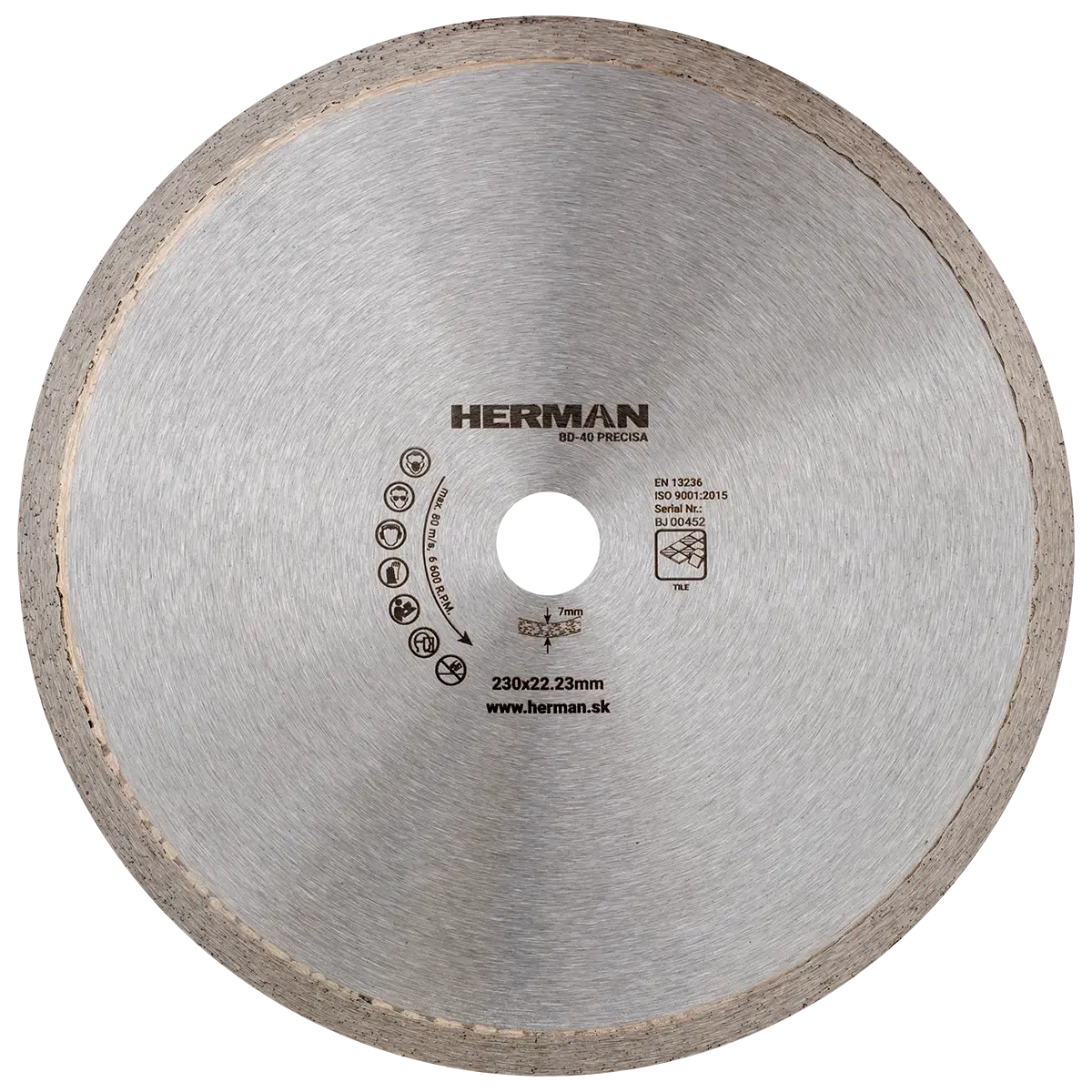

Diamond wheel HERMAN BD-40 Precisa 230x22,2mm | H=7,0mm | 36,68 € |
|
36,68 € | |
|

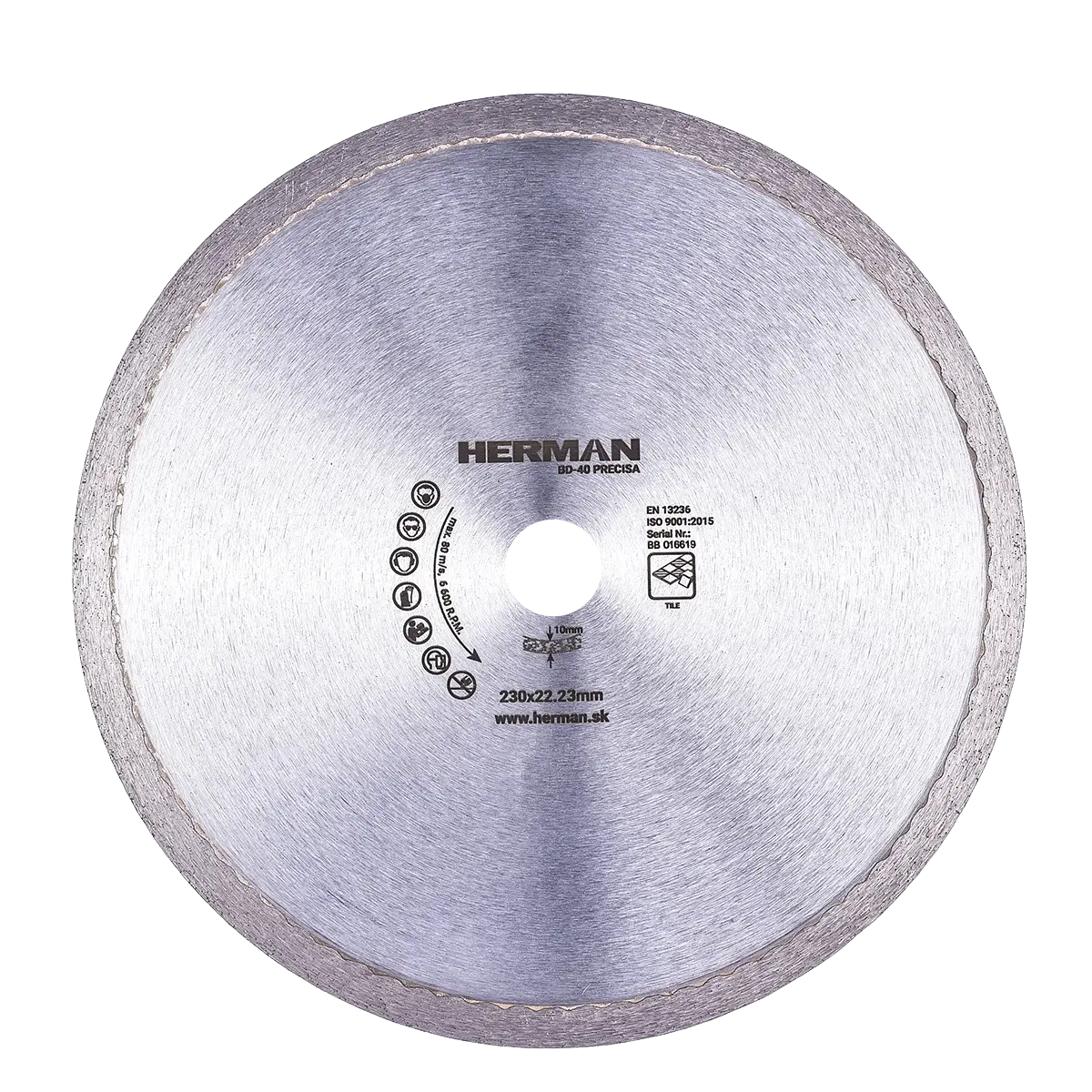

Diamond wheel HERMAN BD-40 Precisa 230x22,2mm | H=10,0mm | 44,03 € |
|
44,03 € | |
|

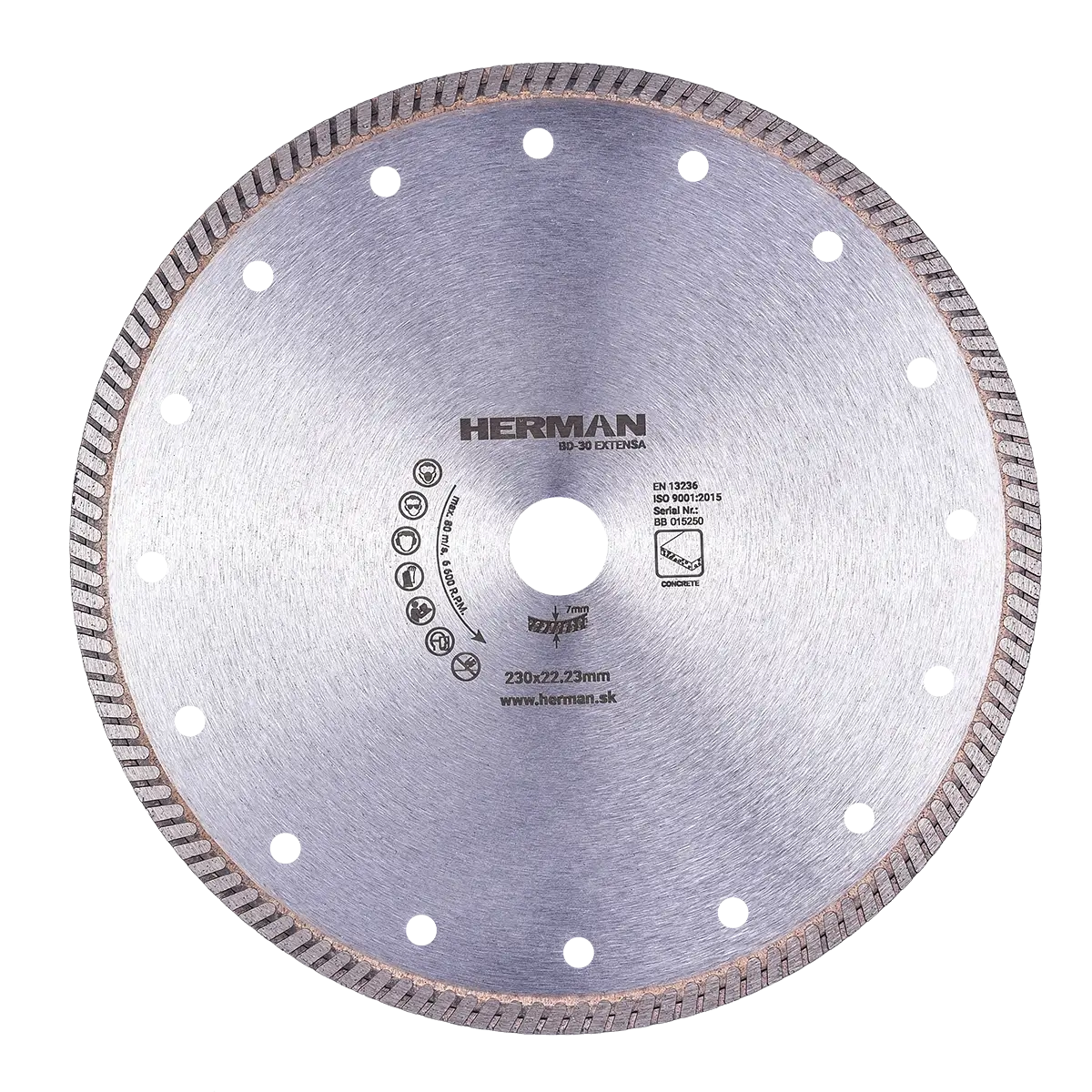

Diamond wheel HERMAN BD-30 Extensa 230x22,2mm | H=7mm | 47,84 € |
|
47,84 € | |
|

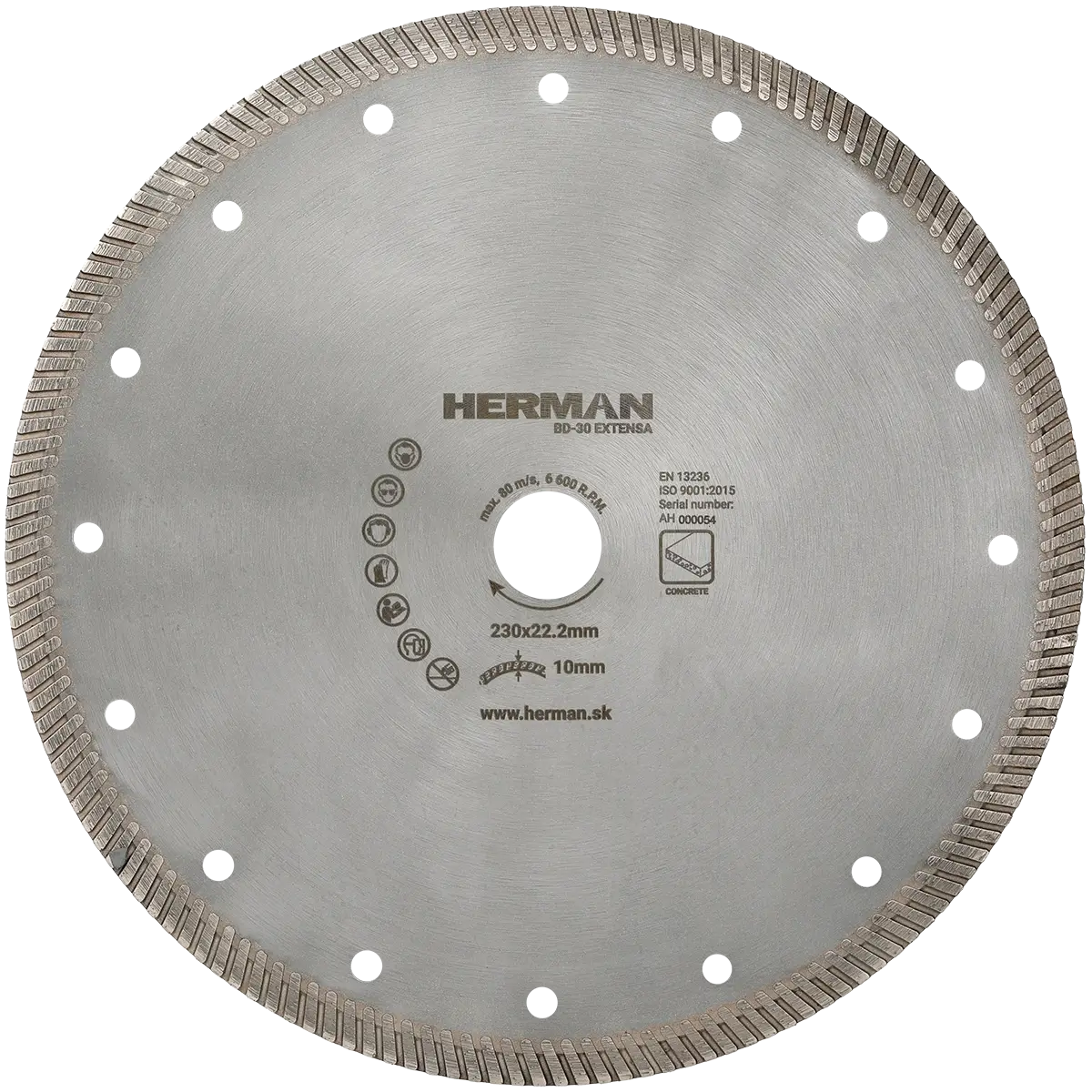

Diamond wheel HERMAN BD-30 Extensa 230x22,2mm | H=10mm | 57,42 € |
|
57,42 € | |
|

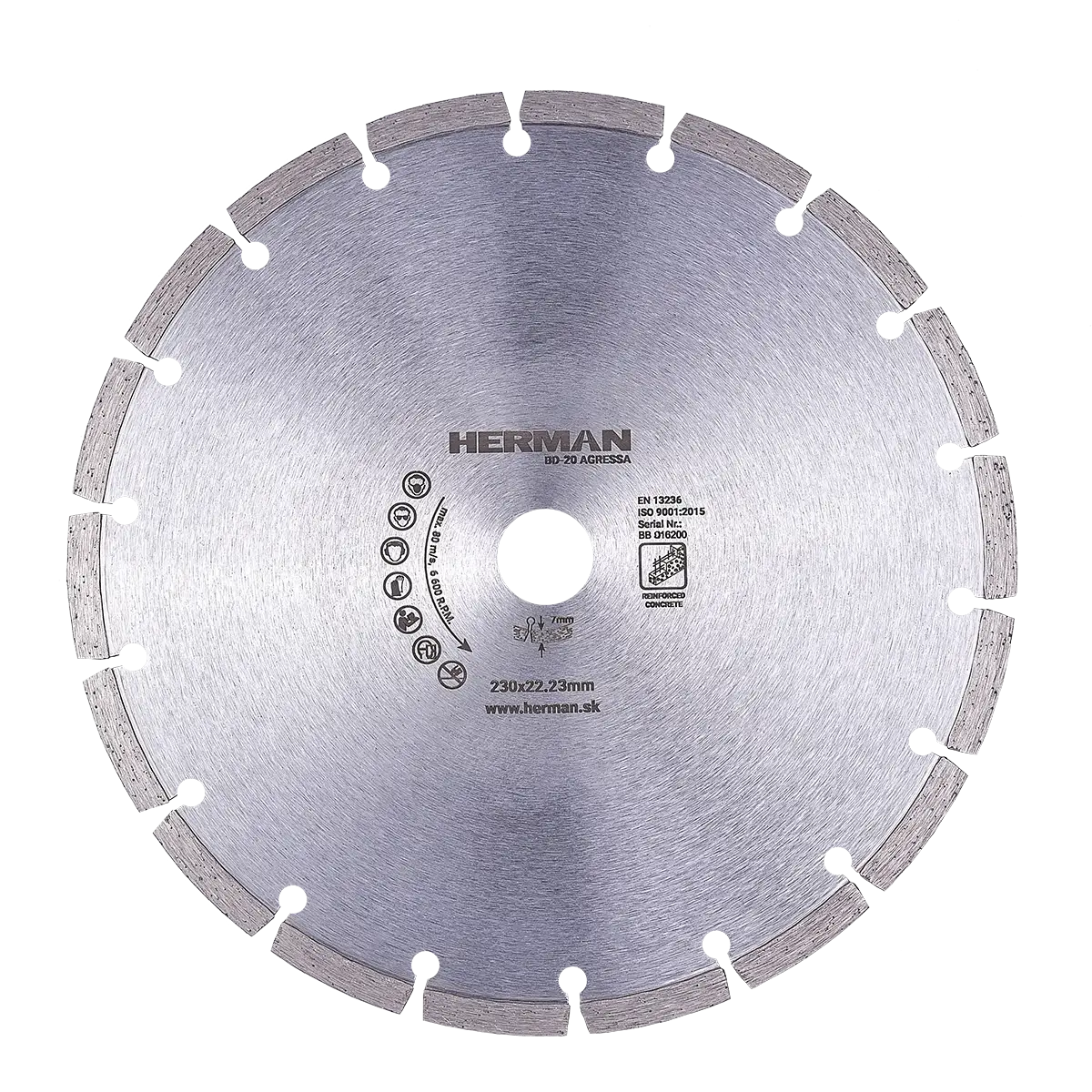

Diamond wheel HERMAN BD-20 Agressa 230x22,2mm | H=7mm | 40,58 € |
|
40,58 € | |
|

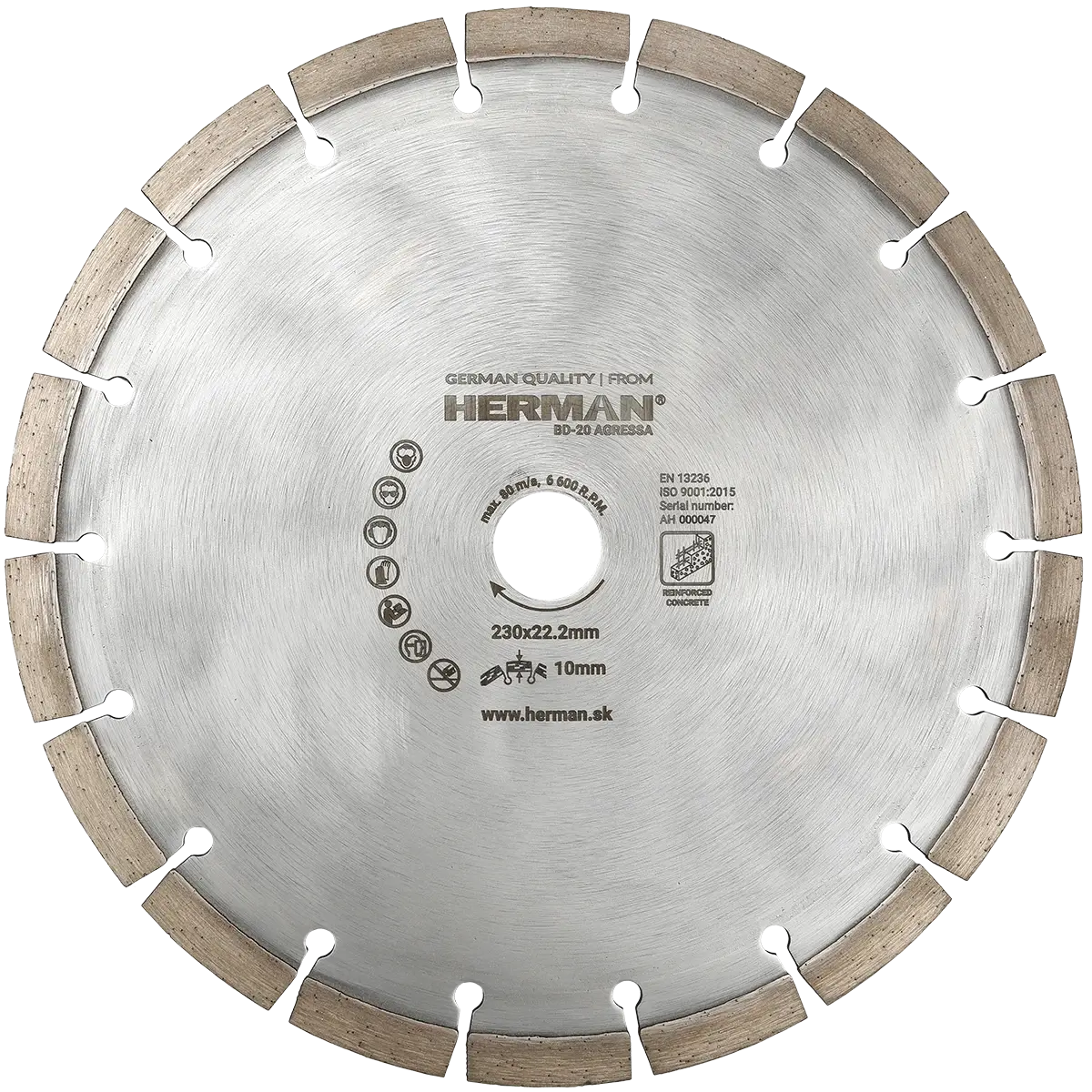

Diamond wheel HERMAN BD-20 Agressa 230x22,2mm | H=10mm | 48,95 € |
|
48,95 € | |
|
Diamond wheel HERMAN BD-50 Impressa 230x22,2mm | H=7mm | 86,96 € |
|
86,96 € |
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|
Grinding wheel HERMAN GS-30 Classic | For steel 230x6,0x22,23mm | 5,57 € |
|
27,85 € | |
|
Grinding wheel HERMAN GS-30 Classic | For steel 230x6,0x22,23mm | 4,48 € |
|
112,00 € |
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|
Carbon brushes (pair) WX 180/230-2000, WX 180/230-2400, WX 18001-02, WX 23001-02 | 10,46 € |
|
10,46 € | |
|
Power supply cord (flex cord) HERMAN FC-14A | 3m WX 10001, WX 12501, WX 12503, WX 12504, WX 15001, BX 800, MBX 650, RX 1700 | 8,45 € |
|
8,45 € |
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|
Clamping nut M14 for angle grinders WX 125xx - WX 230xx, AXAG 1800 | 3,97 € |
|
3,97 € | |
|
Clamping flange for angle grinders WX 125xx - WX 230xx, AXAG 1800 | 3,97 € |
|
3,97 € | |
|

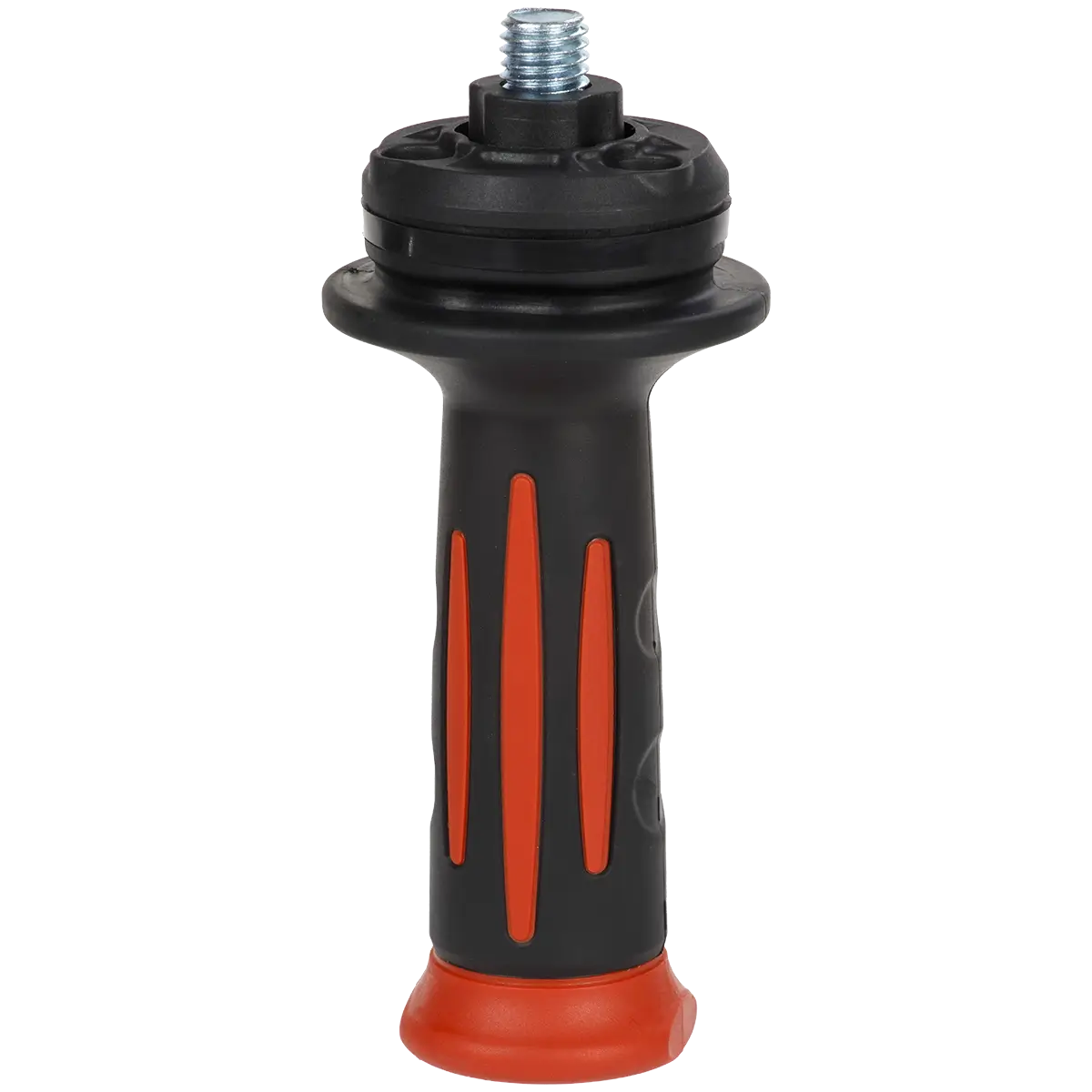

Additional handle for angle grinders WX 180xx, WX 230xx | 25,16 € |
|
25,16 € | |
|
Protective disc cover Ø230 WX 230xx | 14,56 € |
|
14,56 € |
Designation
- Especially for cutting hard and very hard metal and construction materials with a cutting depth of up to 75 mm, or also for grinding, polishing and cleaning their surfaces
Comfort
Adjustment of the rear and front additional handle - each in three positions independently of each other:
allows you to choose up to 9 different combinations of mutual positions of both handles. Maximum comfort for right-handed and left-handed users
Anti-vibration front additional handle significantly reduces the vibration values transferred from the sander to the hands
Locking the mains switch in the on position:
if needed, it is not necessary to keep your fingers on the switch while working
Spindle lock button:
It makes easier to change the disc by blocking the rotation of the spindle
Gearbox made of light alloy:
reduces the weight of the sander
Simple replacement of carbon brushes:
without intervention in the sander
Safety
"SOFT START" function:
ensures a smooth, soft start of the motor and reduces the starting torque when starting the grinder
The "RESTART PROTECTION" function protects against restarting the engine after the power supply is restored:
it increases safety at work
"KICK BACK STOP" function:
shuts off the engine when the disc is blocked and protects the operator from kickback
Two-position mains switch:
the design of the switch protects against accidental starting of the grinder when grasping the rear handle
Double insulation:
increased protection against electric shock
Crack-resistant protective disc cover:
with the option of setting the optimal position for greater safety
Lifetime
Electronic protection against overload:
when the set temperature level is exceeded, the motor switches off
Self-disconnecting carbon brushes protect the rotor commutator from damage at the end of the life of the carbon brushes
Gearbox made of light alloy:
the material used contains additives that increase resistance to wear
Motor winding with epoxy protection:
contributes to a longer life of the grinder
Effective anti-dust system reduces the penetration of dust during the intake of cooling air
Specially shaped air inlets increase the efficiency of engine cooling
Parameters
| Voltage [V~] | 220-240 |
|---|---|
| Rated power [W] | 2400 |
| Spindle thread | M14 |
| Max. disc diameter [mm] | 230 |
| Idle speed [U/min] | 6500 |
| A-weighted emission sound power level (LWA) [dB(A)] | 100 |
| A-weighted emission sound pressure level (LpA) [dB(A)] | 89 |
| Uncertainty (K) [dB(A)] | 3 |
| Weight (according to EPTA 01/2003) [kg] | 6,1 |

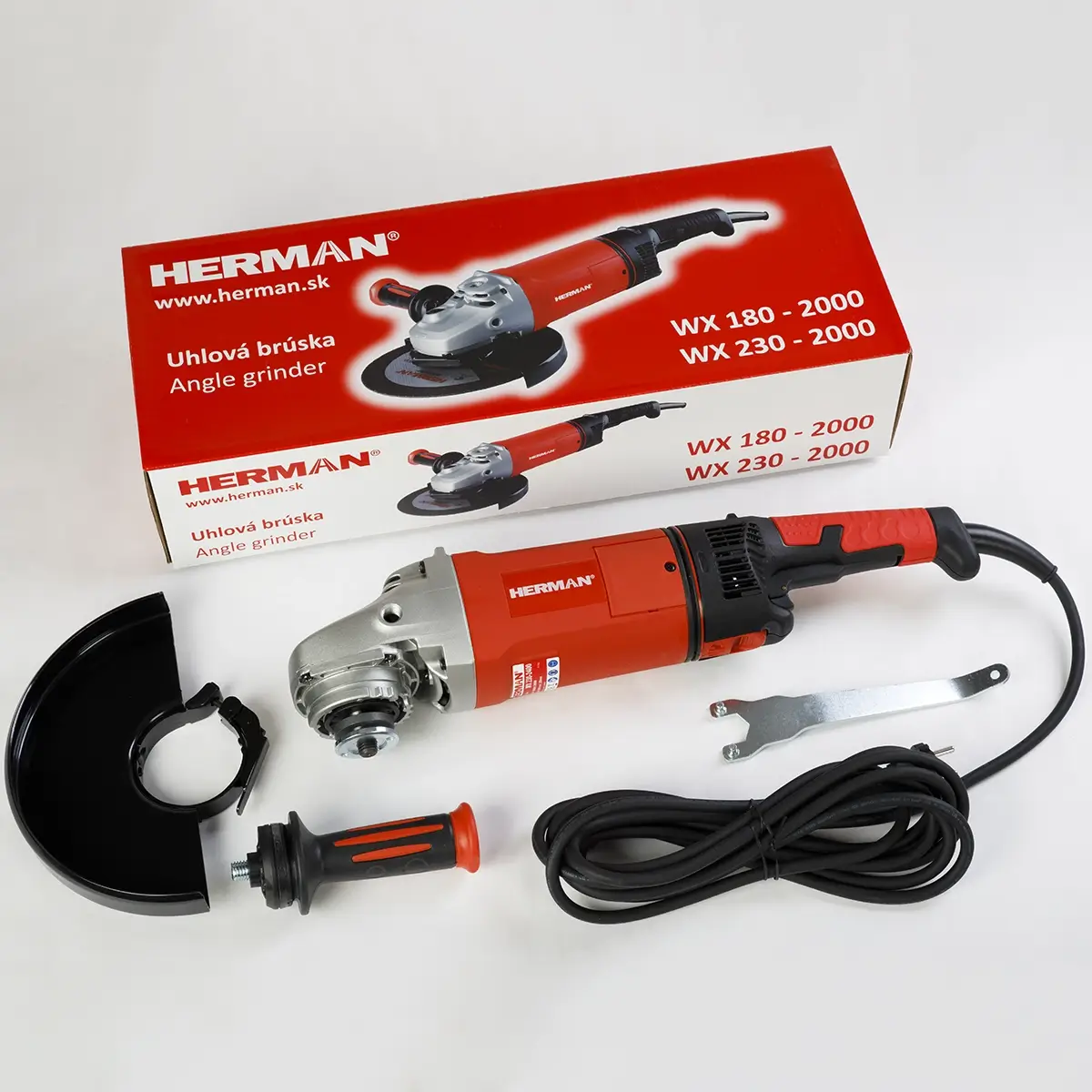

Contents of the package
- 1x Angle grinder
- 1x Additional handle
- 1x Clamping key
- 1x Clamping flange
- 1x Clamping nut
- 1x Disc cover
- 1x Instructions for use
