Designation
- For precise measurement and marking of angles in various types of assembly work, especially in construction, mechanical engineering, etc.
- It allows measuring angles in places where the use of other measuring instruments with sufficient accuracy is difficult, e.g. between two walls, floor and wall, in the attic, etc.
Description

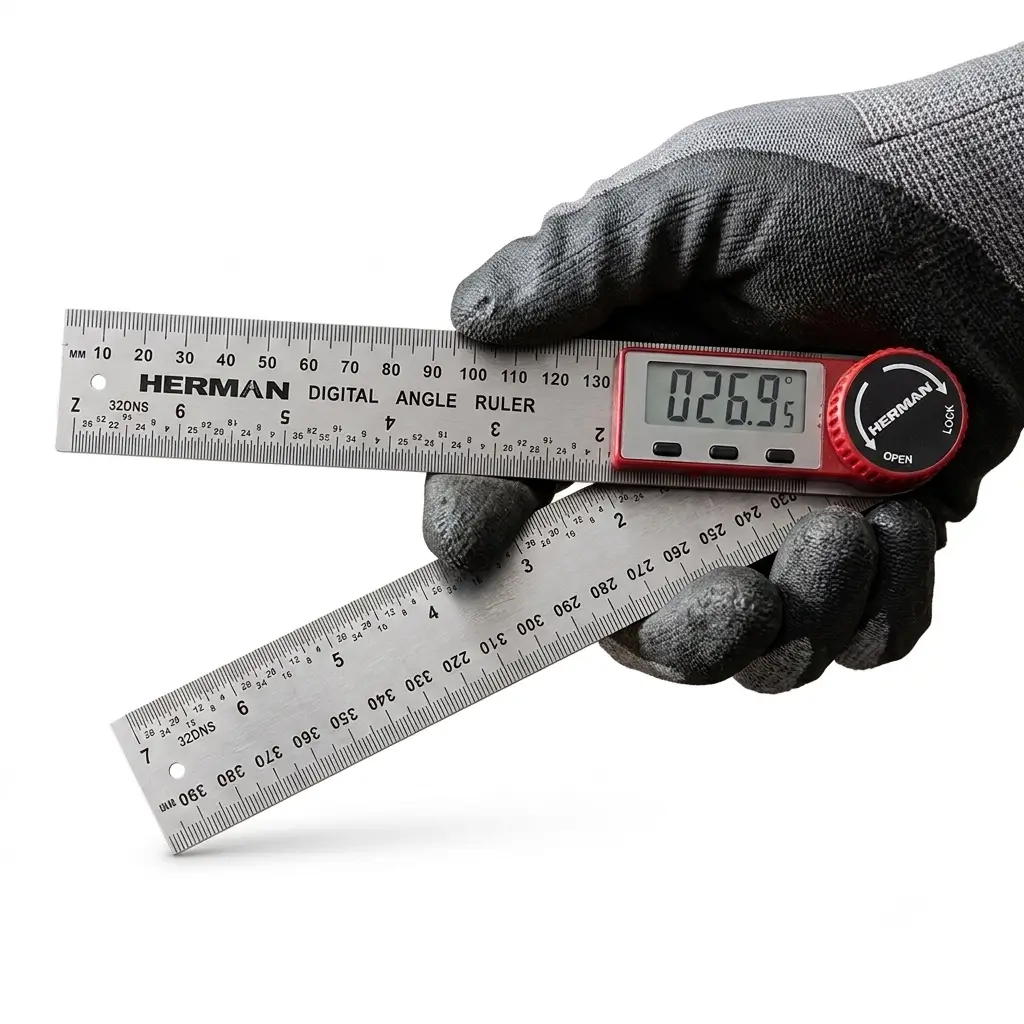

Versatility in use:
when unfolded, it can serve as a metal ruler with a total length of 400mm
Stainless steel arms:
robust, stable design with long service life, with marked scales in mm (1mm increments) and inches (1/32")
Locking joint and LCD display as a compact unit:
also serves as a handle, allowing for convenient fixation in the desired position. LCD display with large, easy-to-read digits showing the measured (or set) angle in degrees
"HOLD/Rev" button:
by briefly pressing it, the measured value is recorded on the display and allows for convenient reading even outside the measurement location
Possibility to rotate the digits on the display by 180°:
sometimes it is convenient to turn the digits "upside down" for a comfortable reading of the measured value. This is possible with the "HOLD/Rev" button. by pressing for about 3 seconds
Automatic on and off:
to turn it on, just move the ruler arms, automatic off is activated after inactivity for about 5 minutes.
Zero setting:
press the "ZERO" button to set zero (zero degrees) at any position
Two practical holes:
for hanging an angle ruler
Warning:
We recommend removing the battery from the device if it is not used for a long time.
Parameters
| Measuring range (°) | 0-360 |
|---|---|
| Resolution (°) | 0,05 |
| Accuracy (°) | ±0,3 |
| Repeatability accuracy (°) | 0,05 |
| Battery life | approx. 1 year* |
| Marked scale on the shoulders | in mm and in inches |
| Folded dimensions L x W x H (mm) | 218 x 35 x 22 |
| Weight (g) | 177 |
Contents of the package
- 1x Angle meter
- 1x Replacement battery CR 2032 3V
- * if not used for a long time, we recommend removing the battery from the device
