Diamond cutting wheel
HERMAN BD-66 Asphalt
For asphalt and fresh concrete
Start over
Choose variant:
Diameter (mm)
Segment height (mm)
Segment length (mm)
Segment thickness (mm)
Number of segments (pcs)
Number of protective segments (pcs)
Centre hole (mm)
Balenie (ks)
from 405,00 € excl. VAT
Special blade with 14 protective segments for cutting asphalt and expansion joints in fresh concrete
Suitable equipment
Diamond cutting wheels for angle grinders
Diamond cutting wheels for angle grinders
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|
Abrasive stone HERMAN GH-10 12x150x5mm | P150 | 1,06 € |
|
2,12 € | |
|
Abrasive stone HERMAN GH-10 12x150x5mm | P150 | 0,96 € |
|
15,36 € |
Designation
- For cutting asphalt and for demanding cutting of expansion joints in fresh and uncured concrete with joint cutters with power up to 20kW
Description
Balanced combination of high concentration of synthetic diamond grains and optimal (very hard) binder in the segments:
low cost per cutting unit when cutting abrasive substrates

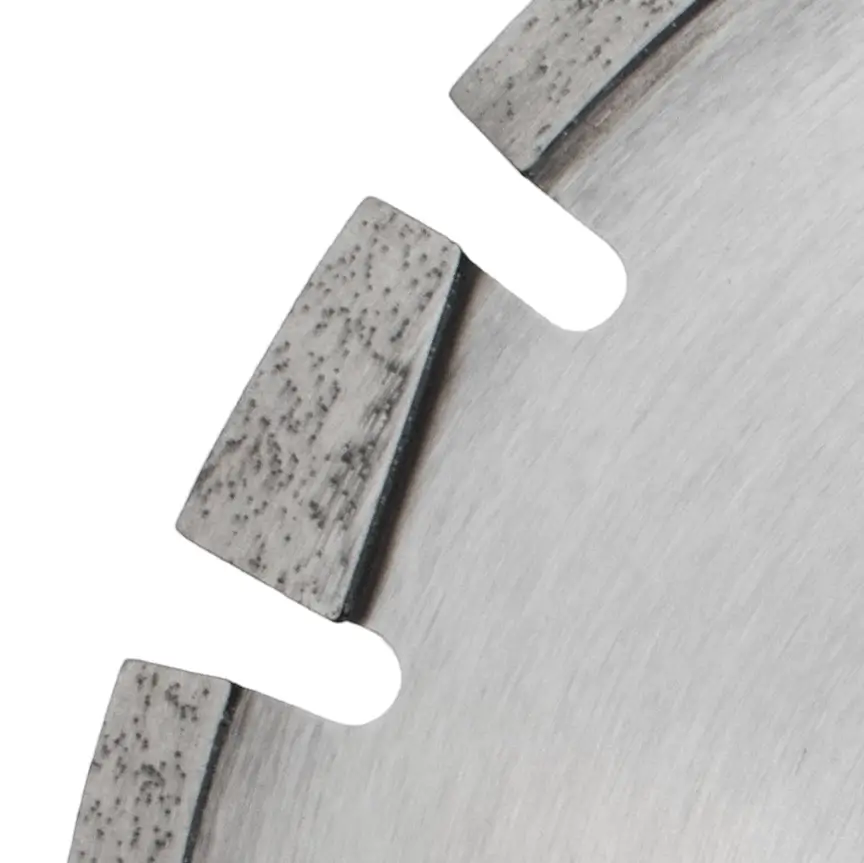

Segments connected to the blade body by laser welding:
reliable connection with a high safety margin for smooth and gradual cutting
Protective segments spaced approx. 25°:
up to 14 segments protect active cutting segments from undercutting and premature wear
Suitable for large-scale work in conjunction with joint cutters of sufficient power:
up to 42 powerful, 10mm high segments ensure sufficient service life when all cutting principles are followed
Recommendation:
when cutting, ensure sufficient water supply - at least 8 liters/min.
| Diameter (mm) |
Segment height (mm) |
Segment length (mm) |
Segment thickness (mm) |
Number of segments (pcs) |
Number of protective segments (pcs) |
Centre hole (mm) |
Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
ID: 380600000
|
600 | 10 | 40 | 4,2 | 42 | 14 | 25,4 | 405,00 € |
|
405,00 € |
