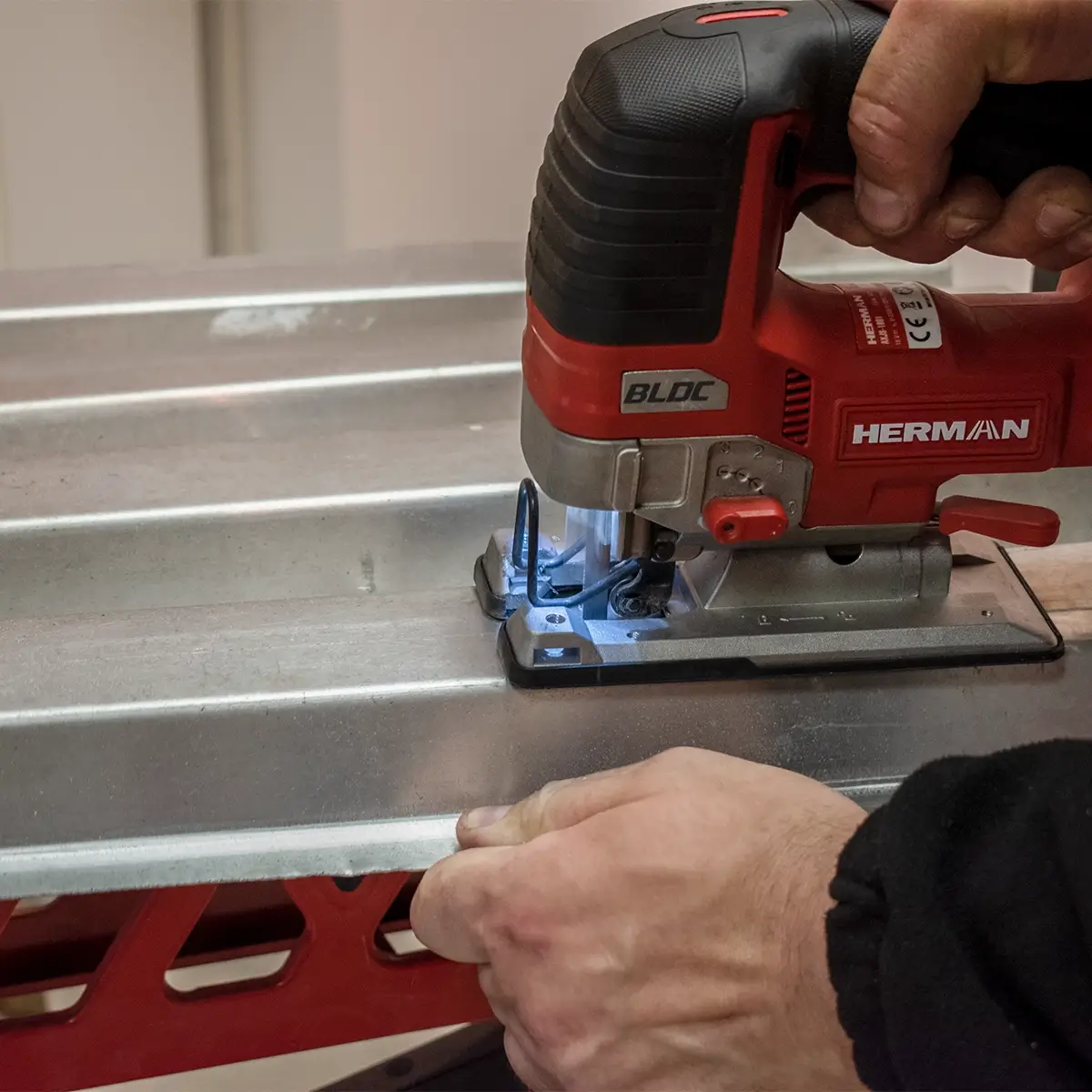

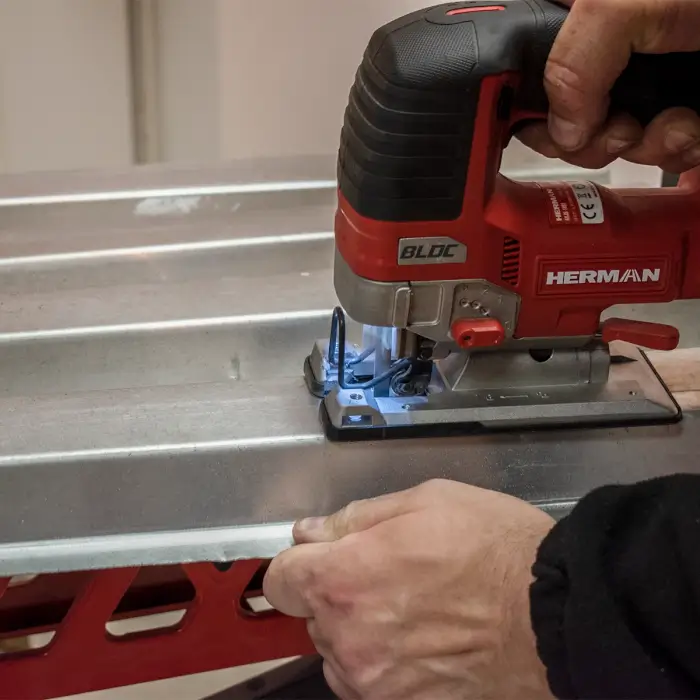

Planning to buy more? Request a quoteCordless Jigsaw
HERMAN AXJS-1801 | 18,0 V
Baretool
176,00 € excl. VAT
With the unique "P-MODE" function, brushless motor and quick-release saw blade system

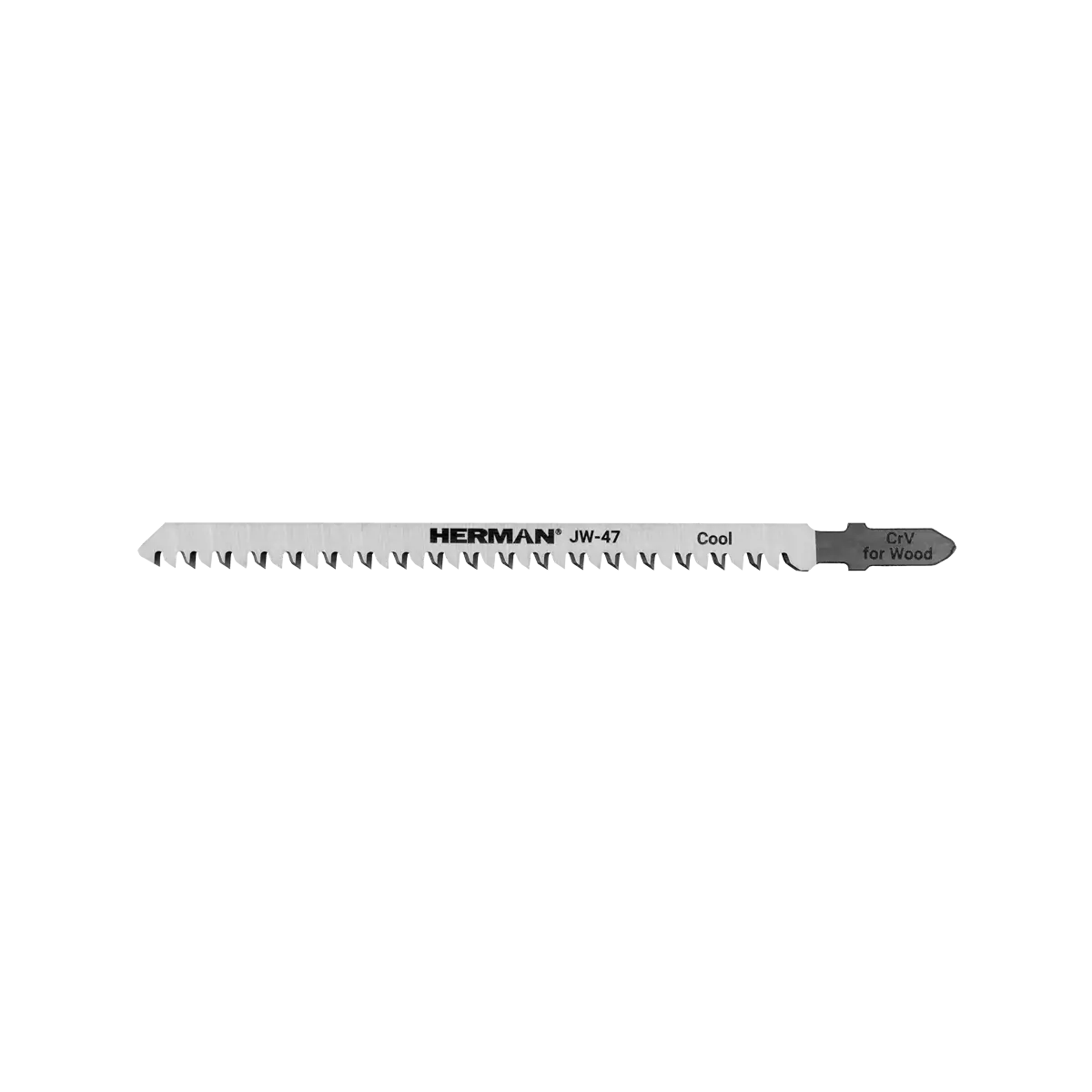

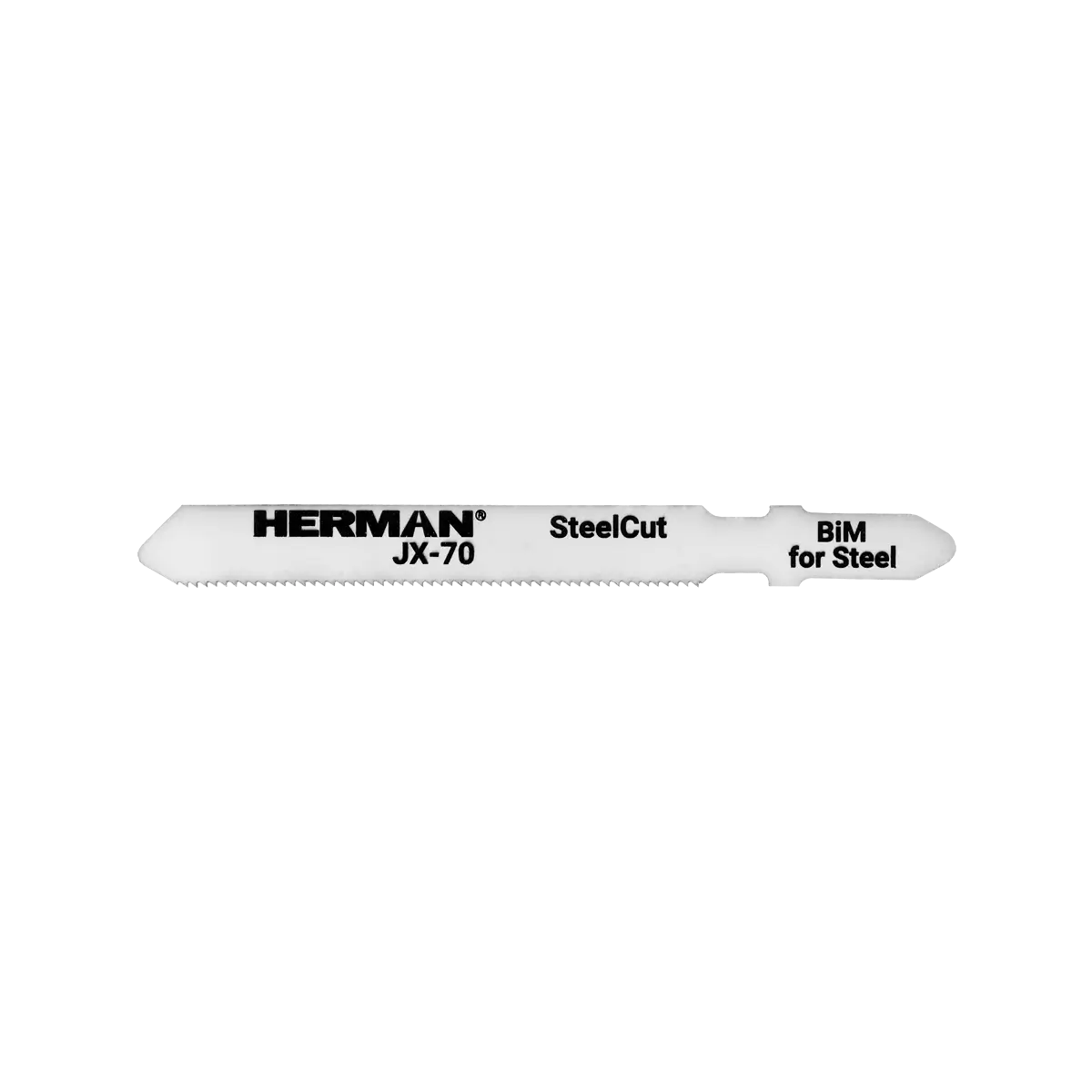

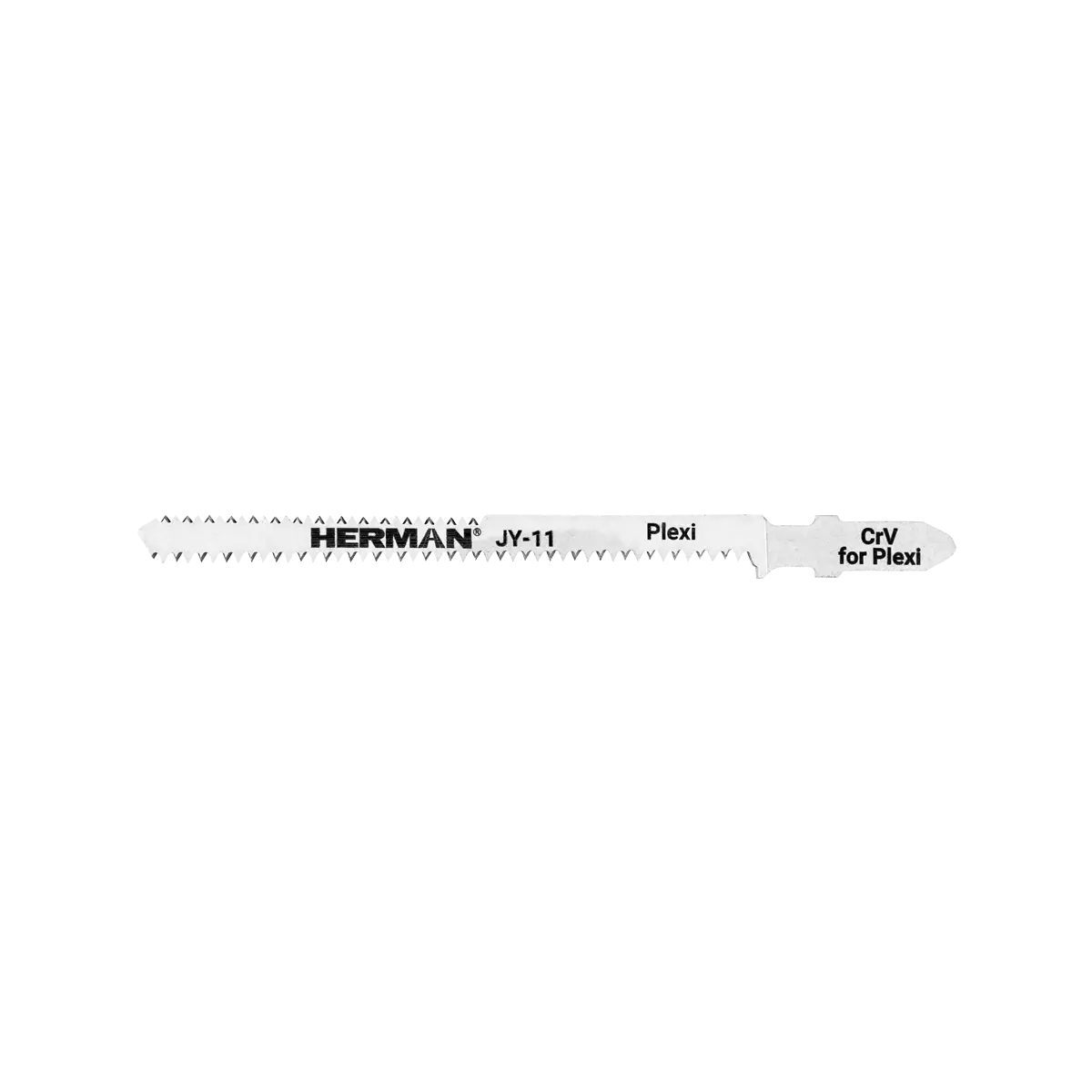

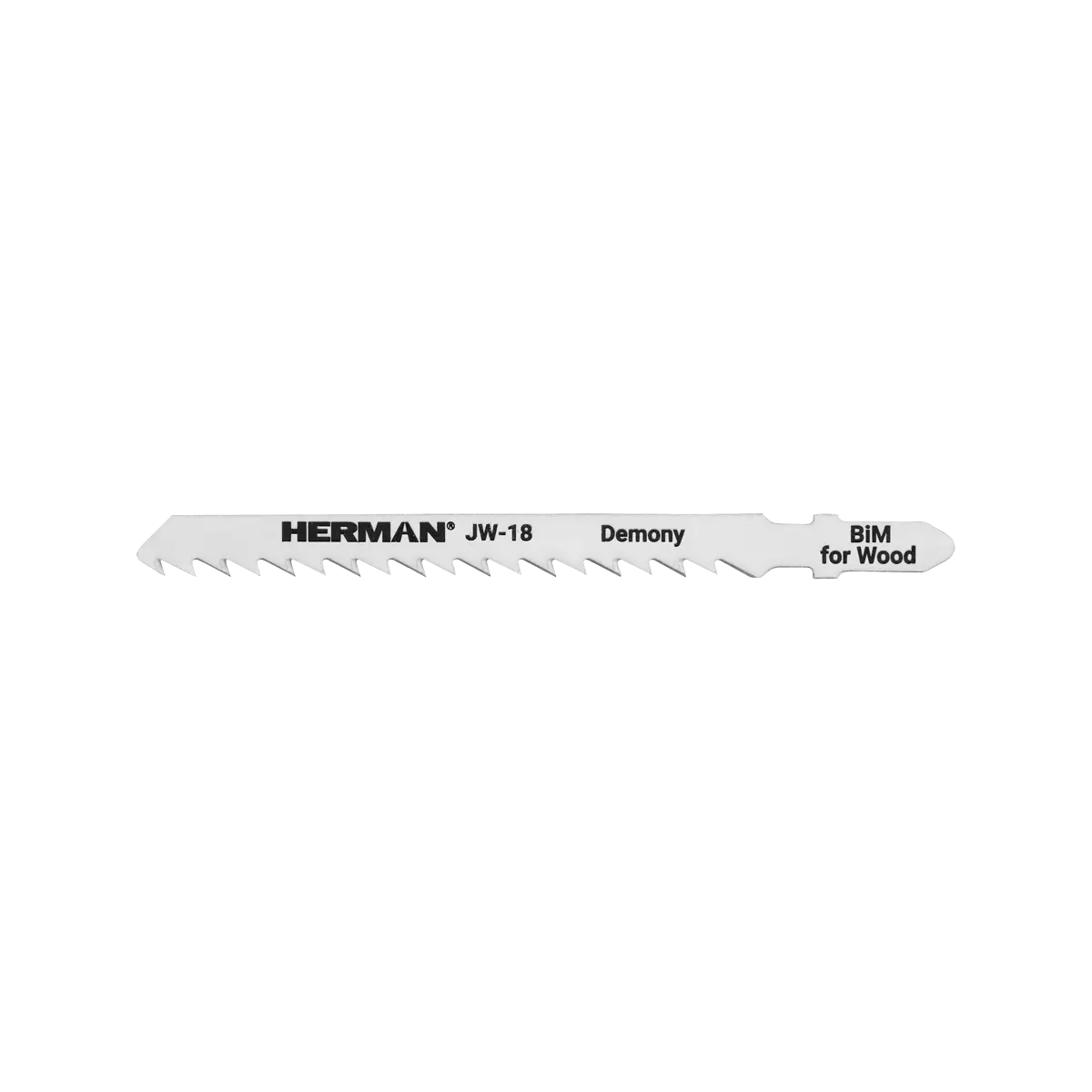

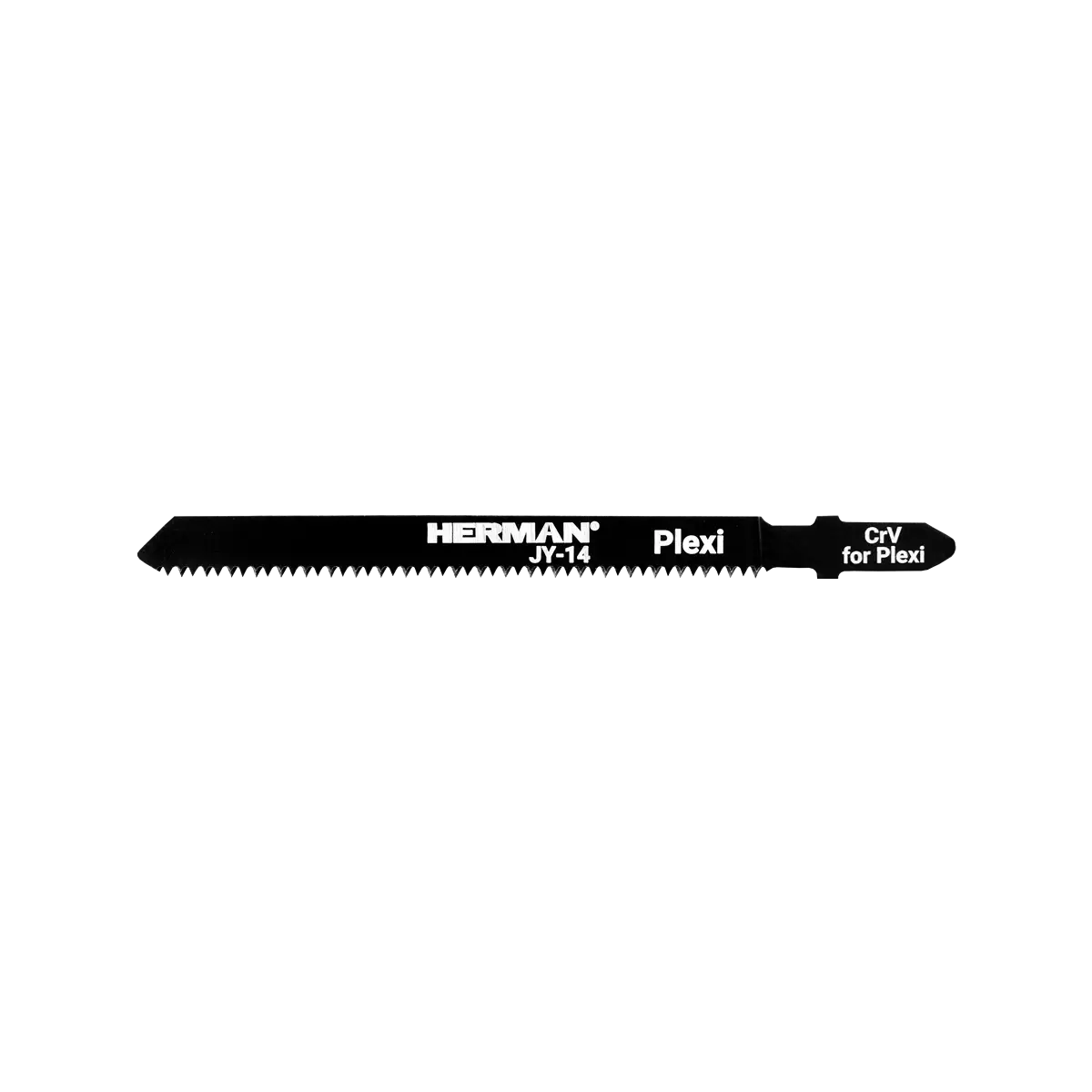

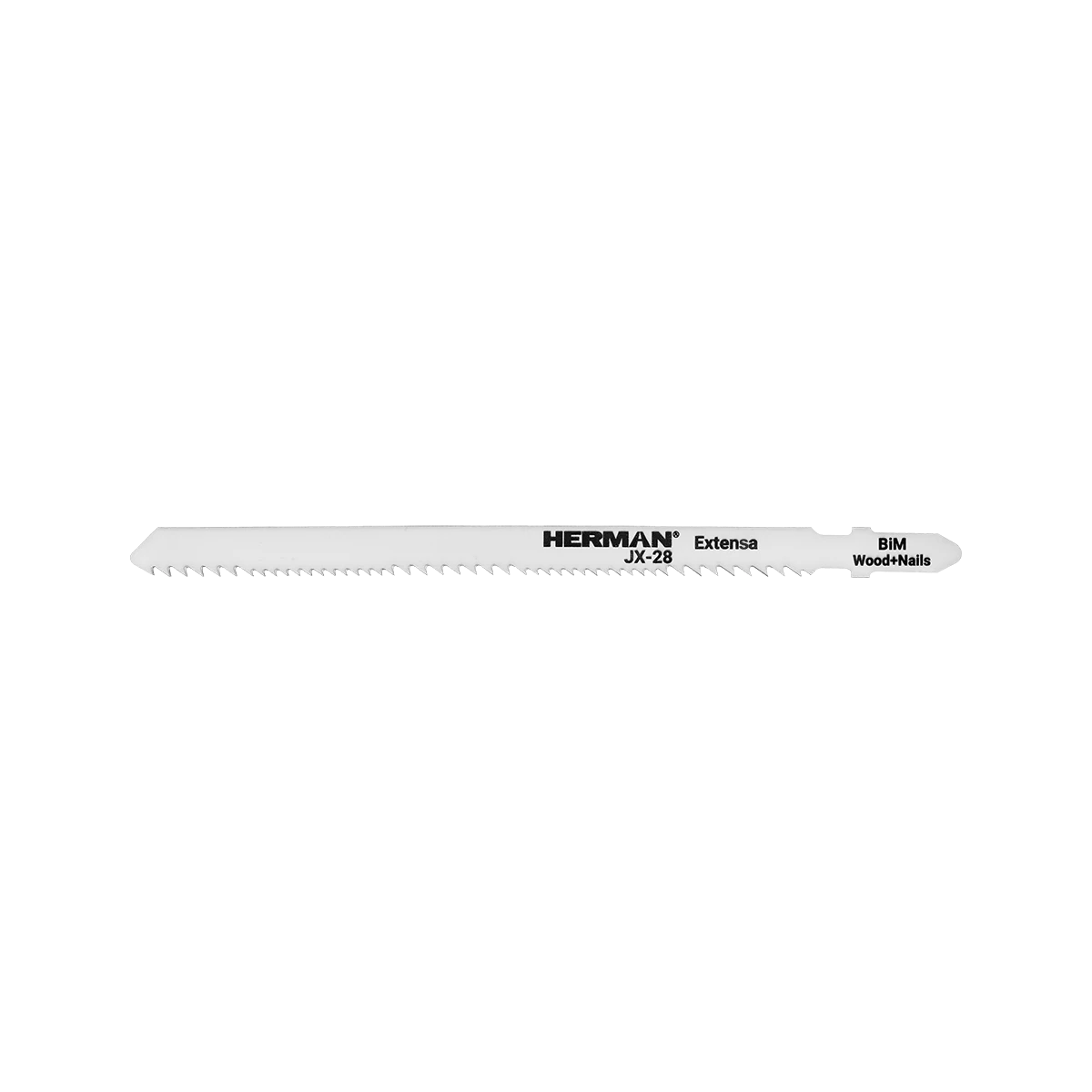

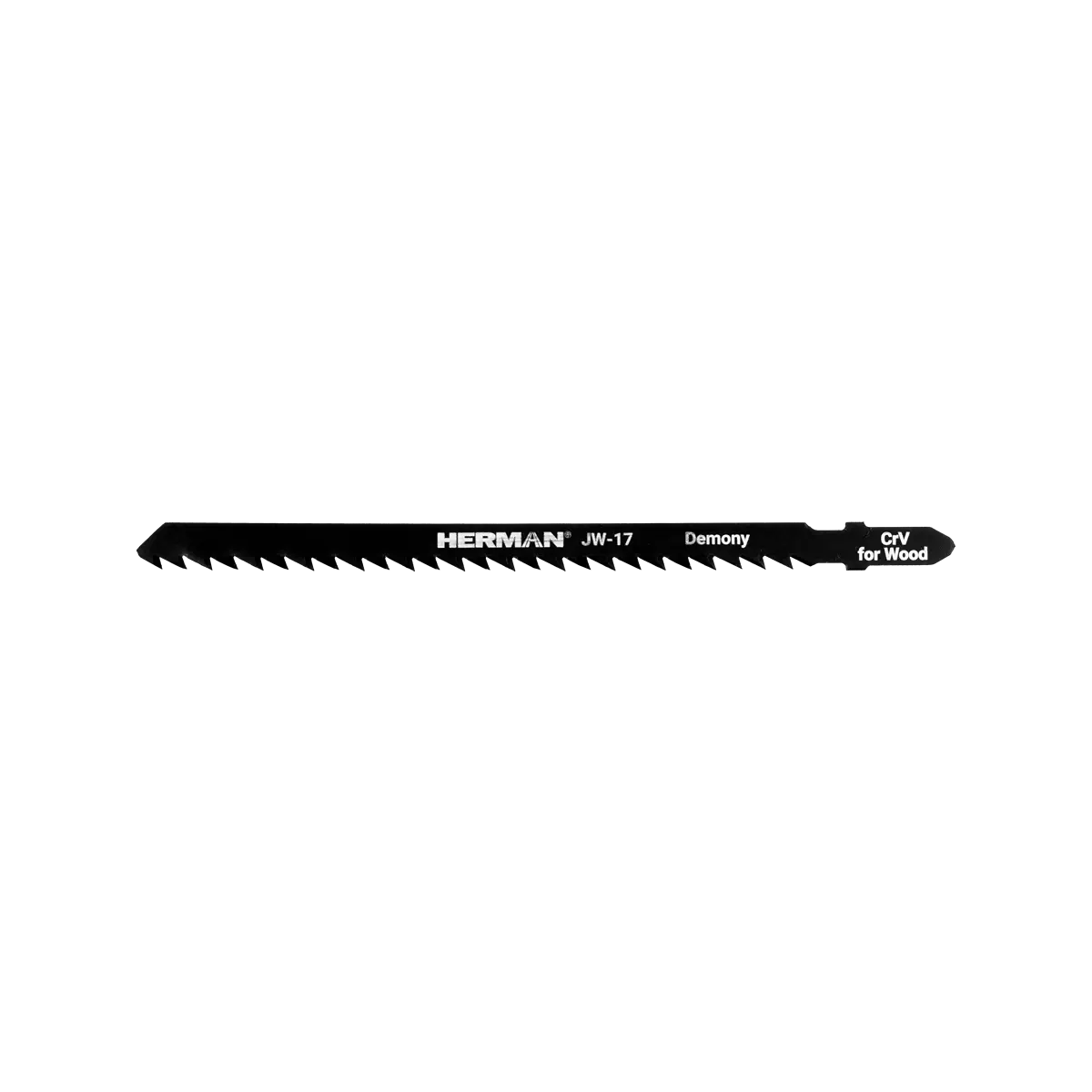

Suitable tools and accessories
| Product | Price (€/1piece) | Quantity in package (pcs) | Total (€) | Add to cart | |
|
Screwdriver bit Impact HERMAN SB-40 TX 50mm TX30/50mm | 1,69 € |
|
3,38 € |
Designation

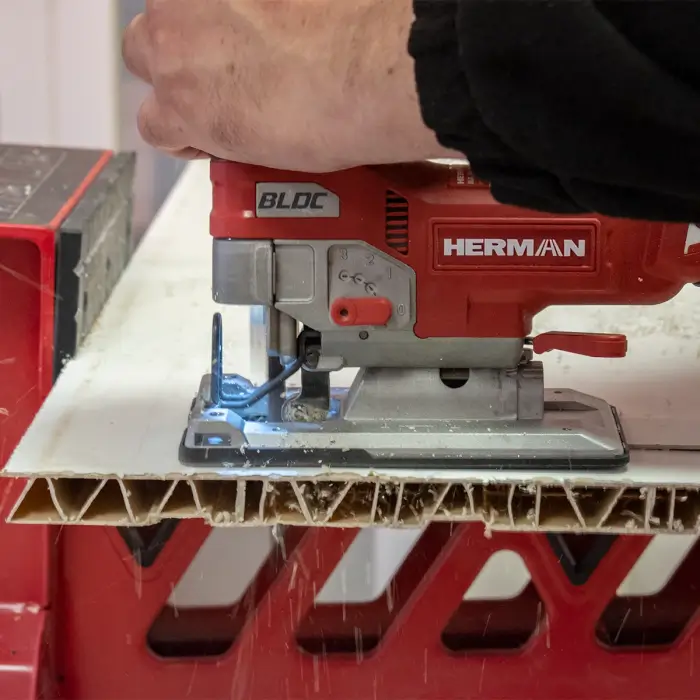

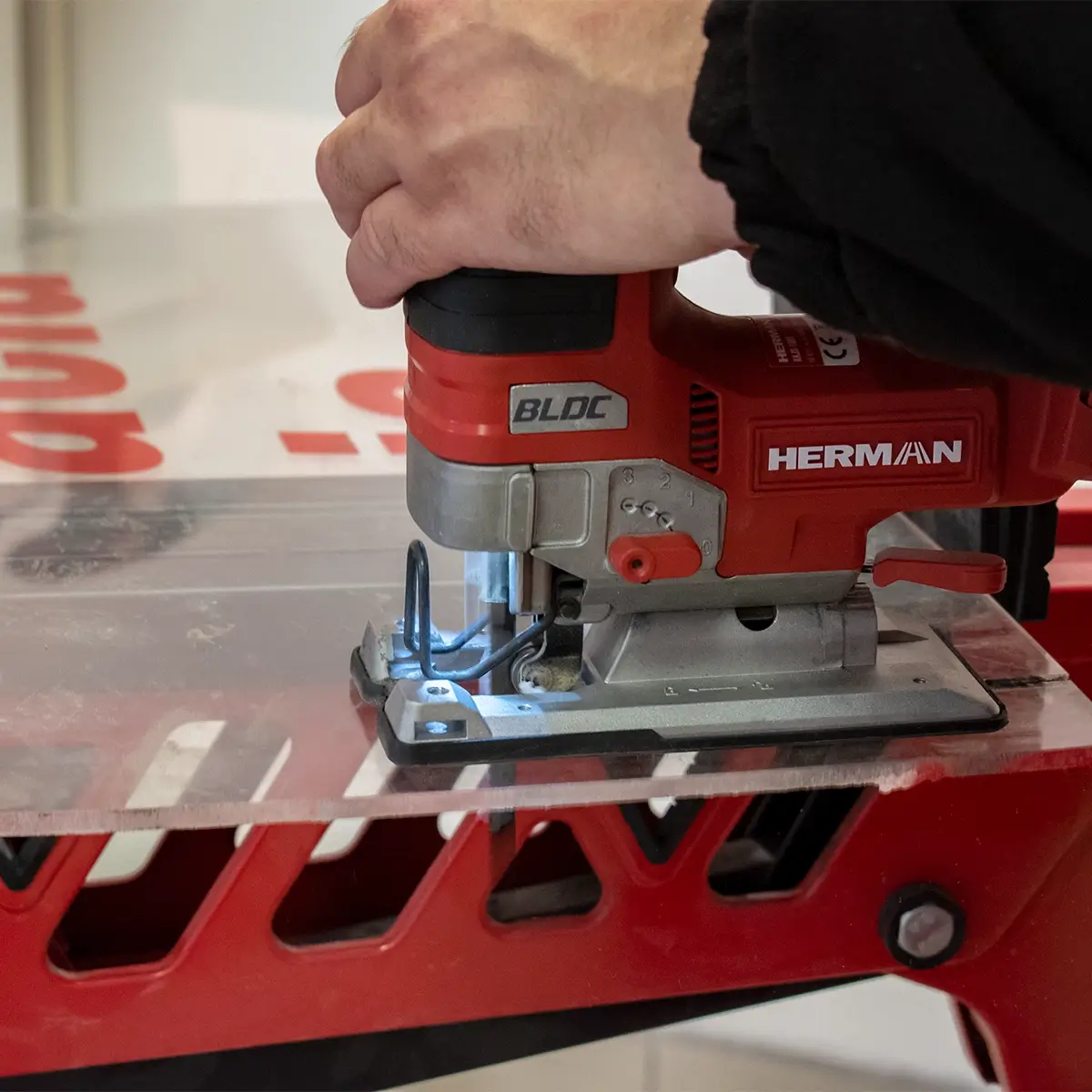

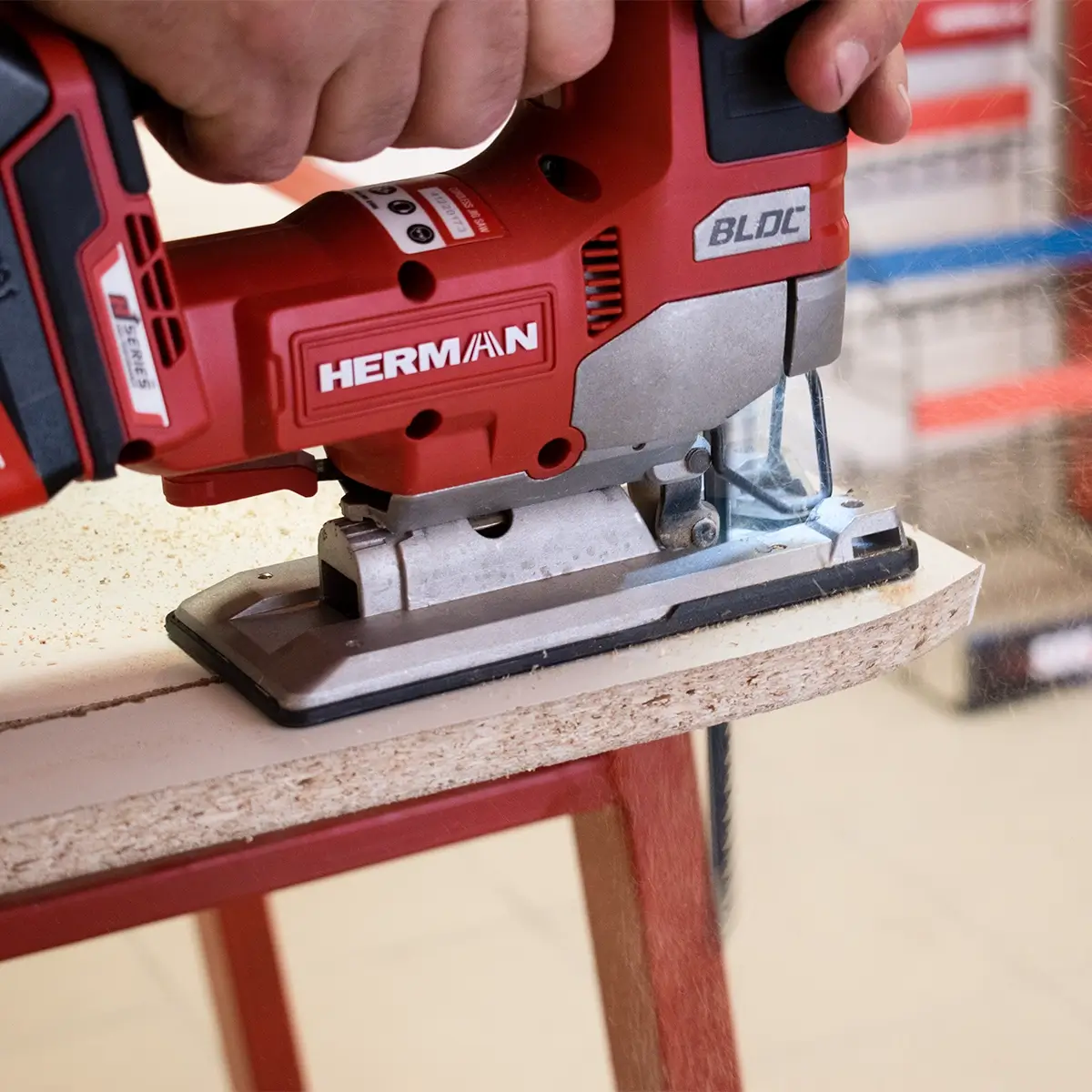

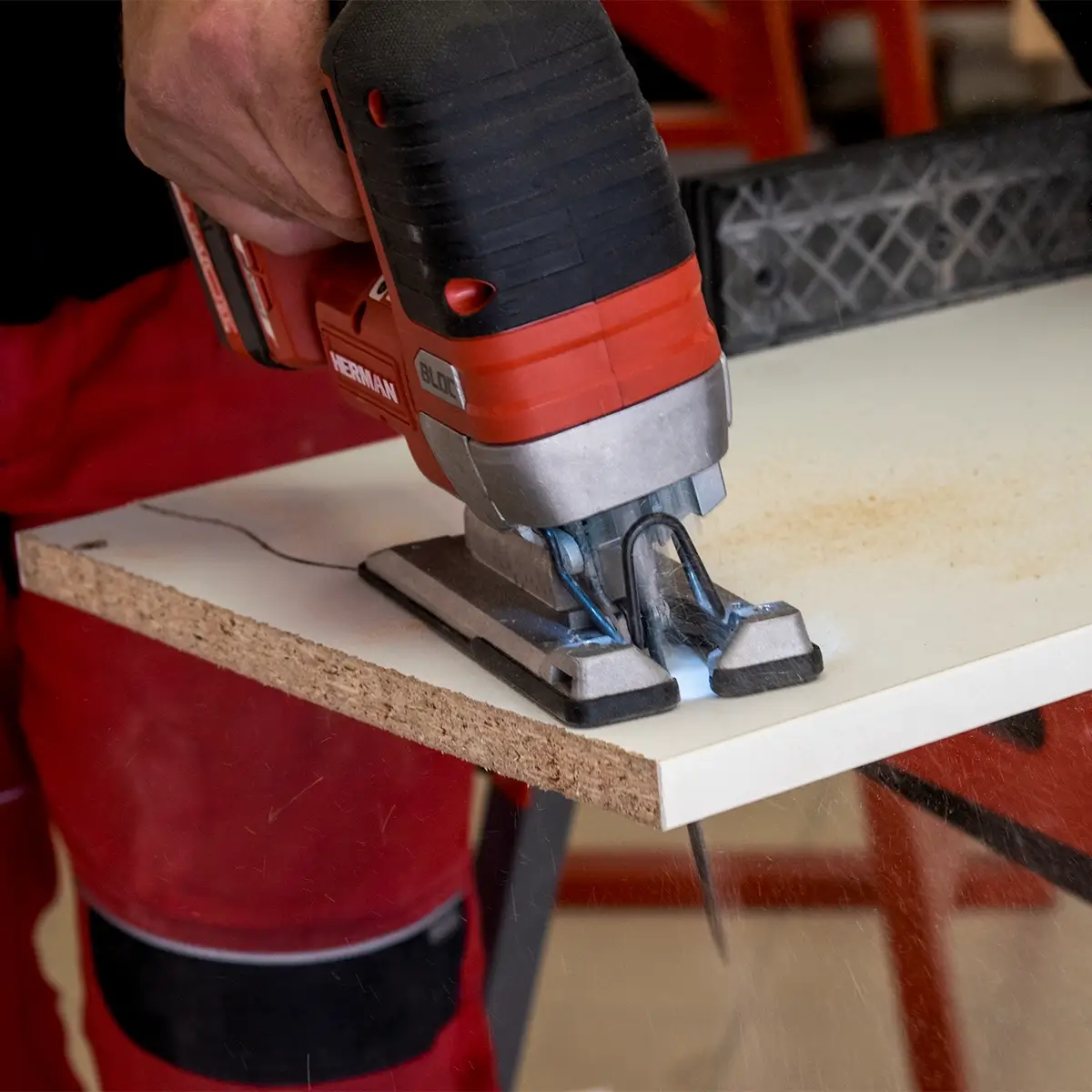

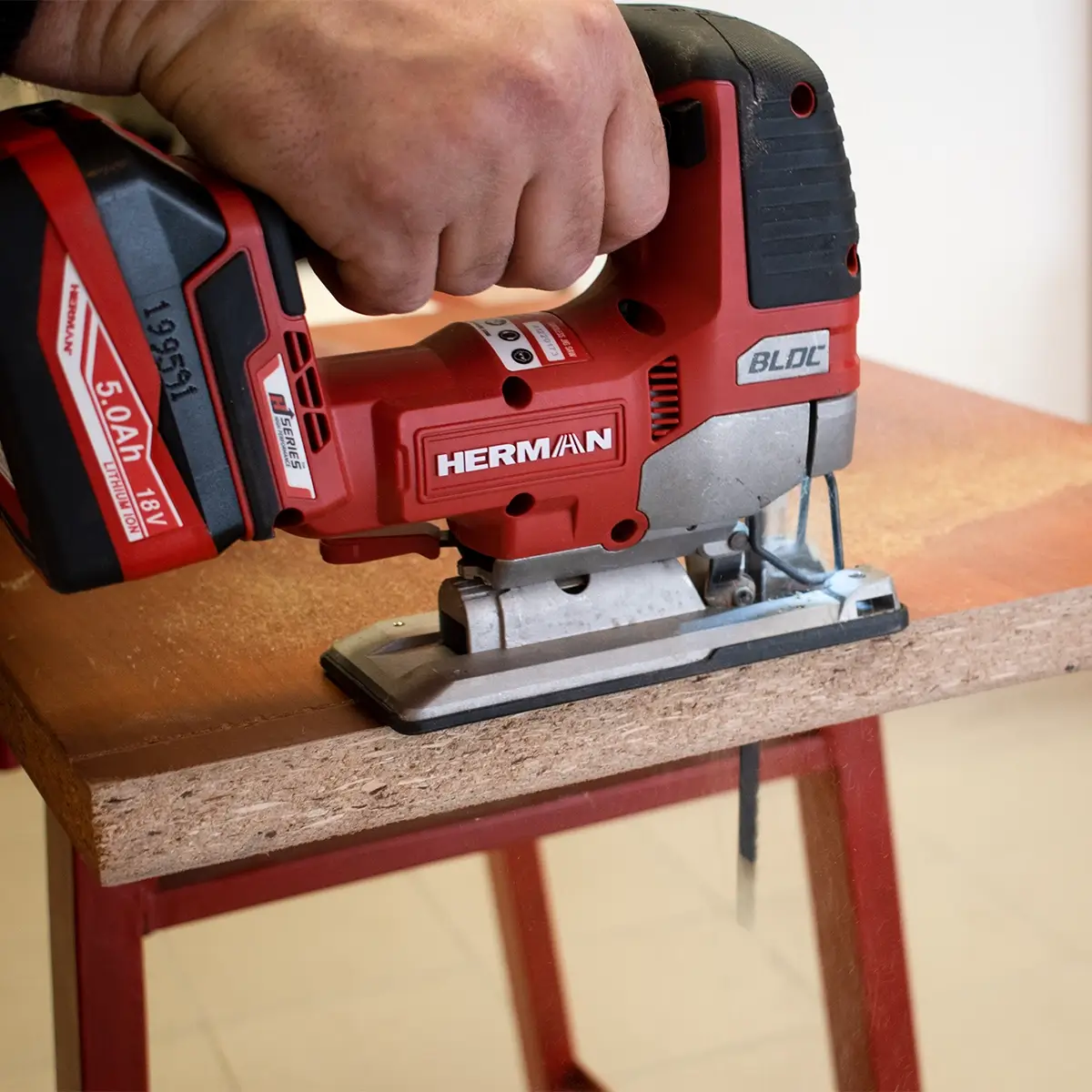

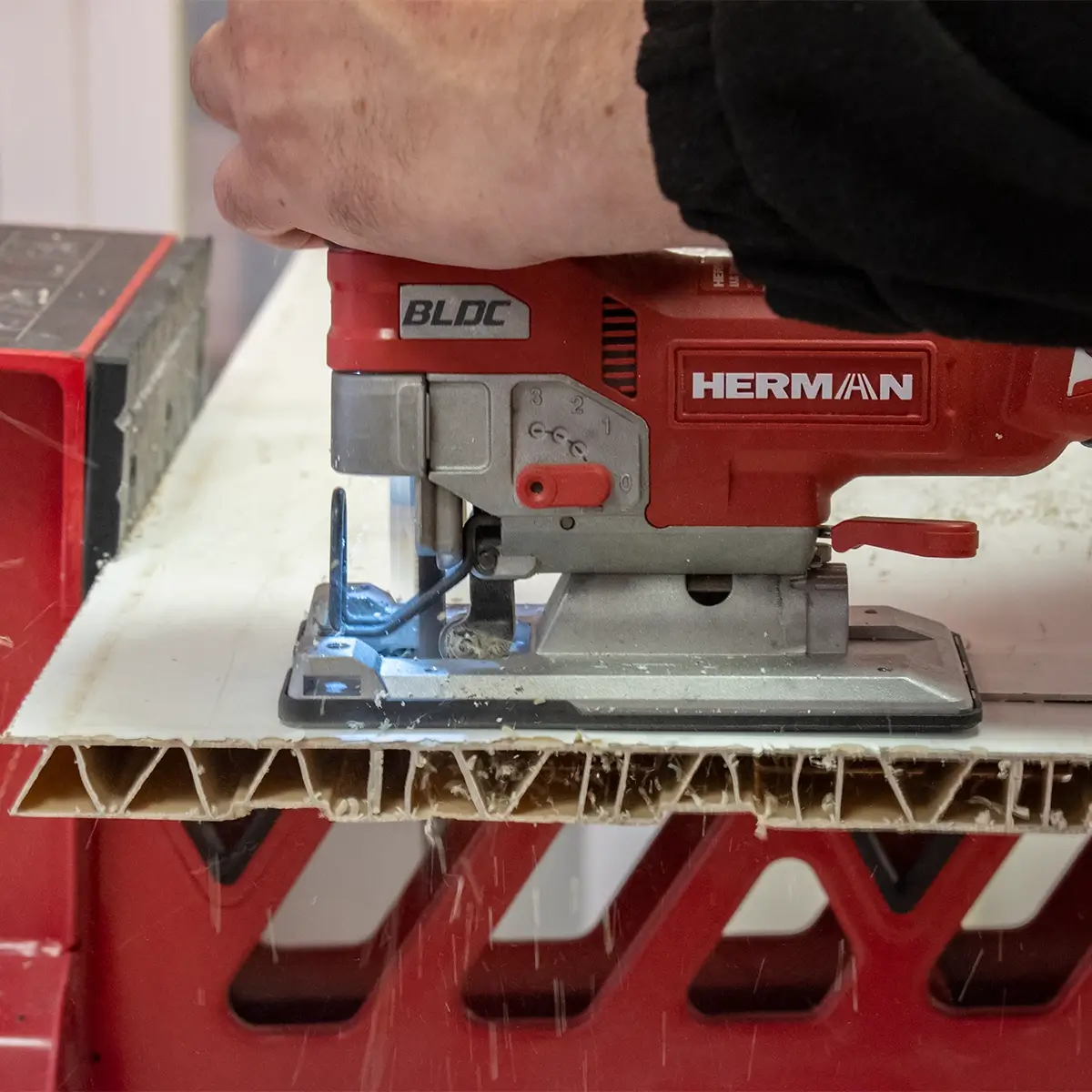

- For cutting and trimming a wide range of wood materials and composites made of wood, plastics, steel, non-ferrous metals, etc. with a suitable saw blade
Comfort
Unique "P-MODE" function for higher precision:
the saw oscillates at a lower speed before starting to cut, after detecting resistance from the workpiece it automatically switches to full speed mode
Powerful and at the same time economical brushless motor:

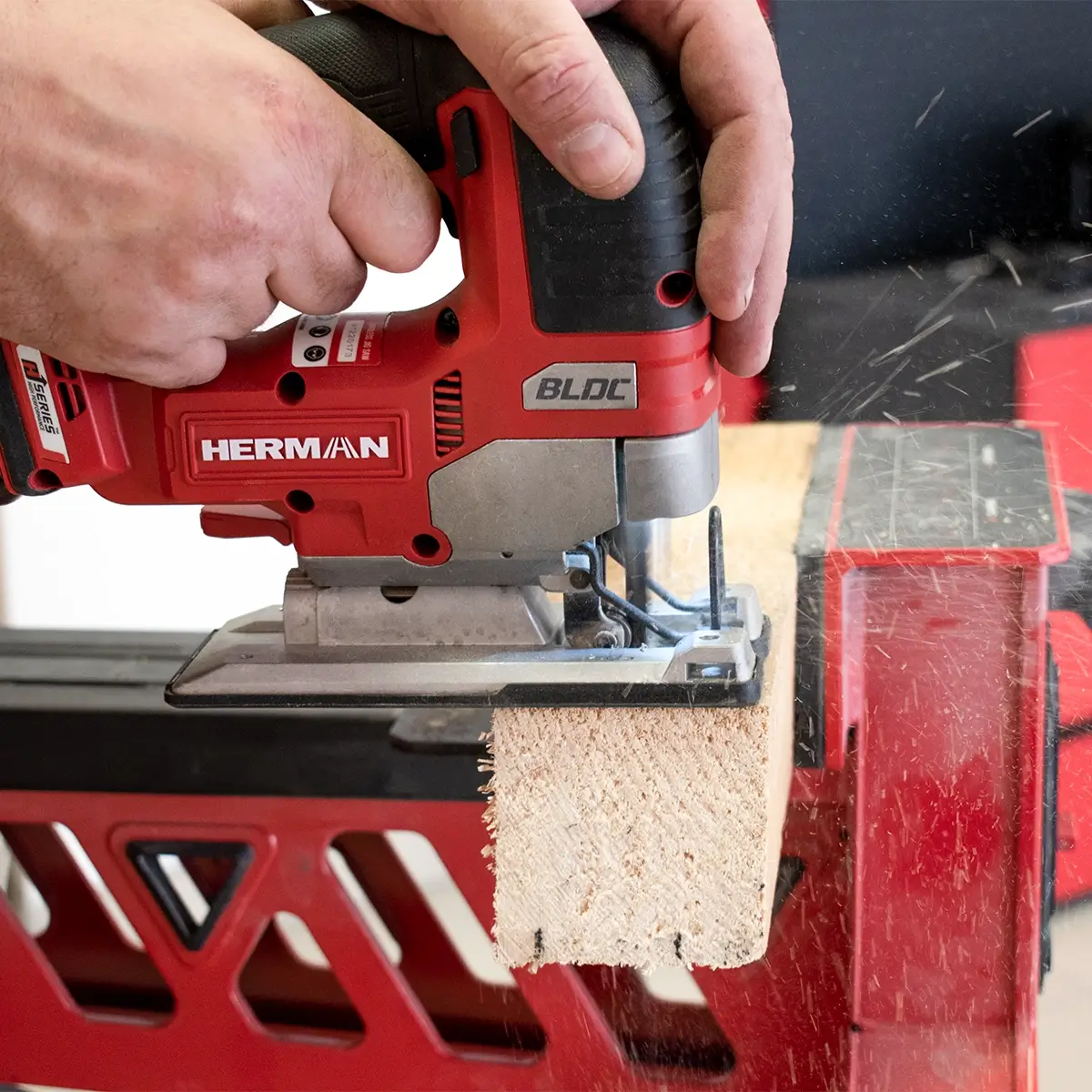

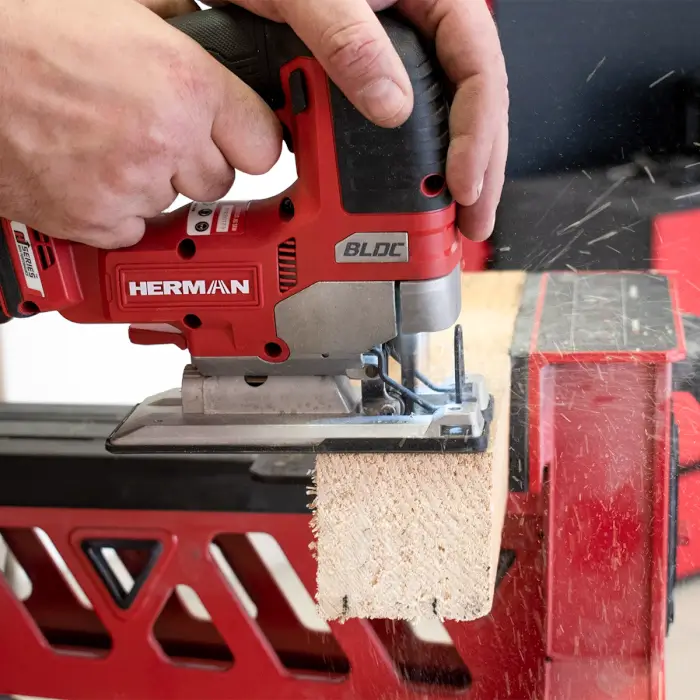

more than 300 cross cuts in dry spruce board with 5Ah battery (board profile 120 x 20 mm, HERMAN JW-13 Demony saw blade, sawing without pre-cutting)
Ergonomically shaped handle with small circumferential grip and non-slip rubberised surface:
comfortable, pleasant grip with well distributed centre of gravity
Main switch with control and oscillation range switch:
ergonomically positioned for comfortable operation with index finger and thumb
Two oscillation ranges for optimum cutting:
0-3000 for wood, 0-2300 for steel
Quick release saw blade system:
easy saw blade change with standard "T" shank
Cutting angle adjustment with scale:
quick selection of the desired cutting angle from 0-45° by simply loosening and tightening the locking lever
External extraction option:
simply slide the extraction attachment into the heel of the jig saw and connect to an industrial vacuum cleaner
Highly visible cut line:
the intake air for engine cooling is used as a blower at the outlet - removes sawdust from the field of view when cutting
Four-position switch for setting the pre-speed:
zero pre-speed + choice of one of three pre-speed levels to increase the cutting speed by orbital movement of the saw blade
Safety
Intermediate position oscillation range switch lock:
protects the operator against accidental switching on of the tool
Electronic coasting brake:
instantly stops the saw blade movement when the switch is turned off - minimising the risk of the operator being injured by inertia movement of the tool
Lifetime
Overload protection:
intelligent electronics save the motor
Light alloy gearbox:
the material used contains additives to increase wear resistance
Mechanical gear selector:
a reliable solution for selecting the range of oscillation speeds by sliding a switch
Specially shaped air inlets:
increase the cooling efficiency of the engine
Efficient dust suppression system:
reduces dust ingress during cooling air intake
Parameters
| Clamping range (thickness of saw blade) [mm] | 0,9 - 1,5 |
|---|---|
| Voltage [V=] | 18,0 |
| Number of oscillations - 1st stage [U/min] | 0-2300 |
| Number of oscillations - 2nd stage [/min.] | 0-3000 |
| Number of oscillations - P-MODE approx. [/min.] | 600 |
| Stroke [mm] | 26 |
| Max. Depth of cut - wood [mm] | 135 |
| Max. Depth of cut - aluminium [mm] | 25 |

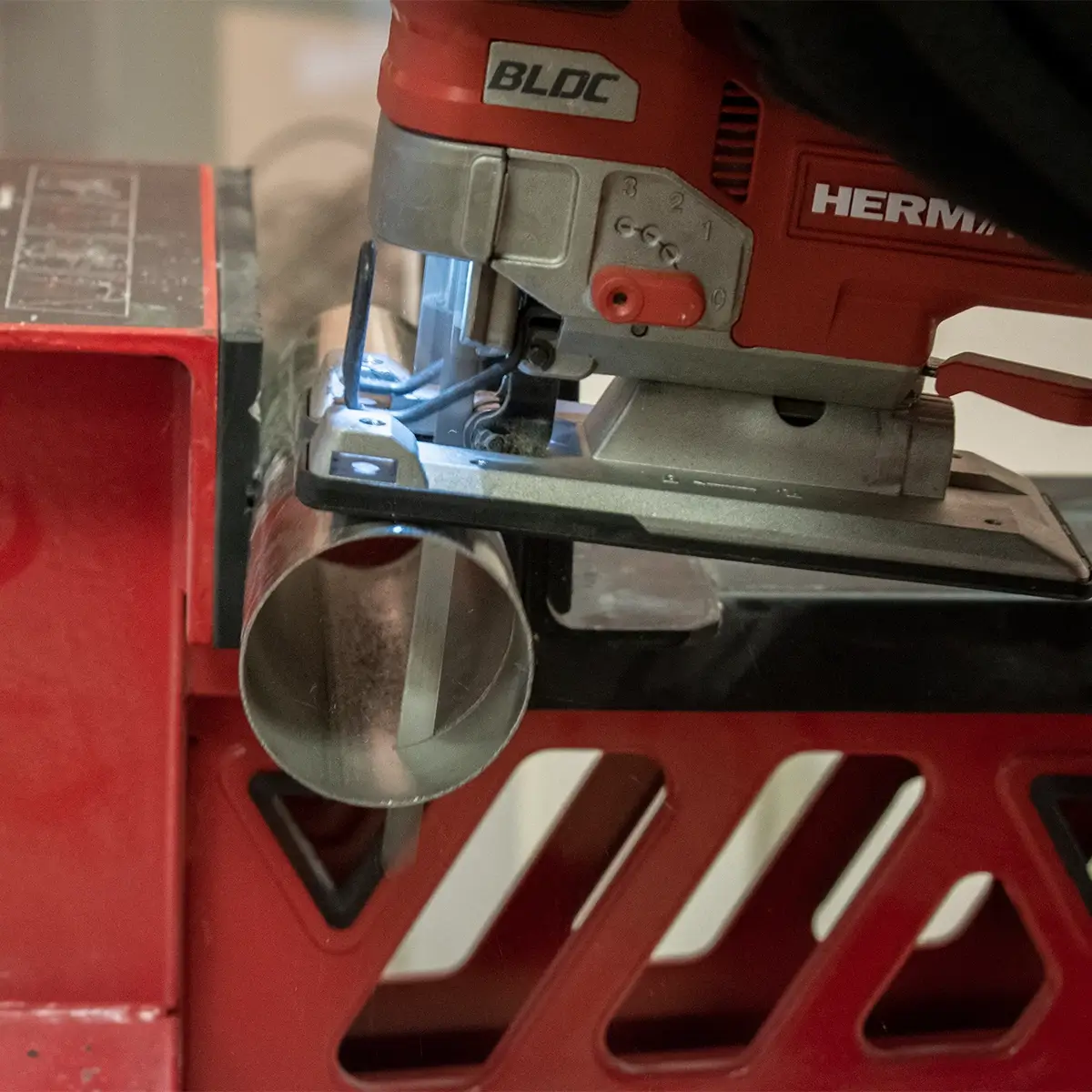

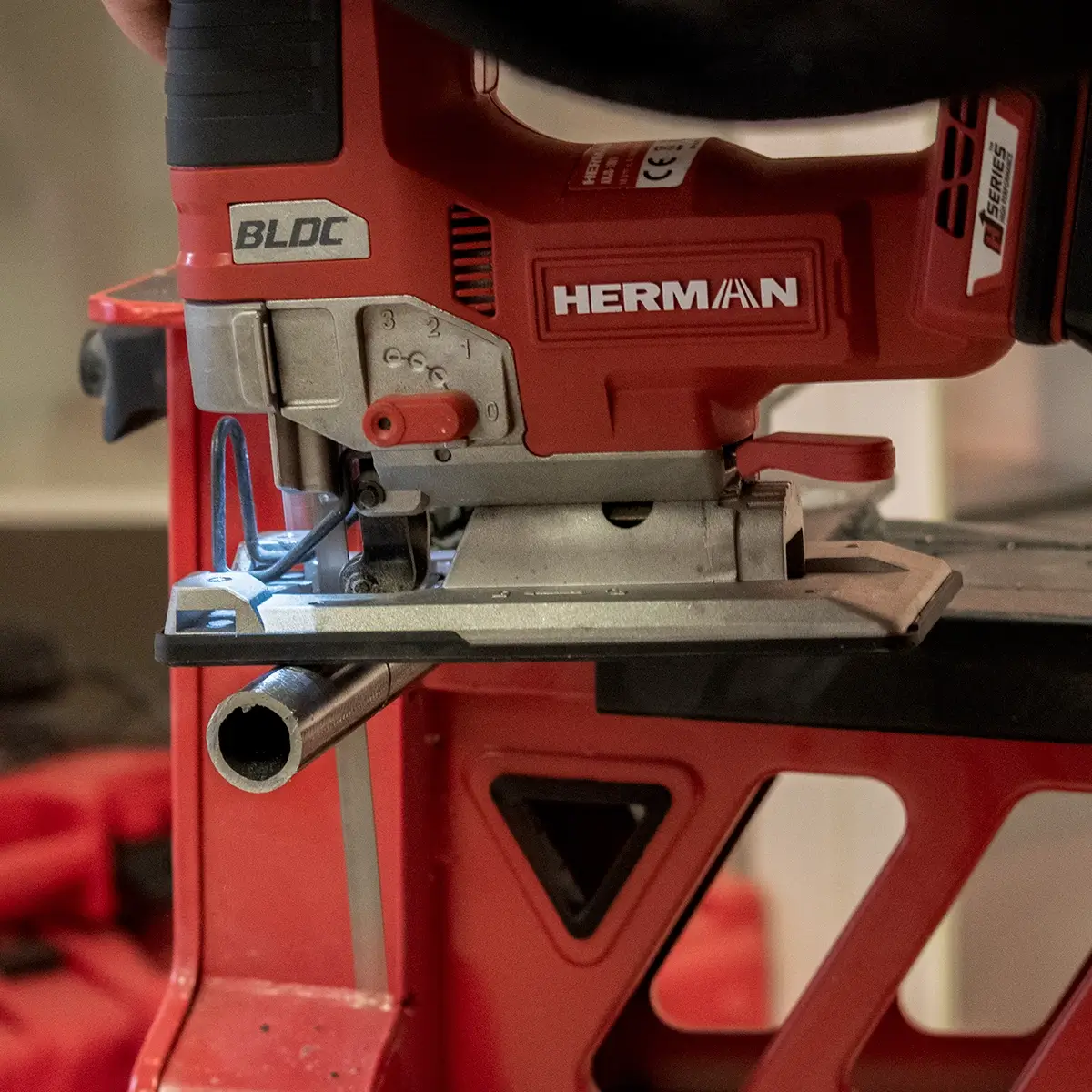

| Max. Cutting depth - steel [mm] | 10 |
| Cutting angle [°] | 0-45 |
| Number of degrees of overcut | 3 |
| Accumulator charging cycle cca [min.] | 50 |
| A-weighted emission sound power level (LWA) [dB(A)] | 79 |
| A-weighted emission sound pressure level (LpA) [dB(A)] | 68 |
| Uncertainty (K) [dB(A)] | 3 |
| Weight without battery [kg] | 2 |
Contents of the package
- 1x Jig saw
- 1x Attachment for connecting a vacuum cleaner
- 1x Instructions for use
