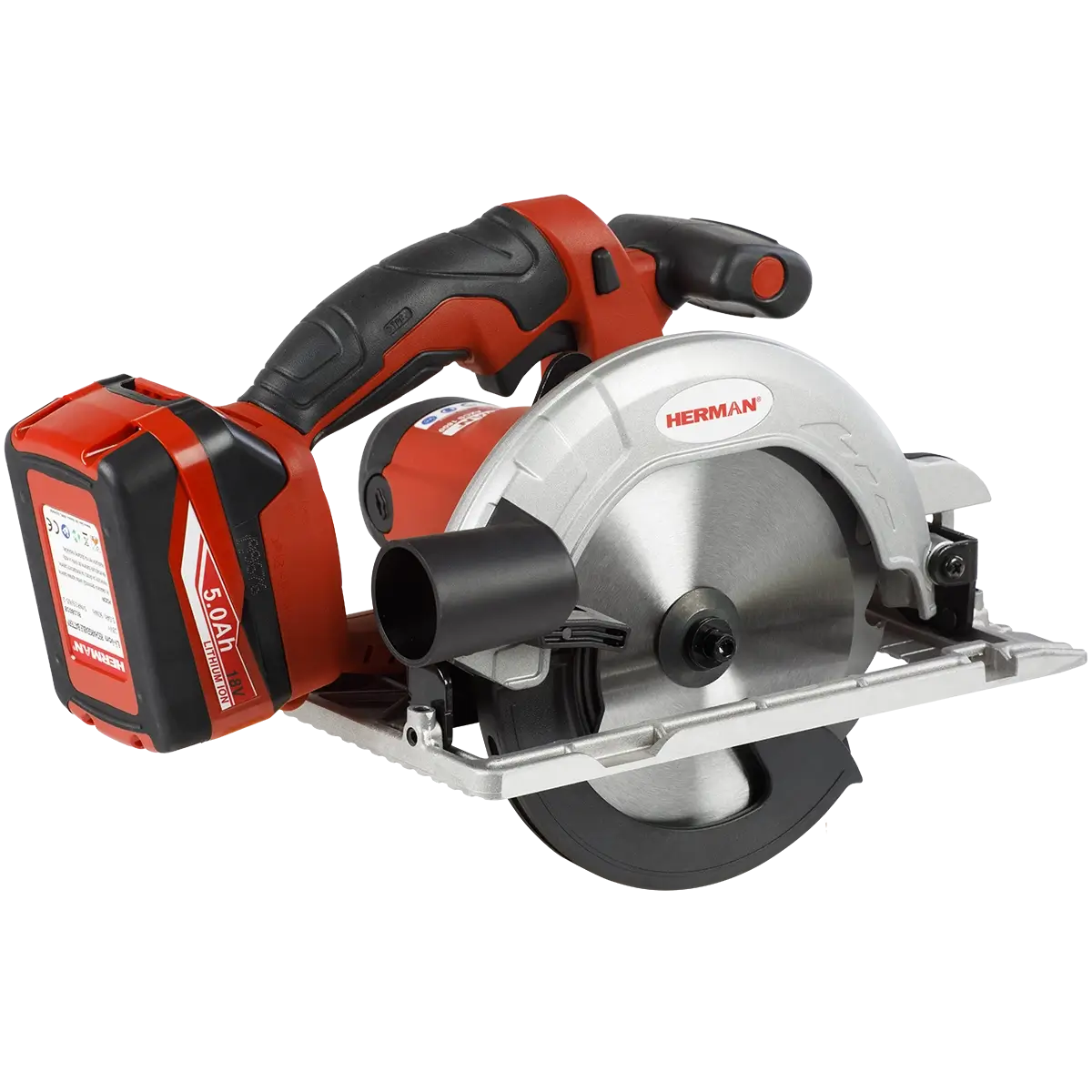

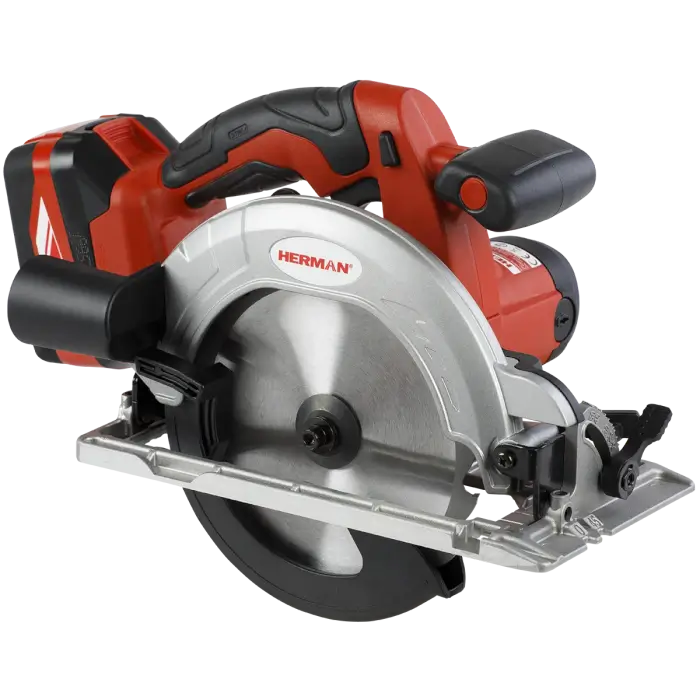

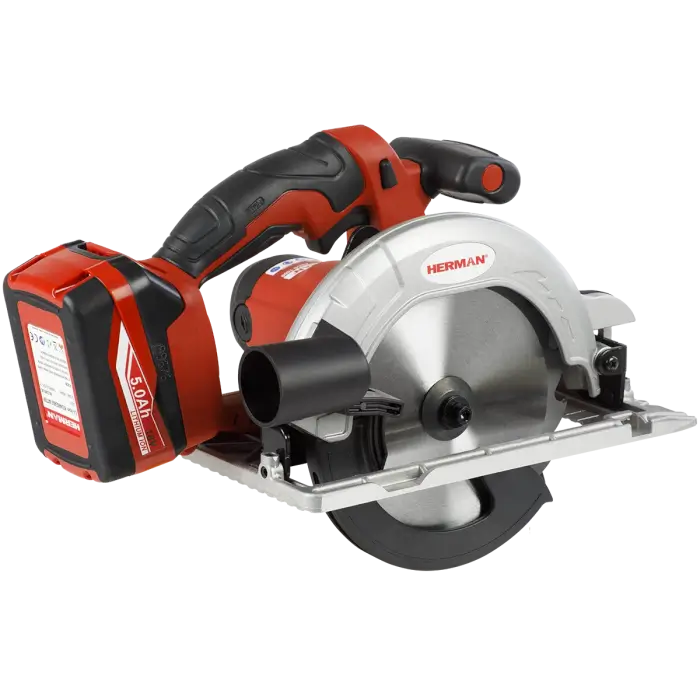

Cordless circular saw
HERMAN AXCS-1800
18,0 V | 5Ah | Complete

5,0
(1x)

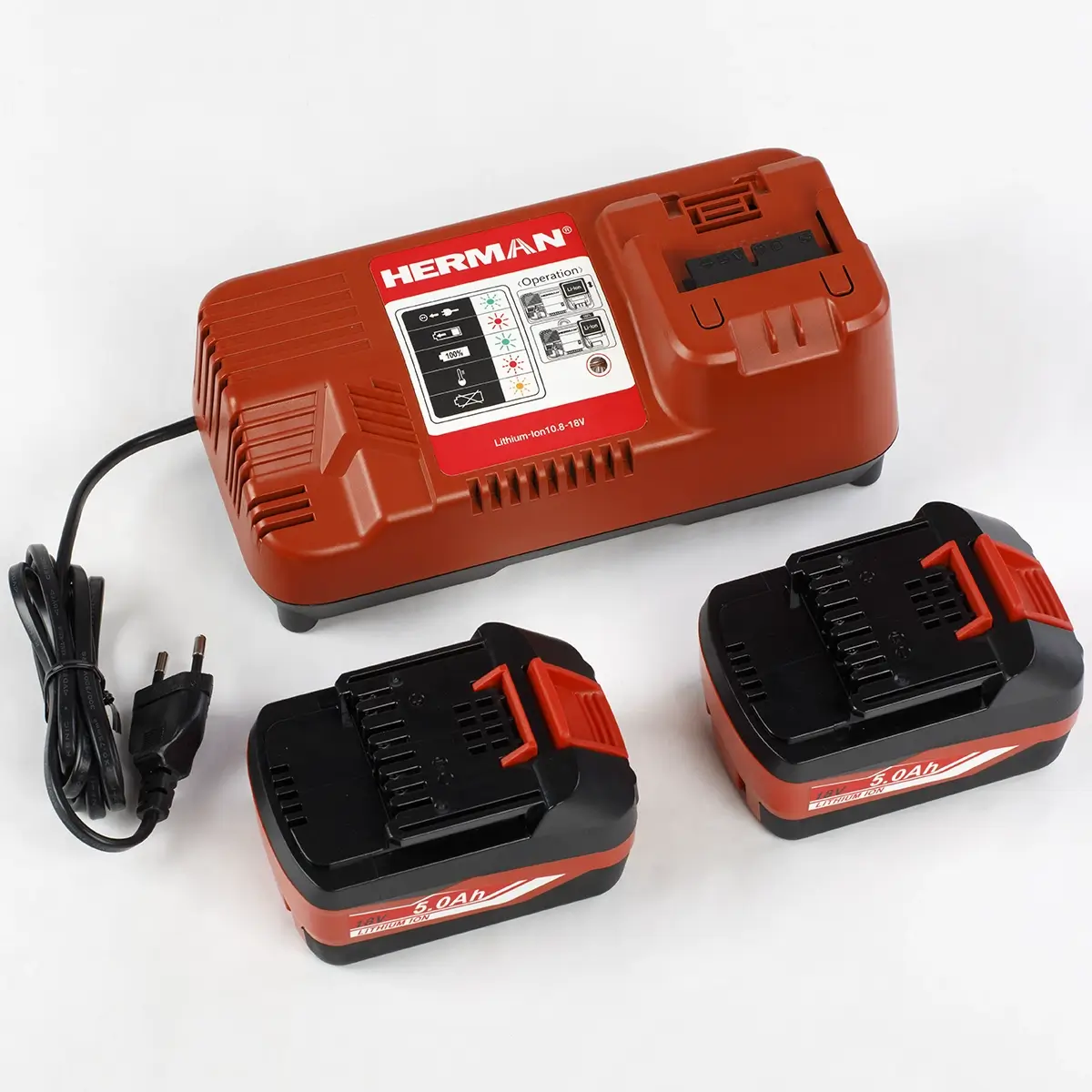

2x Li-ion battery 18,0 V / 5,0 Ah

1x charger

Circular saw with a cutting depth of almost 60 mm, with sophisticated safety features and excellent ergonomics

The sale of this product is discontinued


Order spare parts
SKU: 146180004 Category of goods:

Suitable tools and accessories

Carbide discs for circular saws
Carbide discs for circular saws
Product Price
(€/1piece)
Quantity in package
(pcs)
Total
(€)
Add to cart
Circular saw blade HERMAN CW-20 Force
160x1,6/1,0x20mm | 16 teeth
13,08 €
13,08 €
> 8 pcs
Circular saw blade HERMAN CW-40 Cool
160x1,6/1,0x20mm | 40 teeth
18,10 €
18,10 €
> 7 pcs
Circular saw blade HERMAN CX-20 SteelCut
160x1,6/1,0x20mm | 48 teeth
44,71 €
44,71 €
> 5 pcs
Circular saw blade HERMAN CX-30 AlCuCut
160x1,6/1,0x20mm | 48 teeth
33,24 €
33,24 €
> 2 pcs
Circular saw blade HERMAN CW-50 Lamina
160x1,6/1,0x20mm | 40 teeth
24,06 €
24,06 €
> 2 pcs
Carbon brushes, abrasive stone and supply cords
Carbon brushes, abrasive stone and supply cords
Product Price
(€/1piece)
Quantity in package
(pcs)
Total
(€)
Add to cart
Carbon brushes (pair)
AXCS 1800
13,12 €
13,12 €
> 1 pcs
Batteries and chargers
Batteries and chargers
Product Price
(€/1piece)
Quantity in package
(pcs)
Total
(€)
Add to cart
Battery fast charger
HERMAN C 18046 Air Cooled
14,4V | 18V | 6,5A Speed
65,68 €
65,68 €
> 9 pcs
HERMAN BL 18044A
18V | 5Ah | Warranty 2 years
110,00 €
110,00 €
> 43 pcs
Protective covers, additional handles, plastic cases
Protective covers, additional handles, plastic cases
Product Price
(€/1piece)
Quantity in package
(pcs)
Total
(€)
Add to cart
Plastic cases
AXCS 1800
35,55 €
35,55 €
> 1 pcs

Designation

  • Especially for cutting wooden building material, trimming roof boards, modifying load-bearing wooden structures and for carpentry work

Comfort

Ergonomically shaped main handle and additional front handle - both with non-slip rubberized surface:
comfortable, pleasant grip

Ergonomic position of the main and safety switch:
comfortable control with the middle finger and index finger, or thumb and index finger

Setting the depth of the cut with a scale:
quick selection of the desired cut in the range of 0-57 mm with locking in the set position

Setting the cutting angle with a scale:
quick selection of the desired cutting angle from 0-50° with locking in the set position

Parallel support:
for precise guidance of the circular saw in the cut, adjustable with locking in the desired position

External extraction:
the possibility of connecting to an external vacuum cleaner with a Ø 40 mm end or via a universal adapter

Spindle locking:
blocks the rotation of the shaft when changing the tool and thus facilitates its replacement

LED indicator of the current state of the battery inserted in the tool:
allows you to continuously check its charge level

Integrated LED for lighting part of the work surface:
more comfortable and precise work

Flexible battery system for the use of one battery:
all 18,0 V HERMAN batteries, regardless of capacity, are compatible with each other

Safety

Protective cover with automatic position adjustment regardless of the depth of cut:
minimization of the risk of injury to the operator during work

Separately located safety switch:
prevents accidental switching on of the circular saw

Electronic speed brake:
It immediately stops the rotation of the tool when the switch is turned off. This minimizes the risk of injury to the operator due to the rotation of the tool due to inertia

Right and left switch closure in intermediate position:
protecting the operator from accidentally switching on the circular saw

Lifetime

Overload protection:
intelligent electronics save the motor

Gearbox made of light alloy:
the material used contains additives that increase resistance to wear

Self-disconnecting carbon brushes:
protecting the rotor commutator from damage at the end of the life of the carbon brushes

Specially shaped air inlets:
increasing the efficiency of engine cooling

Effective anti-dust system:
reducing the penetration of dust during the intake of cooling air

Parameters

Voltage [V=] 18,0
Max. disc diameter [mm] 165
Shaft diameter [mm] 20
Idle speed [U/min] 4000
Max. depth of cut 0°[mm] 57
Max. depth of cut 45° [mm] 40
Max. depth of cut 50°[mm] 36
Accumulator charging cycle cca [min.] 50
A-weighted emission sound power level (LWA) [dB(A)] 102
A-weighted emission sound pressure level (LpA) [dB(A)] 91
Uncertainty (K) [dB(A)] 3
Weight without battery [kg] 3,2

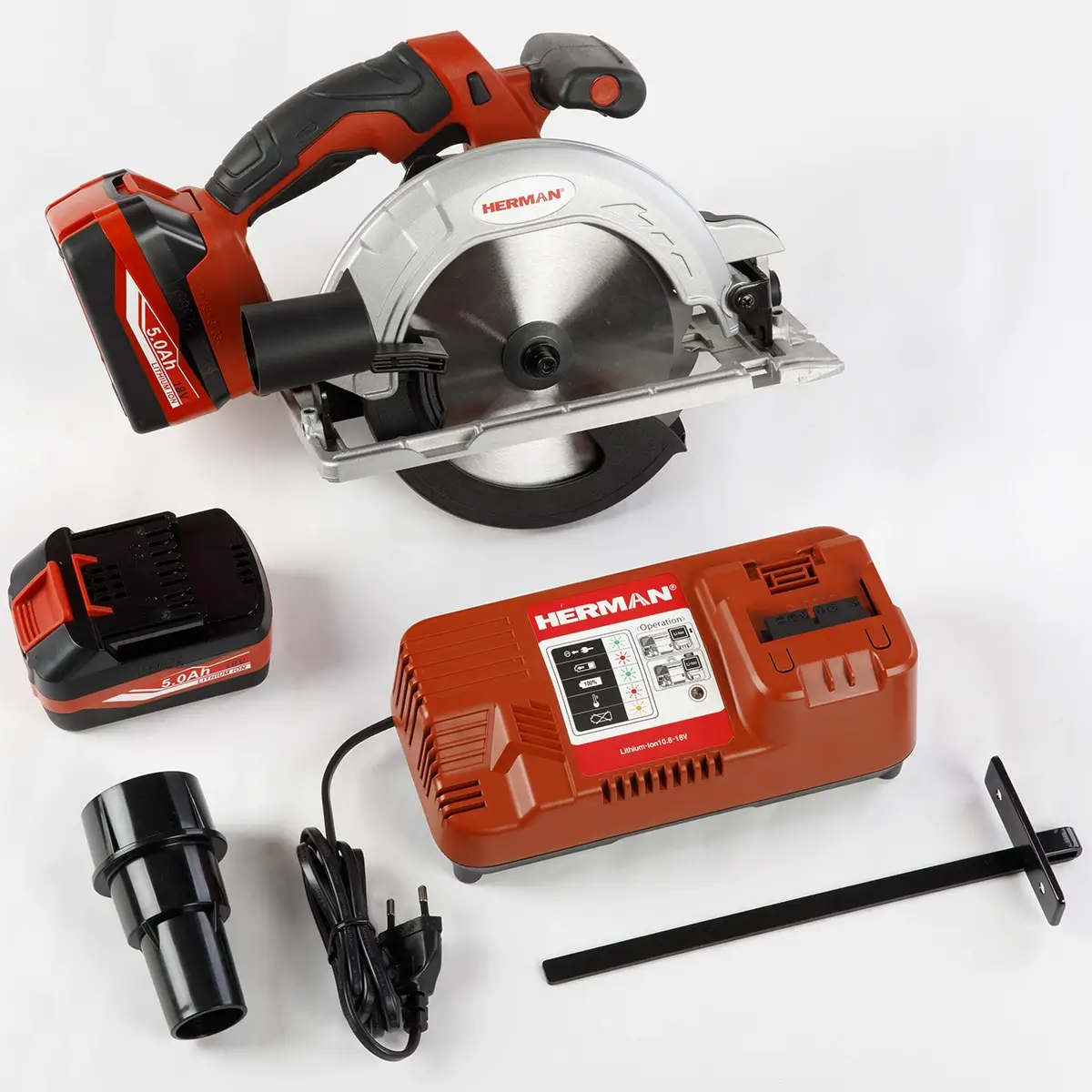

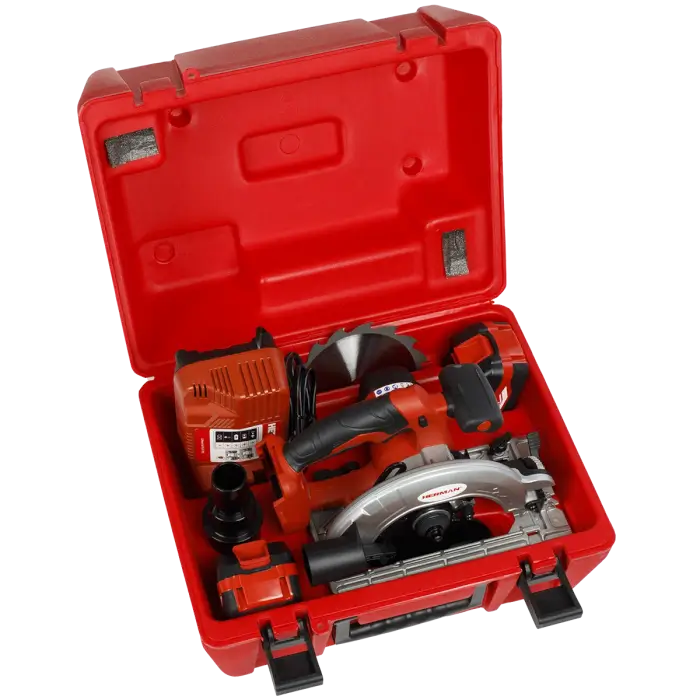

Contents of the package

  • 1x Circular saw
  • 1x Carbide disc for wood 16 teeth
  • 1x Assembly key
  • 1x Sideboard
  • 2x Battery 18,0 V / 5,0 Ah
  • 1x Fast charger

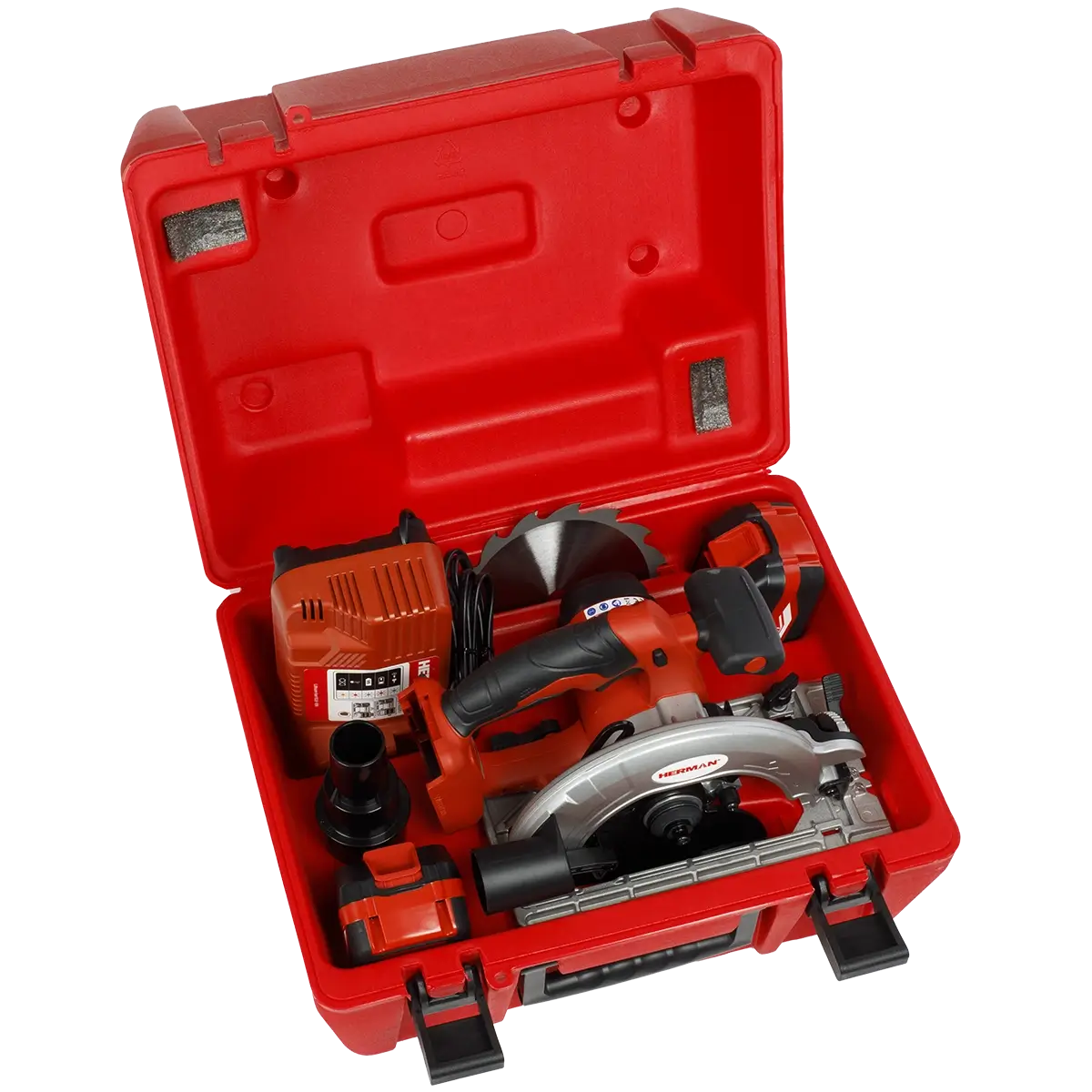

  • 1x Briefcase
  • 1x Instructions for use
