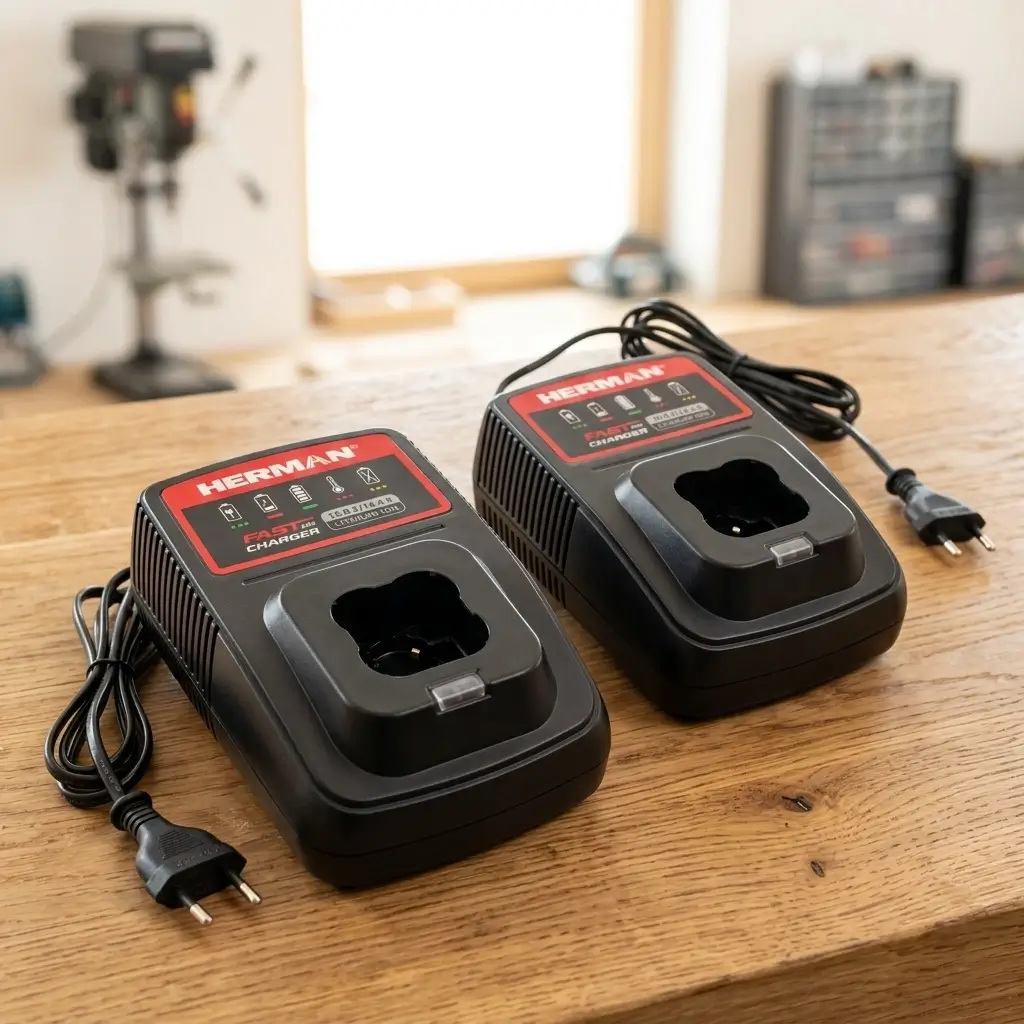

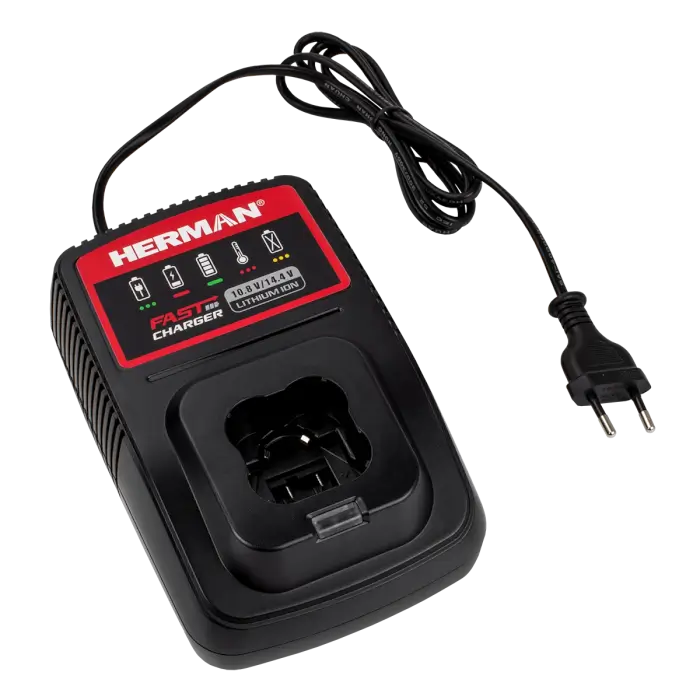

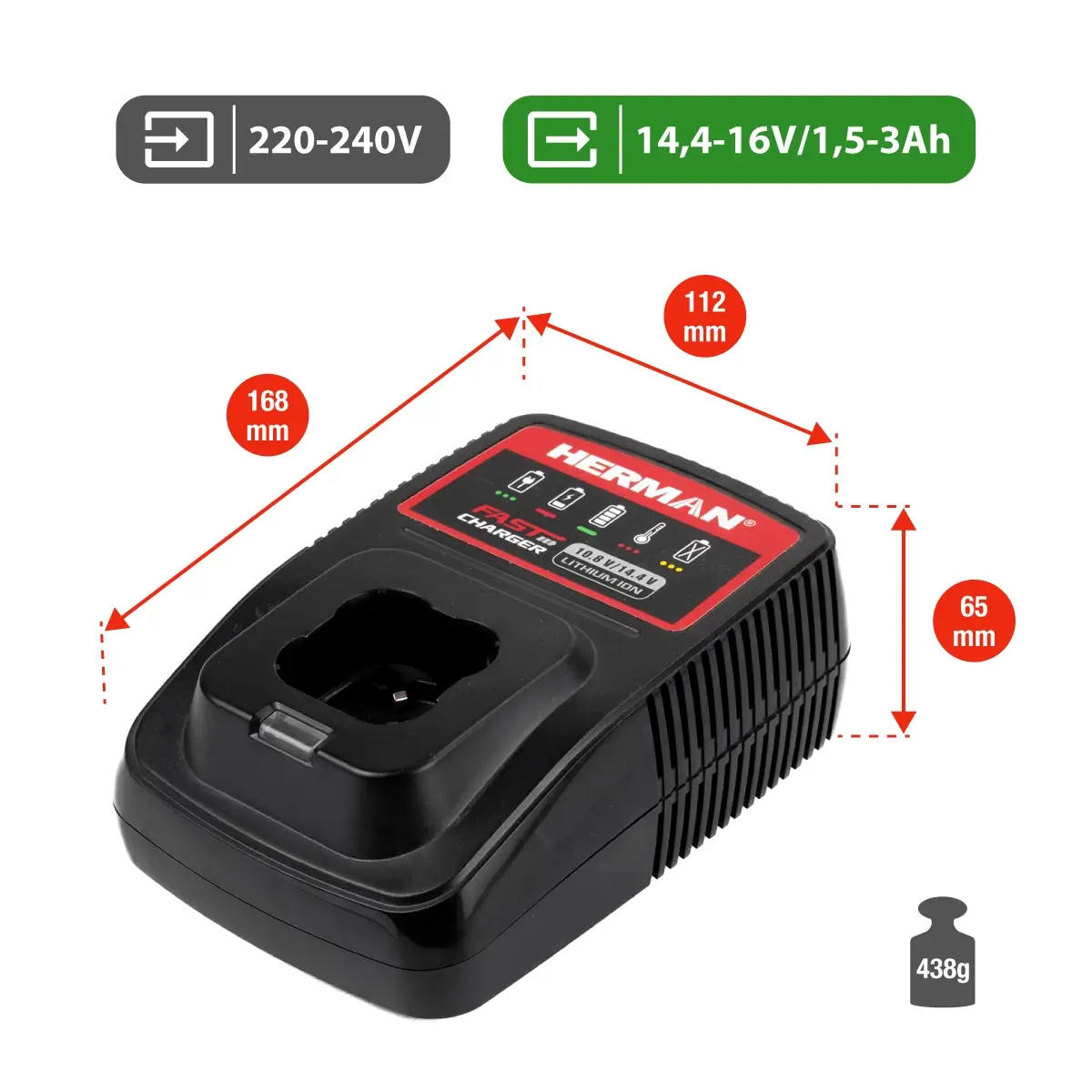

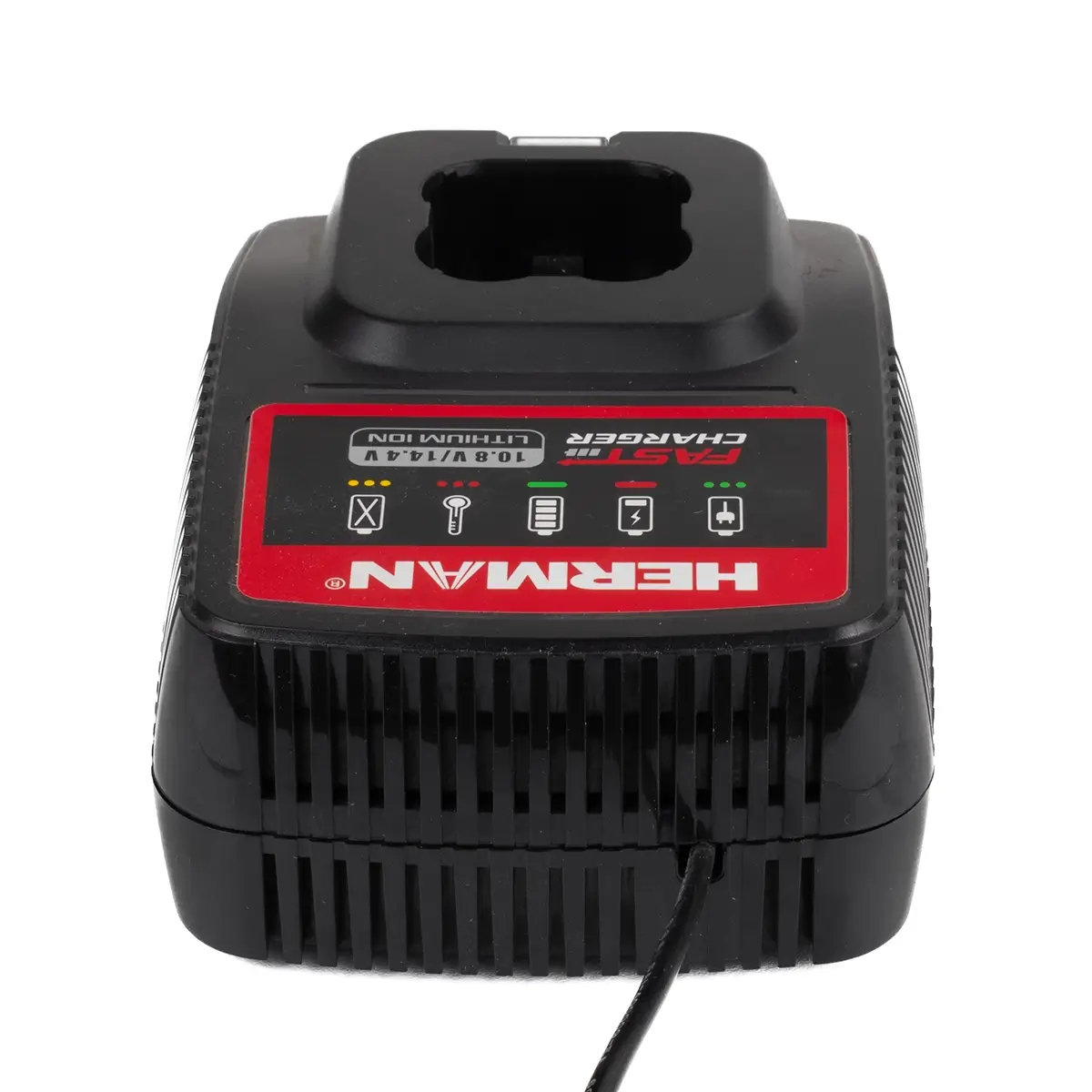

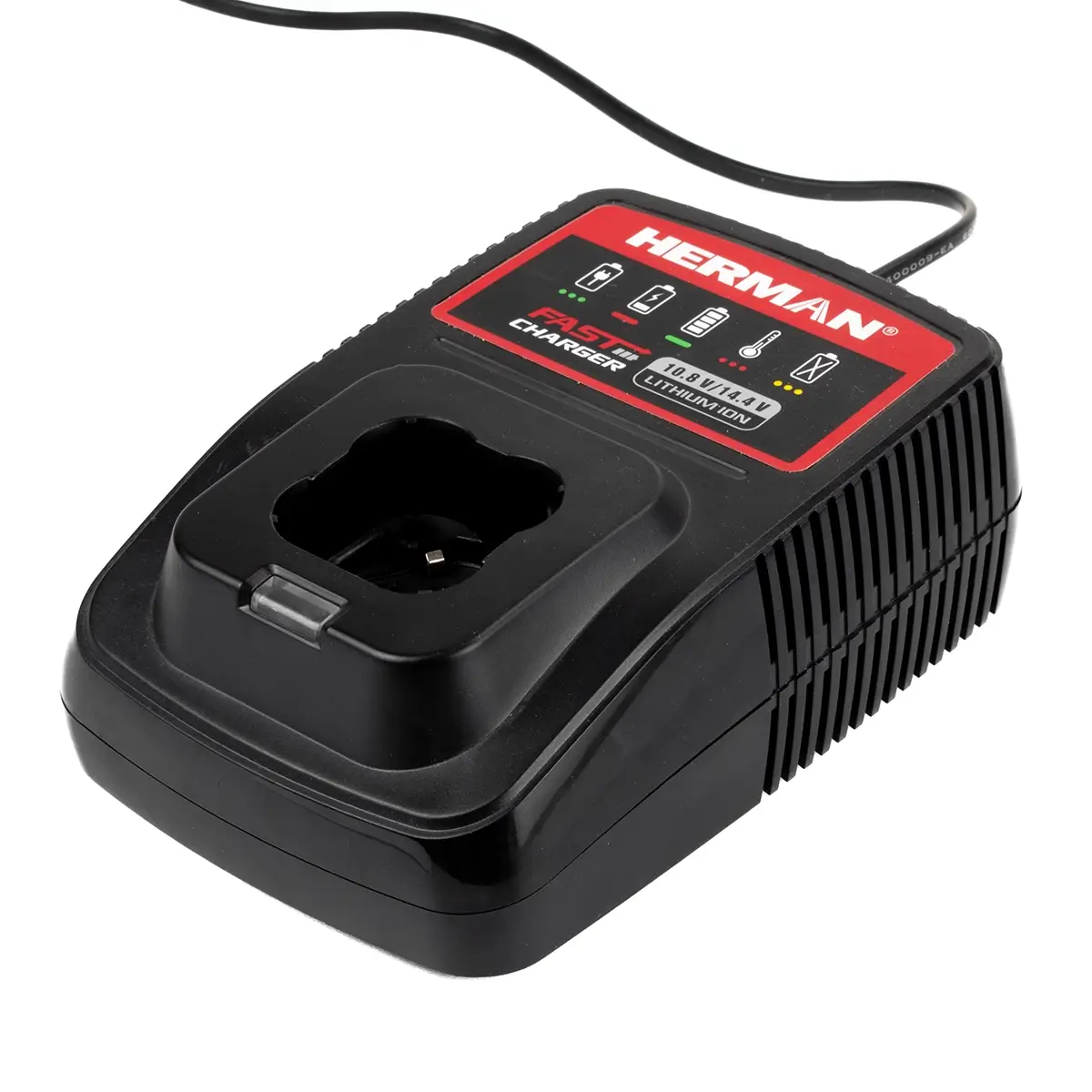

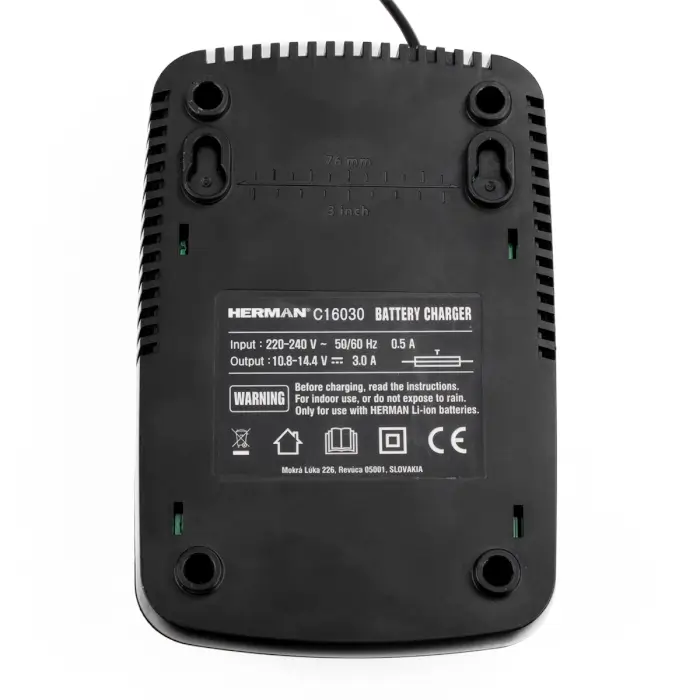

Battery charger
HERMAN C 16030
14,4V | 3A

Automatic operation without the need for manual control:
after inserting the battery into the charger housing, automatic connection detection and a short initial diagnosis of the battery's technical condition take place (duration approximately 1–2 seconds). The charging process is initiated only if the control system confirms that the conditions for safe charging have been met

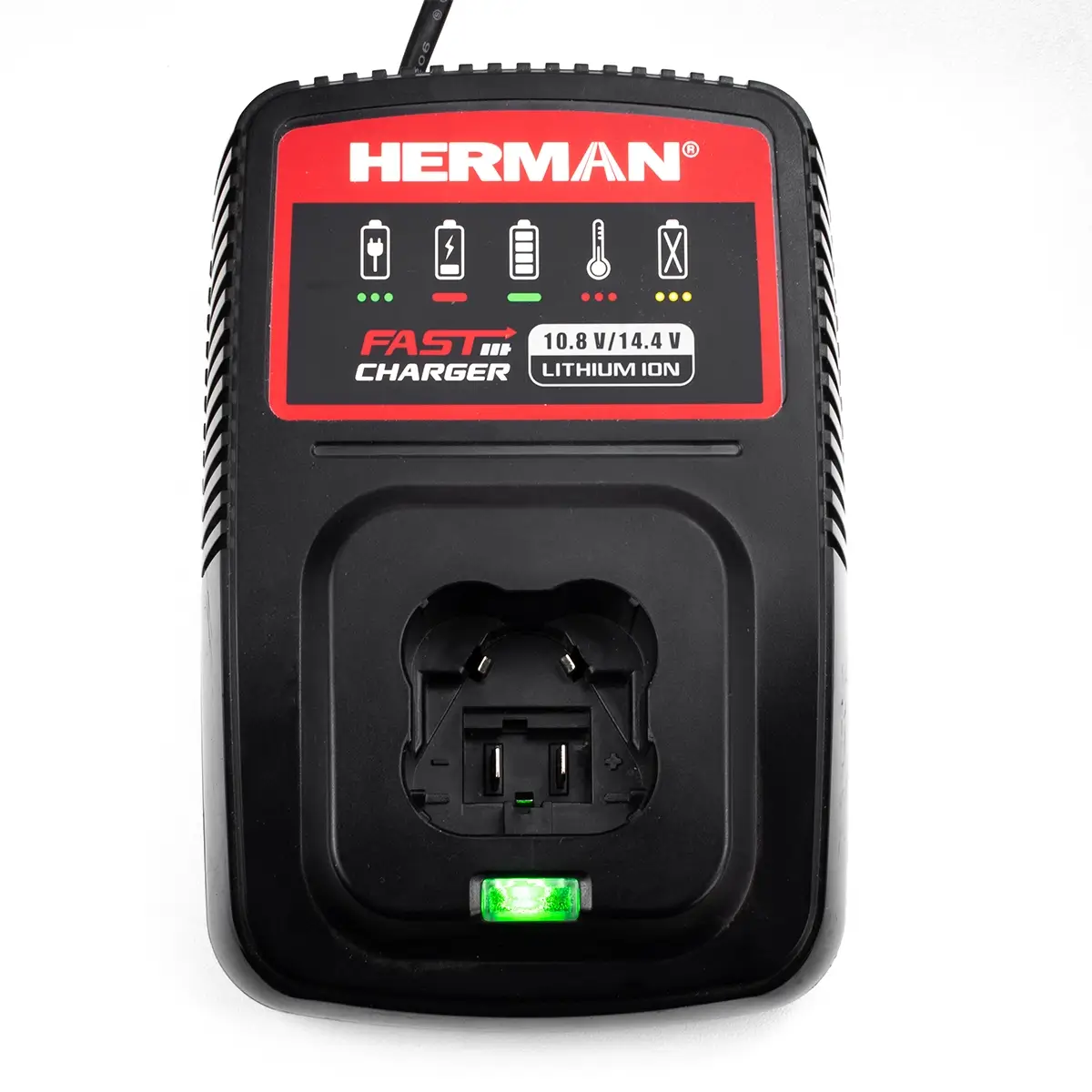

Indication of operating modes:
standby mode (= intermittent green), charging (= continuous red), charging complete (= continuous green)

Automatic STOP of charging of overheated battery and indication of battery overheating (= intermittent red ):
The charger is equipped with a cell temperature monitoring system that works with a temperature sensor integrated in the battery. If the cell temperature is too high (more than approx. 45°C), the control system blocks the initiation of the charging process for safety reasons.

Battery failure indication (= intermittent orange):
the charger identifies a damaged battery and refuses to charge it

Charging time:
depends on the technical condition of the battery and its discharge rate (2,0Ah battery approx. 40min.)

⚠ Do not use HERMAN chargers to charge batteries of other brands!
