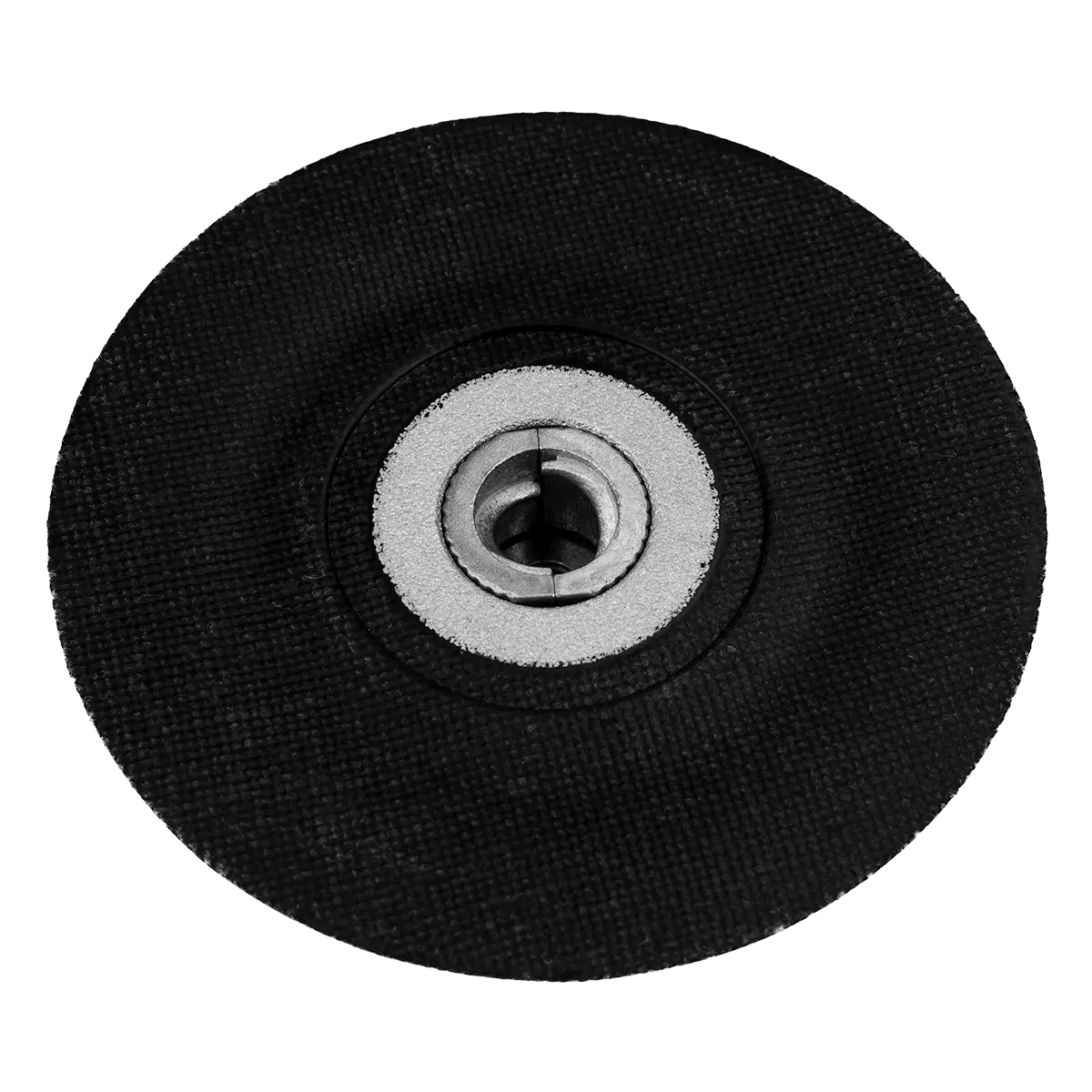

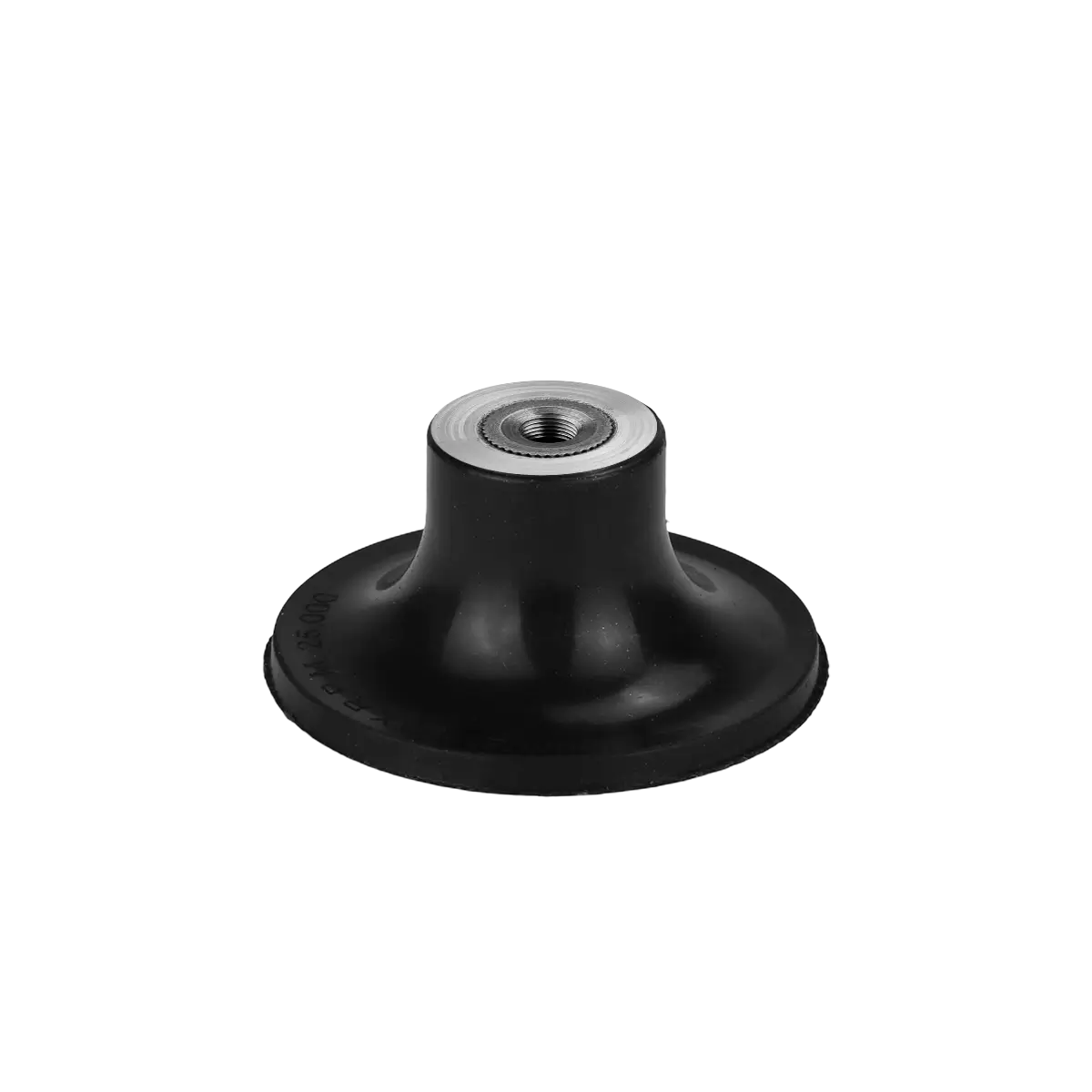

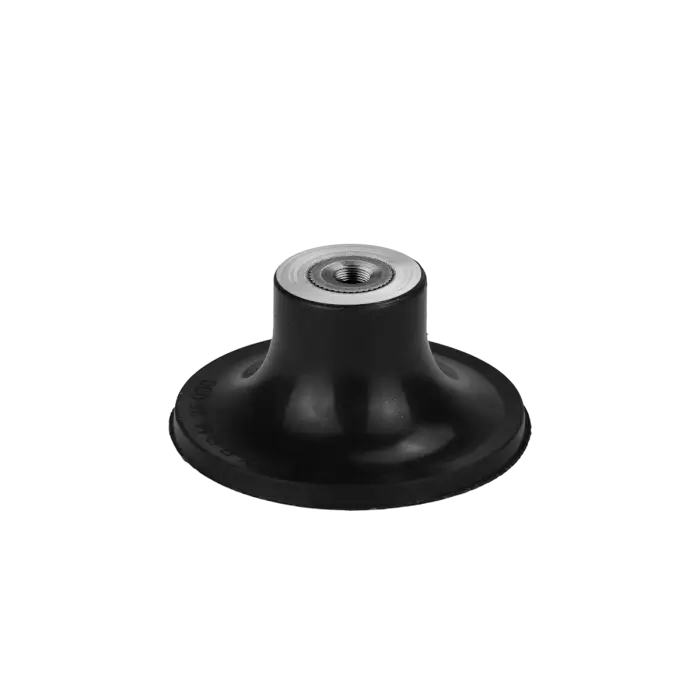

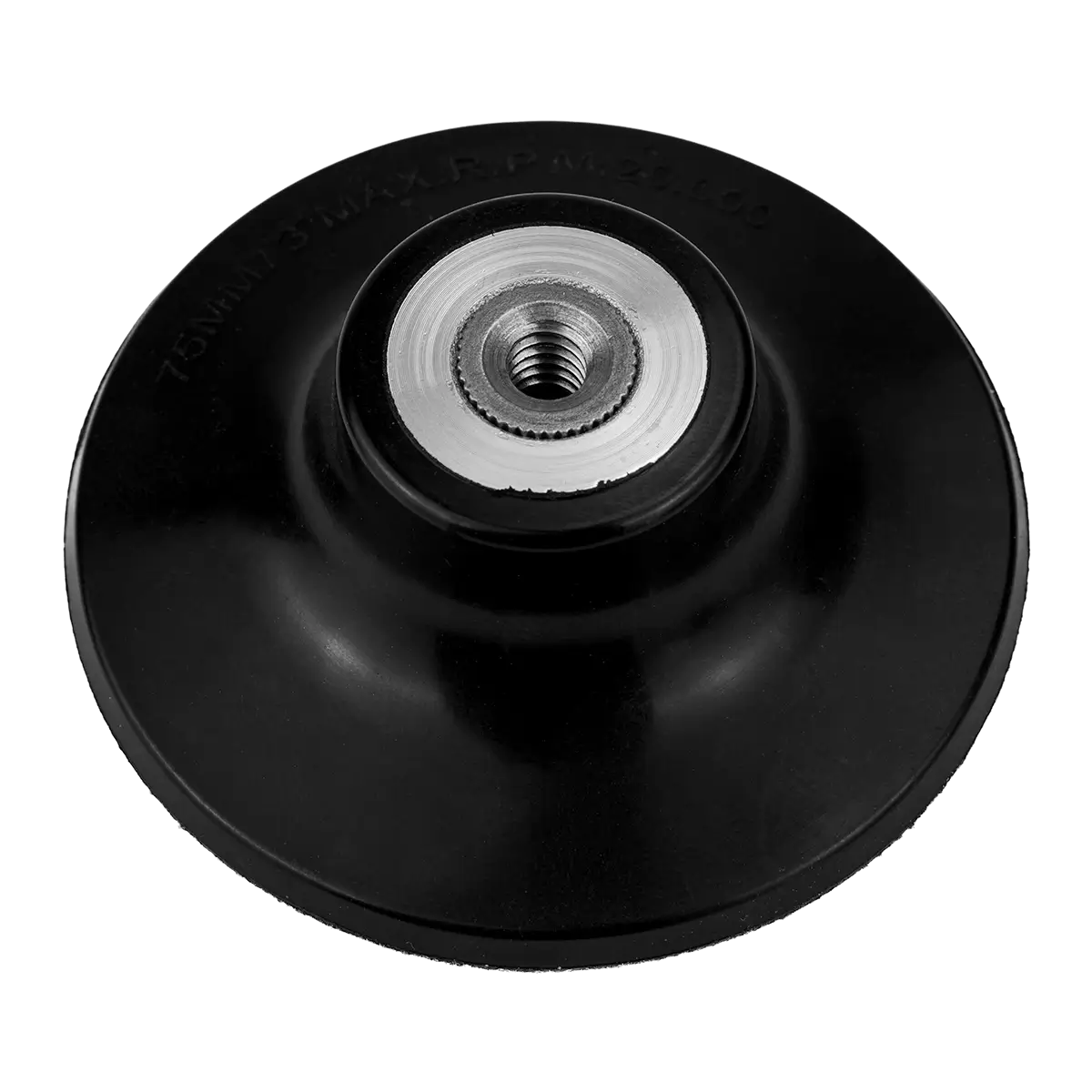

Backing plate
HERMAN MP-90 Soft
With Quick System QC-RS
Start over
Choose variant:
Ø1
(mm)
max. U/min
Balenie (ks)
Flexible, soft design with a serrated surface: 2 variants
Suitable equipment
Straight grinders
Straight grinders
| Product | Quantity in package (pcs) | Price | |
|
Straight grinder HERMAN GX-10R BL 1380 W | 1 |
Designation
- For clamping tools with the QC-RS (Quick Connect – Rolled System) quick clamping system, equipped with a plastic clamping element with a compatible external thread
- Optimal for precise grinding of small areas as well as for grinding uneven surfaces with dedicated tools
- Ø 45mm: for 50mm accessories, max speed 25,000 /min.
- Ø 70mm: for 75mm accessories, max speed 20,000 /min.
Description
Flexible backing pad design:
follows the uneven surface of the workpiece when grinding
Integrated metal insert with two internal threads:
an M6 metric thread for a firm connection of the backing pad to the clamping shank or adapter, and on the opposite side, a special QC-RS thread for quick clamping of interchangeable grinding tools with a compatible external thread.
Made of Nitrile Rubber:
good mechanical strength, resistant to abrasion and aging, as well as to oils and other similar chemicals
Stable properties over a wide temperature range:
a slight change in properties occurs at ambient temperatures below -20°C and during prolonged grinding and overheating of the pad to a temperature of more than 120°C
Warning:
do not exceed the maximum speed when working (25.000 rpm for Ø 45mm, 20,000 rpm for Ø 70mm)
| Ø1 (mm) | max. U/min | Quantity in package (pcs) | Price | |
ID: 15800203
|
45 | 25000 | 1 | |
ID: 15800204
|
70 | 20000 | 1 |
