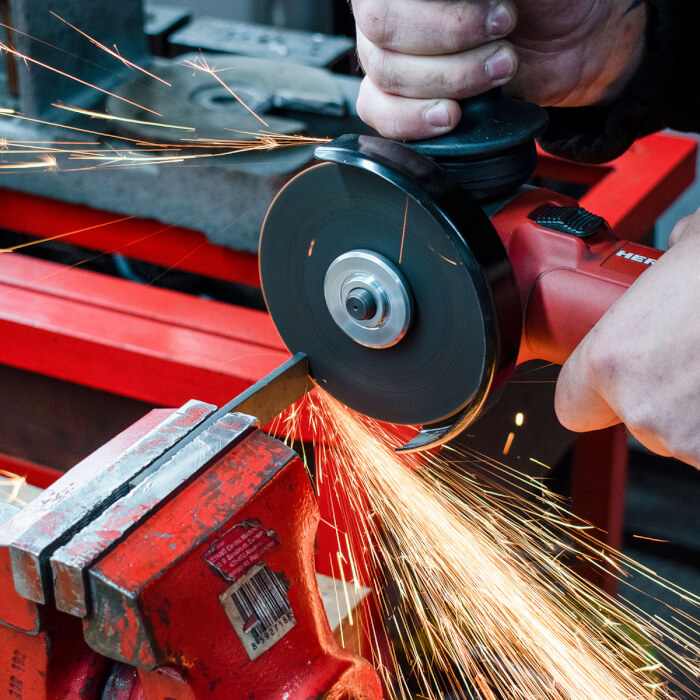

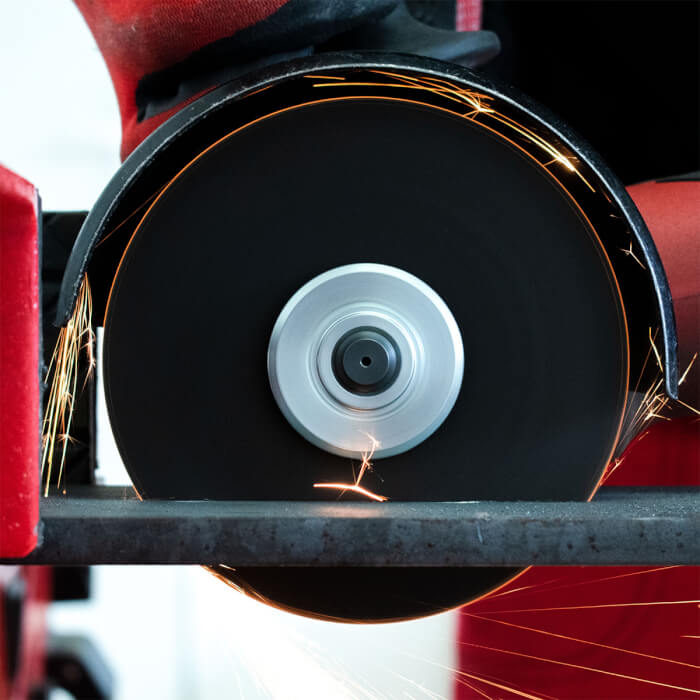

Angle Grinder
HERMAN WX-10001
100 mm | 850 W
Shortened warranty available for business entities only! Remarkable, very small and light angle grinder for discs Ø 100 mm with a center hole of 16.0 mm
Suitable tools and accessories
| Product | Quantity in package (pcs) | Price | |
|
Diamond wheel HERMAN BD-40 Precisa 100x16,0mm | H=7,0mm | 1 |
| Product | Quantity in package (pcs) | Price | |
|
Grinding wheel HERMAN GS-30 Classic | For steel 100x6,0x16,0mm | 5 | |
|
Grinding wheel HERMAN GS-30 Classic | For steel 100x6,0x16,0mm | 25 |
| Product | Quantity in package (pcs) | Price | |
|
Carbon brushes (pair) WX 12501, WX 10001 | 1 | |
|

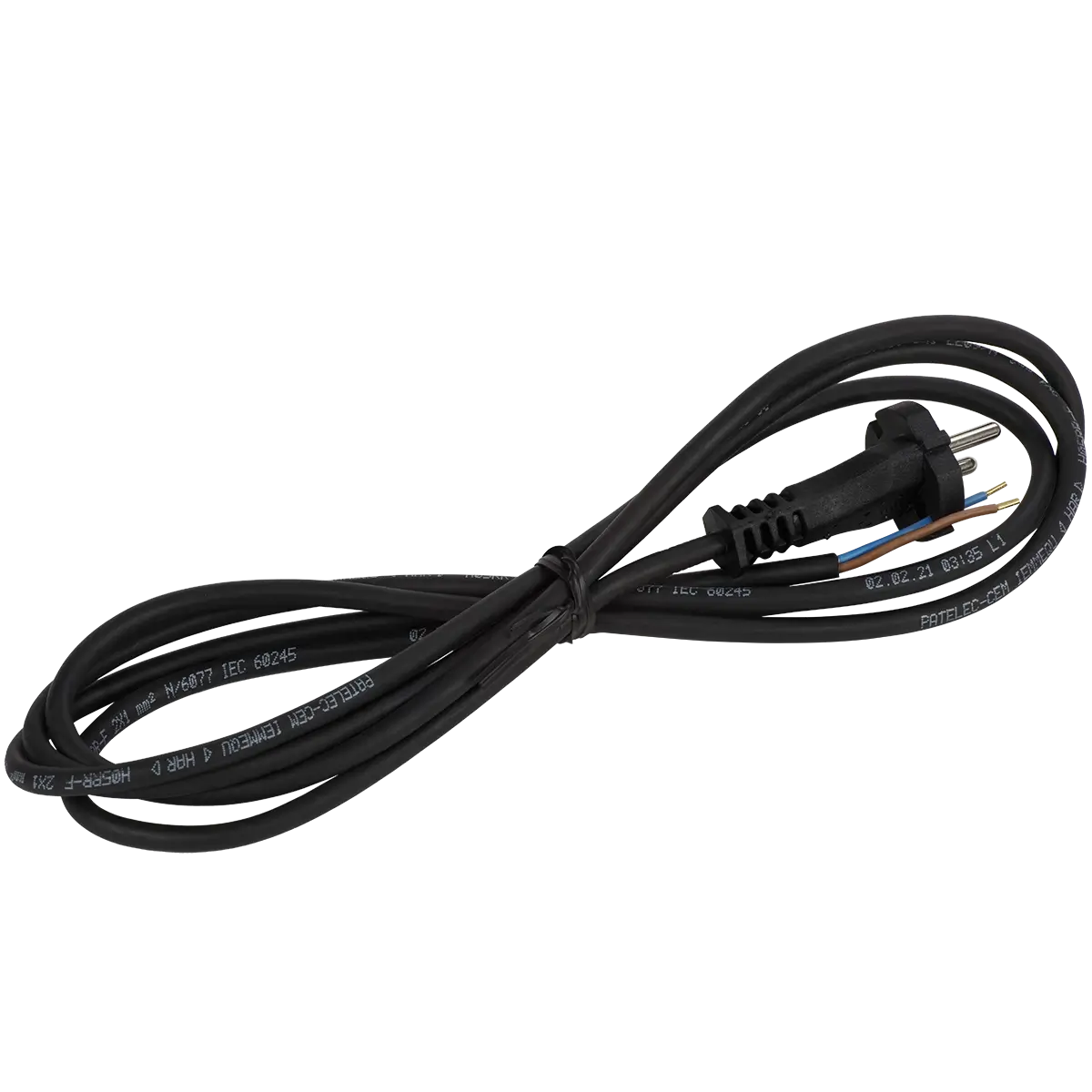

Power supply cord (flex cord) HERMAN FC-10A | 2,5m WX 10001, WX 12501, WX 12503, WX 12504, WX 15001, BX 800, MBX 650, RX 1700 | 1 |
Designation

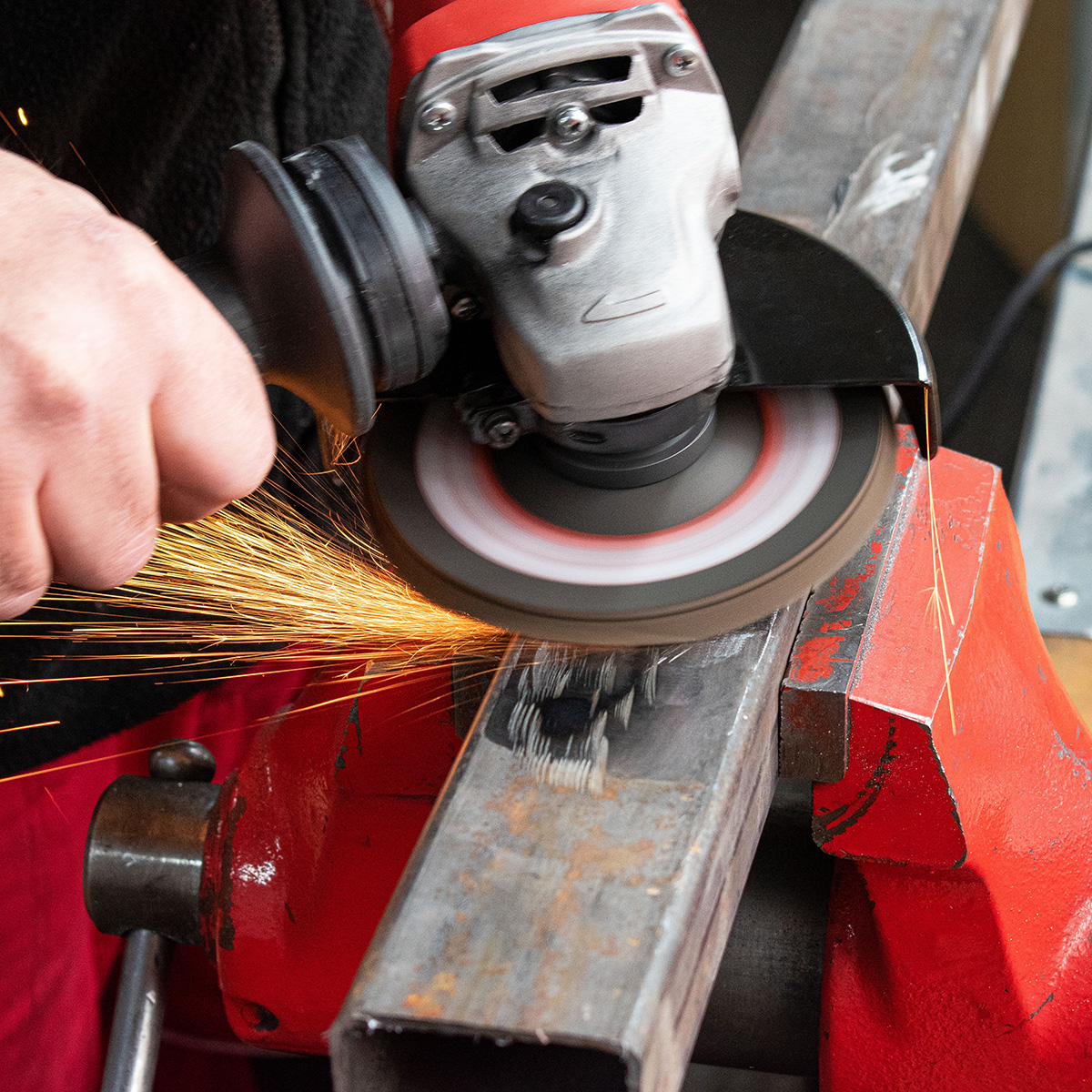

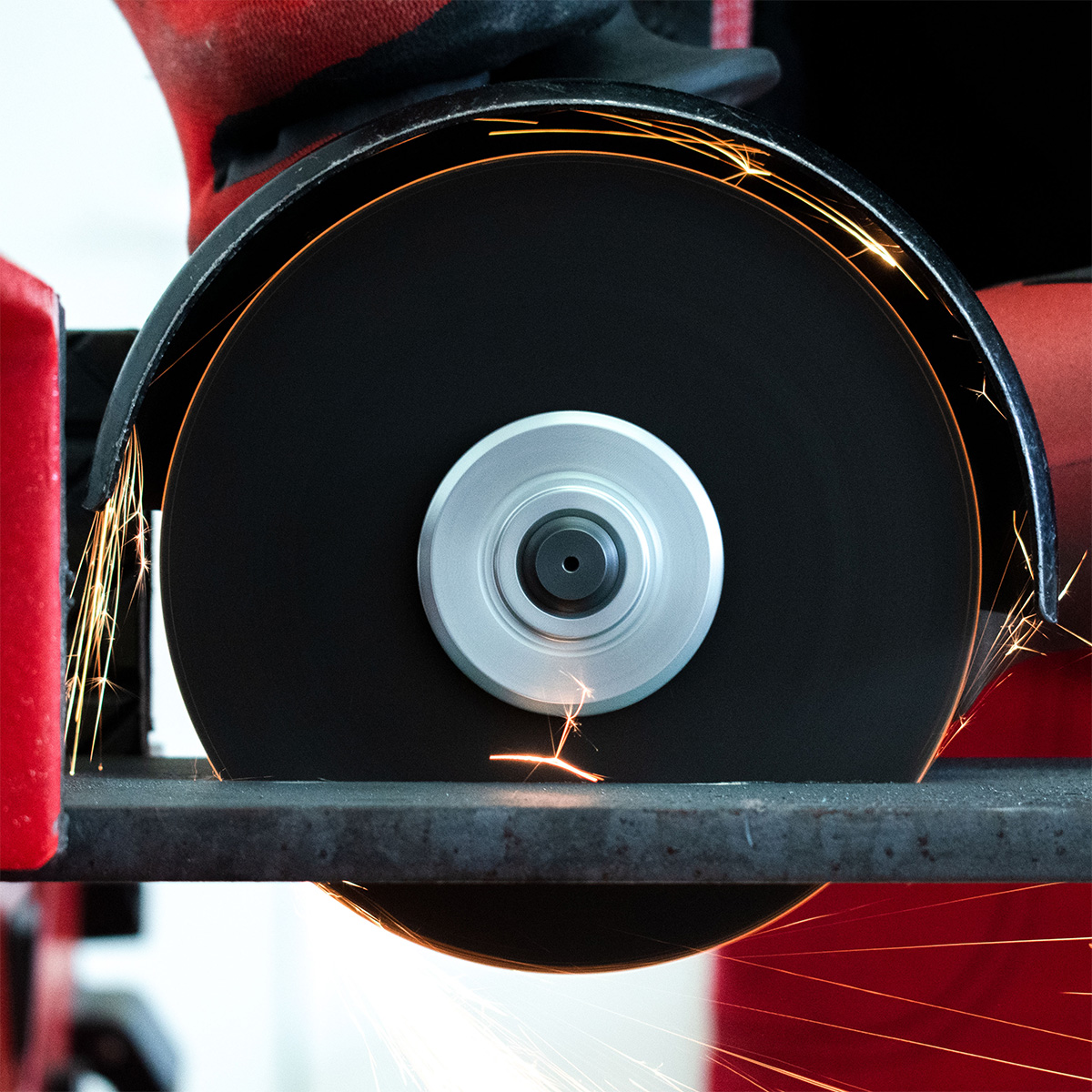

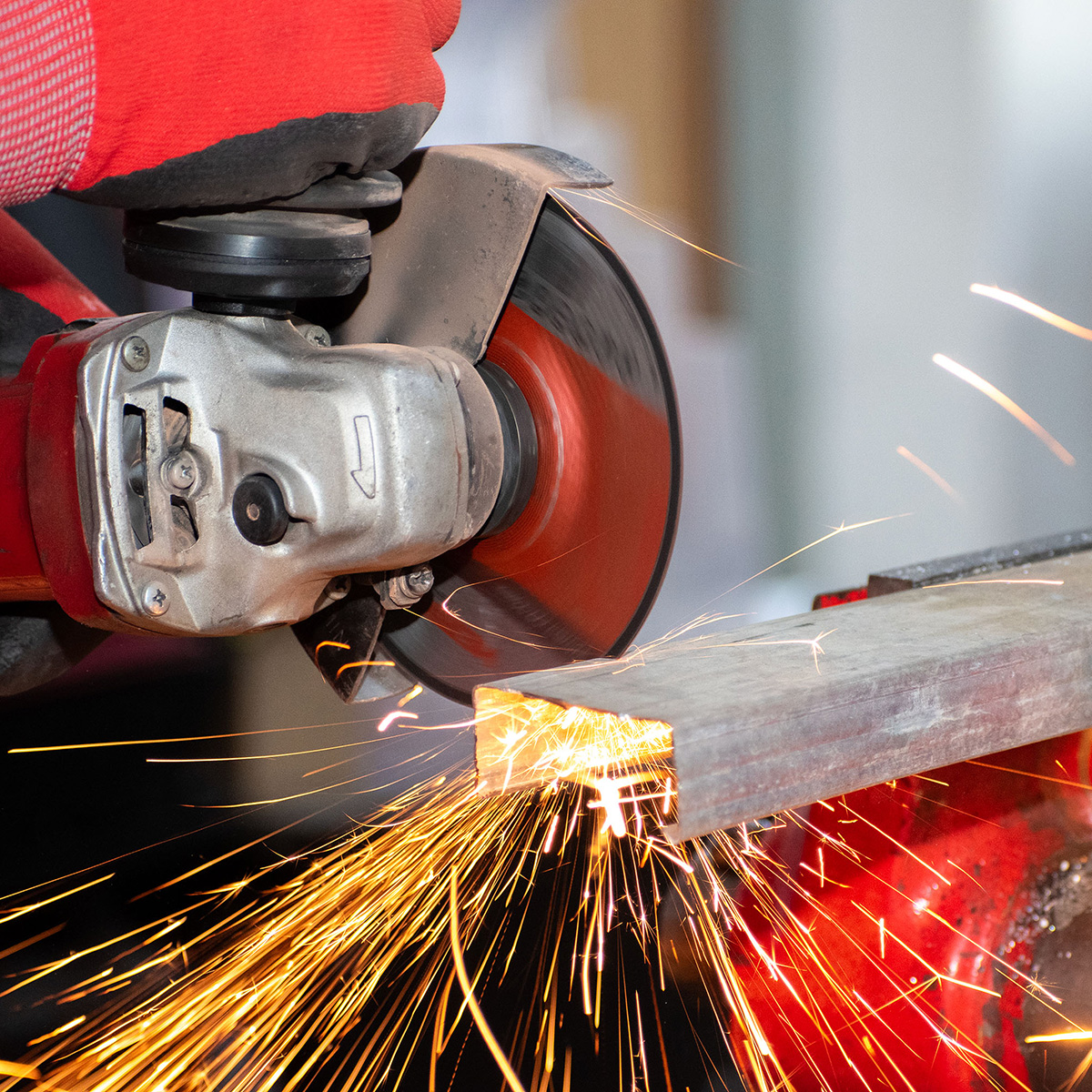

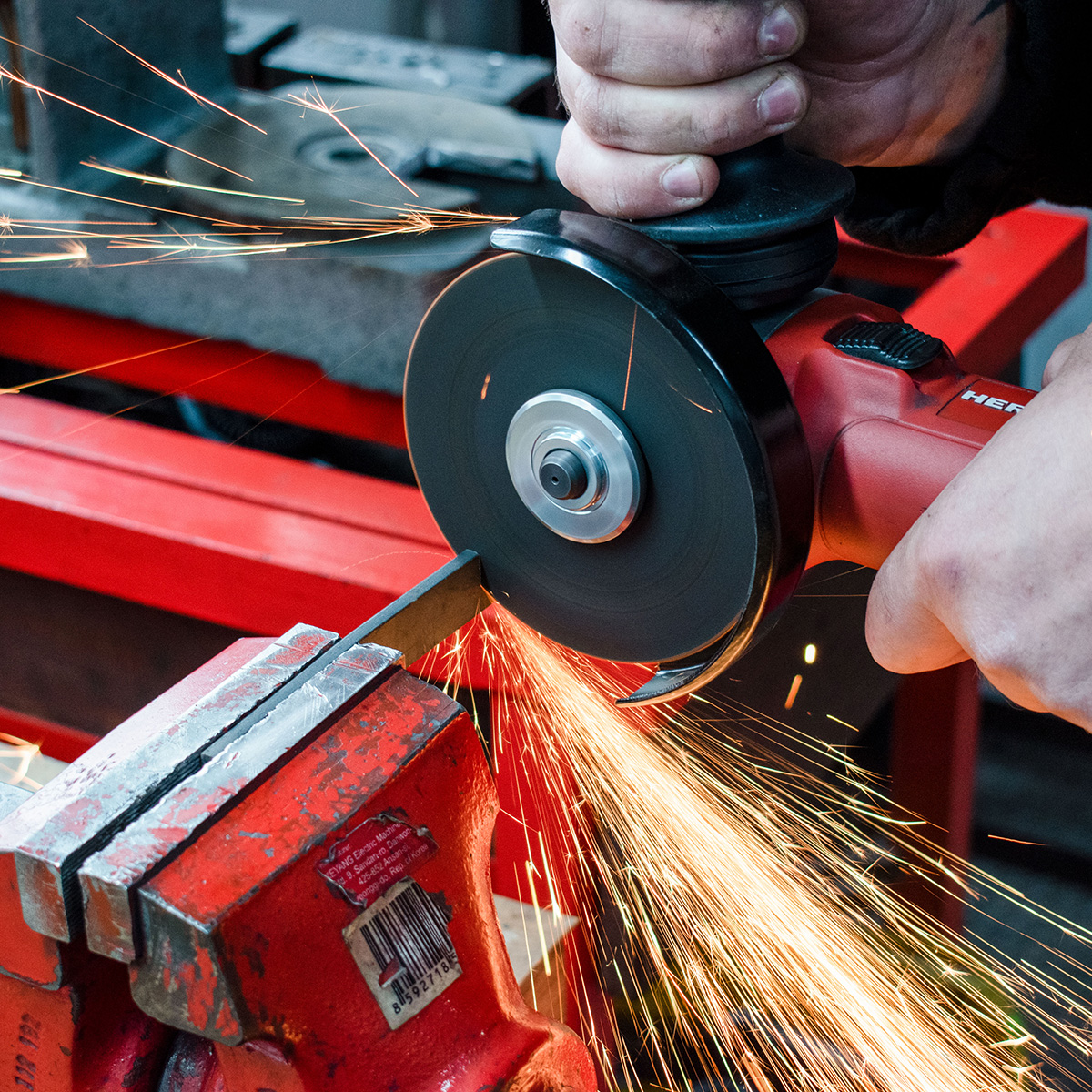

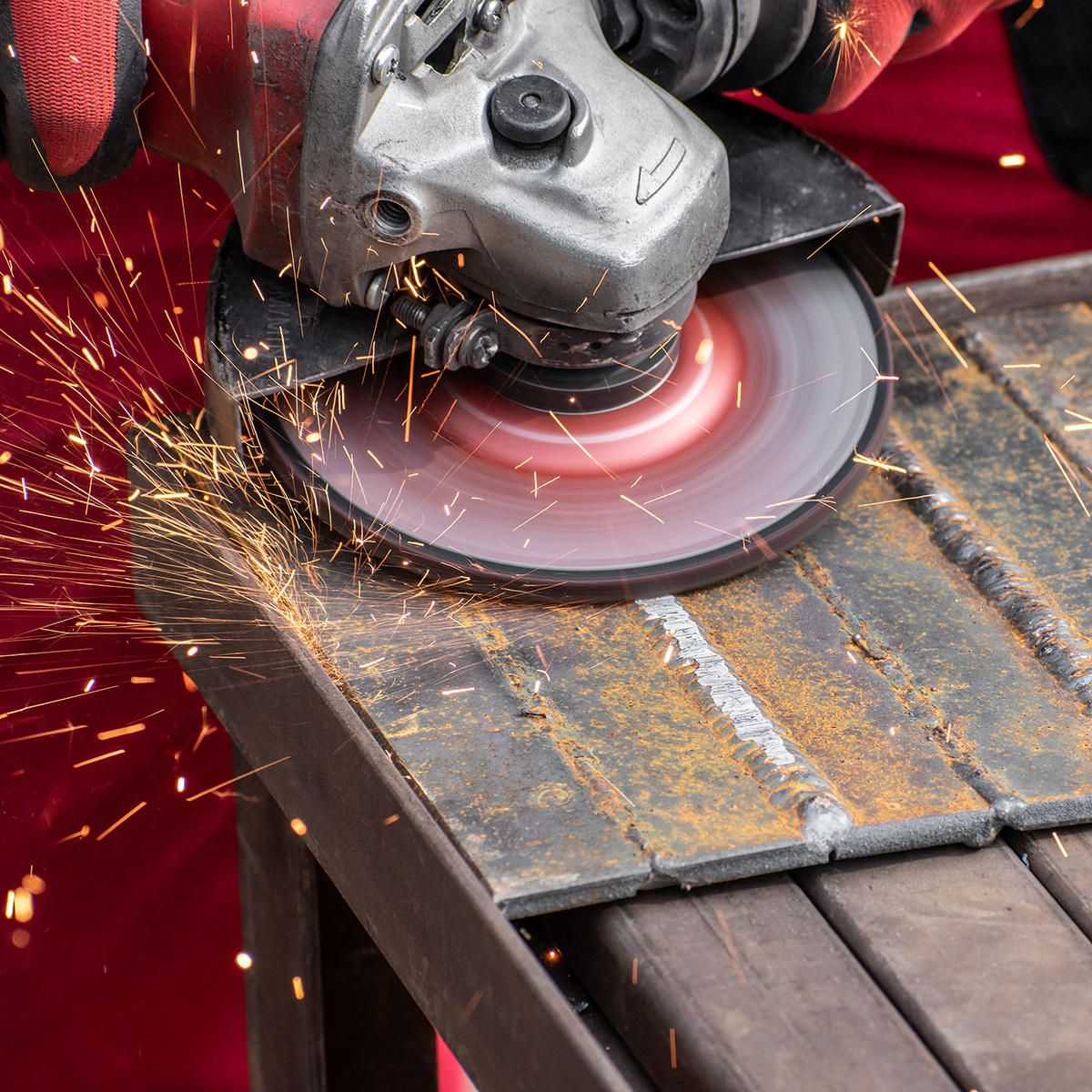

- Especially for cutting small sections of metal and building materials, or for grinding, polishing and cleaning smaller surfaces
- Weight 1.7 kg, length 260 mm and input power 850 W - an ideal triple combination for work in hard-to-reach places
Comfort
The diameter of the body of the sander at the point of grip is only 62 mm:
it enables a comfortable, natural and firm grip with one hand
Ergonomic position and shape of the mains switch:
enables reliable control of the switch with the thumb even when wearing gloves
Locking the mains switch in the on position:
if necessary, it is not necessary to keep the thumb on the switch while working
Anti-vibration front additional handle with the possibility of attachment in two positions:
significantly reduces vibrations transmitted from the sander to the hand, comfortable work even for left-handed people
Spindle lock button:
makes it easier to change the disc by blocking the rotation of the spindle
Gearbox made of light alloy:
reduces the weight of the sander
Safety
"RESTART PROTECTION" function:
protection against restarting the engine after the power supply is restored
Double insulation:
increased protection against electric shock

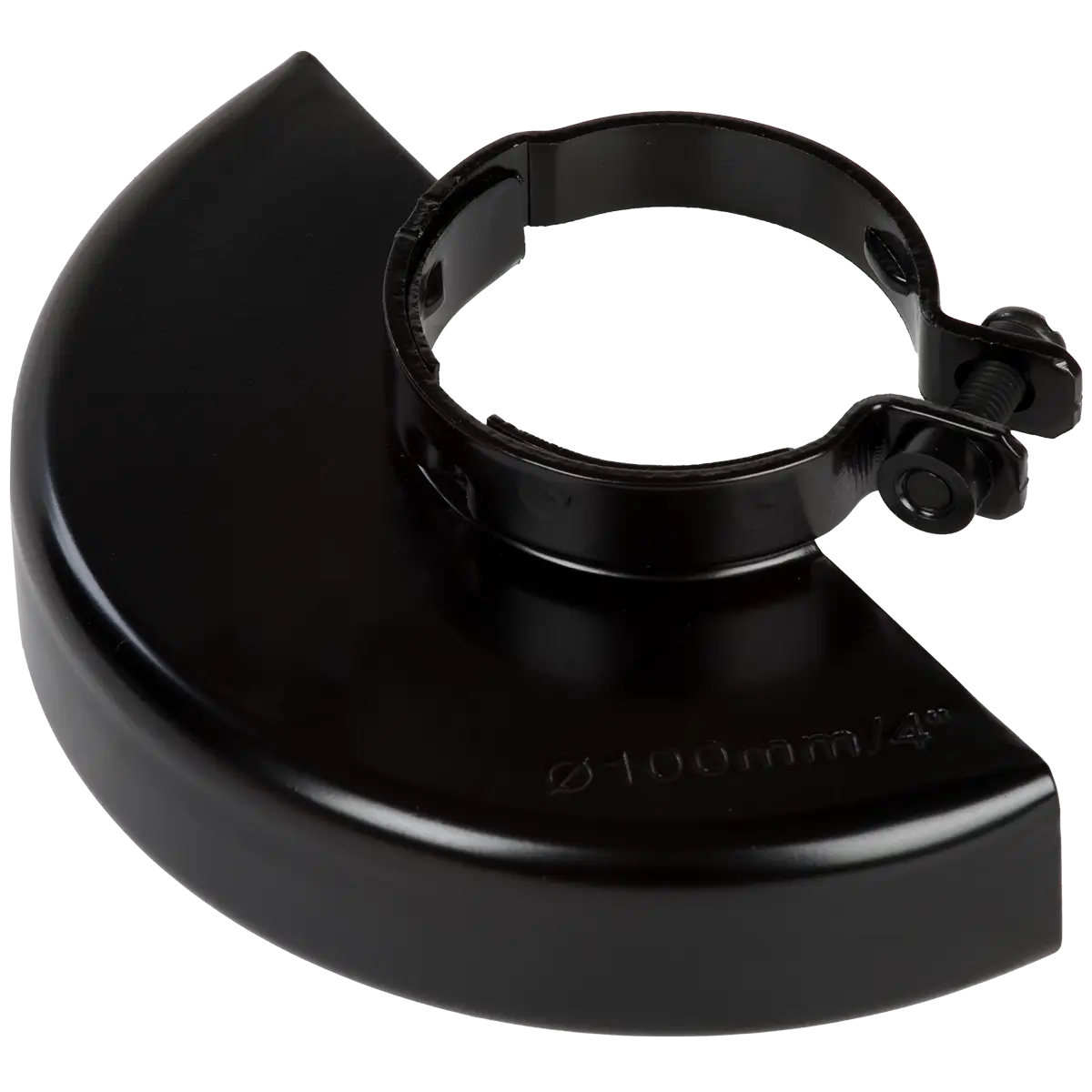

Crack-resistant protective disc cover:
with the option of setting the optimal position for greater safety
Lifetime
Self-disconnecting carbon brushes:
protecting the rotor commutator from damage at the end of the life of the carbon brushes
Gearbox made of light alloy:
the material used contains additives that increase resistance to wear
Motor winding with epoxy protection:
contributes to a longer life of the grinder
Effective anti-dust system:
reduces the penetration of dust during the intake of cooling air
Specially shaped air inlets:
increase the efficiency of engine cooling
Parameters
| Voltage [V~] | 220-240 |
|---|---|
| Rated power [W] | 850 |
| Spindle thread | M10 |
| Max. disc diameter [mm] | 100 |
| Idle speed [U/min] | 11000 |
| A-weighted emission sound power level (LWA) [dB(A)] | 102 |
| A-weighted emission sound pressure level (LpA) [dB(A)] | 91 |
| Uncertainty (K) [dB(A)] | 3 |
| Weight (according to EPTA 01/2003) [kg] | 1,6 |
Contents of the package
- 1x Angle grinder
- 1x Additional handle
- 1x Clamping key
- 1x Clamping flange
- 1x Clamping nut
- 1x Disc cover
- 1x Instructions for use
