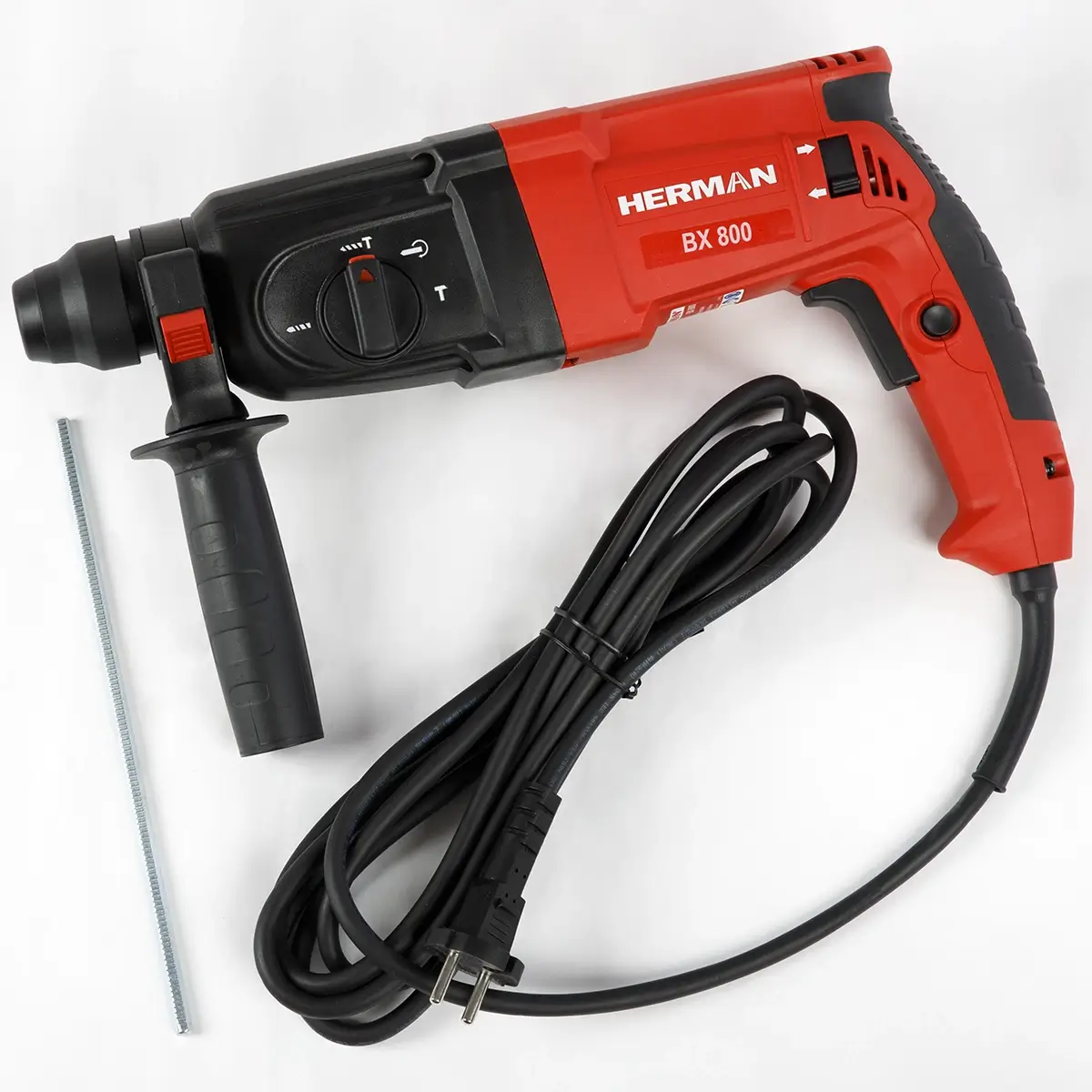

Combi-hammer
HERMAN BX-800 | SDS-plus
800 W | Warranty: 3 years

Name: Combi-hammer HERMAN BX-800 | SDS-plus 800 W | Warranty: 3 years
Brand: Herman
SKU: 8586020296712
Price: 169 EUR
Availability: InStock
Rating: 5 (22 reviews)

169,00 € excl. VAT

In stock > 20 pcs

Developed for everyday work. Reliable, robust construction complete with essential electronics

In Stock

SKU: 110080000 Category of goods: Electropneumatic hammers

Designation

Especially for drilling holes in concrete and masonry with drills with an SDS-plus shank, optimally with diameters in the range of 6-16 mm (max. 28 mm). Also suitable for light chopping work when removing plaster, tiles, etc.
Suitable for drilling holes in wood and metal with cylindrical, hexagonal or triangular shank drill bits when the electro-pneumatic impact function is switched off and using the supplied adapter and quick-release chuck

Comfort

3+1 position switch of operating modes:
drilling with hammer, drilling without hammer, hammer without turning the tool for chopping work and mode for setting the position of the chisel

Ergonomic side handle with a rubberized grip surface, removable without tools, adjustable in the range 0-360°:
allows you to grip the hammer safely while working and to set a comfortable handle position

Optimized, ergonomically shaped rear handle with non-slip rubberized surface:
comfortable, pleasant grip

Switch with locking in the on position:
if needed, it is not necessary to hold the index finger of the hand on the switch while working

Variable speed with a regulator built into the switch:
It enables precise guidance of the drill when drilling holes

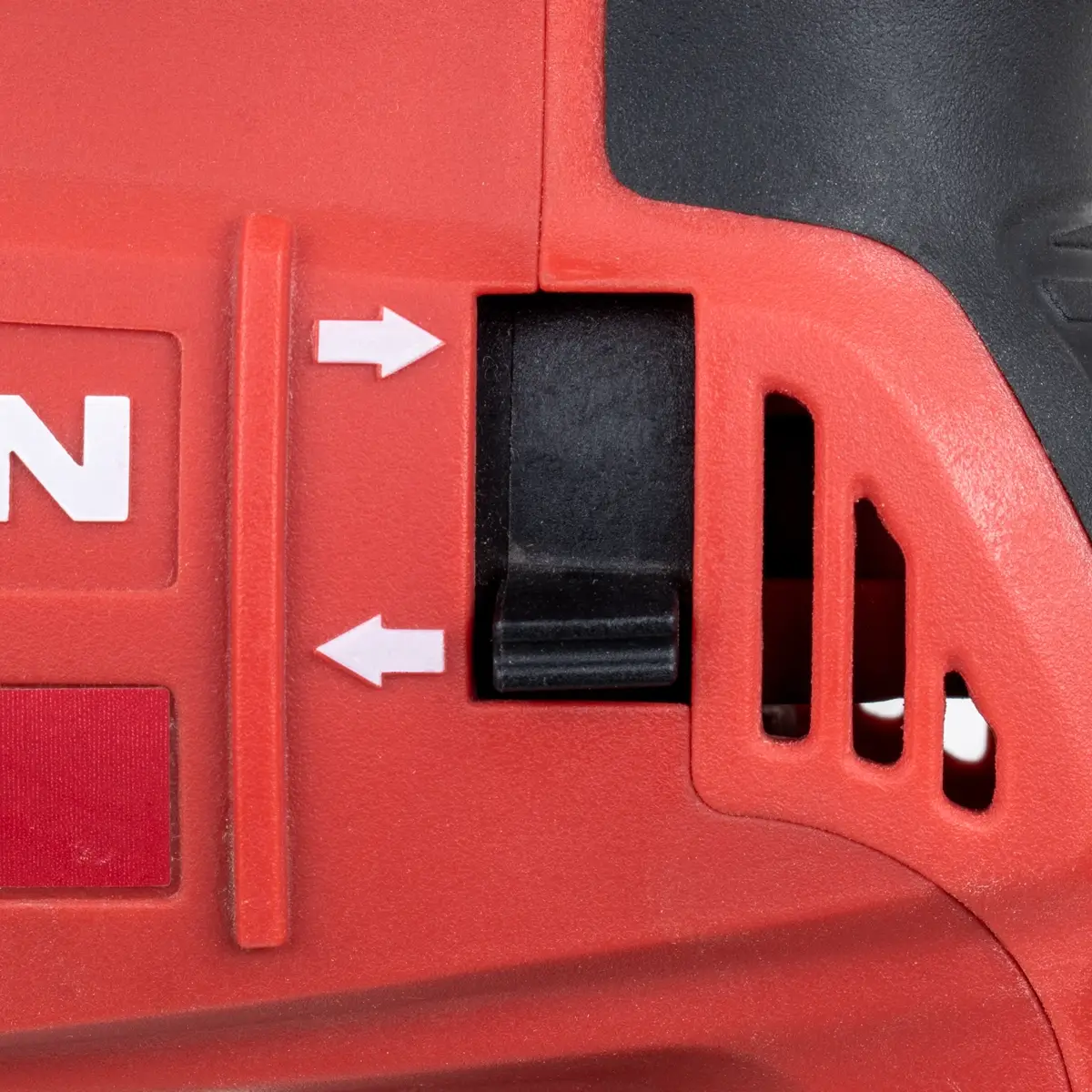

Switching between right and left with the carbon brush feed switch:
a unique technical solution for the same torque in both directions of rotation, especially useful for releasing long drill bits from deep drilled holes and for some screwdriving applications with the appropriate adapter (not included)

Chisel settings in 11 positions:
It increases work productivity by appropriately setting the position of flat, bladed and channel chisels

Continuously adjustable depth stop in the range from 0-180 mm:
for serial drilling of holes of the same depth

Light alloy gearbox:
reduces the weight of the hammer

Safety

Safety slip clutch:
in the event of a sudden twist of the drill, the clutch disconnects the motor from the gearbox and thus protects the operator from a sudden jerk of the hand

Double insulation:
increased protection against electric shock

Lifetime

Self-disconnecting carbon brushes protect the rotor commutator from damage at the end of the life of the carbon brushes

Dust-tight clamping:
a special flexible seal reduces the permeability of dust to the quick-clamping mechanism and thus extends its service life

Safety slip clutch:
in the event of a sharp collision of the drill, the clutch disconnects the motor from the gearbox and protects it from overload

Gearbox made of light alloy:
the material used contains additives that increase resistance to wear

Effective anti-dust system reduces the penetration of dust during the intake of cooling air

Specially shaped air inlets increase the efficiency of engine cooling

Parameters

Voltage [V~]	220-240
Rated power [W]	800
Tool clamping	SDS plus
Idle speed [/min]	0-1250
Number of beats [/min]	0-4000
Impact energy [J]	0-3,2
Optimum diameter range for drilling into concrete [mm]	6 až 16
Concrete drilling diameter range [mm]	4 až 28
Max. diameter of drilling into masonry with drill bits [mm]	80
A-weighted emission sound power level (LWA) [dB(A)]	100
A-weighted emission sound pressure level (LpA) [dB(A)]	89
Uncertainty (K) [dB(A)]	3
Weight (according to EPTA 01/2003) [kg]	2,9

Contents of the package

1x Electropneumatic hammer
1x Additional handle
1x Depth stop
1x Briefcase
1x Lithium plastic grease LL 2
1x Quick-release chuck BF-31 Black&Red ½ʺ for drilling without electro-pneumatic impact
1x Adapter SDS-plus / ½ʺ- 20 UNF DC-80 with external thread for three-jaw chuck
1x SDS-plus /1/4" HEX adapter DC-81 with internal hexagon for screw bits
1x Instructions for use
