ID: 97900055
ACTION : Angle Grinder
ACTION : Angle Grinder

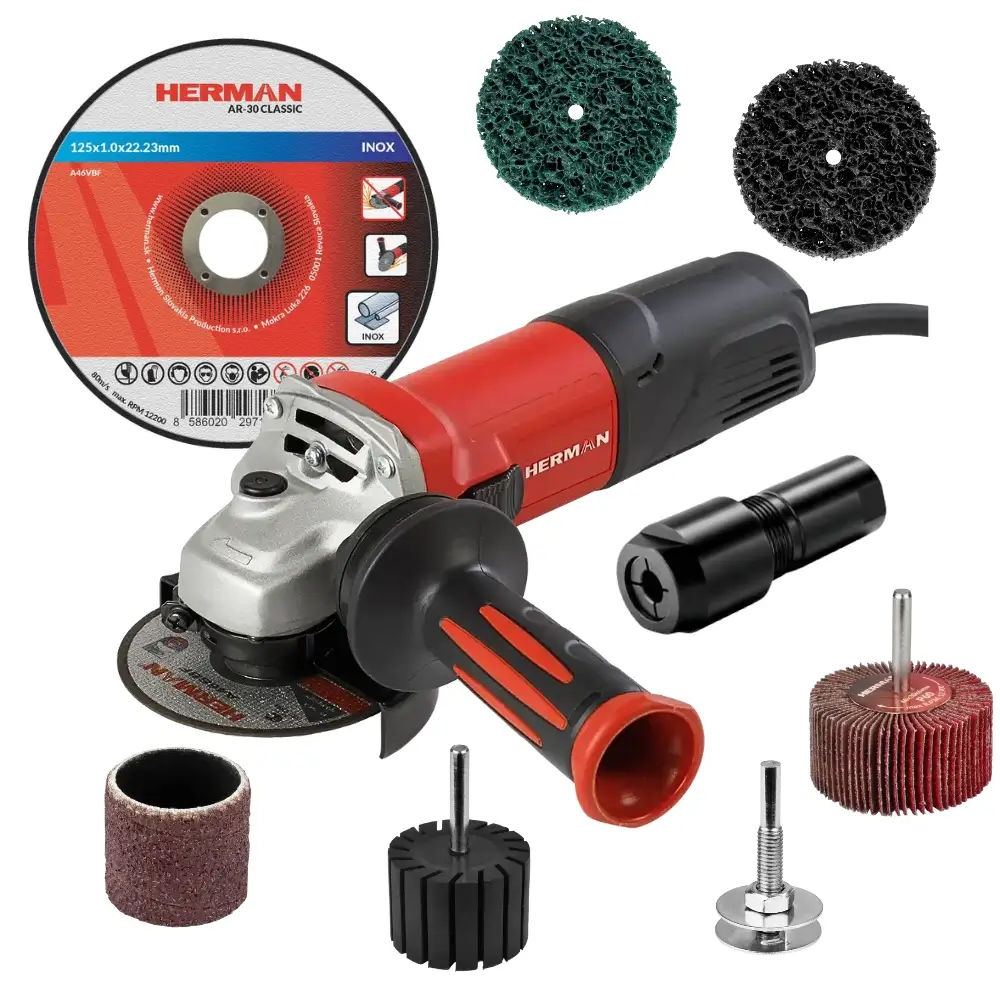

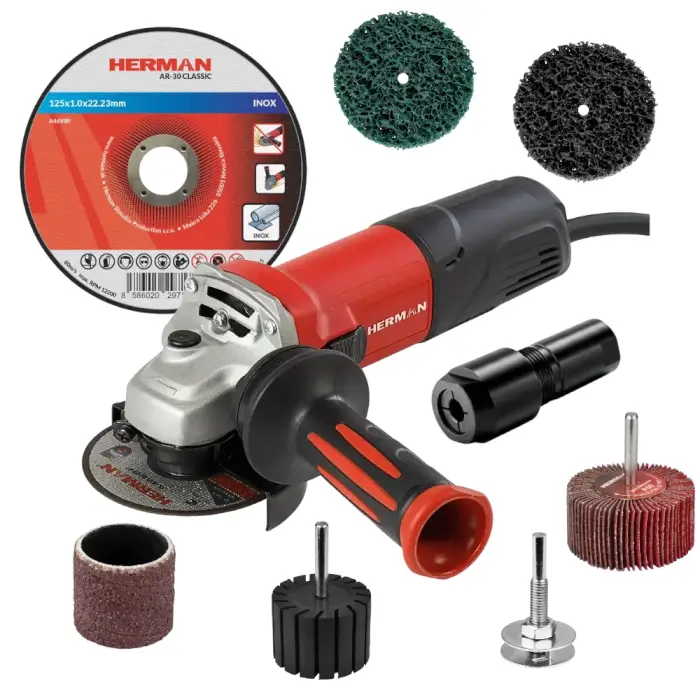

HERMAN WX-10001 | 100 mm
angle Grinder + 63 pcs tools
Basic equipment with a wide range of applications. It includes the WX-10001 angle grinder, cutting discs, and shank-mounted grinding tools
Suitable tools and accessories
Abrasive cutting wheels for angle grinders
Abrasive cutting wheels for angle grinders
Diamond cutting wheels for angle grinders
Diamond cutting wheels for angle grinders
| Product | Quantity in package (pcs) | Price | |
|
Diamond wheel HERMAN BD-40 Precisa 100x16,0mm | H=7,0mm | 1 |
Abrasive grinding wheels for angle grinders
Abrasive grinding wheels for angle grinders
| Product | Quantity in package (pcs) | Price | |
|
Grinding wheel HERMAN GS-30 Classic | For steel 100x6,0x16,0mm | 5 | |
|
Grinding wheel HERMAN GS-30 Classic | For steel 100x6,0x16,0mm | 25 |
Flap grinding wheels made of abrasive belts
Flap grinding wheels made of abrasive belts
Protective covers, additional handles, plastic cases
Protective covers, additional handles, plastic cases
Carbon brushes and power cords
Carbon brushes and power cords
| Product | Quantity in package (pcs) | Price | |
|
Carbon brushes (pair) WX 12501, WX 10001 | 1 | |
|
Power supply cord (flex cord) HERMAN FC-10A | 2,5m WX 10001, WX 12501, WX 12503, WX 12504, WX 15001, BX 800, MBX 650, RX 1700 | 1 |
Designation
- Especially for cutting small sections of metal and building materials, or for grinding, polishing and cleaning smaller surfaces
- Weight 1.7 kg, length 260 mm and input power 850 W - an ideal triple combination for work in hard-to-reach places
- A selection of shank-mounted grinding tools for aggressive to fine grinding of small surfaces, suitable for metal, wood and plastic processing
- Cutting discs for cutting thin-walled materials made of stainless steel, alloyed and high-alloy steel, titanium, nickel, and chromium alloys, as well as steel sheets, thin-walled steel pipes, or alternatively aluminum
Comfort
The diameter of the body of the sander at the point of grip is only 62 mm:
it enables a comfortable, natural and firm grip with one hand
Ergonomic position and shape of the mains switch:
enables reliable control of the switch with the thumb even when wearing gloves
Locking the mains switch in the on position:
if necessary, it is not necessary to keep the thumb on the switch while working
Anti-vibration front additional handle with the possibility of attachment in two positions:
significantly reduces vibrations transmitted from the sander to the hand, comfortable work even for left-handed people
Spindle lock button:
makes it easier to change the disc by blocking the rotation of the spindle
Gearbox made of light alloy:
reduces the weight of the sander
Safety
"RESTART PROTECTION" function:
protection against restarting the engine after the power supply is restored
Double insulation:
increased protection against electric shock
Crack-resistant protective disc cover:
with the option of setting the optimal position for greater safety
Lifetime
Self-disconnecting carbon brushes:
protecting the rotor commutator from damage at the end of the life of the carbon brushes
Gearbox made of light alloy:
the material used contains additives that increase resistance to wear
Motor winding with epoxy protection:
contributes to a longer life of the grinder
Effective anti-dust system:
reduces the penetration of dust during the intake of cooling air
Specially shaped air inlets:
increase the efficiency of engine cooling
Parameters
| Voltage [V~] | 220-240 |
|---|---|
| Rated power [W] | 850 |
| Spindle thread | M10 |
| Max. disc diameter [mm] | 100 |
| Idle speed [U/min] | 11000 |
| A-weighted emission sound power level (LWA) [dB(A)] | 102 |
| A-weighted emission sound pressure level (LpA) [dB(A)] | 91 |
| Uncertainty (K) [dB(A)] | 3 |
| Weight (according to EPTA 01/2003) [kg] | 1,6 |
Contents of the package
- 1x Angle grinder
- 1x Additional handle
- 1x Clamping key
- 1x Clamping flange
- 1x Clamping nut
- 1x Disc cover
- 1x Instructions for use
- 1x HERMAN FWS-10/S | Grinding wheel on a shank 30x10x6mm | Corundum | P60
- 1x HERMAN FWS-10/S | Grinding wheel on a shank 30x10x6mm | Corundum | P80
- 1x HERMAN FWS-10/S | Grinding wheel on a shank 30x15x6mm | Corundum | P80
- 1x HERMAN FWS-10/S | Grinding wheel on a shank 40x20x6mm | Corundum | P80
- 1x HERMAN FWX-10/S | Grinding wheel on a shank 40x20x6mm | Ceramic | P60
- 5x FWK-11/S Dragon Black | Cleaning wheel 50x13x8mm | STRIP-IT + SiC
- 5x FWK-21/S Dragon Green | Cleaning wheel 50x13x8mm | STRIP-IT + Al2O3
- 1x FWK-11/S Dragon Black | Cleaning wheel 75x13x8mm | STRIP-IT + SiC
- 1x FWK-21/S Dragon Green | Cleaning wheel 75x13x8mm | STRIP-IT + Al2O3
- 5x HERMAN GSB-10/S | Grinding cuffs 10x20mm | Corundum | P60
- 5x HERMAN GSB-10/S | Grinding cuffs 10x20mm | Corundum | P80
- 2x HERMAN GSB-10/S | Grinding cuffs 25x25mm | Corundum | P40
- 2x HERMAN GSB-10/S | Grinding cuffs 25x25mm | Corundum | P60
- 3x HERMAN GSB-10/S | Grinding cuffs 25x25mm | Corundum | P80
- 1x HERMAN RH-80/S|Carrier for grinding cuffs Medium | 10x20x6mm
- 1x HERMAN RH-80/S|Carrier for grinding cuffs Medium | 25x25x6mm
- 1x HERMAN MS-80| Clamping shank M6
- 1x HERMAN MS-71 | Adapter M10 / collet 6mm
- 25x HERMAN AR-30 Classic| Cutting wheel for stainless steel 100x1,0x16,0mm | Flat | TYP 41
