NEW

Metal drill bit set DIN 338
HERMAN QDM-14 HSS-R
220 pcs drill bits in metal case

Name: Metal drill bit set DIN 338 HERMAN QDM-14 HSS-R 220 pcs drill bits in metal case
Brand: Herman
SKU: 8585059810425
Price: 217.36 EUR
Availability: InStock
Rating: 5 (1 reviews)

217,36 € excl. VAT

In stock > 10 pcs

HERMAN DM-10 HSS-R drill bits with standard sharpening in metal case : diameters 1,0 - 13,0 mm by 0,5 mm + 3,3; 4,2 mm

In Stock

SKU: 97160502 Category of goods: Drill bits for metal

Designation

For drilling in metal of non-alloyed and alloy steel and steel-alloy up to a strength of 800 N/mm2, grey cast iron, non-ferrous metals, bronze, etc.
Suitable for conventional electric drills, bench drills and cordless screwdrivers with chuck

Description

Right-hand drill bits with cylindrical shank made of HSS 4241 high-speed steel, with reinforced core:
high resistance to drill bit breakage during drilling

Point angle 118° with standard taper grind:
sufficient for common applications, little resistance to sliding is felt when drilling

Necessary countersinking before drilling:
the tip is not cross-cut (split point)

Sharp drill bit chamfers:
also well deflect long chips, especially when drilling softer materials

Black nitride finish:
reduces friction during drilling and allows sharpening of the tip and the entire spiral

Recommendation:
use cutting oil when drilling for increased lifetime

Parameters

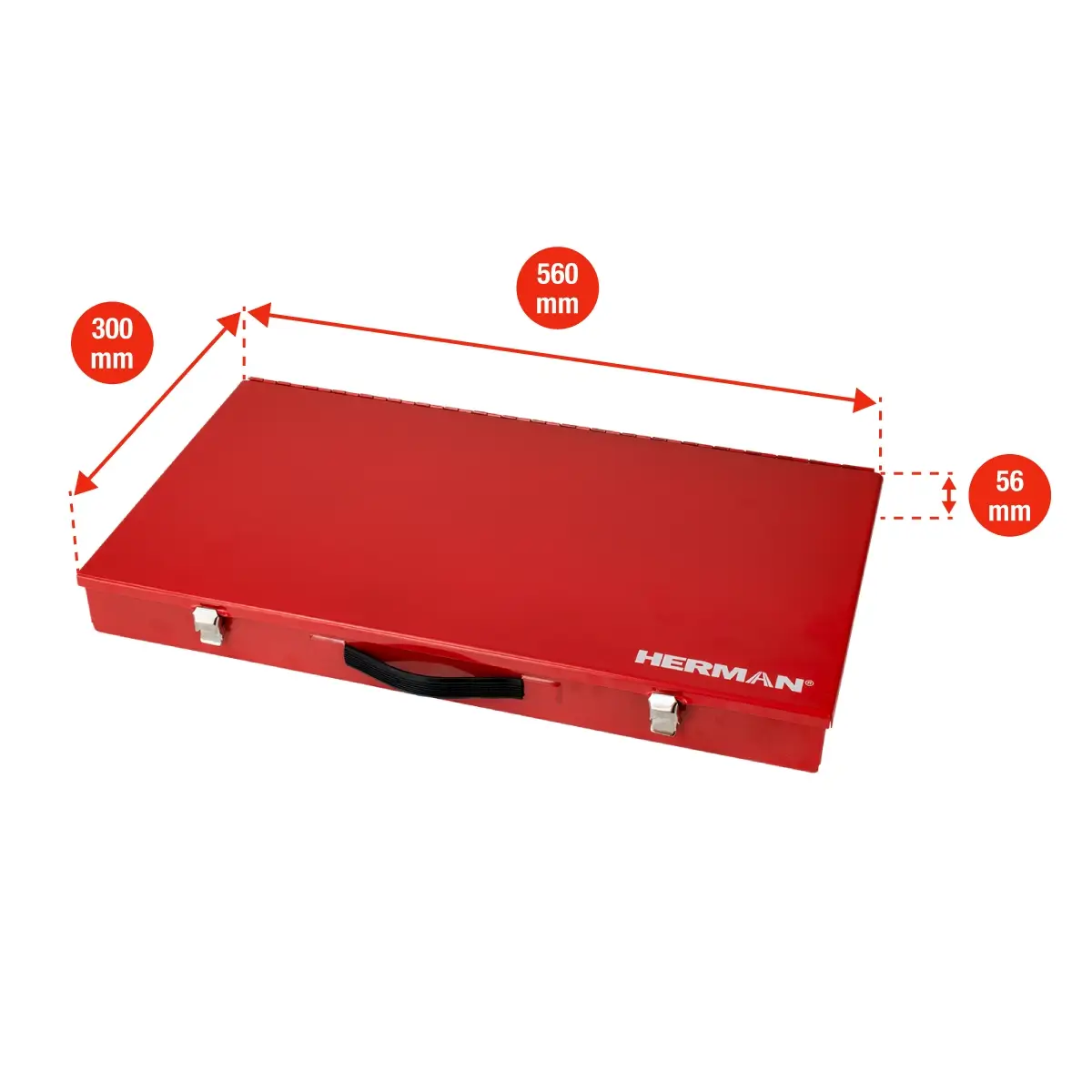

Dimension (open case) (W x D x H) (mm)	560 x 300 x 360
Dimension (closed case) (W x D x H) (mm)	560 x 300 x 60
Weight (kg)	8,55
Material	metal

Contents of the package

10x Metal drill bit DM-10 HSS-R 1,0x12/34mm
10x Metal drill bit DM-10 HSS-R 1,5x18/40mm
10x Metal drill bit DM-10 HSS-R 2,0x24/49mm
10x Metal drill bit DM-10 HSS-R 2,5x30/57mm
10x Metal drill bit DM-10 HSS-R 3,0x33/61mm
10x Metal drill bit DM-10 HSS-R 3,3x36/65mm
10x Metal drill bit DM-10 HSS-R 3,5x39/70mm
10x Metal drill bit DM-10 HSS-R 4,0x43/75mm
10x Metal drill bit DM-10 HSS-R 4,2x43/75mm
10x Metal drill bit DM-10 HSS-R 4,5x47/80mm
10x Metal drill bit DM-10 HSS-R 5,0x52/86mm
10x Metal drill bit DM-10 HSS-R 5,5x57/93mm
10x Metal drill bit DM-10 HSS-R 6,0x57/93mm
10x Metal drill bit DM-10 HSS-R 6,5x63/101mm
10x Metal drill bit DM-10 HSS-R 7,0x69/109mm
10x Metal drill bit DM-10 HSS-R 7,5x69/109mm
10x Metal drill bit DM-10 HSS-R 8,0x75/117mm
5x Metal drill bit DM-10 HSS-R 8,5x75/117mm
5x Metal drill bit DM-10 HSS-R 9,0x81/125mm
5x Metal drill bit DM-10 HSS-R 9,5x81/125mm
5x Metal drill bit DM-10 HSS-R 10,0x87/133mm
5x Metal drill bit DM-10 HSS-R 10,5x87/133mm
5x Metal drill bit DM-10 HSS-R 11,0x94/142mm
5x Metal drill bit DM-10 HSS-R 11,5x94/142mm
5x Metal drill bit DM-10 HSS-R 12,0x101/151mm
5x Metal drill bit DM-10 HSS-R 12,5x101/151mm
5x Metal drill bit DM-10 HSS-R 13,0x101/151mm
1x Metal case

Kalkulačka

Amount	Product	MOC excl. VAT (€)	Vaša VOC po zadanej zľave (€)
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 1,0x12/34mm €	0,26 €	0,208 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 1,5x18/40mm €	0,26 €	0,208 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 2,0x24/49mm €	0,27 €	0,216 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 2,5x30/57mm €	0,27 €	0,216 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 3,0x33/61mm €	0,27 €	0,216 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 3,3x36/65mm €	0,28 €	0,224 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 3,5x39/70mm €	0,28 €	0,224 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 4,0x43/75mm €	0,30 €	0,240 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 4,2x43/75mm €	0,33 €	0,264 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 4,5x47/80mm €	0,38 €	0,304 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 5,0x52/86mm €	0,45 €	0,360 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 5,5x57/93mm €	0,57 €	0,456 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 6,0x57/93mm €	0,64 €	0,512 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 6,5x63/101mm €	0,78 €	0,624 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 7,0x69/109mm €	0,90 €	0,720 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 7,5x69/109mm €	1,02 €	0,816 €
10x	Metal drill DIN 338 HERMAN DM-10 HSS-R 8,0x75/117mm €	1,23 €	0,984 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 8,5x75/117mm €	1,36 €	1,088 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 9,0x81/125mm €	1,57 €	1,256 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 9,5x81/125mm €	1,83 €	1,464 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 10,0x87/133mm €	2,04 €	1,632 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 10,5x87/133mm €	2,30 €	1,840 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 11,0x94/142mm €	2,56 €	2,048 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 11,5x94/142mm €	2,77 €	2,216 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 12,0x101/151mm €	3,14 €	2,512 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 12,5x101/151mm €	3,38 €	2,704 €
5x	Metal drill DIN 338 HERMAN DM-10 HSS-R 13,0x101/151mm €	3,59 €	2,872 €
